Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

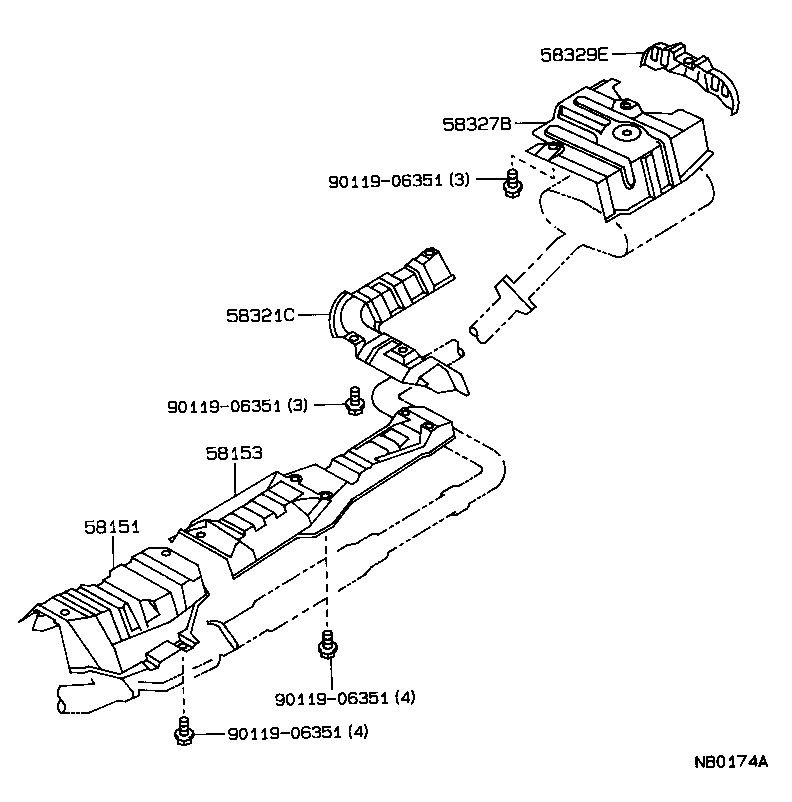

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 58151 — Insulator, Front Floor Heat, NO.1 | ||||
| 58151-12120 |
Insulator, Front Floor Heat, NO.1
1987-05 → 1989-08
ended
|
AE92,EE90 LHD MTM | — | |
| 58151-12120 |
Insulator, Front Floor Heat, NO.1
1989-08 → 1989-11
ended
|
AE92,EE90 LHD MTM CBR | — | |
| 58151-12120 |
Insulator, Front Floor Heat, NO.1
1989-11 → 1992-11
ended
|
AE92,EE90 LHD EFI | — | |
| 58153 — Insulator, Front Floor Heat, NO.2 | ||||
| 58153-12100 |
Insulator, Front Floor Heat, NO.2
1987-05 → 1989-08
ended
|
AE92,EE90 LHD MTM | — | |
| 58153-12100 |
Insulator, Front Floor Heat, NO.2
1989-08 → 1989-11
ended
|
AE92,EE90 LHD MTM CBR | — | |
| 58153-12100 |
Insulator, Front Floor Heat, NO.2
1989-11 → 1992-11
ended
|
AE92,EE90 LHD EFI | — | |
| 58321C — Insulator, Rear Floor Heat, Front | ||||
| 58321-12030 |
Insulator, Rear Floor Heat, Front
1987-05 → 1989-08
ended
|
AE92,EE90 LHD MTM | — | |
| 58321-12030 |
Insulator, Rear Floor Heat, Front
1989-08 → 1989-11
ended
|
AE92,EE90 LHD MTM CBR | — | |
| 58321-12030 |
Insulator, Rear Floor Heat, Front
1989-11 → 1992-11
ended
|
AE92,EE90 LHD EFI | — | |
| 58327B — Insulator, Main Muffler Heat | ||||
| 58327-12080 |
Insulator, Main Muffler Heat
1987-05 → 1989-11
ended
|
AE92 GTI;AE92,EE90 CBR | — | |
| 58327-12080 |
Insulator, Main Muffler Heat
1989-11 → 1992-11
ended
|
AE92,EE90 | — | |
| 58329E — Insulator, Main Muffler Hart, Rear Upper | ||||
| 58329-12010 |
Insulator, Main Muffler Hart, Rear Upper
1987-05 → 1989-11
ended
|
AE92 GTI;AE92,CE90,EE90 CBR,DSL | — | |
| 58329-12010 |
Insulator, Main Muffler Hart, Rear Upper
1989-11 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
