Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

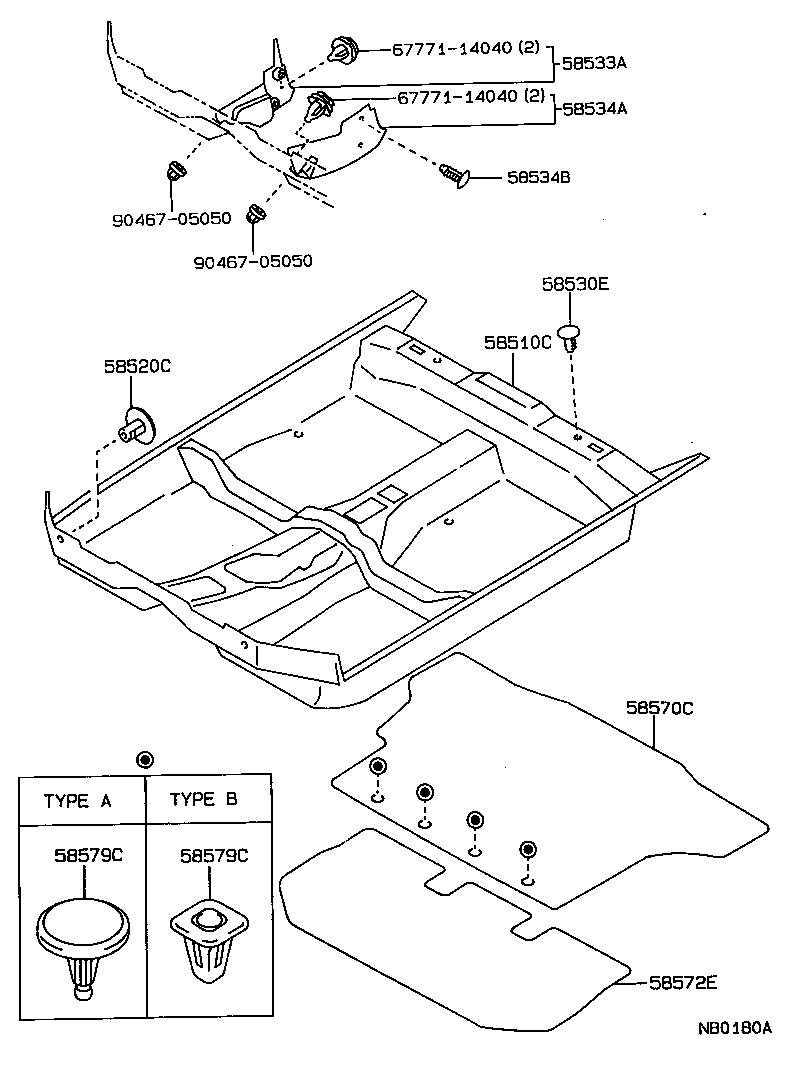

Exploded illustration NB0180A 6777114040 — not listed in this catalogue 58533A — COVER, FLOOR CARPET, CENTER RH (2 parts) 6777114040 — not listed in this catalogue 58534A — MAT, TRANSMISSION COVER (2 parts) 58534B — CLIP(FOR FLOOR CARPET CENTER COVER) (6 parts) 9046705050 — not listed in this catalogue 9046705050 — not listed in this catalogue 58530E — CLIP(FOR FRONT FLOOR REAR CARPET) (18 parts) 58510C — CARPET ASSY, FRONT FLOOR, FRONT (51 parts) 58520C — CLIP(FOR FRONT FLOOR CARPET) (7 parts) 58570C — CARPET ASSY, REAR FLOOR (25 parts) 58579C — CLIP, REAR FLOOR CARPET SET (13 parts) 58579C — CLIP, REAR FLOOR CARPET SET (13 parts) 58572E — MAT, REAR FLOOR, FRONT (3 parts)
NB0180A · 10 callouts, 4 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
127 parts on this figure
Part number Description Fitment Price
58510C — Carpet Assy, Front Floor, Front
58510-1A030-03 note Carpet Assy, Front Floor, Front
1987-05 → 1992-06 ended
AE92,EE90 5D GL —
58510-1A030-04 note Carpet Assy, Front Floor, Front
1987-08 → 1992-06 ended
AE92,EE90 5D GL —
58510-1A030-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 5D GL —
58510-1A030-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-06 ended
EE90 5D GL —
58510-1A140-03 note Carpet Assy, Front Floor, Front
1987-05 → 1992-06 ended
AE92,EE90 5D GL —
58510-1A140-04 note Carpet Assy, Front Floor, Front
1987-08 → 1992-06 ended
AE92,EE90 5D GL —
58510-1A140-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 5D GL —
58510-1A140-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-06 ended
EE90 5D GL —
58510-1A180-03 note Carpet Assy, Front Floor, Front
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD 5D (XL,XLI) —
58510-1A180-04 note Carpet Assy, Front Floor, Front
1987-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D (XL,XLI) —
58510-1A180-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D XL —
58510-1A180-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D (XL,XLI) —
58510-1A190-03 note Carpet Assy, Front Floor, Front
1987-05 → 1992-06 ended
AE92,CE90,EE90 LHD 5D (XL,XLI) —
58510-1A190-04 note Carpet Assy, Front Floor, Front
1987-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D (XL,XLI) —
58510-1A190-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D XL —
58510-1A190-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D (XL,XLI) —
58510-1A250-03 note Carpet Assy, Front Floor, Front
1987-05 → 1992-06 ended
EE90 RHD 5D —
58510-1A250-04 note Carpet Assy, Front Floor, Front
1989-08 → 1992-06 ended
EE90 RHD 5D —
58510-1A250-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
EE90 RHD 5D —
58510-1A300-03 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (STD,XL) —
58510-1A300-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (STD,XL) —
58510-1A301-03 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (STD,XL,XLI) —
58510-1A301-04 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (STD,XL,XLI) —
58510-1A301-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
58510-1A320-03 note Carpet Assy, Front Floor, Front
1988-12 → 1989-08 ended
AE92 3D XL —
58510-1A320-03 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D (GL,GTI) —
58510-1A320-04 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
58510-1A320-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
58510-1A321-03 note Carpet Assy, Front Floor, Front
1989-08 → 1992-11 ended
AE92 LHD (GLI,GTI,SR5) —
58510-1A321-04 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92 GLI —
58510-1A321-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92 GLI —
58510-1A450-03 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
CE90,EE90 RHD 3D XL —
58510-1A450-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
CE90,EE90 RHD 3D XL —
58510-1A451-03 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
CE90,EE90 RHD 3D XL —
58510-1A460-03 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (STD,XL) —
58510-1A460-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (STD,XL) —
58510-1A461-03 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (STD,XL,XLI) —
58510-1A461-04 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (STD,XL,XLI) —
58510-1A461-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
58510-1A470-03 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 RHD (GL,GTI) —
58510-1A470-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
EE90 RHD GL —
58510-1A471-03 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
58510-1A471-04 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
EE90 3D GL —
58510-1A480-03 note Carpet Assy, Front Floor, Front
1988-12 → 1989-08 ended
AE92 3D XL —
58510-1A480-03 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D (GL,GTI) —
58510-1A480-04 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
58510-1A480-05 note Carpet Assy, Front Floor, Front
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
58510-1A480-05 note Carpet Assy, Front Floor, Front
1988-12 → 1989-08 ended
AE92 3D XL —
58510-1A481-03 note Carpet Assy, Front Floor, Front
1989-08 → 1992-11 ended
AE92 LHD (GLI,GTI,SR5) —
58510-1A481-04 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92 GLI —
58510-1A481-06 note Carpet Assy, Front Floor, Front
1989-08 → 1992-05 ended
AE92 GLI —
58520C — Clip(FOR FRONT FLOOR CARPET)
90467-09068-01 note Clip(FOR FRONT FLOOR CARPET)
1987-05 → 1987-08 ended
AE92 GL;EE90 5D GL;EE90 +6 —
90467-09068-01 note Clip(FOR FRONT FLOOR CARPET)
1987-05 → 1989-08 ended
AE92 EFI —
90467-09068-01 note Clip(FOR FRONT FLOOR CARPET)
1987-05 → 1989-08 ended
CE90,EE90 RHD;CE90,EE90 STD —
90467-09068-01 note Clip(FOR FRONT FLOOR CARPET)
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
90467-09068-11 note Clip(FOR FRONT FLOOR CARPET)
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
90467-09068-11 note Clip(FOR FRONT FLOOR CARPET)
1989-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-09068-11 note Clip(FOR FRONT FLOOR CARPET)
1989-08 → 1992-11 ended
CE90,EE90 RHD;CE90,EE90 STD —
58530E — Clip(FOR FRONT FLOOR REAR CARPET)
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-08 → 1992-11 ended
CE90,EE90 RHD;CE90,EE90 STD —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-08 → 1989-08 ended
CE90,EE90 RHD;CE90,EE90 STD —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-05 → 1989-08 ended
AE92 EFI —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-05 → 1987-08 ended
CE90,EE90 RHD;CE90,EE90 STD;AE92,EE90 5D +1 —
90467-06049-01 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-05 → 1987-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
90467-06049-03 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
90467-06049-15 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-05 → 1988-09 ended
AE92,CE90,EE90 CBR,DSL —
90467-06049-16 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-08 → 1989-09 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-06049-24 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-08 → 1988-09 ended
AE92 3D GL;AE92,CE90 5D;EE90 +5 —
90467-06049-24 note Clip(FOR FRONT FLOOR REAR CARPET)
1987-05 → 1987-08 ended
AE92,EE90 LHD 3D GL —
90467-06049-B0 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
90467-06049-E0 note Clip(FOR FRONT FLOOR REAR CARPET)
1988-09 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
90467-06049-E4 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-09 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-06049-J1 note Clip(FOR FRONT FLOOR REAR CARPET)
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
90467-06049-J1 note Clip(FOR FRONT FLOOR REAR CARPET)
1988-09 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
58533A — Cover, Floor Carpet, Center RH
58533-12010 Cover, Floor Carpet, Center RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
58533-12020 Cover, Floor Carpet, Center RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
58534A — Mat, Transmission Cover
58534-12010 Mat, Transmission Cover
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
58534-12020 Mat, Transmission Cover
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
58534B — Clip(FOR FLOOR CARPET CENTER COVER)
90467-10034-01 note Clip(FOR FLOOR CARPET CENTER COVER)
1990-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-10034-01 note Clip(FOR FLOOR CARPET CENTER COVER)
1990-08 → 1992-11 ended
AE92 LHD (GTI,SR5) —
90467-10034-01 note Clip(FOR FLOOR CARPET CENTER COVER)
1990-08 → 1992-11 ended
CE90,EE90 STD —
90467-10034-01 note Clip(FOR FLOOR CARPET CENTER COVER)
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
90467-10034-01 note Clip(FOR FLOOR CARPET CENTER COVER)
1987-05 → 1989-08 ended
CE90,EE90 STD —
90467-10034-01 note Clip(FOR FLOOR CARPET CENTER COVER)
1987-05 → 1989-08 ended
AE92 LHD EFI —
58570C — Carpet Assy, Rear Floor
58570-12320-03 note Carpet Assy, Rear Floor
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
58570-12320-04 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
58570-12320-04 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
58570-12320-05 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
58570-12320-06 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
58570-12340-03 note Carpet Assy, Rear Floor
1987-05 → 1992-11 ended
AE92 GTI —
58570-12370-03 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
CE90 XL;EE90 3D (XL,XLI);EE90 +3 —
58570-12370-03 note Carpet Assy, Rear Floor
1987-05 → 1992-06 ended
AE92 XL,XLI —
58570-12370-03 note Carpet Assy, Rear Floor
1987-05 → 1992-06 ended
EE90 GL —
58570-12370-03 note Carpet Assy, Rear Floor
1987-05 → 1992-05 ended
AE92 GL,GLI,SR5 —
58570-12370-03 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
CE90,EE90 XL —
58570-12370-04 note Carpet Assy, Rear Floor
1987-05 → 1992-06 ended
AE92 XL,XLI —
58570-12370-04 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
CE90,EE90 LHD XL —
58570-12370-04 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
EE90 LHD GL —
58570-12370-04 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
EE90 GL —
58570-12370-04 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
CE90 XL;EE90 3D (XL,XLI);EE90 +3 —
58570-12370-04 note Carpet Assy, Rear Floor
1987-05 → 1992-05 ended
AE92 GL,GLI —
58570-12370-05 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
AE92 XL —
58570-12370-05 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
AE92 GL —
58570-12370-05 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
CE90,EE90 XL —
58570-12370-05 note Carpet Assy, Rear Floor
1987-05 → 1989-08 ended
EE90 GL —
58570-12370-06 note Carpet Assy, Rear Floor
1989-08 → 1992-05 ended
AE92 GLI —
58570-12370-06 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
EE90 5D GL —
58570-12370-06 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
CE90,EE90 LHD (XL,XLI) —
58570-12370-06 note Carpet Assy, Rear Floor
1989-08 → 1992-06 ended
AE92 XL,XLI —
58572E — Mat, Rear Floor, Front
58572-12040 Mat, Rear Floor, Front
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
58572-12040 Mat, Rear Floor, Front
1989-08 → 1990-07 ended
AE92,CE90,EE90 —
58572-12041 Mat, Rear Floor, Front
1990-07 → 1992-11 ended
AE92,CE90,EE90 —
58579C — Clip, Rear Floor Carpet Set
90467-07079-03 note Clip, Rear Floor Carpet Set
1987-05 → 1987-07 ended
AE92,CE90,EE90 —
90467-07079-04 note Clip, Rear Floor Carpet Set
1987-05 → 1987-07 ended
AE92,CE90,EE90 LHD (GL,XL) —
90467-07079-05 note Clip, Rear Floor Carpet Set
1987-05 → 1987-07 ended
AE92,CE90,EE90 CBR,DSL —
90467-07084-03 note Clip, Rear Floor Carpet Set
1987-08 → 1992-11 ended
AE92,CE90,EE90 —
90467-07084-04 note Clip, Rear Floor Carpet Set
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
90467-07084-04 note Clip, Rear Floor Carpet Set
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
90467-07084-05 note Clip, Rear Floor Carpet Set
1987-08 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
90467-07084-06 note Clip, Rear Floor Carpet Set
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-10023 note Clip, Rear Floor Carpet Set
1987-05 → 1987-07 ended
AE92,CE90,EE90 —
90467-10023 Clip, Rear Floor Carpet Set
1987-05 → 1987-07 ended
AE92,CE90,EE90 3D (STD,XL) —
90467-10023 Clip, Rear Floor Carpet Set
1987-07 → 1987-08 ended
AE92,CE90,EE90 —
90467-10023 note Clip, Rear Floor Carpet Set
1987-08 → 1992-11 ended
AE92,CE90,EE90 —
90467-10023 Clip, Rear Floor Carpet Set
1987-08 → 1992-11 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
