Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

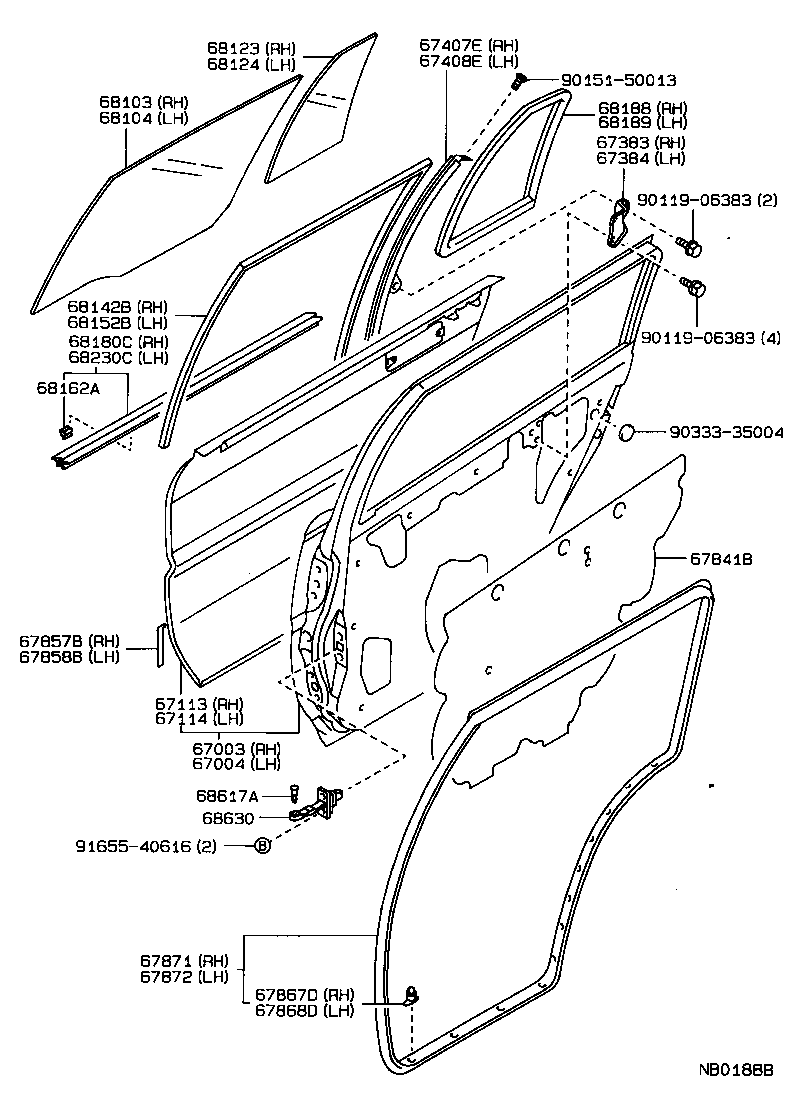

Exploded illustration NB0188B 67407E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH (1 parts) 68123 — GLASS, REAR DOOR WINDOW, RH (3 parts) 67408E — BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH (1 parts) 68124 — GLASS, REAR DOOR WINDOW, LH (3 parts) 9015150013 — not listed in this catalogue 68103 — GLASS SUB-ASSY, REAR DOOR, RH (3 parts) 68188 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH (2 parts) 68104 — GLASS SUB-ASSY, REAR DOOR, LH (3 parts) 68189 — WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH (2 parts) 67383 — BRACKET, REAR DOOR INSIDE PANEL, NO.2 RH (1 parts) 67384 — BRACKET, REAR DOOR INSIDE PANEL, NO.2 LH (1 parts) 9011906383 — not listed in this catalogue 68142B — RUN, REAR DOOR WINDOW, RH (1 parts) 68152B — RUN, REAR DOOR WINDOW, LH (1 parts) 9011906383 — not listed in this catalogue 68180C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER RH (1 parts) 68230C — WEATHERSTRIP ASSY, REAR DOOR GLASS, OUTER LH (1 parts) 68162A — CLIP(FOR REAR DOOR GLASS OUTER WEATHERSTRIP) (1 parts) 9033335004 — not listed in this catalogue 67841B — COVER, REAR DOOR SERVICE HOLE (1 parts) 67857B — PROTECTOR, REAR DOOR PANEL, RH (2 parts) 67858B — PROTECTOR, REAR DOOR PANEL, LH (2 parts) 67113 — PANEL, REAR DOOR, OUTER RH (1 parts) 67114 — PANEL, REAR DOOR, OUTER LH (1 parts) 67003 — PANEL SUB-ASSY, REAR DOOR, RH (1 parts) 67004 — PANEL SUB-ASSY, REAR DOOR, LH (1 parts) 68617A — PIN, REAR DOOR CHECK (2 parts) 68630 — CHECK ASSY, REAR DOOR (1 parts) 9165540616 — not listed in this catalogue 67871 — WEATHERSTRIP, REAR DOOR, RH (2 parts) 67872 — WEATHERSTRIP, REAR DOOR, LH (2 parts) 67867D — RETAINER, REAR DOOR WEATHERSTRIP, RH (2 parts) 67868D — RETAINER, REAR DOOR WEATHERSTRIP, LH (2 parts)
NB0188B · 28 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
45 parts on this figure
Part number Description Fitment Price
67003 — Panel Sub-assy, Rear Door, RH
67003-12600 Panel Sub-assy, Rear Door, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67004 — Panel Sub-assy, Rear Door, LH
67004-12600 Panel Sub-assy, Rear Door, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67113 — Panel, Rear Door, Outer RH
67113-12140 Panel, Rear Door, Outer RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67114 — Panel, Rear Door, Outer LH
67114-12140 Panel, Rear Door, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67383 — Bracket, Rear Door Inside Panel, NO.2 RH
67383-12030 Bracket, Rear Door Inside Panel, NO.2 RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67384 — Bracket, Rear Door Inside Panel, NO.2 LH
67384-12030 Bracket, Rear Door Inside Panel, NO.2 LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67407E — Bar Sub-assy, Rear Door Window Division, RH
67407-12160 Bar Sub-assy, Rear Door Window Division, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67408E — Bar Sub-assy, Rear Door Window Division, LH
67408-12160 Bar Sub-assy, Rear Door Window Division, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67841B — Cover, Rear Door Service Hole
67841-12220 Cover, Rear Door Service Hole
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67857B — Protector, Rear Door Panel, RH
67857-12010 Protector, Rear Door Panel, RH
1987-10 → 1988-08 ended
AE92,CE90,EE90 5D —
67857-12020 Protector, Rear Door Panel, RH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67858B — Protector, Rear Door Panel, LH
67858-12010 Protector, Rear Door Panel, LH
1987-10 → 1988-08 ended
AE92,CE90,EE90 5D —
67858-12020 Protector, Rear Door Panel, LH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67867D — Retainer, Rear Door Weatherstrip, RH
67867-12120 Retainer, Rear Door Weatherstrip, RH
1987-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67868-12050 Retainer, Rear Door Weatherstrip, RH
1987-05 → 1987-08 ended
AE92,CE90,EE90 5D —
67868D — Retainer, Rear Door Weatherstrip, LH
67868-12030 Retainer, Rear Door Weatherstrip, LH
1987-05 → 1987-08 ended
AE92,CE90,EE90 5D —
67868-12070 Retainer, Rear Door Weatherstrip, LH
1987-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67871 — Weatherstrip, Rear Door, RH
67871-12320 Weatherstrip, Rear Door, RH
1987-05 → 1989-05 ended
AE92,CE90,EE90 5D —
67871-12321 Weatherstrip, Rear Door, RH
1989-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67872 — Weatherstrip, Rear Door, LH
67872-12320 Weatherstrip, Rear Door, LH
1987-05 → 1989-05 ended
AE92,CE90,EE90 5D —
67872-12321 Weatherstrip, Rear Door, LH
1989-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68103 — Glass Sub-assy, Rear Door, RH
68113-12210 note Glass Sub-assy, Rear Door, RH
1990-11 → 1992-06 ended
EE90 5D GL —
68113-12260 note Glass Sub-assy, Rear Door, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68113-12270 note Glass Sub-assy, Rear Door, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68104 — Glass Sub-assy, Rear Door, LH
68114-12210 note Glass Sub-assy, Rear Door, LH
1990-11 → 1992-06 ended
EE90 5D GL —
68114-12260 note Glass Sub-assy, Rear Door, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68114-12270 note Glass Sub-assy, Rear Door, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68123 — Glass, Rear Door Window, RH
68123-12410 note Glass, Rear Door Window, RH
1990-11 → 1992-06 ended
EE90 5D GL —
68123-12450 note Glass, Rear Door Window, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68123-12460 note Glass, Rear Door Window, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68124 — Glass, Rear Door Window, LH
68124-12410 note Glass, Rear Door Window, LH
1990-11 → 1992-06 ended
EE90 5D GL —
68124-12450 note Glass, Rear Door Window, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68124-12460 note Glass, Rear Door Window, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68142B — Run, Rear Door Window, RH
68142-12140 Run, Rear Door Window, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68152B — Run, Rear Door Window, LH
68152-12060 Run, Rear Door Window, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
68162A — Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
68211-12160 Clip(FOR REAR DOOR GLASS OUTER WEATHERSTRIP)
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68180C — Weatherstrip Assy, Rear Door Glass, Outer RH
68180-12090 Weatherstrip Assy, Rear Door Glass, Outer RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68188 — Weatherstrip, Rear Door Quarter Window, RH
68188-12220 Weatherstrip, Rear Door Quarter Window, RH
1987-05 → 1988-11 ended
AE92,CE90,EE90 5D —
68188-12220 Weatherstrip, Rear Door Quarter Window, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
68189 — Weatherstrip, Rear Door Quarter Window, LH
68189-12230 Weatherstrip, Rear Door Quarter Window, LH
1987-05 → 1988-11 ended
AE92,CE90,EE90 5D —
68189-12230 Weatherstrip, Rear Door Quarter Window, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
68230C — Weatherstrip Assy, Rear Door Glass, Outer LH
68230-12060 Weatherstrip Assy, Rear Door Glass, Outer LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D (XL,XLI) —
68617A — Pin, Rear Door Check
68617-12030 Pin, Rear Door Check
1988-09 → 1992-06 ended
AE92,CE90,EE90 5D —
68617-22020 Pin, Rear Door Check
1987-05 → 1988-09 ended
AE92,CE90,EE90 5D —
68630 — Check Assy, Rear Door
68630-12040 Check Assy, Rear Door
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
