Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

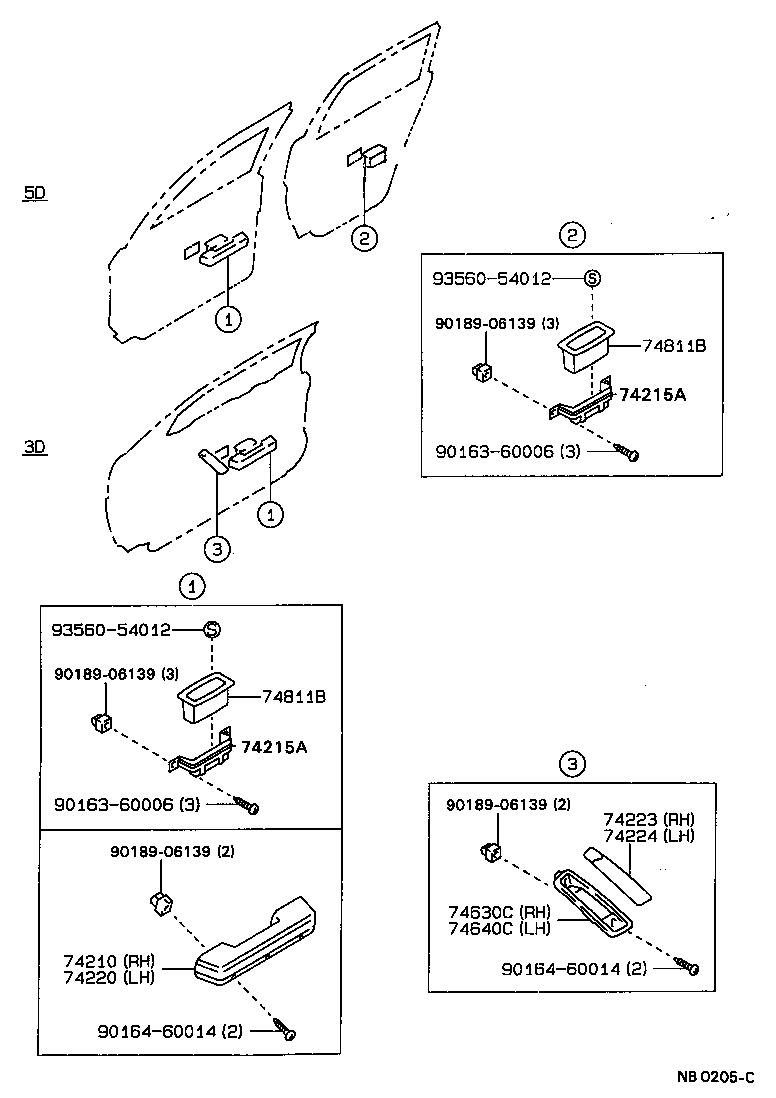

Exploded illustration NB0205C 9356054012 — not listed in this catalogue 9018906139 — not listed in this catalogue 74811B — HANDLE, DOOR PULL (5 parts) 74215A — BASE, DOOR ARMREST RH (3 parts) 9016360006 — not listed in this catalogue 9356054012 — not listed in this catalogue 9018906139 — not listed in this catalogue 74811B — HANDLE, DOOR PULL (5 parts) 74215A — BASE, DOOR ARMREST RH (3 parts) 9016360006 — not listed in this catalogue 9018906139 — not listed in this catalogue 74223 — CAP, DOOR ARMREST, RH (12 parts) 74224 — CAP, DOOR ARMREST, LH (12 parts) 9018906139 — not listed in this catalogue 74630C — GRIP ASSY, DOOR ASSIST, RH (9 parts) 74640C — GRIP ASSY, DOOR ASSIST, LH (9 parts) 74210 — ARMREST ASSY, FRONT, RH (5 parts) 9016460014 — not listed in this catalogue 74220 — ARMREST ASSY, FRONT, LH (5 parts) 9016460014 — not listed in this catalogue
NB0205C · 10 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
60 parts on this figure
Part number Description Fitment Price
74210 — Armrest Assy, Front, RH
74210-22061-16 note Armrest Assy, Front, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
74210-22061-23 note Armrest Assy, Front, RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
74210-22061-24 note Armrest Assy, Front, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
74210-22061-24 note Armrest Assy, Front, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
74210-22061-25 note Armrest Assy, Front, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (STD,XL) —
74215A — Base, Door Armrest RH
74215-12020 note Base, Door Armrest RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
74215-12020 Base, Door Armrest RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
74215-12040 note Base, Door Armrest RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
74220 — Armrest Assy, Front, LH
74210-22061-16 note Armrest Assy, Front, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
74210-22061-23 note Armrest Assy, Front, LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
74210-22061-24 note Armrest Assy, Front, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
74210-22061-24 note Armrest Assy, Front, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (STD,XL,XLI) —
74210-22061-25 note Armrest Assy, Front, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (STD,XL) —
74223 — Cap, Door Armrest, RH
74223-12070-03 note Cap, Door Armrest, RH
1988-12 → 1989-08 ended
AE92 3D XL —
74223-12070-03 note Cap, Door Armrest, RH
1987-05 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74223-12070-04 note Cap, Door Armrest, RH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
74223-12070-04 note Cap, Door Armrest, RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74223-12070-05 note Cap, Door Armrest, RH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
74223-12070-06 note Cap, Door Armrest, RH
1989-08 → 1992-05 ended
AE92 GLI —
74223-12090-03 note Cap, Door Armrest, RH
1989-08 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74223-12090-04 note Cap, Door Armrest, RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74223-12090-06 note Cap, Door Armrest, RH
1989-08 → 1992-05 ended
AE92 GLI —
74223-12100-03 note Cap, Door Armrest, RH
1989-08 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74223-12100-04 note Cap, Door Armrest, RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74223-12100-06 note Cap, Door Armrest, RH
1989-08 → 1992-05 ended
AE92 GLI —
74224 — Cap, Door Armrest, LH
74223-12100-03 note Cap, Door Armrest, LH
1989-08 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74223-12100-04 note Cap, Door Armrest, LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74223-12100-06 note Cap, Door Armrest, LH
1989-08 → 1992-05 ended
AE92 GLI —
74224-12020-03 note Cap, Door Armrest, LH
1987-05 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74224-12020-03 note Cap, Door Armrest, LH
1988-12 → 1989-08 ended
AE92 3D XL —
74224-12020-04 note Cap, Door Armrest, LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74224-12020-04 note Cap, Door Armrest, LH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
74224-12020-05 note Cap, Door Armrest, LH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
74224-12020-06 note Cap, Door Armrest, LH
1989-08 → 1992-05 ended
AE92 GLI —
74224-12040-03 note Cap, Door Armrest, LH
1989-08 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74224-12040-04 note Cap, Door Armrest, LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74224-12040-06 note Cap, Door Armrest, LH
1989-08 → 1992-05 ended
AE92 GLI —
74630C — Grip Assy, Door Assist, RH
74630-12010-03 note Grip Assy, Door Assist, RH
1988-12 → 1989-08 ended
AE92 3D XL —
74630-12010-03 note Grip Assy, Door Assist, RH
1987-05 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74630-12010-04 note Grip Assy, Door Assist, RH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
74630-12010-04 note Grip Assy, Door Assist, RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74630-12010-05 note Grip Assy, Door Assist, RH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
74630-12010-06 note Grip Assy, Door Assist, RH
1989-08 → 1992-05 ended
AE92 GLI —
74630-12030-03 note Grip Assy, Door Assist, RH
1989-08 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74630-12030-04 note Grip Assy, Door Assist, RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74630-12030-06 note Grip Assy, Door Assist, RH
1989-08 → 1992-05 ended
AE92 GLI —
74640C — Grip Assy, Door Assist, LH
74640-12010-03 note Grip Assy, Door Assist, LH
1988-12 → 1989-08 ended
AE92 3D XL —
74640-12010-03 note Grip Assy, Door Assist, LH
1987-05 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74640-12010-04 note Grip Assy, Door Assist, LH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
74640-12010-04 note Grip Assy, Door Assist, LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74640-12010-05 note Grip Assy, Door Assist, LH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
74640-12010-06 note Grip Assy, Door Assist, LH
1989-08 → 1992-05 ended
AE92 GLI —
74640-12030-03 note Grip Assy, Door Assist, LH
1989-08 → 1992-11 ended
AE92,EE90 3D (GL,GLI,GTI,SR5) —
74640-12030-04 note Grip Assy, Door Assist, LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
74640-12030-06 note Grip Assy, Door Assist, LH
1989-08 → 1992-05 ended
AE92 GLI —
74811B — Handle, Door Pull
74811-12040-03 note Handle, Door Pull
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
74811-12040-04 note Handle, Door Pull
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
74811-12040-04 note Handle, Door Pull
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
74811-12040-05 note Handle, Door Pull
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
74811-12040-06 note Handle, Door Pull
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
