Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

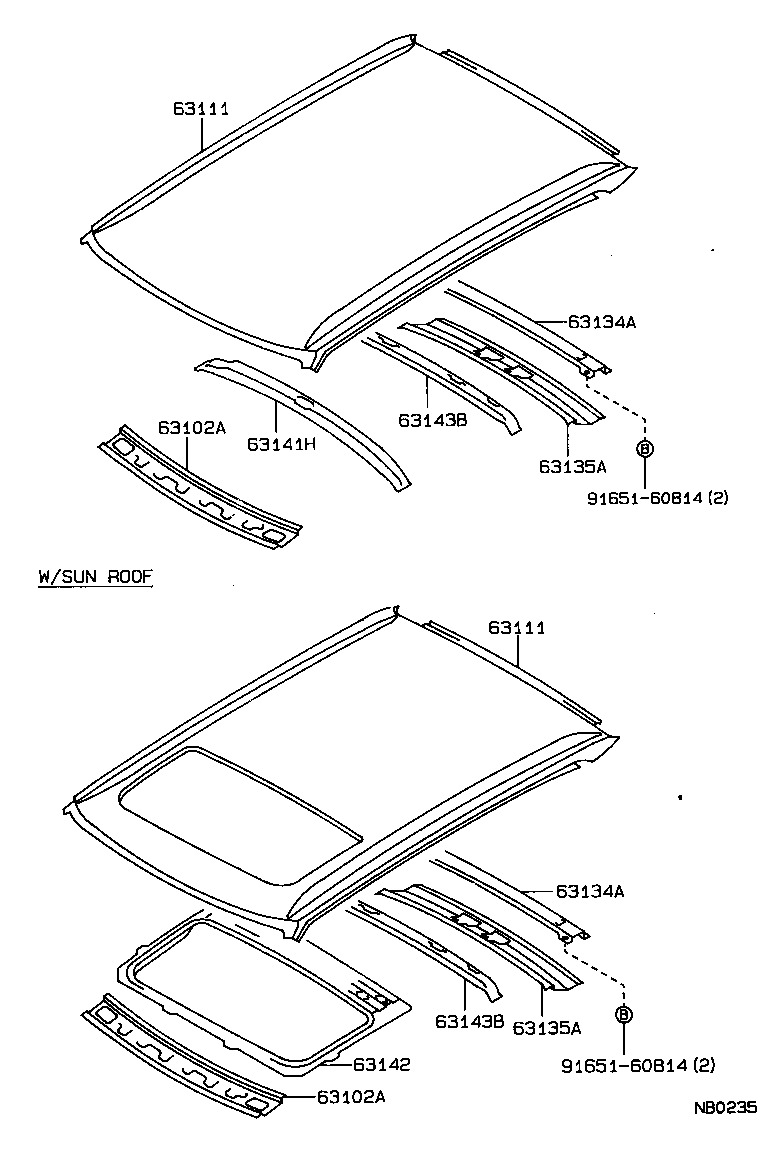

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63102A — Panel Sub-assy, Windshield Header | ||||
| 63102-12040 |
Panel Sub-assy, Windshield Header
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63111 — Panel, Roof | ||||
| 63111-12390 |
Panel, Roof
1987-05 → 1988-08
ended
|
AE92,CE90,EE90 | — | |
| 63111-12391 |
Panel, Roof
1988-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63111-12400 note |
Panel, Roof
1987-05 → 1988-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 63111-12401 note |
Panel, Roof
1991-06 → 1992-06
ended
|
EE90 3FC EFI | — | |
| 63111-12401 note |
Panel, Roof
1988-08 → 1992-11
ended
|
EE90 GL,XL;EE90 MTM XLI;AE92,CE90 +1 | — | |
| 63134A — Frame, Back Door Opening, Upper | ||||
| 63134-12140 |
Frame, Back Door Opening, Upper
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63135A — Frame, Back Door Opening, Lower | ||||
| 63135-12080 |
Frame, Back Door Opening, Lower
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63141H — Reinforcement, Roof Panel, Center | ||||
| 63141-12130 |
Reinforcement, Roof Panel, Center
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63142 — Reinforcement, Roof Panel, NO.2 | ||||
| 63142-12030 |
Reinforcement, Roof Panel, NO.2
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 63143B — Reinforcement, Roof Panel, NO.3 | ||||
| 63143-12040 |
Reinforcement, Roof Panel, NO.3
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
