Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

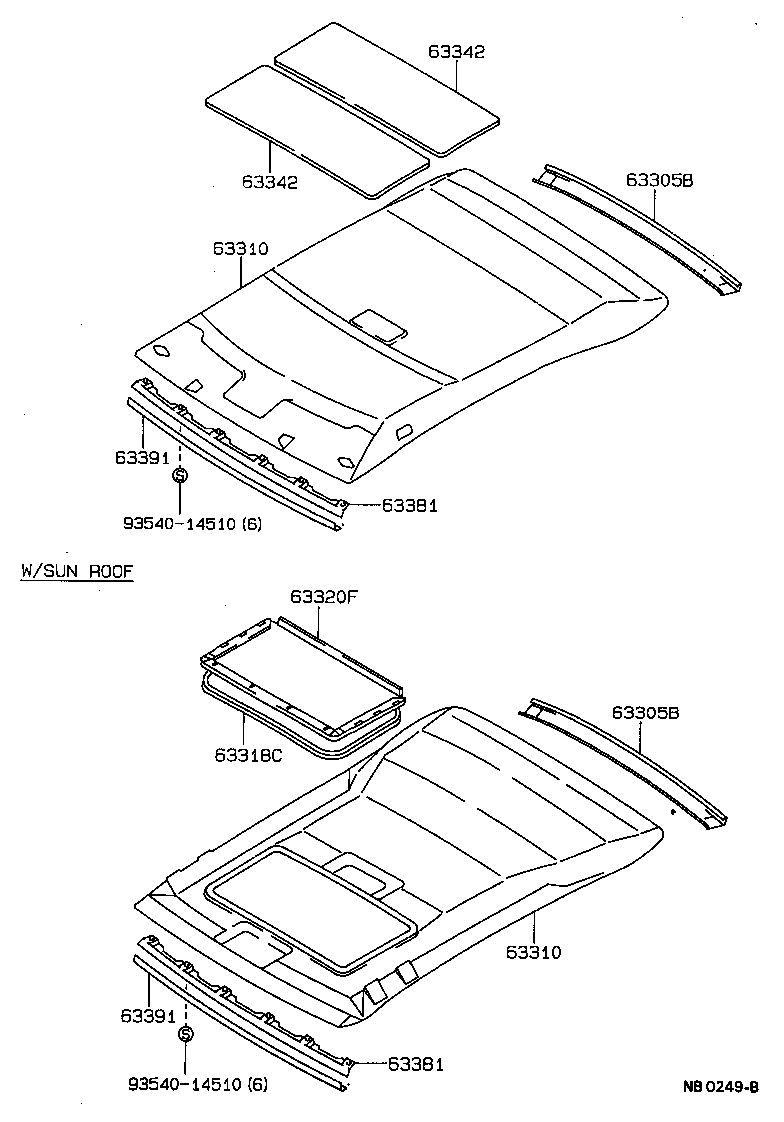

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 63305B — Trim Sub-assy, Roof Headlining, Rear | ||||
| 63305-12110-03 note |
Trim Sub-assy, Roof Headlining, Rear
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63305-12110-04 note |
Trim Sub-assy, Roof Headlining, Rear
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63305-12110-04 note |
Trim Sub-assy, Roof Headlining, Rear
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
| 63305-12110-05 note |
Trim Sub-assy, Roof Headlining, Rear
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 63305-12110-06 note |
Trim Sub-assy, Roof Headlining, Rear
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63310 — Headlining Assy, Roof | ||||
| 63310-1A030-03 note |
Headlining Assy, Roof
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 SR5,STD,XL,XLI | — | |
| 63310-1A030-04 note |
Headlining Assy, Roof
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD XL | — | |
| 63310-1A030-04 note |
Headlining Assy, Roof
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 STD,XL,XLI | — | |
| 63310-1A030-05 note |
Headlining Assy, Roof
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 STD,XL | — | |
| 63310-1A030-06 note |
Headlining Assy, Roof
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (XL,XLI) | — | |
| 63310-1A040-03 note |
Headlining Assy, Roof
1987-05 → 1992-11
ended
|
AE92,EE90 GL,GLI,GTI | — | |
| 63310-1A040-04 note |
Headlining Assy, Roof
1989-08 → 1992-06
ended
|
AE92,EE90 GL,GLI | — | |
| 63310-1A040-04 note |
Headlining Assy, Roof
1987-05 → 1989-08
ended
|
AE92,EE90 LHD GL | — | |
| 63310-1A040-05 note |
Headlining Assy, Roof
1987-05 → 1989-08
ended
|
AE92,EE90 GL | — | |
| 63310-1A040-06 note |
Headlining Assy, Roof
1989-08 → 1992-06
ended
|
AE92,EE90 LHD (GL,GLI) | — | |
| 63310-1A060-03 note |
Headlining Assy, Roof
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 63310-1A060-04 note |
Headlining Assy, Roof
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63310-1A060-04 note |
Headlining Assy, Roof
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 63310-1A060-05 note |
Headlining Assy, Roof
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,XL | — | |
| 63310-1A060-06 note |
Headlining Assy, Roof
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63318C — Moulding, Sun Roof Opening Trim | ||||
| 63318-12030-03 note |
Moulding, Sun Roof Opening Trim
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 63318-12030-04 note |
Moulding, Sun Roof Opening Trim
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63318-12030-05 note |
Moulding, Sun Roof Opening Trim
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,XL | — | |
| 63318-12030-06 note |
Moulding, Sun Roof Opening Trim
1989-08 → 1989-09
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63318-12030-B3 note |
Moulding, Sun Roof Opening Trim
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 63318-12030-E4 note |
Moulding, Sun Roof Opening Trim
1989-09 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63318-12030-J2 note |
Moulding, Sun Roof Opening Trim
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 63320F — Headlining Assy, Sun Roof | ||||
| 63320-12070-03 note |
Headlining Assy, Sun Roof
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 63320-12070-04 note |
Headlining Assy, Sun Roof
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63320-12070-05 note |
Headlining Assy, Sun Roof
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 GL,XL | — | |
| 63320-12070-06 note |
Headlining Assy, Sun Roof
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63320-12070-B1 note |
Headlining Assy, Sun Roof
1988-09 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 63320-12070-E1 note |
Headlining Assy, Sun Roof
1988-09 → 1989-08
ended
|
AE92,CE90,EE90 GL,XL | — | |
| 63320-12070-J1 note |
Headlining Assy, Sun Roof
1988-09 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63320-12070-J1 note |
Headlining Assy, Sun Roof
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 63342 — Pad, Roof Silencer, NO.2 | ||||
| 63343-12050 |
Pad, Roof Silencer, NO.2
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63381 — Retainer, Headlining, Front | ||||
| 63381-12190 |
Retainer, Headlining, Front
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63391 — Trim, Roof Headlining, Front | ||||
| 63391-12060-03 note |
Trim, Roof Headlining, Front
1987-05 → 1990-09
ended
|
AE92,CE90,EE90 | — | |
| 63391-12060-04 note |
Trim, Roof Headlining, Front
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63391-12060-05 note |
Trim, Roof Headlining, Front
1987-05 → 1988-09
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 63391-12060-06 note |
Trim, Roof Headlining, Front
1989-08 → 1989-09
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63391-12060-B0 note |
Trim, Roof Headlining, Front
1990-09 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 63391-12060-E0 note |
Trim, Roof Headlining, Front
1988-09 → 1989-08
ended
|
AE92,CE90,EE90 CBR,DSL | — | |
| 63391-12060-E1 note |
Trim, Roof Headlining, Front
1989-09 → 1992-06
ended
|
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) | — | |
| 63391-12060-J0 note |
Trim, Roof Headlining, Front
1988-09 → 1989-08
ended
|
AE92,CE90,EE90 LHD (GL,XL) | — | |
| 63391-12060-J0 note |
Trim, Roof Headlining, Front
1989-08 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,STD,XL,XLI | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
