Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

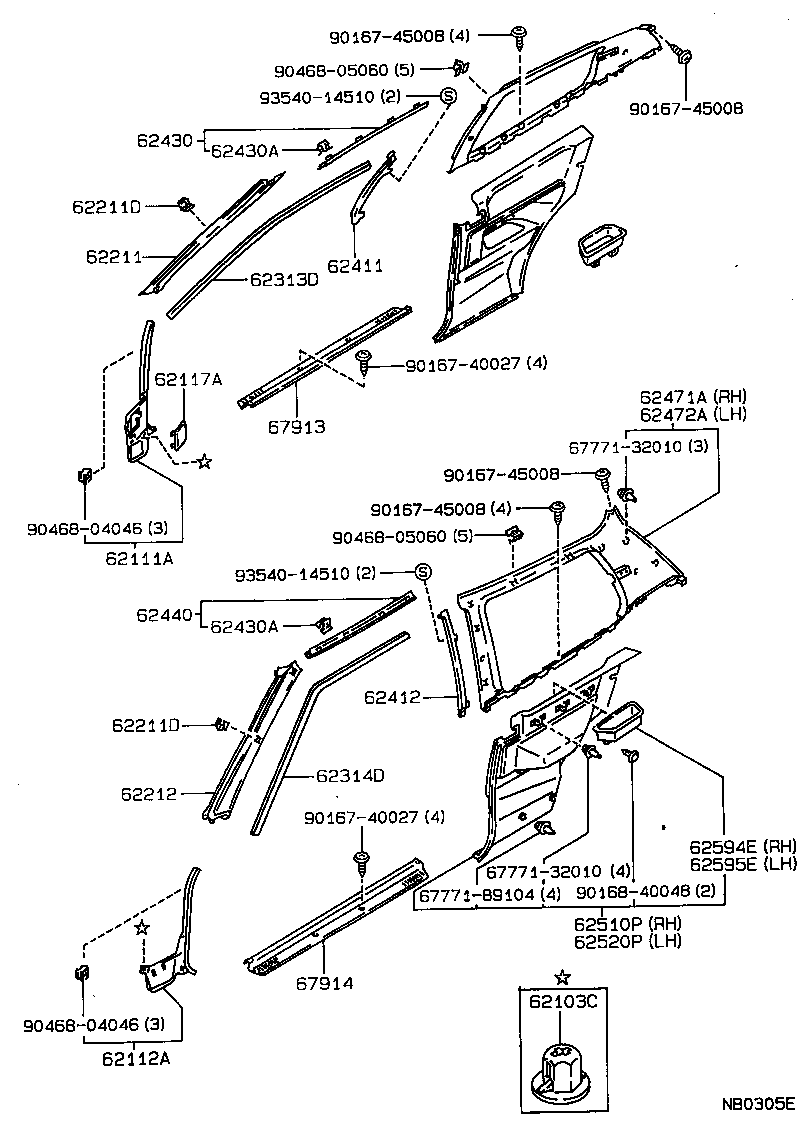

Exploded illustration NB0305E 9016745008 — not listed in this catalogue 9046805060 — not listed in this catalogue 9354014510 — not listed in this catalogue 9016745008 — not listed in this catalogue 62430 — GARNISH ASSY, ROOF SIDE RAIL, RH (10 parts) 62430A — CLIP, ROOF SIDE RAIL GARNISH (2 parts) 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (1 parts) 62211 — GARNISH, FRONT PILLAR, RH (7 parts) 62411 — GARNISH, CENTER PILLAR, RH (5 parts) 62313D — TRIM, FRONT DOOR OPENING, RH (10 parts) 9016740027 — not listed in this catalogue 62117A — COVER, COWL SIDE TRIM SERVICE HOLE (16 parts) 62471A — GARNISH, ROOF SIDE, INNER RH (20 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (20 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (10 parts) 6777132010 — not listed in this catalogue 9016745008 — not listed in this catalogue 9016745008 — not listed in this catalogue 9046804046 — not listed in this catalogue 9046805060 — not listed in this catalogue 62111A — TRIM SUB-ASSY, COWL SIDE, RH (8 parts) 9354014510 — not listed in this catalogue 62440 — GARNISH ASSY, ROOF SIDE RAIL, LH (11 parts) 62430A — CLIP, ROOF SIDE RAIL GARNISH (2 parts) 62412 — GARNISH, CENTER PILLAR, LH (5 parts) 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (1 parts) 62314D — TRIM, FRONT DOOR OPENING, LH (10 parts) 62212 — GARNISH, FRONT PILLAR, LH (7 parts) 9016740027 — not listed in this catalogue 62594E — POCKET, QUARTER TRIM, RH (5 parts) 62595E — POCKET, QUARTER TRIM, LH (5 parts) 6777132010 — not listed in this catalogue 9016840048 — not listed in this catalogue 6777189104 — not listed in this catalogue 62510P — PANEL ASSY, QUARTER TRIM, FRONT RH (47 parts) 62520P — PANEL ASSY, QUARTER TRIM, FRONT LH (49 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (10 parts) 62103C — CLIP, COWL SIDE TRIM BOARD SET (12 parts) 9046804046 — not listed in this catalogue 62112A — TRIM SUB-ASSY, COWL SIDE, LH (8 parts)
NB0305E · 24 callouts, 16 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
278 parts on this figure
Part number Description Fitment Price
62103C — Clip, Cowl Side Trim Board Set
90467-05050-01 note Clip, Cowl Side Trim Board Set
1989-09 → 1990-08 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1989-09 → 1990-08 ended
AE92 GTI,SR5 —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1991-06 → 1992-11 ended
AE92 LHD (GTI,SR5) EFI —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1991-06 → 1992-11 ended
CE90,EE90 STD (DSL,EFI) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1991-06 → 1992-11 ended
AE92,CE90,EE90 LHD MTM (GLI,XL,XLI) +1 —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
AE92 LHD (GTI,SR5) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
CE90,EE90 RHD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
AE92 RHD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1989-09 → 1990-08 ended
CE90,EE90 RHD;CE90,EE90 STD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
CE90,EE90 STD —
90467-08160 note Clip, Cowl Side Trim Board Set
1991-08 → 1992-11 ended
AE92,CE90,EE90 —
62111A — Trim Sub-assy, Cowl Side, RH
62101-12140-03 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
62101-12140-04 note Trim Sub-assy, Cowl Side, RH
1989-08 → 1992-06 ended
CE90,EE90 RHD —
62101-12140-05 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1989-08 ended
CE90,EE90 RHD —
62101-12150-03 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
62101-12150-04 note Trim Sub-assy, Cowl Side, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62101-12150-04 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62101-12150-05 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62101-12150-06 note Trim Sub-assy, Cowl Side, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62112A — Trim Sub-assy, Cowl Side, LH
62102-12140-03 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
62102-12140-04 note Trim Sub-assy, Cowl Side, LH
1989-08 → 1992-06 ended
CE90,EE90 RHD —
62102-12140-05 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1989-08 ended
CE90,EE90 RHD —
62102-12150-03 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
62102-12150-04 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62102-12150-04 note Trim Sub-assy, Cowl Side, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62102-12150-05 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62102-12150-06 note Trim Sub-assy, Cowl Side, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62117A — Cover, Cowl Side Trim Service Hole
62117-12090-03 note Cover, Cowl Side Trim Service Hole
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
62117-12090-04 note Cover, Cowl Side Trim Service Hole
1989-08 → 1992-06 ended
CE90,EE90 RHD —
62117-12090-05 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
CE90,EE90 RHD —
62117-12100-03 note Cover, Cowl Side Trim Service Hole
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
62117-12100-04 note Cover, Cowl Side Trim Service Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62117-12100-04 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62117-12100-05 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62117-12100-06 note Cover, Cowl Side Trim Service Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62117-12110-03 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-11 ended
AE92,CE90,EE90 LHD —
62117-12110-03 note Cover, Cowl Side Trim Service Hole
1989-11 → 1992-11 ended
AE92,CE90,EE90 LHD MTM (DSL,EFI) —
62117-12110-04 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62117-12110-04 note Cover, Cowl Side Trim Service Hole
1989-11 → 1992-06 ended
AE92,CE90,EE90 LHD MTM (GLI,STD,XL,XLI) +1 —
62117-12110-04 note Cover, Cowl Side Trim Service Hole
1989-08 → 1989-11 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62117-12110-05 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62117-12110-06 note Cover, Cowl Side Trim Service Hole
1989-11 → 1992-06 ended
AE92,CE90,EE90 LHD MTM (GLI,XL,XLI) +1 —
62117-12110-06 note Cover, Cowl Side Trim Service Hole
1989-08 → 1989-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62211 — Garnish, Front Pillar, RH
62211-12190-03 note Garnish, Front Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
62211-12190-03 note Garnish, Front Pillar, RH
1989-08 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62211-12190-03 note Garnish, Front Pillar, RH
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
62211-12190-04 note Garnish, Front Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62211-12190-04 note Garnish, Front Pillar, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62211-12190-05 note Garnish, Front Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
62211-12190-06 note Garnish, Front Pillar, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62211D — Clip(FOR FRONT BODY PILLAR GARNISH)
90468-05060 Clip(FOR FRONT BODY PILLAR GARNISH)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
62212 — Garnish, Front Pillar, LH
62212-12190-03 note Garnish, Front Pillar, LH
1989-08 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62212-12190-03 note Garnish, Front Pillar, LH
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
62212-12190-03 note Garnish, Front Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
62212-12190-04 note Garnish, Front Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62212-12190-04 note Garnish, Front Pillar, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62212-12190-05 note Garnish, Front Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
62212-12190-06 note Garnish, Front Pillar, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62313D — Trim, Front Door Opening, RH
62313-12130-03 note Trim, Front Door Opening, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-04 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62313-12130-04 note Trim, Front Door Opening, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-05 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62313-12130-06 note Trim, Front Door Opening, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62313-12160-03 note Trim, Front Door Opening, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62313-12160-04 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62313-12160-04 note Trim, Front Door Opening, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62313-12160-05 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62313-12160-06 note Trim, Front Door Opening, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62314D — Trim, Front Door Opening, LH
62313-12130-03 note Trim, Front Door Opening, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-04 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62313-12130-04 note Trim, Front Door Opening, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-05 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62313-12130-06 note Trim, Front Door Opening, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62313-12160-03 note Trim, Front Door Opening, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62313-12160-04 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62313-12160-04 note Trim, Front Door Opening, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62313-12160-05 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62313-12160-06 note Trim, Front Door Opening, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62411 — Garnish, Center Pillar, RH
62411-12430-03 note Garnish, Center Pillar, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62411-12430-04 note Garnish, Center Pillar, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62411-12430-04 note Garnish, Center Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62411-12430-05 note Garnish, Center Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62411-12430-06 note Garnish, Center Pillar, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62412 — Garnish, Center Pillar, LH
62412-12430-03 note Garnish, Center Pillar, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62412-12430-04 note Garnish, Center Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62412-12430-04 note Garnish, Center Pillar, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62412-12430-05 note Garnish, Center Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62412-12430-06 note Garnish, Center Pillar, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62430 — Garnish Assy, Roof Side Rail, RH
62431-12110-03 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62431-12110-04 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62431-12110-04 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62431-12110-05 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62431-12110-06 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62431-12120-03 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62431-12120-04 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62431-12120-04 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62431-12120-05 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62431-12120-06 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62430A — Clip, Roof Side Rail Garnish
90468-05017 Clip, Roof Side Rail Garnish
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
90468-05017 Clip, Roof Side Rail Garnish
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62440 — Garnish Assy, Roof Side Rail, LH
62432-12090-03 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62432-12090-04 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62432-12090-04 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62432-12090-05 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62432-12090-06 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62432-12100-03 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62432-12100-03 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62432-12100-04 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62432-12100-04 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62432-12100-05 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62432-12100-06 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62471A — Garnish, Roof Side, Inner RH
62471-12470-03 note Garnish, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62471-12470-04 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62471-12470-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62471-12470-05 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62471-12470-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62471-12480-03 note Garnish, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62471-12480-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62471-12480-04 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62471-12480-05 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62471-12480-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62471-12490-03 note Garnish, Roof Side, Inner RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12490-04 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62471-12490-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12490-05 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62471-12490-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62471-12500-03 note Garnish, Roof Side, Inner RH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12500-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12500-04 note Garnish, Roof Side, Inner RH
1988-08 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62471-12500-05 note Garnish, Roof Side, Inner RH
1988-08 → 1989-08 ended
AE92,CE90,EE90 5D —
62471-12500-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62472A — Garnish, Roof Side, Inner LH
62472-12460-03 note Garnish, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62472-12460-04 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62472-12460-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62472-12460-05 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62472-12460-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62472-12470-03 note Garnish, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62472-12470-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62472-12470-04 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62472-12470-05 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62472-12470-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62472-12480-03 note Garnish, Roof Side, Inner LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12480-04 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62472-12480-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12480-05 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62472-12480-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62472-12490-03 note Garnish, Roof Side, Inner LH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12490-04 note Garnish, Roof Side, Inner LH
1988-08 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62472-12490-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12490-05 note Garnish, Roof Side, Inner LH
1988-08 → 1989-08 ended
AE92,CE90,EE90 5D —
62472-12490-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62510P — Panel Assy, Quarter Trim, Front RH
62510-1A200-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62510-1A200-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62510-1A220-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62510-1A220-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1992-05 ended
CE90,EE90 STD —
62510-1A220-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62510-1A220-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
CE90,EE90 STD —
62510-1A220-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
CE90,EE90 STD —
62510-1A220-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62510-1A220-06 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62510-1A230-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62510-1A230-04 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
62510-1A230-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62510-1A240-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92 EFI —
62510-1A240-03 note Panel Assy, Quarter Trim, Front RH
1988-12 → 1989-08 ended
AE92 3D XL —
62510-1A300-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1992-05 ended
CE90,EE90 STD —
62510-1A300-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
CE90,EE90 STD —
62510-1A300-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
CE90,EE90 STD —
62510-1A310-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62510-1A310-04 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
62510-1A310-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62510-1A320-03 note Panel Assy, Quarter Trim, Front RH
1988-12 → 1989-08 ended
AE92 3D XL —
62510-1A320-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92 EFI —
62510-1A330-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62510-1A330-04 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62510-1A330-05 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62510-1A360-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62510-1A360-04 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62510-1A370-03 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62510-1A370-04 note Panel Assy, Quarter Trim, Front RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62510-1A400-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62510-1A400-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62510-1A400-06 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62510-1A410-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62510-1A410-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62510-1A410-06 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62510-1A420-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
EE90 LHD 3D XL;EE90 +6 —
62510-1A420-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
EE90 LHD 3D XL;EE90 +6 —
62510-1A440-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62510-1A440-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62510-1A440-06 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92 GLI —
62510-1A450-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62510-1A450-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62510-1A450-06 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92 GLI —
62510-1A470-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
62510-1A480-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
62510-1A490-03 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62510-1A490-04 note Panel Assy, Quarter Trim, Front RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62520P — Panel Assy, Quarter Trim, Front LH
62520-1A180-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62520-1A180-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A180-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62520-1A200-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1992-05 ended
CE90,EE90 STD —
62520-1A200-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62520-1A200-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A200-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
CE90,EE90 STD —
62520-1A200-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62520-1A200-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62520-1A200-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
CE90,EE90 STD —
62520-1A200-06 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62520-1A210-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62520-1A210-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
62520-1A210-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62520-1A220-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92 EFI —
62520-1A220-03 note Panel Assy, Quarter Trim, Front LH
1988-12 → 1989-08 ended
AE92 3D XL —
62520-1A280-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1992-05 ended
CE90,EE90 STD —
62520-1A280-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
CE90,EE90 STD —
62520-1A280-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
CE90,EE90 STD —
62520-1A290-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62520-1A290-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,EE90 LHD 3D GL —
62520-1A290-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,EE90 3D GL —
62520-1A300-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92 EFI —
62520-1A300-03 note Panel Assy, Quarter Trim, Front LH
1988-12 → 1989-08 ended
AE92 3D XL —
62520-1A310-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62520-1A310-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A310-05 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D XL —
62520-1A340-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A340-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A350-03 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A350-04 note Panel Assy, Quarter Trim, Front LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D XL —
62520-1A380-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62520-1A380-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62520-1A380-06 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62520-1A390-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62520-1A390-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (XL,XLI) —
62520-1A390-06 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62520-1A400-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
EE90 LHD 3D XL;EE90 +6 —
62520-1A400-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
EE90 LHD 3D XL;EE90 +6 —
62520-1A420-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62520-1A420-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62520-1A420-06 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92 GLI —
62520-1A430-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62520-1A430-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,EE90 3D (GL,GLI) —
62520-1A430-06 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92 GLI —
62520-1A450-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
62520-1A460-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-11 ended
AE92 GTI,SR5 —
62520-1A470-03 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62520-1A470-04 note Panel Assy, Quarter Trim, Front LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (XL,XLI) —
62594E — Pocket, Quarter Trim, RH
62594-12060-03 note Pocket, Quarter Trim, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62594-12060-04 note Pocket, Quarter Trim, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62594-12060-04 note Pocket, Quarter Trim, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62594-12060-05 note Pocket, Quarter Trim, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62594-12060-06 note Pocket, Quarter Trim, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62595E — Pocket, Quarter Trim, LH
62594-12060-03 note Pocket, Quarter Trim, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62594-12060-04 note Pocket, Quarter Trim, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62594-12060-04 note Pocket, Quarter Trim, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62594-12060-05 note Pocket, Quarter Trim, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62594-12060-06 note Pocket, Quarter Trim, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
67913 — Plate, Front Door Scuff, RH
67913-12160-03 note Plate, Front Door Scuff, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-04 note Plate, Front Door Scuff, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-04 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
67913-12160-05 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67913-12160-06 note Plate, Front Door Scuff, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67913-12170-03 note Plate, Front Door Scuff, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67913-12170-04 note Plate, Front Door Scuff, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
67913-12170-04 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
67913-12170-05 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
67913-12170-06 note Plate, Front Door Scuff, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
67914 — Plate, Front Door Scuff, LH
67913-12160-03 note Plate, Front Door Scuff, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-04 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
67913-12160-04 note Plate, Front Door Scuff, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-05 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67913-12160-06 note Plate, Front Door Scuff, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67913-12170-03 note Plate, Front Door Scuff, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67913-12170-04 note Plate, Front Door Scuff, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
67913-12170-04 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
67913-12170-05 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
67913-12170-06 note Plate, Front Door Scuff, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
