Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

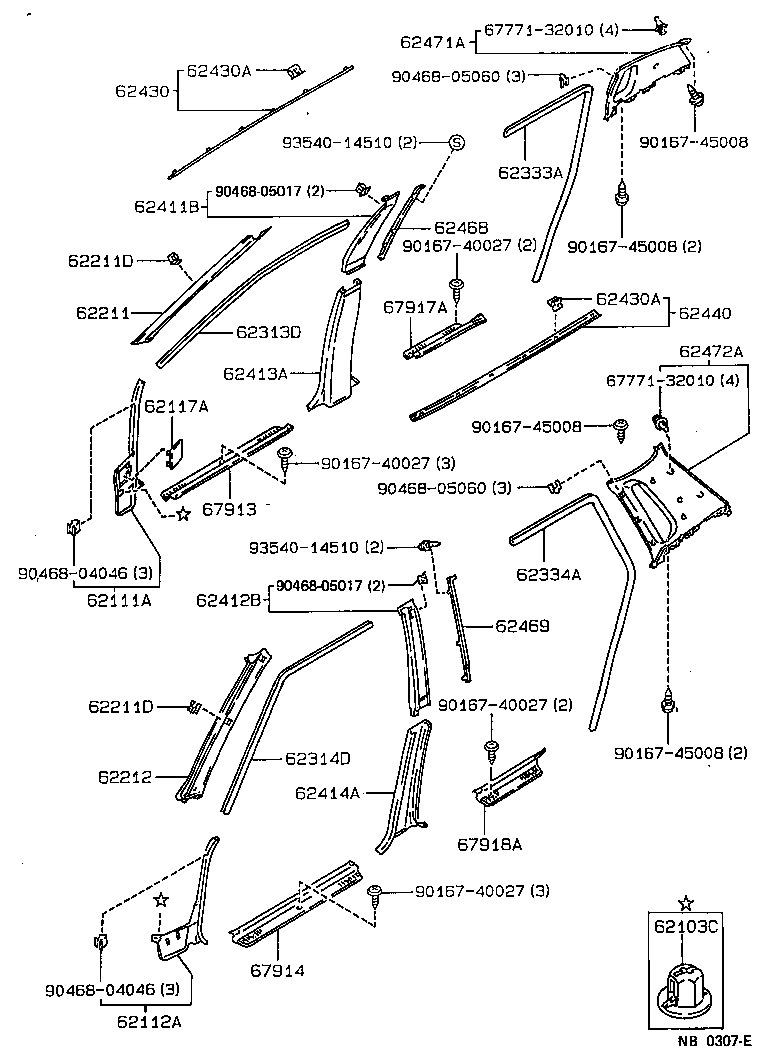

Exploded illustration NB0307E 6777132010 — not listed in this catalogue 62471A — GARNISH, ROOF SIDE, INNER RH (20 parts) 62430A — CLIP, ROOF SIDE RAIL GARNISH (2 parts) 9046805060 — not listed in this catalogue 62430 — GARNISH ASSY, ROOF SIDE RAIL, RH (10 parts) 9354014510 — not listed in this catalogue 9016745008 — not listed in this catalogue 62333A — TRIM, REAR DOOR OPENING, RH (5 parts) 9046805017 — not listed in this catalogue 62411B — GARNISH, CENTER PILLAR, UPPER RH (5 parts) 62468 — GARNISH, CENTER PILLAR, REAR RH (6 parts) 9016740027 — not listed in this catalogue 9016745008 — not listed in this catalogue 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (1 parts) 62430A — CLIP, ROOF SIDE RAIL GARNISH (2 parts) 62211 — GARNISH, FRONT PILLAR, RH (7 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (5 parts) 62440 — GARNISH ASSY, ROOF SIDE RAIL, LH (11 parts) 62313D — TRIM, FRONT DOOR OPENING, RH (10 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (20 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (5 parts) 6777132010 — not listed in this catalogue 62117A — COVER, COWL SIDE TRIM SERVICE HOLE (16 parts) 9016745008 — not listed in this catalogue 9016740027 — not listed in this catalogue 9046805060 — not listed in this catalogue 67913 — PLATE, FRONT DOOR SCUFF, RH (10 parts) 9354014510 — not listed in this catalogue 9046804046 — not listed in this catalogue 62334A — TRIM, REAR DOOR OPENING, LH (5 parts) 9046805017 — not listed in this catalogue 62111A — TRIM SUB-ASSY, COWL SIDE, RH (8 parts) 62412B — GARNISH, CENTER PILLAR, UPPER LH (5 parts) 62469 — GARNISH, CENTER PILLAR, REAR LH (6 parts) 9016740027 — not listed in this catalogue 62211D — CLIP(FOR FRONT BODY PILLAR GARNISH) (1 parts) 9016745008 — not listed in this catalogue 62314D — TRIM, FRONT DOOR OPENING, LH (10 parts) 62212 — GARNISH, FRONT PILLAR, LH (7 parts) 62414A — GARNISH, CENTER PILLAR, LOWER LH (5 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (5 parts) 9016740027 — not listed in this catalogue 62103C — CLIP, COWL SIDE TRIM BOARD SET (12 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (10 parts) 9046804046 — not listed in this catalogue 62112A — TRIM SUB-ASSY, COWL SIDE, LH (8 parts)
NB0307E · 28 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
214 parts on this figure
Part number Description Fitment Price
62103C — Clip, Cowl Side Trim Board Set
90467-05050-01 note Clip, Cowl Side Trim Board Set
1989-09 → 1990-08 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1989-09 → 1990-08 ended
CE90,EE90 RHD;CE90,EE90 STD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
AE92 RHD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
CE90,EE90 RHD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
CE90,EE90 STD —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1990-08 → 1992-11 ended
AE92 LHD (GTI,SR5) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1991-06 → 1992-11 ended
AE92,CE90,EE90 LHD MTM (GLI,XL,XLI) +1 —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1991-06 → 1992-11 ended
CE90,EE90 STD (DSL,EFI) —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1991-06 → 1992-11 ended
AE92 LHD (GTI,SR5) EFI —
90467-05050-01 note Clip, Cowl Side Trim Board Set
1989-09 → 1990-08 ended
AE92 GTI,SR5 —
90467-08160 note Clip, Cowl Side Trim Board Set
1991-08 → 1992-11 ended
AE92,CE90,EE90 —
62111A — Trim Sub-assy, Cowl Side, RH
62101-12140-03 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
62101-12140-04 note Trim Sub-assy, Cowl Side, RH
1989-08 → 1992-06 ended
CE90,EE90 RHD —
62101-12140-05 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1989-08 ended
CE90,EE90 RHD —
62101-12150-03 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
62101-12150-04 note Trim Sub-assy, Cowl Side, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62101-12150-04 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62101-12150-05 note Trim Sub-assy, Cowl Side, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62101-12150-06 note Trim Sub-assy, Cowl Side, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62112A — Trim Sub-assy, Cowl Side, LH
62102-12140-03 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
62102-12140-04 note Trim Sub-assy, Cowl Side, LH
1989-08 → 1992-06 ended
CE90,EE90 RHD —
62102-12140-05 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1989-08 ended
CE90,EE90 RHD —
62102-12150-03 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
62102-12150-04 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62102-12150-04 note Trim Sub-assy, Cowl Side, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62102-12150-05 note Trim Sub-assy, Cowl Side, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62102-12150-06 note Trim Sub-assy, Cowl Side, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62117A — Cover, Cowl Side Trim Service Hole
62117-12090-03 note Cover, Cowl Side Trim Service Hole
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
62117-12090-04 note Cover, Cowl Side Trim Service Hole
1989-08 → 1992-06 ended
CE90,EE90 RHD —
62117-12090-05 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
CE90,EE90 RHD —
62117-12100-03 note Cover, Cowl Side Trim Service Hole
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
62117-12100-04 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62117-12100-04 note Cover, Cowl Side Trim Service Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62117-12100-05 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62117-12100-06 note Cover, Cowl Side Trim Service Hole
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62117-12110-03 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-11 ended
AE92,CE90,EE90 LHD —
62117-12110-03 note Cover, Cowl Side Trim Service Hole
1989-11 → 1992-11 ended
AE92,CE90,EE90 LHD MTM (DSL,EFI) —
62117-12110-04 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62117-12110-04 note Cover, Cowl Side Trim Service Hole
1989-08 → 1989-11 ended
AE92,CE90,EE90 LHD (GL,GLI,STD,XL,XLI) —
62117-12110-04 note Cover, Cowl Side Trim Service Hole
1989-11 → 1992-06 ended
AE92,CE90,EE90 LHD MTM (GLI,STD,XL,XLI) +1 —
62117-12110-05 note Cover, Cowl Side Trim Service Hole
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
62117-12110-06 note Cover, Cowl Side Trim Service Hole
1989-11 → 1992-06 ended
AE92,CE90,EE90 LHD MTM (GLI,XL,XLI) +1 —
62117-12110-06 note Cover, Cowl Side Trim Service Hole
1989-08 → 1989-11 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62211 — Garnish, Front Pillar, RH
62211-12190-03 note Garnish, Front Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
62211-12190-03 note Garnish, Front Pillar, RH
1989-08 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62211-12190-03 note Garnish, Front Pillar, RH
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
62211-12190-04 note Garnish, Front Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62211-12190-04 note Garnish, Front Pillar, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62211-12190-05 note Garnish, Front Pillar, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
62211-12190-06 note Garnish, Front Pillar, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62211D — Clip(FOR FRONT BODY PILLAR GARNISH)
90468-05060 Clip(FOR FRONT BODY PILLAR GARNISH)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
62212 — Garnish, Front Pillar, LH
62212-12190-03 note Garnish, Front Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
62212-12190-03 note Garnish, Front Pillar, LH
1990-08 → 1992-11 ended
AE92,CE90,EE90 —
62212-12190-03 note Garnish, Front Pillar, LH
1989-08 → 1990-08 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62212-12190-04 note Garnish, Front Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
62212-12190-04 note Garnish, Front Pillar, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
62212-12190-05 note Garnish, Front Pillar, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
62212-12190-06 note Garnish, Front Pillar, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
62313D — Trim, Front Door Opening, RH
62313-12130-03 note Trim, Front Door Opening, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-04 note Trim, Front Door Opening, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-04 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62313-12130-05 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62313-12130-06 note Trim, Front Door Opening, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62313-12160-03 note Trim, Front Door Opening, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62313-12160-04 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62313-12160-04 note Trim, Front Door Opening, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62313-12160-05 note Trim, Front Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62313-12160-06 note Trim, Front Door Opening, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62314D — Trim, Front Door Opening, LH
62313-12130-03 note Trim, Front Door Opening, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-04 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62313-12130-04 note Trim, Front Door Opening, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62313-12130-05 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62313-12130-06 note Trim, Front Door Opening, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62313-12160-03 note Trim, Front Door Opening, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62313-12160-04 note Trim, Front Door Opening, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62313-12160-04 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62313-12160-05 note Trim, Front Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62313-12160-06 note Trim, Front Door Opening, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62333A — Trim, Rear Door Opening, RH
62333-12070-03 note Trim, Rear Door Opening, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62333-12070-04 note Trim, Rear Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62333-12070-04 note Trim, Rear Door Opening, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62333-12070-05 note Trim, Rear Door Opening, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62333-12070-06 note Trim, Rear Door Opening, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62334A — Trim, Rear Door Opening, LH
62333-12070-03 note Trim, Rear Door Opening, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62333-12070-04 note Trim, Rear Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62333-12070-04 note Trim, Rear Door Opening, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62333-12070-05 note Trim, Rear Door Opening, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62333-12070-06 note Trim, Rear Door Opening, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62411B — Garnish, Center Pillar, Upper RH
62411-12390-03 note Garnish, Center Pillar, Upper RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62411-12390-04 note Garnish, Center Pillar, Upper RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62411-12390-04 note Garnish, Center Pillar, Upper RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62411-12390-05 note Garnish, Center Pillar, Upper RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62411-12390-06 note Garnish, Center Pillar, Upper RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62412B — Garnish, Center Pillar, Upper LH
62412-12390-03 note Garnish, Center Pillar, Upper LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62412-12390-04 note Garnish, Center Pillar, Upper LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62412-12390-04 note Garnish, Center Pillar, Upper LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62412-12390-05 note Garnish, Center Pillar, Upper LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62412-12390-06 note Garnish, Center Pillar, Upper LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62413A — Garnish, Center Pillar, Lower RH
62413-12170-03 note Garnish, Center Pillar, Lower RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62413-12170-04 note Garnish, Center Pillar, Lower RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62413-12170-04 note Garnish, Center Pillar, Lower RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62413-12170-05 note Garnish, Center Pillar, Lower RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62413-12170-06 note Garnish, Center Pillar, Lower RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62414A — Garnish, Center Pillar, Lower LH
62414-12170-03 note Garnish, Center Pillar, Lower LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62414-12170-04 note Garnish, Center Pillar, Lower LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62414-12170-04 note Garnish, Center Pillar, Lower LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62414-12170-05 note Garnish, Center Pillar, Lower LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62414-12170-06 note Garnish, Center Pillar, Lower LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62430 — Garnish Assy, Roof Side Rail, RH
62431-12110-03 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62431-12110-04 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62431-12110-04 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62431-12110-05 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62431-12110-06 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62431-12120-03 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62431-12120-04 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62431-12120-04 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62431-12120-05 note Garnish Assy, Roof Side Rail, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62431-12120-06 note Garnish Assy, Roof Side Rail, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62430A — Clip, Roof Side Rail Garnish
90468-05017 Clip, Roof Side Rail Garnish
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
90468-05017 Clip, Roof Side Rail Garnish
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62440 — Garnish Assy, Roof Side Rail, LH
62432-12090-03 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62432-12090-04 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62432-12090-04 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62432-12090-05 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62432-12090-06 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62432-12100-03 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62432-12100-03 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62432-12100-04 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62432-12100-04 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62432-12100-05 note Garnish Assy, Roof Side Rail, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62432-12100-06 note Garnish Assy, Roof Side Rail, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62468 — Garnish, Center Pillar, Rear RH
62468-12020-03 note Garnish, Center Pillar, Rear RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62468-12020-03 note Garnish, Center Pillar, Rear RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62468-12020-04 note Garnish, Center Pillar, Rear RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62468-12020-04 note Garnish, Center Pillar, Rear RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62468-12020-05 note Garnish, Center Pillar, Rear RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62468-12020-06 note Garnish, Center Pillar, Rear RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62469 — Garnish, Center Pillar, Rear LH
62469-12020-03 note Garnish, Center Pillar, Rear LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62469-12020-03 note Garnish, Center Pillar, Rear LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62469-12020-04 note Garnish, Center Pillar, Rear LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62469-12020-04 note Garnish, Center Pillar, Rear LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62469-12020-05 note Garnish, Center Pillar, Rear LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62469-12020-06 note Garnish, Center Pillar, Rear LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62471A — Garnish, Roof Side, Inner RH
62471-12470-03 note Garnish, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62471-12470-04 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62471-12470-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62471-12470-05 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62471-12470-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62471-12480-03 note Garnish, Roof Side, Inner RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62471-12480-04 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62471-12480-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62471-12480-05 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62471-12480-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62471-12490-03 note Garnish, Roof Side, Inner RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12490-04 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62471-12490-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12490-05 note Garnish, Roof Side, Inner RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62471-12490-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62471-12500-03 note Garnish, Roof Side, Inner RH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12500-04 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62471-12500-04 note Garnish, Roof Side, Inner RH
1988-08 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62471-12500-05 note Garnish, Roof Side, Inner RH
1988-08 → 1989-08 ended
AE92,CE90,EE90 5D —
62471-12500-06 note Garnish, Roof Side, Inner RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62472A — Garnish, Roof Side, Inner LH
62472-12460-03 note Garnish, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62472-12460-04 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62472-12460-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62472-12460-05 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62472-12460-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62472-12470-03 note Garnish, Roof Side, Inner LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
62472-12470-04 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
62472-12470-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
62472-12470-05 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
62472-12470-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
62472-12480-03 note Garnish, Roof Side, Inner LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12480-04 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62472-12480-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12480-05 note Garnish, Roof Side, Inner LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
62472-12480-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
62472-12490-03 note Garnish, Roof Side, Inner LH
1988-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12490-04 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
62472-12490-04 note Garnish, Roof Side, Inner LH
1988-08 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
62472-12490-05 note Garnish, Roof Side, Inner LH
1988-08 → 1989-08 ended
AE92,CE90,EE90 5D —
62472-12490-06 note Garnish, Roof Side, Inner LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67913 — Plate, Front Door Scuff, RH
67913-12160-03 note Plate, Front Door Scuff, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-04 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
67913-12160-04 note Plate, Front Door Scuff, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-05 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67913-12160-06 note Plate, Front Door Scuff, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67913-12170-03 note Plate, Front Door Scuff, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67913-12170-04 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
67913-12170-04 note Plate, Front Door Scuff, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
67913-12170-05 note Plate, Front Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
67913-12170-06 note Plate, Front Door Scuff, RH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
67914 — Plate, Front Door Scuff, LH
67913-12160-03 note Plate, Front Door Scuff, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-04 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
67913-12160-04 note Plate, Front Door Scuff, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67913-12160-05 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67913-12160-06 note Plate, Front Door Scuff, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67913-12170-03 note Plate, Front Door Scuff, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 3D —
67913-12170-04 note Plate, Front Door Scuff, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 3D (GL,GLI,STD,XL,XLI) —
67913-12170-04 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 3D (GL,XL) —
67913-12170-05 note Plate, Front Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 3D (CBR,DSL) —
67913-12170-06 note Plate, Front Door Scuff, LH
1989-08 → 1992-05 ended
AE92,CE90,EE90 LHD 3D (GLI,XL,XLI) —
67917A — Plate, Rear Door Scuff, RH
67917-12060-03 note Plate, Rear Door Scuff, RH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67917-12060-04 note Plate, Rear Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
67917-12060-04 note Plate, Rear Door Scuff, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67917-12060-05 note Plate, Rear Door Scuff, RH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67917-12060-06 note Plate, Rear Door Scuff, RH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
67918A — Plate, Rear Door Scuff, LH
67918-12050-03 note Plate, Rear Door Scuff, LH
1987-05 → 1992-06 ended
AE92,CE90,EE90 5D —
67918-12050-04 note Plate, Rear Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD 5D —
67918-12050-04 note Plate, Rear Door Scuff, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 5D —
67918-12050-05 note Plate, Rear Door Scuff, LH
1987-05 → 1989-08 ended
AE92,CE90,EE90 5D —
67918-12050-06 note Plate, Rear Door Scuff, LH
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
