Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

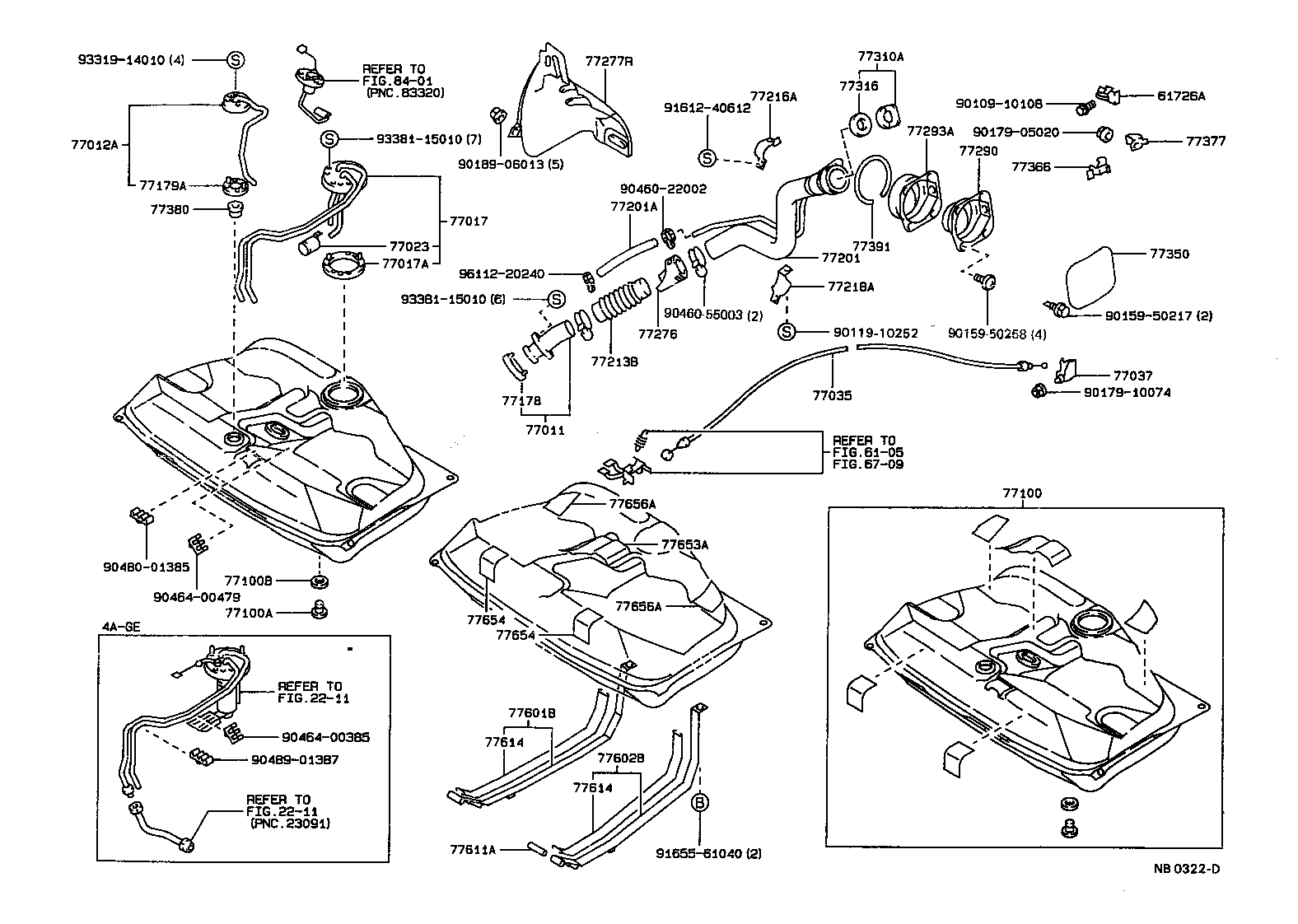

Exploded illustration NB0322D 77310A — CAP ASSY, FUEL TANK (9 parts) 9331914010 — not listed in this catalogue 77277R — PROTECTOR, FUEL TANK FILLER PIPE (1 parts) 8401 — not listed in this catalogue 77316 — GASKET, FUEL TANK CAP (5 parts) 77216A — SUPPORT, FUEL TANK FILLER PIPE, NO.1 (1 parts) 61726A — PLATE, FUEL INLET BOX COVER (1 parts) 9010910108 — not listed in this catalogue 9161240612 — not listed in this catalogue 77293A — SHIELD, FUEL TANK FILLER PIPE, NO.3 (1 parts) 9017905020 — not listed in this catalogue 9338115010 — not listed in this catalogue 77377 — RETAINER, FUEL FILLER OPENING LID LOCK (1 parts) 77012A — TUBE SUB-ASSY, FUEL TANK BREATHER, NO.1 (2 parts) 77290 — SHIELD ASSY, FUEL TANK FILLER PIPE (1 parts) 9018906013 — not listed in this catalogue 77366 — SPRING, FUEL FILLER OPENING LID HINGE (1 parts) 77179A — GASKET, FUEL TANK BREATHER TUBE (1 parts) 9046022002 — not listed in this catalogue 77201A — HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) (1 parts) 77380 — VALVE ASSY, FUEL CUT OFF (1 parts) 77017 — TUBE SUB-ASSY, FUEL AND EVAPORATION VENT (5 parts) 77023 — FILTER SUB-ASSY, FUEL SUCTION TUBE (2 parts) 77391 — RING, FUEL INLET BOX (1 parts) 77350 — LID ASSY, FUEL FILLER OPENING (2 parts) 77201 — PIPE SUB-ASSY, FUEL TANK INLET (5 parts) 77017A — GASKET, FUEL TANK VENT (1 parts) 9611220240 — not listed in this catalogue 77218A — SUPPORT, FUEL TANK FILLER PIPE, NO.3 (6 parts) 9338115010 — not listed in this catalogue 9046055003 — not listed in this catalogue 9015950217 — not listed in this catalogue 9011910252 — not listed in this catalogue 9015950258 — not listed in this catalogue 77276 — PROTECTOR, FUEL HOSE (1 parts) 77213B — HOSE, FUEL TANK TO FILLER PIPE (1 parts) 77037 — LOCK SUB-ASSY, FUEL FILLER OPENING LID (1 parts) 9017910074 — not listed in this catalogue 77035 — CABLE SUB-ASSY, FUEL LID LOCK CONTROL (2 parts) 77178 — GASKET, FUEL TANK FILLER PIPE, LOWER (2 parts) 77011 — PIPE SUB-ASSY, FUEL TANK FILLER, LOWER (2 parts) 6105 — not listed in this catalogue 6709 — not listed in this catalogue 77100 — TANK ASSY, FUEL (4 parts) 77656A — CUSHION, FUEL TANK, NO.4 (2 parts) 77653A — CUSHION, FUEL TANK, NO.3 (2 parts) 9048001385 — not listed in this catalogue 77100B — GASKET(FOR FUEL TANK) (1 parts) 9046400479 — not listed in this catalogue 77656A — CUSHION, FUEL TANK, NO.4 (2 parts) 77100A — PLUG(FOR FUEL TANK) (1 parts) 77654 — CUSHION, FUEL TANK, NO.2 (2 parts) 77654 — CUSHION, FUEL TANK, NO.2 (2 parts) 2211 — not listed in this catalogue 77601B — BAND SUB-ASSY, FUEL TANK, NO.1 RH (5 parts) 9046400385 — not listed in this catalogue 77614 — SEAT, FUEL TANK BAND (1 parts) 77602B — BAND SUB-ASSY, FUEL TANK, NO.1 LH (1 parts) 9048901387 — not listed in this catalogue 77614 — SEAT, FUEL TANK BAND (1 parts) 2211 — not listed in this catalogue 77611A — PIN (FOR FUEL TANK BAND) (1 parts) 9165561040 — not listed in this catalogue
NB0322D · 39 callouts, 24 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
77 parts on this figure
Part number Description Fitment Price
61726A — Plate, Fuel Inlet Box Cover
61726-12050 Plate, Fuel Inlet Box Cover
1987-05 → 1992-05 ended
CE90,EE90 STD —
77011 — Pipe Sub-assy, Fuel Tank Filler, Lower
77011-12040 Pipe Sub-assy, Fuel Tank Filler, Lower
1987-05 → 1992-11 ended
AE92,EE90 —
77011-12080 Pipe Sub-assy, Fuel Tank Filler, Lower
1987-05 → 1992-06 ended
CE90 —
77012A — Tube Sub-assy, Fuel Tank Breather, NO.1
77012-12010 note Tube Sub-assy, Fuel Tank Breather, NO.1
1987-05 → 1987-08 ended
EE90 STD —
77012-12030 Tube Sub-assy, Fuel Tank Breather, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77017 — Tube Sub-assy, Fuel And Evaporation Vent
77017-12310 note Tube Sub-assy, Fuel And Evaporation Vent
1987-05 → 1989-08 ended
EE90 LHD MTM —
77017-12310 Tube Sub-assy, Fuel And Evaporation Vent
1989-08 → 1992-06 ended
AE92,EE90 CBR —
77017-12310 Tube Sub-assy, Fuel And Evaporation Vent
1987-05 → 1989-08 ended
AE92 CBR —
77017-12320 Tube Sub-assy, Fuel And Evaporation Vent
1987-05 → 1992-06 ended
CE90 —
77017-12330 Tube Sub-assy, Fuel And Evaporation Vent
1987-05 → 1989-08 ended
EE90 —
77017A — Gasket, Fuel Tank Vent
77169-12020 Gasket, Fuel Tank Vent
1987-05 → 1992-06 ended
AE92,CE90,EE90 CBR,DSL —
77023 — Filter Sub-assy, Fuel Suction Tube
77023-14030 Filter Sub-assy, Fuel Suction Tube
1987-05 → 1992-06 ended
AE92,EE90 CBR —
77023-32010 Filter Sub-assy, Fuel Suction Tube
1987-05 → 1992-06 ended
CE90 —
77035 — Cable Sub-assy, Fuel Lid Lock Control
77035-12230 Cable Sub-assy, Fuel Lid Lock Control
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
77035-12260 Cable Sub-assy, Fuel Lid Lock Control
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,GTI,SR5,XL,XLI) —
77037 — Lock Sub-assy, Fuel Filler Opening Lid
77037-12050 Lock Sub-assy, Fuel Filler Opening Lid
1987-05 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
77100 — Tank Assy, Fuel
77001-19545 Tank Assy, Fuel
1987-05 → 1992-06 ended
AE92,EE90 CBR —
77001-19555 Tank Assy, Fuel
1987-05 → 1989-08 ended
AE92,CE90 DSL,EFI —
77001-19555 Tank Assy, Fuel
1989-08 → 1989-11 ended
AE92,CE90,EE90 DSL,EFI —
77001-19555 Tank Assy, Fuel
1989-11 → 1992-11 ended
AE92,CE90,EE90 DSL,EFI —
77100A — Plug(FOR FUEL TANK)
90341-20004 Plug(FOR FUEL TANK)
1987-05 → 1992-11 ended
AE92,CE90,EE90 DSL,EFI —
77100B — Gasket(FOR FUEL TANK)
90430-20007 Gasket(FOR FUEL TANK)
1987-05 → 1992-11 ended
AE92,CE90,EE90 DSL,EFI —
77178 — Gasket, Fuel Tank Filler Pipe, Lower
77178-12010 Gasket, Fuel Tank Filler Pipe, Lower
1987-05 → 1988-05 ended
AE92,CE90,EE90 —
77178-20010 Gasket, Fuel Tank Filler Pipe, Lower
1988-05 → 1992-11 ended
AE92,CE90,EE90 —
77179A — Gasket, Fuel Tank Breather Tube
77179-16010 Gasket, Fuel Tank Breather Tube
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77201 — Pipe Sub-assy, Fuel Tank Inlet
77201-12340 note Pipe Sub-assy, Fuel Tank Inlet
1987-05 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
77201-12340 note Pipe Sub-assy, Fuel Tank Inlet
1989-08 → 1989-11 ended
AE92,EE90 LHD MTM CBR —
77201-12340 Pipe Sub-assy, Fuel Tank Inlet
1989-08 → 1992-06 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
77201-12340 note Pipe Sub-assy, Fuel Tank Inlet
1987-05 → 1992-11 ended
AE92 LHD GTI —
77201-12350 Pipe Sub-assy, Fuel Tank Inlet
1987-05 → 1992-11 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
77201A — Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
90445-22011 note Hose, Fuel, NO.1(FOR FUEL TANK INLET PIPE)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77213B — Hose, Fuel Tank TO Filler Pipe
77213-12140 Hose, Fuel Tank TO Filler Pipe
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77216A — Support, Fuel Tank Filler Pipe, NO.1
77216-12040 Support, Fuel Tank Filler Pipe, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77218A — Support, Fuel Tank Filler Pipe, NO.3
77218-12010 Support, Fuel Tank Filler Pipe, NO.3
1987-05 → 1987-09 ended
AE92,CE90,EE90 —
77218-12010 note Support, Fuel Tank Filler Pipe, NO.3
1987-09 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
77218-12010 note Support, Fuel Tank Filler Pipe, NO.3
1989-08 → 1989-11 ended
AE92,EE90 LHD MTM CBR —
77218-12010 Support, Fuel Tank Filler Pipe, NO.3
1987-09 → 1992-06 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
77218-12010 note Support, Fuel Tank Filler Pipe, NO.3
1987-09 → 1992-11 ended
AE92 LHD GTI —
77218-12020 Support, Fuel Tank Filler Pipe, NO.3
1987-09 → 1992-11 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
77276 — Protector, Fuel Hose
77276-12040 Protector, Fuel Hose
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77277R — Protector, Fuel Tank Filler Pipe
77277-12090 Protector, Fuel Tank Filler Pipe
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77290 — Shield Assy, Fuel Tank Filler Pipe
77291-12060 Shield Assy, Fuel Tank Filler Pipe
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77293A — Shield, Fuel Tank Filler Pipe, NO.3
77293-12030 Shield, Fuel Tank Filler Pipe, NO.3
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77310A — Cap Assy, Fuel Tank
77310-12100 Cap Assy, Fuel Tank
1987-05 → 1992-11 ended
AE92 GTI;AE92,EE90 CBR —
77310-16010 note Cap Assy, Fuel Tank
1987-05 → 1987-11 ended
AE92 LHD EFI —
77310-16010 note Cap Assy, Fuel Tank
1987-05 → 1987-11 ended
AE92,EE90 LHD MTM CBR —
77310-16011 note Cap Assy, Fuel Tank
1987-11 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
77310-16011 note Cap Assy, Fuel Tank
1989-08 → 1989-11 ended
AE92,EE90 LHD MTM CBR —
77310-16011 Cap Assy, Fuel Tank
1989-08 → 1992-06 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
77310-16011 note Cap Assy, Fuel Tank
1987-08 → 1987-10 ended
AE92,EE90 LHD MTM CBR —
77310-16011 note Cap Assy, Fuel Tank
1987-11 → 1992-11 ended
AE92 LHD GTI —
77310-35061 Cap Assy, Fuel Tank
1987-05 → 1992-06 ended
CE90 —
77316 — Gasket, Fuel Tank Cap
77316-12050 Gasket, Fuel Tank Cap
1987-05 → 1992-11 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
77316-16010 note Gasket, Fuel Tank Cap
1987-05 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
77316-16010 note Gasket, Fuel Tank Cap
1989-08 → 1989-11 ended
AE92,EE90 LHD MTM CBR —
77316-16010 Gasket, Fuel Tank Cap
1989-08 → 1992-06 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
77316-16010 note Gasket, Fuel Tank Cap
1987-05 → 1992-11 ended
AE92 LHD GTI —
77350 — Lid Assy, Fuel Filler Opening
77350-12160 Lid Assy, Fuel Filler Opening
1987-05 → 1992-05 ended
CE90,EE90 STD —
77350-12220 Lid Assy, Fuel Filler Opening
1987-05 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
77366 — Spring, Fuel Filler Opening Lid Hinge
77360-12010 Spring, Fuel Filler Opening Lid Hinge
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77377 — Retainer, Fuel Filler Opening Lid Lock
77377-12040 Retainer, Fuel Filler Opening Lid Lock
1987-05 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
77380 — Valve Assy, Fuel Cut Off
77380-14020 Valve Assy, Fuel Cut Off
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77391 — Ring, Fuel Inlet Box
77391-14020 Ring, Fuel Inlet Box
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77601B — Band Sub-assy, Fuel Tank, NO.1 RH
77601-12100 note Band Sub-assy, Fuel Tank, NO.1 RH
1987-05 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
77601-12100 note Band Sub-assy, Fuel Tank, NO.1 RH
1989-08 → 1989-11 ended
AE92,EE90 LHD MTM CBR —
77601-12100 Band Sub-assy, Fuel Tank, NO.1 RH
1989-08 → 1992-06 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
77601-12100 note Band Sub-assy, Fuel Tank, NO.1 RH
1987-05 → 1992-11 ended
AE92 LHD GTI —
77601-12110 Band Sub-assy, Fuel Tank, NO.1 RH
1987-05 → 1992-11 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
77602B — Band Sub-assy, Fuel Tank, NO.1 LH
77602-12060 Band Sub-assy, Fuel Tank, NO.1 LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77611A — Pin (FOR FUEL TANK BAND)
90250-08019 Pin (FOR FUEL TANK BAND)
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77614 — Seat, Fuel Tank Band
77681-12010 Seat, Fuel Tank Band
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
77653A — Cushion, Fuel Tank, NO.3
77653-12070 Cushion, Fuel Tank, NO.3
1987-05 → 1987-08 ended
AE92,CE90,EE90 —
77653-12090 Cushion, Fuel Tank, NO.3
1987-08 → 1992-11 ended
AE92,CE90,EE90 —
77654 — Cushion, Fuel Tank, NO.2
77652-16050 Cushion, Fuel Tank, NO.2
1987-05 → 1987-08 ended
AE92,CE90,EE90 —
77652-16060 Cushion, Fuel Tank, NO.2
1987-08 → 1992-11 ended
AE92,CE90,EE90 —
77656A — Cushion, Fuel Tank, NO.4
77654-12030 Cushion, Fuel Tank, NO.4
1987-05 → 1987-08 ended
AE92,CE90,EE90 —
77654-12060 Cushion, Fuel Tank, NO.4
1987-08 → 1992-11 ended
AE92,CE90,EE90 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
