Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration NB0367C 58329F — COVER, REAR FLOOR SERVICE HOLE, NO.2 (1 parts) 9011906101 — not listed in this catalogue 57673 — BRACKET, REAR SEATBACK HINGE MOUNTING (1 parts) 57697 — RETAINER, REAR SEAT CUSHION (1 parts) 58351A — BRACKET, SPARE WHEEL CARRIER (1 parts) 58244C — BRACKET, REAR SEAT CUSHION MOUNTING, RH (1 parts) 58215B — BRACKET, REAR SEAT MOUNTING, RH (1 parts) 58315D — EXTENSION, REAR FLOOR PAN, RH (1 parts) 9354014010 — not listed in this catalogue 58114A — REINFORCEMENT, FRONT FLOOR PANEL (1 parts) 58197B — RETAINER, INSTRUMENT PANEL BRACE MOUNTING BRACKET (1 parts) 58325E — COVER, REAR FLOOR SERVICE HOLE (1 parts) 9018904002 — not listed in this catalogue 58307 — PANEL SUB-ASSY, BODY LOWER BACK (3 parts) 58311 — PAN, REAR FLOOR (1 parts) 58213D — REINFORCEMENT, CENTER FLOOR PANEL (2 parts) 58247A — REINFORCEMENT, REAR SEAT CUSHION HINGE, RH (1 parts) 58208 — PAN, CENTER FLOOR (2 parts) 58123A — SUPPORT, SHIFT & SELECT LEVER (1 parts) 58316D — EXTENSION, REAR FLOOR PAN, LH (1 parts) 58331C — COVER, REAR FLOOR SIDE SERVICE HOLE, RH (1 parts) 57468A — BRACKET, FRONT SEAT, OUTSIDE, REAR RH (1 parts) 64778A — PROTECTOR, SPARE WHEEL (1 parts) 58136A — COVER, FRONT FLOOR SERVICE HOLE (2 parts) 55188 — BRACKET, UNDER TRAY SUPPORT (1 parts) 58248A — REINFORCEMENT, REAR SEAT CUSHION HINGE, LH (1 parts) 9011906101 — not listed in this catalogue 58216B — BRACKET, REAR SEAT MOUNTING, LH (1 parts) 58015A — REINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH (1 parts) 9095001060 — not listed in this catalogue 9095001244 — not listed in this catalogue 58213D — REINFORCEMENT, CENTER FLOOR PANEL (2 parts) 58191 — FOOTREST, FRONT FLOOR (5 parts) 58332C — COVER, REAR FLOOR SIDE SERVICE HOLE, LH (1 parts) 9095001126 — not listed in this catalogue 9095001005 — not listed in this catalogue 57469A — BRACKET, FRONT SEAT, OUTSIDE, REAR LH (1 parts) 55386A — BRACKET, COMPUTER MOUNTING, NO.1 (1 parts) 55387A — BRACKET, COMPUTER MOUNTING, NO.2 (1 parts) 58111 — PAN, FRONT FLOOR (1 parts) 9033325001 — not listed in this catalogue 58131 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1 (2 parts) 9010511023 — not listed in this catalogue 9095001060 — not listed in this catalogue 9095001379 — not listed in this catalogue 58027A — REINFORCE SUB-ASSY, SEAT BELT ANCHOR (8 parts) 9095001005 — not listed in this catalogue 58183 — BRACKET, FRONT SEAT MOUNTING, INNER (2 parts) 9095001056 — not listed in this catalogue 58171 — REINFORCEMENT, PARKING BRAKE BASE (1 parts) 58132 — BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2 (2 parts)

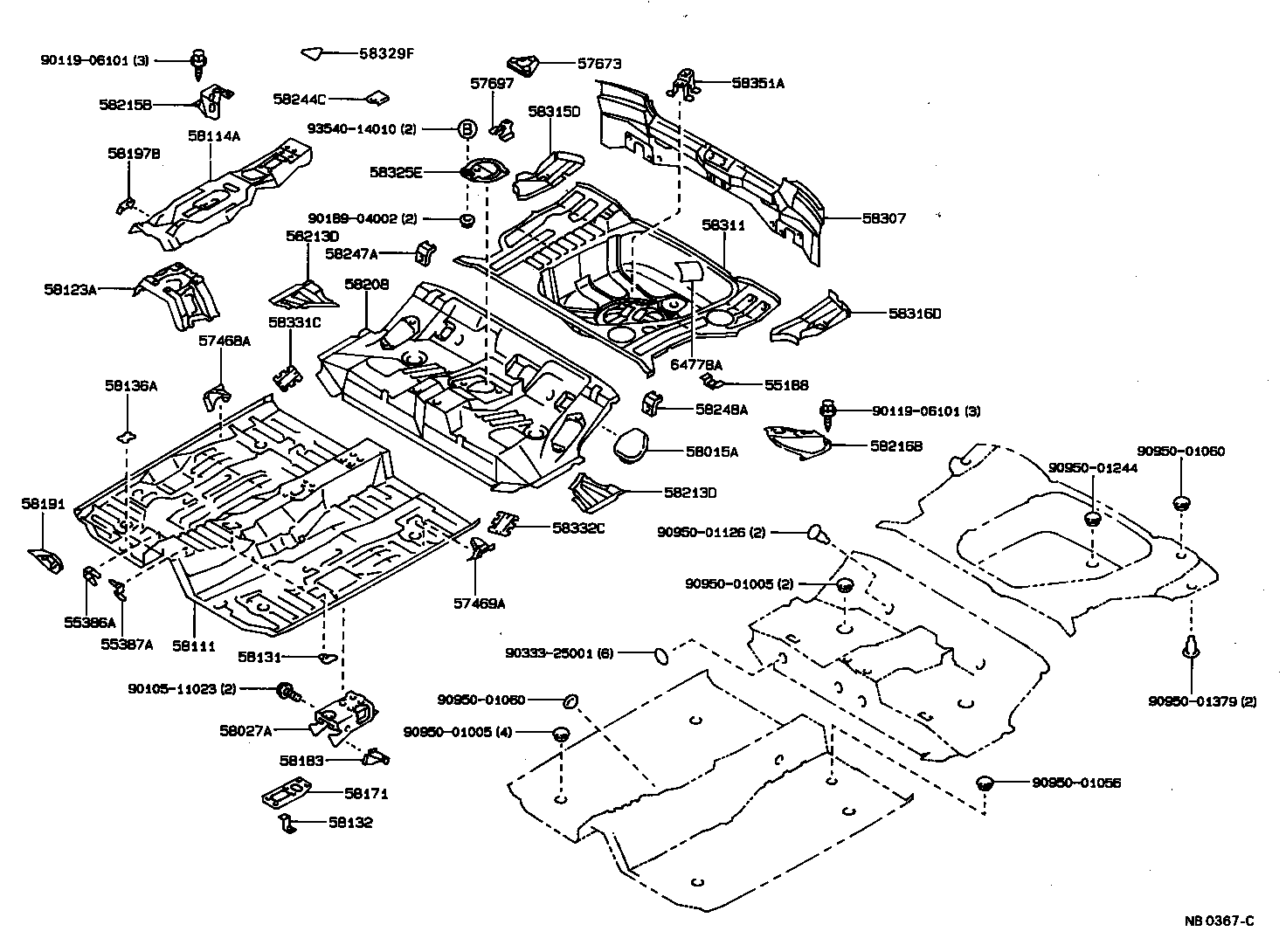

NB0367C · 37 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
55 parts on this figure
Part number Description Fitment Price
55188 — Bracket, Under Tray Support
55188-10010 Bracket, Under Tray Support
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55386A — Bracket, Computer Mounting, NO.1
55386-12040 Bracket, Computer Mounting, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
55387A — Bracket, Computer Mounting, NO.2
55387-12020 Bracket, Computer Mounting, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57468A — Bracket, Front Seat, Outside, Rear RH
57468-12030 Bracket, Front Seat, Outside, Rear RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57469A — Bracket, Front Seat, Outside, Rear LH
57469-12030 Bracket, Front Seat, Outside, Rear LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57673 — Bracket, Rear Seatback Hinge Mounting
57607-12020 Bracket, Rear Seatback Hinge Mounting
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
57697 — Retainer, Rear Seat Cushion
57697-12020 Retainer, Rear Seat Cushion
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58015A — Reinforce Sub-assy, Belt Anchor, NO.3 RH
58015-12020 Reinforce Sub-assy, Belt Anchor, NO.3 RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58027A — Reinforce Sub-assy, Seat Belt Anchor
58027-12030 Reinforce Sub-assy, Seat Belt Anchor
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
58027-12050 Reinforce Sub-assy, Seat Belt Anchor
1989-05 → 1990-08 ended
EE90 CBR;AE92,CE90 GL,GTI,STD,XL —
58027-12060 Reinforce Sub-assy, Seat Belt Anchor
1990-08 → 1992-11 ended
AE92 LHD GTI —
58027-12060 Reinforce Sub-assy, Seat Belt Anchor
1990-08 → 1992-06 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
58027-12060 Reinforce Sub-assy, Seat Belt Anchor
1990-06 → 1990-08 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
58027-12060 Reinforce Sub-assy, Seat Belt Anchor
1990-06 → 1990-08 ended
AE92 LHD GTI —
58027-12060 Reinforce Sub-assy, Seat Belt Anchor
1989-05 → 1990-06 ended
AE92,CE90,EE90 —
58027-12100 Reinforce Sub-assy, Seat Belt Anchor
1990-06 → 1992-11 ended
AE92 GTI;AE92,CE90,EE90 CBR,DSL —
58111 — Pan, Front Floor
58111-12200 Pan, Front Floor
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58114A — Reinforcement, Front Floor Panel
58114-12050 Reinforcement, Front Floor Panel
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58123A — Support, Shift & Select Lever
58123-12040 Support, Shift & Select Lever
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58131 — Bracket, Front Floor Heat Insulator, NO.1
58131-12060 Bracket, Front Floor Heat Insulator, NO.1
1987-05 → 1989-11 ended
AE92,EE90 LHD MTM —
58131-12060 Bracket, Front Floor Heat Insulator, NO.1
1989-11 → 1992-11 ended
AE92,EE90 LHD EFI —
58132 — Bracket, Front Floor Heat Insulator, NO.2
58132-32010 Bracket, Front Floor Heat Insulator, NO.2
1987-05 → 1989-11 ended
AE92,EE90 LHD MTM —
58132-32010 Bracket, Front Floor Heat Insulator, NO.2
1989-11 → 1992-11 ended
AE92,EE90 LHD EFI —
58136A — Cover, Front Floor Service Hole
58136-12020 Cover, Front Floor Service Hole
1987-05 → 1989-05 ended
AE92,CE90,EE90 —
58136-12020 Cover, Front Floor Service Hole
1989-05 → 1992-11 ended
AE92,CE90,EE90 —
58171 — Reinforcement, Parking Brake Base
58171-12080 Reinforcement, Parking Brake Base
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58183 — Bracket, Front Seat Mounting, Inner
58183-12090 note Bracket, Front Seat Mounting, Inner
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58184-12110 note Bracket, Front Seat Mounting, Inner
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58191 — Footrest, Front Floor
58191-12100 Footrest, Front Floor
1987-05 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
58192-12040 Footrest, Front Floor
1987-09 → 1988-12 ended
AE92,EE90 LHD (GL,GTI) —
58192-12040 Footrest, Front Floor
1988-12 → 1989-08 ended
AE92 3D XL;AE92,EE90 LHD +1 —
58192-12040 Footrest, Front Floor
1989-08 → 1992-11 ended
AE92,EE90 LHD (GL,GLI,GTI,SR5) —
58192-12050 Footrest, Front Floor
1987-05 → 1987-09 ended
AE92,EE90 LHD (GL,GTI) —
58197B — Retainer, Instrument Panel Brace Mounting Bracket
58197-12010 Retainer, Instrument Panel Brace Mounting Bracket
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58208 — Pan, Center Floor
58211-12170 Pan, Center Floor
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58211-12170 note Pan, Center Floor
1989-08 → 1992-11 ended
AE92 LHD GTI —
58213D — Reinforcement, Center Floor Panel
58213-12020 note Reinforcement, Center Floor Panel
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58214-12010 note Reinforcement, Center Floor Panel
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58215B — Bracket, Rear Seat Mounting, RH
58215-16010 Bracket, Rear Seat Mounting, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58216B — Bracket, Rear Seat Mounting, LH
58216-16010 Bracket, Rear Seat Mounting, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58244C — Bracket, Rear Seat Cushion Mounting, RH
58244-16030 Bracket, Rear Seat Cushion Mounting, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58247A — Reinforcement, Rear Seat Cushion Hinge, RH
58247-12030 Reinforcement, Rear Seat Cushion Hinge, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58248A — Reinforcement, Rear Seat Cushion Hinge, LH
58247-12030 Reinforcement, Rear Seat Cushion Hinge, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58307 — Panel Sub-assy, Body Lower Back
58307-1A070 Panel Sub-assy, Body Lower Back
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
58307-1A070 Panel Sub-assy, Body Lower Back
1989-08 → 1989-10 ended
AE92,CE90,EE90 —
58307-1A071 Panel Sub-assy, Body Lower Back
1989-10 → 1992-11 ended
AE92,CE90,EE90 —
58311 — Pan, Rear Floor
58311-12180 Pan, Rear Floor
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58315D — Extension, Rear Floor Pan, RH
58315-12040 Extension, Rear Floor Pan, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58316D — Extension, Rear Floor Pan, LH
58316-12040 Extension, Rear Floor Pan, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58325E — Cover, Rear Floor Service Hole
58325-12020 Cover, Rear Floor Service Hole
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58329F — Cover, Rear Floor Service Hole, NO.2
58329-16010 Cover, Rear Floor Service Hole, NO.2
1987-05 → 1992-05 ended
AE92,EE90 3D XLI;AE92,CE90,EE90 3D +2 —
58331C — Cover, Rear Floor Side Service Hole, RH
58331-12010 Cover, Rear Floor Side Service Hole, RH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58332C — Cover, Rear Floor Side Service Hole, LH
58332-12010 Cover, Rear Floor Side Service Hole, LH
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
58351A — Bracket, Spare Wheel Carrier
58351-12030 Bracket, Spare Wheel Carrier
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
64778A — Protector, Spare Wheel
64778-12030 Protector, Spare Wheel
1987-05 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
