Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

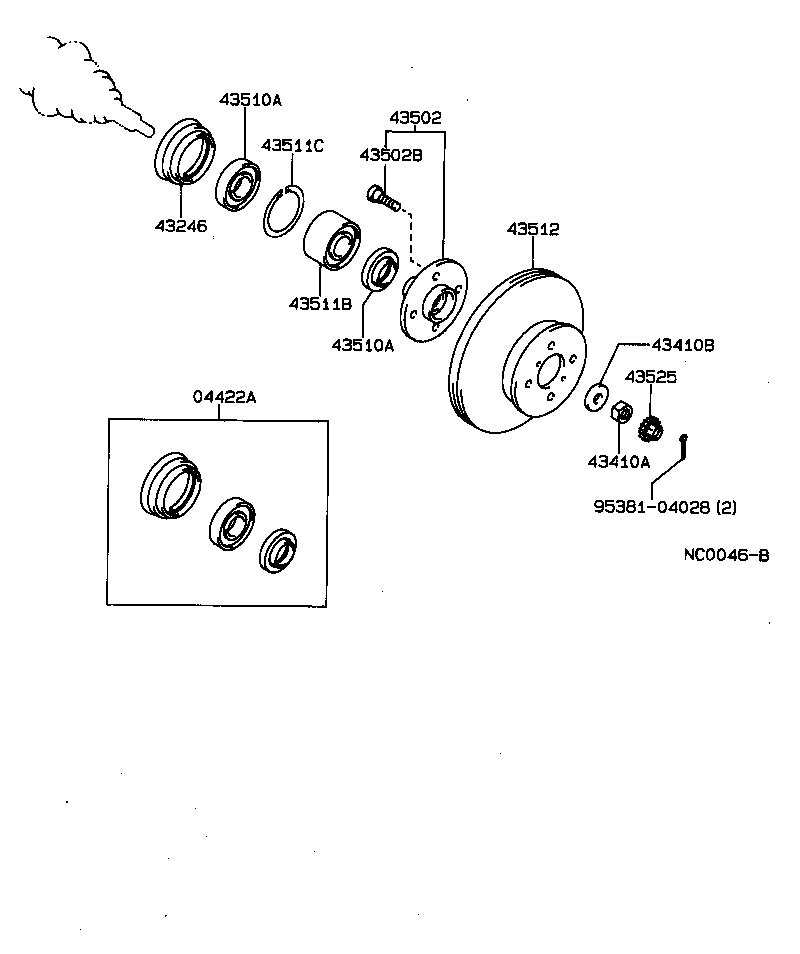

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 04422A — Seal Kit, Front Axle Oil | ||||
| 04422-12020 |
Seal Kit, Front Axle Oil
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 04422-12020 |
Seal Kit, Front Axle Oil
1989-08 → 1991-06
ended
|
AE92,CE90,EE90 | — | |
| 04422-12020 note |
Seal Kit, Front Axle Oil
1991-05 → 1991-06
ended
|
AE92 CBR | — | |
| 04422-12030 note |
Seal Kit, Front Axle Oil
1989-08 → 1989-11
ended
|
AE92 LHD GTI | — | |
| 04422-12030 note |
Seal Kit, Front Axle Oil
1989-11 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 04422-12040 |
Seal Kit, Front Axle Oil
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 04422-12040 note |
Seal Kit, Front Axle Oil
1991-06 → 1991-11
ended
|
AE92 CBR | — | |
| 43246 — Deflector, Front Wheel Bearing Dust, NO.1 | ||||
| 43246-12010 |
Deflector, Front Wheel Bearing Dust, NO.1
1987-05 → 1992-07
ended
|
AE92,CE90,EE90 | — | |
| 43246-12020 note |
Deflector, Front Wheel Bearing Dust, NO.1
1989-08 → 1989-11
ended
|
AE92 LHD GTI | — | |
| 43246-12020 note |
Deflector, Front Wheel Bearing Dust, NO.1
1989-11 → 1992-11
ended
|
AE92 LHD GTI | — | |
| 43246-12030 |
Deflector, Front Wheel Bearing Dust, NO.1
1992-07 → 1992-11
ended
|
AE92 | — | |
| 43410A — Nut (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90170-19001 |
Nut (FOR AXLE HUB & DRIVE SHAFT SETTING)
1987-05 → 1988-11
ended
|
AE92,CE90,EE90 | — | |
| 90170-19001 |
Nut (FOR AXLE HUB & DRIVE SHAFT SETTING)
1989-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90170-19001 |
Nut (FOR AXLE HUB & DRIVE SHAFT SETTING)
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 | — | |
| 90179-22020 |
Nut (FOR AXLE HUB & DRIVE SHAFT SETTING)
1991-01 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 43410B — Washer (FOR AXLE HUB & DRIVE SHAFT SETTING) | ||||
| 90201-20012 |
Washer (FOR AXLE HUB & DRIVE SHAFT SETTING)
1987-05 → 1988-11
ended
|
AE92,CE90,EE90 | — | |
| 90201-20012 |
Washer (FOR AXLE HUB & DRIVE SHAFT SETTING)
1989-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90201-20012 |
Washer (FOR AXLE HUB & DRIVE SHAFT SETTING)
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 | — | |
| 43502 — Hub Sub-assy, Front Axle | ||||
| 43502-12100 |
Hub Sub-assy, Front Axle
1991-05 → 1991-06
ended
|
AE92,CE90,EE90 | — | |
| 43502-12110 |
Hub Sub-assy, Front Axle
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 43502-20030 |
Hub Sub-assy, Front Axle
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 43502-20030 |
Hub Sub-assy, Front Axle
1989-08 → 1991-05
ended
|
AE92,CE90,EE90 | — | |
| 43502B — Bolt, Hub (FOR FRONT AXLE) | ||||
| 90942-02047 |
Bolt, Hub (FOR FRONT AXLE)
1989-08 → 1991-05
ended
|
AE92,CE90,EE90 | — | |
| 90942-02047 |
Bolt, Hub (FOR FRONT AXLE)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90942-02049 |
Bolt, Hub (FOR FRONT AXLE)
1991-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 43510A — Seal, Oil (FOR FRONT AXLE HUB) | ||||
| 90311-52006 note |
Seal, Oil (FOR FRONT AXLE HUB)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90311-52006 note |
Seal, Oil (FOR FRONT AXLE HUB)
1989-08 → 1991-06
ended
|
AE92,CE90,EE90 | — | |
| 90311-52012 note |
Seal, Oil (FOR FRONT AXLE HUB)
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 90311-56008 note |
Seal, Oil (FOR FRONT AXLE HUB)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 90311-56008 note |
Seal, Oil (FOR FRONT AXLE HUB)
1989-08 → 1991-06
ended
|
AE92,CE90,EE90 | — | |
| 90311-56018 note |
Seal, Oil (FOR FRONT AXLE HUB)
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 43511B — Bearing (FOR FRONT AXLE HUB) | ||||
| 90369-38011 note |
Bearing (FOR FRONT AXLE HUB)
1989-08 → 1992-06
ended
|
CE90 LHD | — | |
| 90369-38011 |
Bearing (FOR FRONT AXLE HUB)
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 90369-38011 |
Bearing (FOR FRONT AXLE HUB)
1989-08 → 1992-06
ended
|
AE92,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 90369-38011 |
Bearing (FOR FRONT AXLE HUB)
1989-08 → 1991-06
ended
|
AE92,CE90 (GTI,STD,XL) (DSL,EFI) | — | |
| 90369-38011 note |
Bearing (FOR FRONT AXLE HUB)
1989-08 → 1989-11
ended
|
AE92 LHD GTI | — | |
| 90369-38011 |
Bearing (FOR FRONT AXLE HUB)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 43511C — Ring, Hole Snap (FOR FRONT AXLE HUB) | ||||
| 90521-77001 note |
Ring, Hole Snap (FOR FRONT AXLE HUB)
1991-05 → 1991-11
ended
|
AE92 CBR | — | |
| 90521-77001 note |
Ring, Hole Snap (FOR FRONT AXLE HUB)
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 43512 — Disc, Front | ||||
| 43512-12230 |
Disc, Front
1987-05 → 1989-08
ended
|
EE90 | — | |
| 43512-12250 |
Disc, Front
1987-05 → 1989-08
ended
|
AE92,CE90 | — | |
| 43512-12300 |
Disc, Front
1989-08 → 1990-09
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 43512-12310 |
Disc, Front
1989-08 → 1992-11
ended
|
AE92 GTI | — | |
| 43512-12480 |
Disc, Front
1990-09 → 1992-06
ended
|
AE92,CE90,EE90 GL,GLI,SR5,STD,XL,XLI | — | |
| 43525 — Cap, Front Wheel Adjusting Lock | ||||
| 43525-16010 |
Cap, Front Wheel Adjusting Lock
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 43525-16010 |
Cap, Front Wheel Adjusting Lock
1989-08 → 1991-01
ended
|
AE92,CE90,EE90 | — | |
| 43525-20030 |
Cap, Front Wheel Adjusting Lock
1991-01 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
