Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes
Exploded illustration NE0048D 8503 — not listed in this catalogue 85276 — RELAY, CLEANER CONTROL (4 parts) 9165640620 — not listed in this catalogue 85310A — MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER (5 parts) 85336C — PACKING, HEADLAMP CLEANER MOTOR (1 parts) 85376 — PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 (1 parts) 85341 — NOZZLE, HEADLAMP CLEANER WASHER (7 parts) 85271C — HOSE, HEADLAMP CLEANER, NO.4 (1 parts) 85031 — VALVE, HEADLAMP CLEANER WASHER HOSE (1 parts) 85271 — HOSE, HEADLAMP CLEANER, NO.1 (4 parts) 8537622410 — not listed in this catalogue 85271B — HOSE, HEADLAMP CLEANER, NO.3 (3 parts) 8527212050 — not listed in this catalogue 85271A — HOSE, HEADLAMP CLEANER, NO.2 (9 parts) 85271A — HOSE, HEADLAMP CLEANER, NO.2 (9 parts) 85031 — VALVE, HEADLAMP CLEANER WASHER HOSE (1 parts) 85348A — JOINT, HEADLAMP CLEANER HOSE, NO.1 (1 parts) 85271B — HOSE, HEADLAMP CLEANER, NO.3 (3 parts) 85376 — PROTECTOR, HEADLAMP CLEANER HOSE, NO.1 (1 parts) 8527220050 — not listed in this catalogue 8527220050 — not listed in this catalogue 85341 — NOZZLE, HEADLAMP CLEANER WASHER (7 parts) 8527212050 — not listed in this catalogue

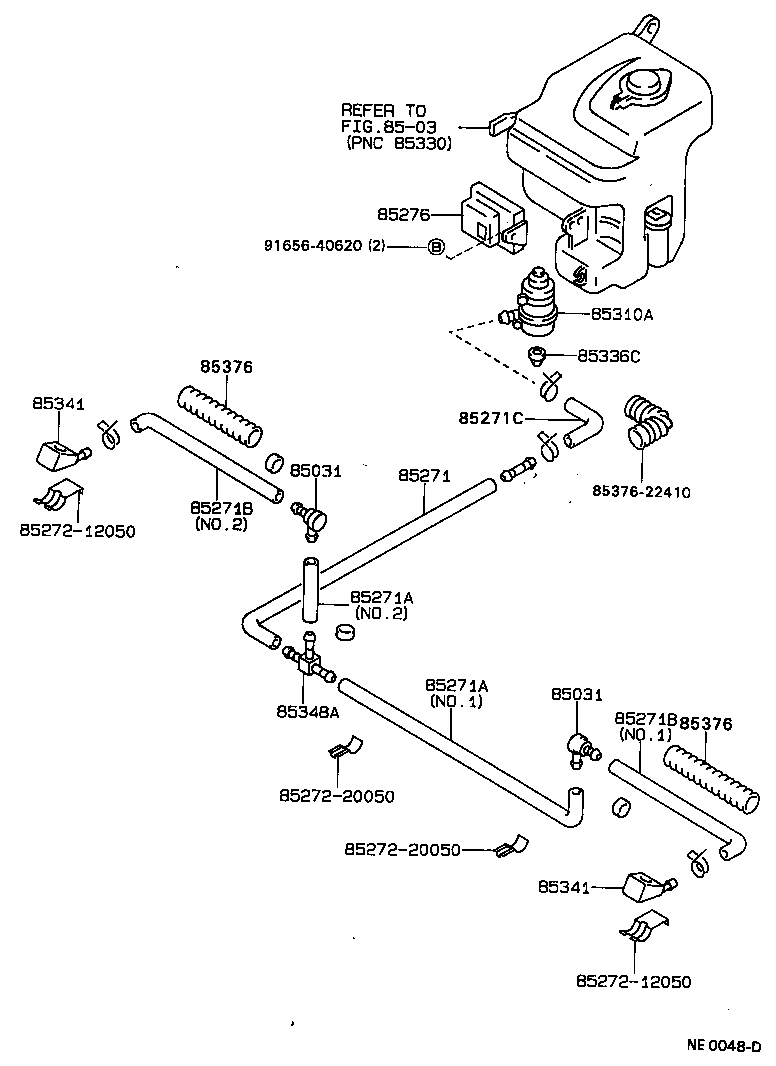

NE0048D · 16 callouts, 7 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
37 parts on this figure
Part number Description Fitment Price
85031 — Valve, Headlamp Cleaner Washer Hose
85031-30020 Valve, Headlamp Cleaner Washer Hose
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
85271 — Hose, Headlamp Cleaner, NO.1
85375-12380 Hose, Headlamp Cleaner, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
85375-12380 Hose, Headlamp Cleaner, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
85375-12380 Hose, Headlamp Cleaner, NO.1
1989-08 → 1992-11 ended
AE92 LHD GTI —
85375-12760 note Hose, Headlamp Cleaner, NO.1
1989-08 → 1992-11 ended
AE92 LHD GTI —
85271A — Hose, Headlamp Cleaner, NO.2
85343-12050 note Hose, Headlamp Cleaner, NO.2
1987-05 → 1987-08 ended
AE92,CE90,EE90 LHD —
85343-12050 note Hose, Headlamp Cleaner, NO.2
1987-08 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,GTI,XL) —
85343-12050 note Hose, Headlamp Cleaner, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
85343-12050 note Hose, Headlamp Cleaner, NO.2
1989-08 → 1992-11 ended
AE92 LHD GTI —
85376-14301 note Hose, Headlamp Cleaner, NO.2
1987-05 → 1987-08 ended
AE92,CE90,EE90 LHD —
85376-14301 note Hose, Headlamp Cleaner, NO.2
1987-08 → 1989-03 ended
AE92,CE90,EE90 LHD (GL,GTI,XL) —
85376-14301 note Hose, Headlamp Cleaner, NO.2
1989-08 → 1992-11 ended
AE92 LHD GTI —
85377-12510 note Hose, Headlamp Cleaner, NO.2
1989-08 → 1992-11 ended
AE92 LHD GTI —
90445-14071 note Hose, Headlamp Cleaner, NO.2
1989-03 → 1992-11 ended
AE92,CE90,EE90 LHD —
85271B — Hose, Headlamp Cleaner, NO.3
85375-12510 note Hose, Headlamp Cleaner, NO.3
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
85376-12380 note Hose, Headlamp Cleaner, NO.3
1987-05 → 1989-03 ended
AE92,CE90,EE90 LHD —
85377-12380 note Hose, Headlamp Cleaner, NO.3
1989-03 → 1992-11 ended
AE92,CE90,EE90 LHD —
85271C — Hose, Headlamp Cleaner, NO.4
85343-95700 note Hose, Headlamp Cleaner, NO.4
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
85276 — Relay, Cleaner Control
85276-12050 Relay, Cleaner Control
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
85276-12050 Relay, Cleaner Control
1989-08 → 1992-11 ended
AE92 LHD GTI —
85276-12050 Relay, Cleaner Control
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
85276-22070 note Relay, Cleaner Control
1989-08 → 1992-11 ended
AE92 LHD GTI —
85310A — Motor And Pump Assy, Headlamp Cleaner Washer
85280-12050 Motor And Pump Assy, Headlamp Cleaner Washer
1989-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
85280-12050 Motor And Pump Assy, Headlamp Cleaner Washer
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,SR5,STD,XL,XLI) —
85280-12050 Motor And Pump Assy, Headlamp Cleaner Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85310-12190 Motor And Pump Assy, Headlamp Cleaner Washer
1987-05 → 1989-05 ended
AE92,CE90,EE90 LHD —
85310-22100 note Motor And Pump Assy, Headlamp Cleaner Washer
1989-08 → 1992-11 ended
AE92 LHD GTI —
85336C — Packing, Headlamp Cleaner Motor
85336-10010 Packing, Headlamp Cleaner Motor
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
85341 — Nozzle, Headlamp Cleaner Washer
85035-12320 Nozzle, Headlamp Cleaner Washer
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
85035-12320 Nozzle, Headlamp Cleaner Washer
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
85035-12320 Nozzle, Headlamp Cleaner Washer
1987-05 → 1992-05 ended
CE90,EE90 STD —
85035-12340 note Nozzle, Headlamp Cleaner Washer
1987-05 → 1989-08 ended
CE90 LHD 3D XL;AE92,EE90 +2 —
85035-12340 note Nozzle, Headlamp Cleaner Washer
1987-05 → 1989-08 ended
CE90 5D —
85035-12340 note Nozzle, Headlamp Cleaner Washer
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
85035-12340 Nozzle, Headlamp Cleaner Washer
1987-05 → 1992-11 ended
AE92 LHD (GTI,SR5) —
85348A — Joint, Headlamp Cleaner Hose, NO.1
85352-12010 Joint, Headlamp Cleaner Hose, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
85376 — Protector, Headlamp Cleaner Hose, NO.1
85377-12090 Protector, Headlamp Cleaner Hose, NO.1
1989-08 → 1992-11 ended
AE92,CE90,EE90 LHD (GL,GLI,GTI,SR5,XL,XLI) —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
