Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

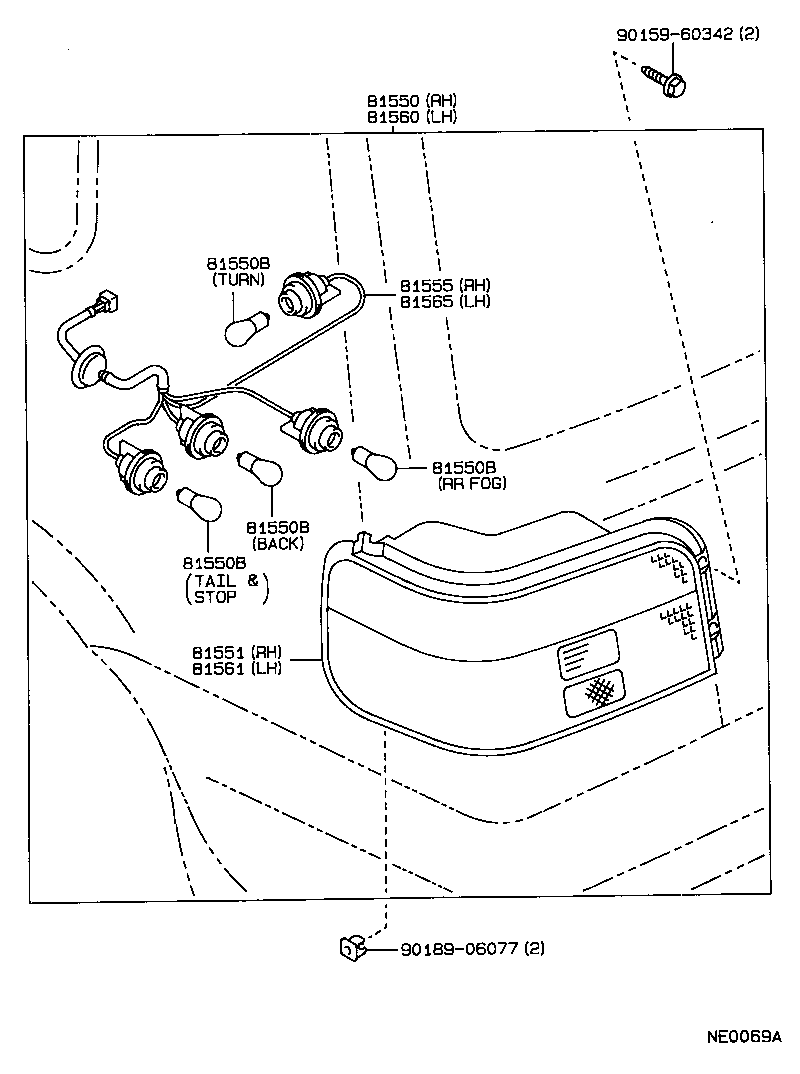

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81550 — Lamp Assy, Rear Combination, RH | ||||
| 81550-1A530 |
Lamp Assy, Rear Combination, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 81550-1A540 |
Lamp Assy, Rear Combination, RH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 81550B — Bulb(FOR REAR COMBINATION LAMP) | ||||
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 99132-11210 note |
Bulb(FOR REAR COMBINATION LAMP)
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 | — | |
| 99132-21210 note |
Bulb(FOR REAR COMBINATION LAMP)
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 81551 — Lens, Rear Combination Lamp, RH | ||||
| 81551-1A530 |
Lens, Rear Combination Lamp, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 81551-1A540 |
Lens, Rear Combination Lamp, RH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 81555 — Socket & Wire Sub-assy, Rear Combination Lamp, RH | ||||
| 81555-1A530 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 81555-1A540 |
Socket & Wire Sub-assy, Rear Combination Lamp, RH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 81560 — Lamp Assy, Rear Combination, LH | ||||
| 81560-1A530 |
Lamp Assy, Rear Combination, LH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 81560-1A540 |
Lamp Assy, Rear Combination, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 81561 — Lens, Rear Combination Lamp, LH | ||||
| 81561-1A530 |
Lens, Rear Combination Lamp, LH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 81561-1A540 |
Lens, Rear Combination Lamp, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
| 81565 — Socket & Wire Sub-assy, Rear Combination Lamp, LH | ||||
| 81555-1A530 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1987-05 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 81555-1A540 |
Socket & Wire Sub-assy, Rear Combination Lamp, LH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
