Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

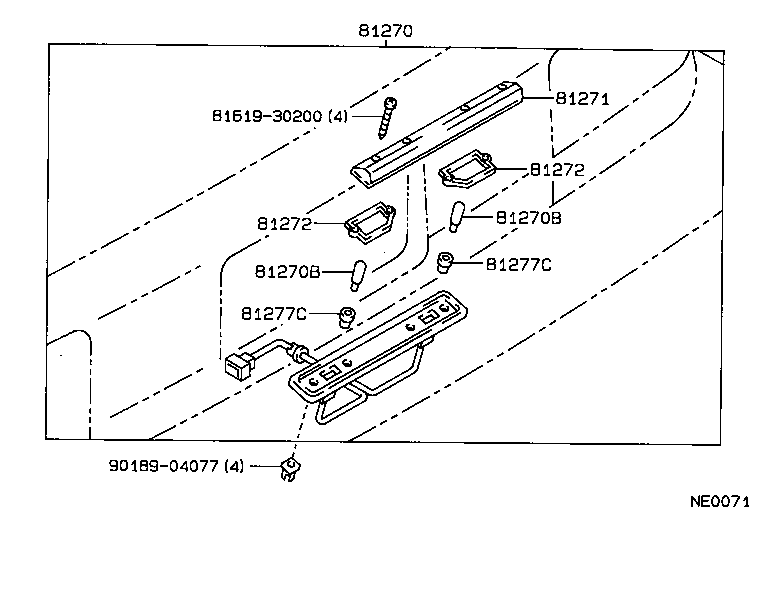

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 81270 — Lamp Assy, License Plate | ||||
| 81270-12360 |
Lamp Assy, License Plate
1987-05 → 1992-11
ended
|
CE90,EE90;AE92 CBR;AE92 GLI,GTI,XLI | — | |
| 81270-12370-01 note |
Lamp Assy, License Plate
1989-01 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 81270-12370-02 note |
Lamp Assy, License Plate
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12370-03 note |
Lamp Assy, License Plate
1987-05 → 1991-06
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12370-05 note |
Lamp Assy, License Plate
1987-05 → 1989-05
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 81270-12370-08 note |
Lamp Assy, License Plate
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12370-11 note |
Lamp Assy, License Plate
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12370-14 note |
Lamp Assy, License Plate
1988-10 → 1989-08
ended
|
AE92 5D;EE90 5D GL;CE90,EE90 +5 | — | |
| 81270-12370-15 note |
Lamp Assy, License Plate
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,XL | — | |
| 81270-12370-22 note |
Lamp Assy, License Plate
1989-08 → 1991-05
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 81270-12370-24 note |
Lamp Assy, License Plate
1989-08 → 1991-08
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12370-25 note |
Lamp Assy, License Plate
1989-08 → 1991-06
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 81270-12370-B0 note |
Lamp Assy, License Plate
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12370-J0 note |
Lamp Assy, License Plate
1991-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270-12400 note |
Lamp Assy, License Plate
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81270B — Bulb (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 note |
Bulb (FOR LICENSE PLATE LAMP)
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 81271 — Lens, License Plate Lamp | ||||
| 81271-12290-11 note |
Lens, License Plate Lamp
1989-01 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 81271-12290-12 note |
Lens, License Plate Lamp
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-15 note |
Lens, License Plate Lamp
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,GTI,XL | — | |
| 81271-12290-18 note |
Lens, License Plate Lamp
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-21 note |
Lens, License Plate Lamp
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-24 note |
Lens, License Plate Lamp
1988-10 → 1989-08
ended
|
AE92 5D;EE90 5D GL;CE90,EE90 +5 | — | |
| 81271-12290-25 note |
Lens, License Plate Lamp
1987-05 → 1989-08
ended
|
AE92,CE90,EE90 GL,XL | — | |
| 81271-12290-27 note |
Lens, License Plate Lamp
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-32 note |
Lens, License Plate Lamp
1989-08 → 1991-05
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 81271-12290-34 note |
Lens, License Plate Lamp
1989-08 → 1991-08
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-35 note |
Lens, License Plate Lamp
1989-08 → 1991-06
ended
|
AE92,CE90,EE90 GL,GLI,XL,XLI | — | |
| 81271-12290-53 note |
Lens, License Plate Lamp
1987-05 → 1991-06
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-B0 note |
Lens, License Plate Lamp
1991-06 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-12290-J0 note |
Lens, License Plate Lamp
1991-08 → 1992-11
ended
|
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI | — | |
| 81271-22200 |
Lens, License Plate Lamp
1987-05 → 1992-11
ended
|
CE90,EE90;AE92 CBR;AE92 GLI,GTI,XLI | — | |
| 81272 — Gasket, License Plate Lamp Lens | ||||
| 81272-22200 |
Gasket, License Plate Lamp Lens
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 81277C — Shade, License Plate Lamp, RH | ||||
| 81277-22200 |
Shade, License Plate Lamp, RH
1987-05 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
