Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

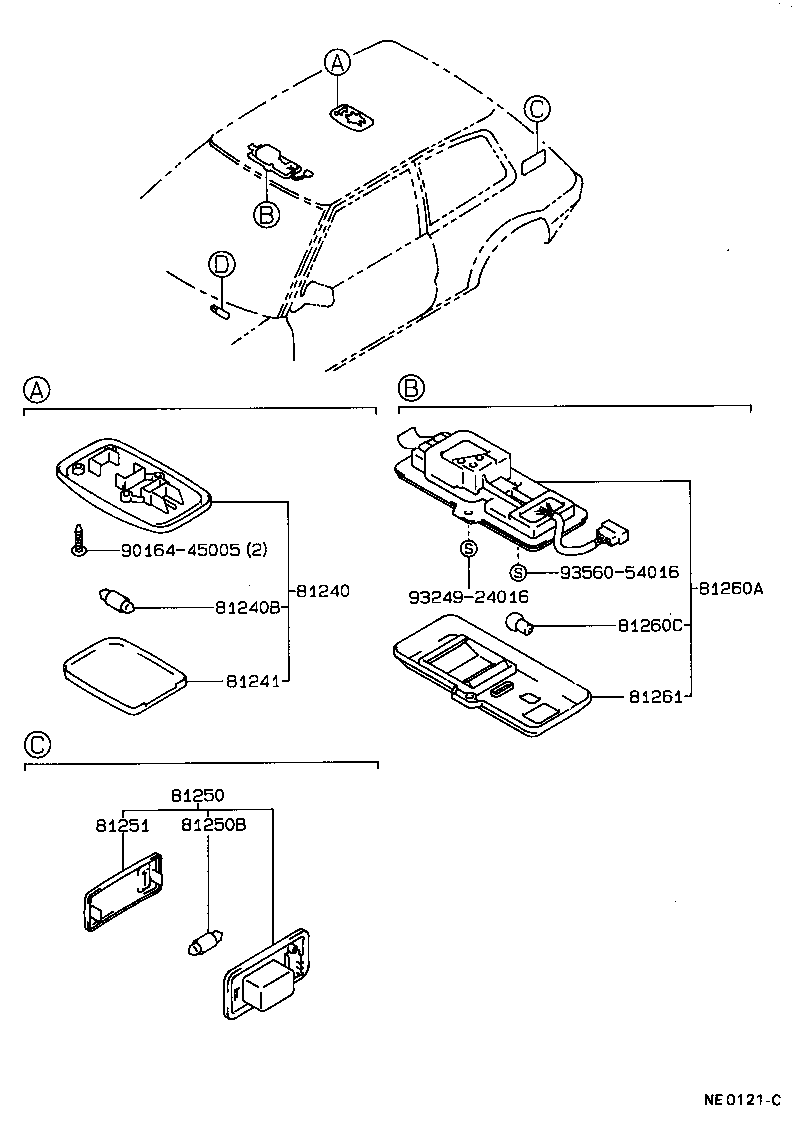

Exploded illustration NE0121C 9016445005 — not listed in this catalogue 9356054016 — not listed in this catalogue 81260A — LAMP ASSY, MAP (8 parts) 81240 — LAMP ASSY, ROOM, NO.1 (8 parts) 9324924016 — not listed in this catalogue 81240B — BULB, ROOM LAMP, NO.1 (1 parts) 81260C — BULB(FOR MAP LAMP) (1 parts) 81241 — LENS, ROOM LAMP, NO.1 (1 parts) 81261 — LENS AND COVER, MAP LAMP (8 parts) 81250 — LAMP ASSY, ROOM, NO.2 (5 parts) 81250B — BULB, ROOM LAMP, NO.2 (1 parts) 81251 — LENS, ROOM LAMP, NO.2 (1 parts)
NE0121C · 9 callouts, 3 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
34 parts on this figure
Part number Description Fitment Price
81240 — Lamp Assy, Room, NO.1
81240-12020-03 note Lamp Assy, Room, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
81240-12020-03 note Lamp Assy, Room, NO.1
1989-08 → 1991-06 ended
AE92,CE90,EE90 3D (GL,GLI,SR5,STD,XL,XLI) —
81240-12020-03 note Lamp Assy, Room, NO.1
1989-08 → 1991-06 ended
AE92 GTI —
81240-12020-04 note Lamp Assy, Room, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
81240-12020-04 note Lamp Assy, Room, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
81240-12020-05 note Lamp Assy, Room, NO.1
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
81240-12020-16 note Lamp Assy, Room, NO.1
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
81240-12020-S3 note Lamp Assy, Room, NO.1
1991-06 → 1992-11 ended
AE92,CE90,EE90 —
81240B — Bulb, Room Lamp, NO.1
99132-12100 note Bulb, Room Lamp, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
81241 — Lens, Room Lamp, NO.1
81241-12020 Lens, Room Lamp, NO.1
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
81250 — Lamp Assy, Room, NO.2
81250-12030-03 note Lamp Assy, Room, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
81250-12030-04 note Lamp Assy, Room, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
81250-12030-04 note Lamp Assy, Room, NO.2
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,STD,XL,XLI —
81250-12030-05 note Lamp Assy, Room, NO.2
1987-05 → 1989-08 ended
AE92,CE90,EE90 CBR,DSL —
81250-12030-16 note Lamp Assy, Room, NO.2
1989-08 → 1992-06 ended
EE90 MTM XLI;EE90 LHD +3 —
81250B — Bulb, Room Lamp, NO.2
99132-13050 note Bulb, Room Lamp, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
81251 — Lens, Room Lamp, NO.2
81251-12030 Lens, Room Lamp, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
81260A — Lamp Assy, Map
81260-16040-03 note Lamp Assy, Map
1987-05 → 1988-09 ended
AE92 GL,GTI;AE92 3D XL;CE90,EE90 +1 —
81260-16040-04 note Lamp Assy, Map
1987-05 → 1988-11 ended
AE92,CE90,EE90 LHD (GL,XL) —
81260-16040-05 note Lamp Assy, Map
1987-05 → 1988-09 ended
AE92,CE90,EE90 GL,XL —
81260-16040-06 note Lamp Assy, Map
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
81260-16040-B0 note Lamp Assy, Map
1988-09 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
81260-16040-E0 note Lamp Assy, Map
1988-09 → 1989-08 ended
AE92,CE90,EE90 GL,XL —
81260-16040-J0 note Lamp Assy, Map
1988-11 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
81260-16040-J0 note Lamp Assy, Map
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
81260C — Bulb(FOR MAP LAMP)
90981-12014 note Bulb(FOR MAP LAMP)
1987-05 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
81261 — Lens And Cover, Map Lamp
81261-20061-05 note Lens And Cover, Map Lamp
1987-05 → 1988-09 ended
AE92,CE90,EE90 GL,XL —
81261-20061-06 note Lens And Cover, Map Lamp
1989-08 → 1992-06 ended
AE92,CE90,EE90 LHD (GL,GLI,XL,XLI) —
81261-20061-13 note Lens And Cover, Map Lamp
1987-05 → 1988-09 ended
AE92,CE90,EE90 GL,GTI,XL —
81261-20061-14 note Lens And Cover, Map Lamp
1987-05 → 1988-11 ended
AE92,CE90,EE90 LHD (GL,XL) —
81261-20061-B0 note Lens And Cover, Map Lamp
1988-09 → 1992-11 ended
AE92,CE90,EE90 GL,GLI,GTI,SR5,XL,XLI —
81261-20061-E0 note Lens And Cover, Map Lamp
1988-09 → 1989-08 ended
AE92,CE90,EE90 GL,XL —
81261-20061-J0 note Lens And Cover, Map Lamp
1988-11 → 1989-08 ended
AE92,CE90,EE90 LHD (GL,XL) —
81261-20061-J0 note Lens And Cover, Map Lamp
1989-08 → 1992-06 ended
AE92,CE90,EE90 GL,GLI,XL,XLI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
