Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

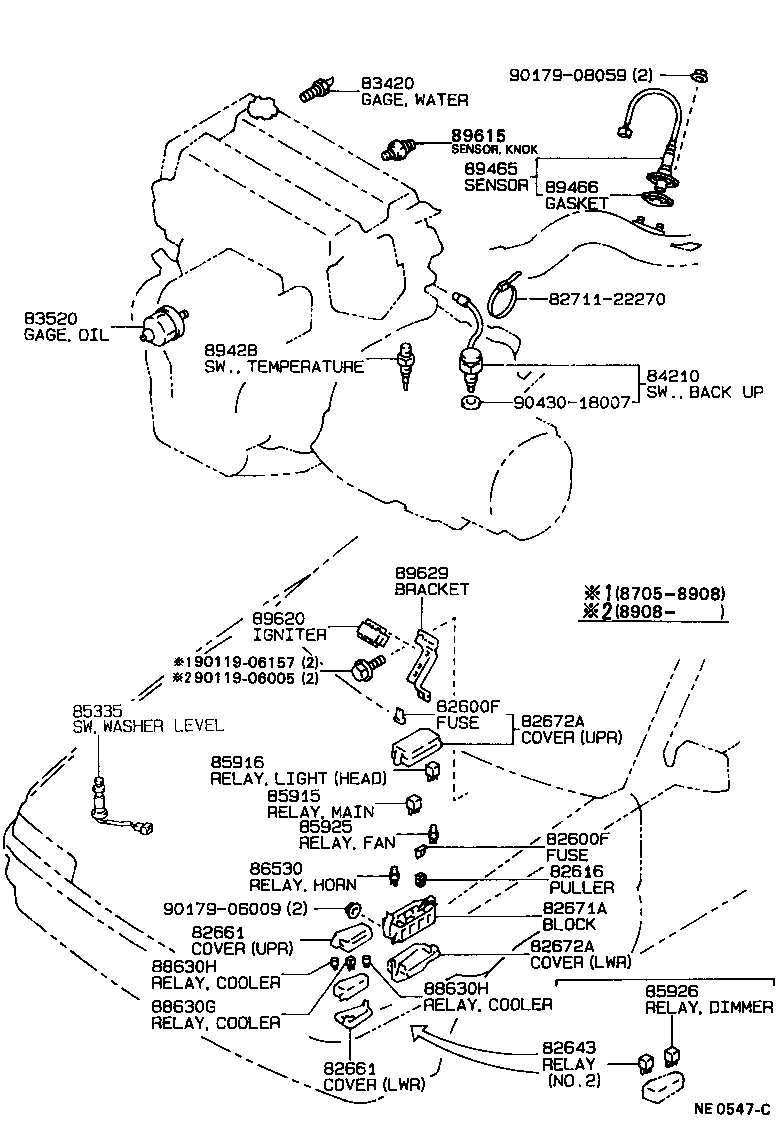

Exploded illustration NE0547C 9017908059 — not listed in this catalogue 83420 — GAGE ASSY, WATER TEMPERATURE SENDER (3 parts) 89615 — SENSOR, KNOCK CONTROL (3 parts) 89465 — SENSOR, OXYGEN (8 parts) 89466 — GASKET, OXYGEN SENSOR (6 parts) 8271122270 — not listed in this catalogue 83520 — GAGE ASSY,OIL PRESSURE SENDER (1 parts) 89428 — SWITCH, TEMPERATURE DETECT, NO.2 (6 parts) 84210 — SWITCH ASSY, BACK-UP LAMP (2 parts) 9043018007 — not listed in this catalogue 89629 — BRACKET, IGNITER ASSY (2 parts) 89620 — IGNITER ASSY (2 parts) 9011906157 — not listed in this catalogue 9011906005 — not listed in this catalogue 82600F — FUSE, FUSE BLOCK (11 parts) 85335 — SWITCH ASSY, WASHER LEVEL WARNING (1 parts) 82672A — COVER, JUNCTION BLOCK (24 parts) 85916 — RELAY, LIGHT CONTROL (4 parts) 85915 — RELAY, MAIN (1 parts) 85925 — RELAY, RADIATOR FAN (1 parts) 82600F — FUSE, FUSE BLOCK (11 parts) 86530 — RELAY ASSY, HORN (2 parts) 82616 — PULLER, FUSE (3 parts) 9017906009 — not listed in this catalogue 82671A — BLOCK, JUNCTION (21 parts) 82661 — COVER, RELAY BLOCK, NO.1 (46 parts) 82672A — COVER, JUNCTION BLOCK (24 parts) 88630H — RELAY ASSY, COOLER (3 parts) 88630H — RELAY ASSY, COOLER (3 parts) 85926 — RELAY, HEADLAMP DIMMER (13 parts) 88630G — RELAY ASSY, COOLER (3 parts) 82643 — RELAY, DIM-DIP LAMP (4 parts) 82661 — COVER, RELAY BLOCK, NO.1 (46 parts)
NE0547C · 27 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
170 parts on this figure
Part number Description Fitment Price
82600F — Fuse, Fuse Block
90982-07011 note Fuse, Fuse Block
1989-08 → 1989-09 ended
AE92,CE90,EE90 —
90982-07011 note Fuse, Fuse Block
1989-09 → 1992-11 ended
AE92,CE90,EE90 —
90982-07011 note Fuse, Fuse Block
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
90982-09002 note Fuse, Fuse Block
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
90982-09002 note Fuse, Fuse Block
1989-08 → 1989-09 ended
AE92,CE90,EE90 —
90982-09002 note Fuse, Fuse Block
1989-09 → 1992-11 ended
AE92,CE90,EE90 —
90982-09003 note Fuse, Fuse Block
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
90982-09003 note Fuse, Fuse Block
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
90982-09004 note Fuse, Fuse Block
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
90982-09005 note Fuse, Fuse Block
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
90982-09005 note Fuse, Fuse Block
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
82616 — Puller, Fuse
82616-12010 Puller, Fuse
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
82616-12010 Puller, Fuse
1989-08 → 1989-09 ended
AE92,CE90,EE90 —
82616-12010 Puller, Fuse
1989-09 → 1992-11 ended
AE92,CE90,EE90 —
82643 — Relay, Dim-dip Lamp
82643-12010 note Relay, Dim-dip Lamp
1987-05 → 1989-08 ended
AE92,EE90 RHD (GL,GTI) —
82643-12020 note Relay, Dim-dip Lamp
1989-08 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
90987-02006 note Relay, Dim-dip Lamp
1987-05 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
90987-04002 note Relay, Dim-dip Lamp
1987-05 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
82661 — Cover, Relay Block, NO.1
82661-12140 note Cover, Relay Block, NO.1
1990-02 → 1992-06 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
82661-12140 note Cover, Relay Block, NO.1
1987-05 → 1988-05 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
82661-12140 note Cover, Relay Block, NO.1
1988-05 → 1989-08 ended
AE92,EE90 LHD CBR —
82661-12140 note Cover, Relay Block, NO.1
1989-08 → 1990-02 ended
AE92,EE90 LHD CBR —
82661-12140 note Cover, Relay Block, NO.1
1989-08 → 1990-02 ended
CE90 LHD —
82661-12140 note Cover, Relay Block, NO.1
1988-05 → 1989-08 ended
CE90 LHD —
82661-12150 note Cover, Relay Block, NO.1
1987-05 → 1989-08 ended
AE92,EE90 RHD (GL,GTI) —
82661-12150 note Cover, Relay Block, NO.1
1988-08 → 1989-08 ended
AE92,EE90 LHD 5F —
82661-12150 note Cover, Relay Block, NO.1
1988-08 → 1989-08 ended
CE90 LHD;EE90 LHD (3FC,4F) —
82661-12150 note Cover, Relay Block, NO.1
1987-05 → 1988-08 ended
AE92 LHD —
82661-12150 note Cover, Relay Block, NO.1
1987-05 → 1988-08 ended
CE90,EE90 LHD —
82661-12160 note Cover, Relay Block, NO.1
1989-08 → 1991-01 ended
EE90 5D EFI;EE90 STD +1 —
82661-12160 note Cover, Relay Block, NO.1
1989-08 → 1991-01 ended
EE90 3D XLI;AE92 (GLI,SR5,XLI) +1 —
82661-12160 note Cover, Relay Block, NO.1
1989-08 → 1991-01 ended
AE92 LHD GTI —
82661-12160 note Cover, Relay Block, NO.1
1987-05 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
82661-12160 note Cover, Relay Block, NO.1
1989-11 → 1990-02 ended
EE90 LHD (3FC,4F) CBR —
82661-12160 note Cover, Relay Block, NO.1
1990-02 → 1992-06 ended
AE92,EE90 LHD 5F CBR —
82661-12160 note Cover, Relay Block, NO.1
1990-02 → 1992-06 ended
CE90 LHD —
82661-12160 note Cover, Relay Block, NO.1
1990-02 → 1992-06 ended
EE90 LHD (3FC,4F) CBR —
82661-12160 note Cover, Relay Block, NO.1
1991-01 → 1992-06 ended
EE90 STD EFI;EE90 5D +2 —
82661-12160 note Cover, Relay Block, NO.1
1991-01 → 1992-06 ended
EE90 3D MTM XLI;AE92 +2 —
82661-12160 note Cover, Relay Block, NO.1
1991-06 → 1992-06 ended
EE90 3FC EFI —
82661-12160 note Cover, Relay Block, NO.1
1991-01 → 1992-11 ended
AE92 LHD GTI —
82661-12160 note Cover, Relay Block, NO.1
1988-08 → 1989-08 ended
EE90 LHD (3FC,4F) —
82661-12160 note Cover, Relay Block, NO.1
1989-11 → 1990-02 ended
AE92,EE90 LHD 5F CBR —
82661-12160 note Cover, Relay Block, NO.1
1987-05 → 1988-05 ended
CE90,EE90 LHD —
82661-12160 note Cover, Relay Block, NO.1
1988-05 → 1988-08 ended
AE92 CBR —
82661-12160 note Cover, Relay Block, NO.1
1988-05 → 1988-08 ended
EE90 LHD —
82661-12160 note Cover, Relay Block, NO.1
1987-05 → 1989-08 ended
AE92 LHD EFI —
82661-12160 note Cover, Relay Block, NO.1
1988-05 → 1989-08 ended
CE90 LHD —
82661-12160 note Cover, Relay Block, NO.1
1988-08 → 1989-08 ended
AE92,EE90 LHD 5F CBR —
82661-12160 note Cover, Relay Block, NO.1
1989-08 → 1989-11 ended
EE90 LHD (3FC,4F) CBR —
82661-12160 note Cover, Relay Block, NO.1
1989-08 → 1989-11 ended
AE92,EE90 LHD 5F CBR —
82661-12160 note Cover, Relay Block, NO.1
1987-05 → 1988-05 ended
AE92 CBR —
82661-12160 note Cover, Relay Block, NO.1
1989-08 → 1990-02 ended
CE90 LHD —
82661-12190 note Cover, Relay Block, NO.1
1989-08 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
82661-12190 note Cover, Relay Block, NO.1
1989-11 → 1992-06 ended
EE90 3FC EFI;EE90 LHD +2 —
82661-12190 note Cover, Relay Block, NO.1
1989-08 → 1991-01 ended
AE92 LHD GTI —
82661-12190 note Cover, Relay Block, NO.1
1989-08 → 1991-01 ended
EE90 3D XLI;AE92 (GLI,SR5,XLI) +1 —
82661-12190 note Cover, Relay Block, NO.1
1989-08 → 1991-01 ended
EE90 5D EFI;CE90,EE90 LHD +2 —
82661-12190 note Cover, Relay Block, NO.1
1991-01 → 1992-06 ended
CE90 LHD —
82661-12190 note Cover, Relay Block, NO.1
1991-01 → 1992-06 ended
EE90 STD EFI;EE90 5D +2 —
82661-12190 note Cover, Relay Block, NO.1
1991-01 → 1992-06 ended
EE90 3D MTM XLI;AE92 +2 —
82661-12190 note Cover, Relay Block, NO.1
1989-08 → 1989-11 ended
AE92,EE90 LHD 5F CBR —
82661-12190 note Cover, Relay Block, NO.1
1989-08 → 1989-11 ended
EE90 LHD (3FC,4F) CBR —
82661-12190 note Cover, Relay Block, NO.1
1991-01 → 1992-11 ended
AE92 LHD GTI —
82671A — Block, Junction
82671-12050 Block, Junction
1987-05 → 1989-08 ended
AE92,EE90 CBR —
82671-12050 Block, Junction
1989-08 → 1992-06 ended
AE92,EE90 CBR —
82671-12080 Block, Junction
1987-05 → 1989-08 ended
AE92,CE90 DSL,EFI —
82671-12080 Block, Junction
1989-09 → 1992-11 ended
AE92,CE90,EE90 DSL,EFI —
82671-12080 Block, Junction
1989-08 → 1989-09 ended
AE92,CE90,EE90 DSL,EFI —
82671-12090 note Block, Junction
1987-05 → 1989-08 ended
AE92 LHD —
82671-12090 note Block, Junction
1991-01 → 1992-11 ended
AE92 LHD GTI —
82671-12090 note Block, Junction
1991-01 → 1992-06 ended
EE90 MTM EFI —
82671-12090 note Block, Junction
1991-01 → 1992-06 ended
AE92 (GLI,SR5,XLI) EFI —
82671-12090 note Block, Junction
1989-11 → 1992-06 ended
EE90 3FC EFI;EE90 LHD +2 —
82671-12090 note Block, Junction
1989-08 → 1992-06 ended
CE90 LHD —
82671-12090 note Block, Junction
1987-05 → 1988-08 ended
CE90,EE90 LHD —
82671-12090 note Block, Junction
1987-05 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
82671-12090 note Block, Junction
1989-08 → 1991-01 ended
AE92 LHD GTI —
82671-12090 note Block, Junction
1989-08 → 1991-01 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
82671-12090 note Block, Junction
1989-08 → 1989-11 ended
EE90 LHD (3FC,4F) CBR —
82671-12090 note Block, Junction
1989-08 → 1989-11 ended
AE92,EE90 LHD 5F CBR —
82671-12090 note Block, Junction
1988-08 → 1989-08 ended
EE90 LHD 5F —
82671-12090 note Block, Junction
1988-08 → 1989-08 ended
CE90 LHD;EE90 LHD (3FC,4F) —
82671-12100 note Block, Junction
1987-05 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
82671-12110 note Block, Junction
1987-08 → 1989-08 ended
AE92 CBR —
82672A — Cover, Junction Block
82672-12010 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92,EE90 CBR —
82672-12020 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92,CE90 DSL,EFI —
82672-12040 note Cover, Junction Block
1987-05 → 1988-08 ended
CE90,EE90 LHD —
82672-12040 note Cover, Junction Block
1988-08 → 1989-08 ended
EE90 LHD 5F —
82672-12040 note Cover, Junction Block
1988-08 → 1989-08 ended
CE90 LHD;EE90 LHD (3FC,4F) —
82672-12040 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92 LHD —
82672-12040 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92,EE90 RHD (GL,GTI) —
82672-12060 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92,EE90 LHD MTM CBR —
82672-12070 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
82672-12070 note Cover, Junction Block
1989-09 → 1992-11 ended
AE92,CE90,EE90 —
82672-12070 note Cover, Junction Block
1989-08 → 1989-09 ended
AE92,CE90,EE90 —
82672-12090 note Cover, Junction Block
1987-05 → 1989-08 ended
AE92 CBR —
82672-12140 note Cover, Junction Block
1989-08 → 1992-06 ended
AE92,EE90 CBR —
82672-12150 note Cover, Junction Block
1989-08 → 1992-11 ended
AE92,CE90,EE90 DSL,EFI —
82672-12160 note Cover, Junction Block
1989-08 → 1989-11 ended
AE92,EE90 LHD 5F CBR —
82672-12160 note Cover, Junction Block
1989-08 → 1989-11 ended
EE90 LHD (3FC,4F) CBR —
82672-12160 note Cover, Junction Block
1989-08 → 1991-01 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
82672-12160 note Cover, Junction Block
1989-08 → 1991-01 ended
AE92 LHD GTI —
82672-12160 note Cover, Junction Block
1989-08 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
82672-12160 note Cover, Junction Block
1989-08 → 1992-06 ended
CE90 LHD —
82672-12160 note Cover, Junction Block
1989-11 → 1992-06 ended
EE90 3FC EFI;EE90 LHD +2 —
82672-12160 note Cover, Junction Block
1991-01 → 1992-06 ended
AE92 (GLI,SR5,XLI) EFI —
82672-12160 note Cover, Junction Block
1991-01 → 1992-06 ended
EE90 MTM EFI —
82672-12160 note Cover, Junction Block
1991-01 → 1992-11 ended
AE92 LHD GTI —
83420 — Gage Assy, Water Temperature Sender
83420-16020 Gage Assy, Water Temperature Sender
1987-05 → 1987-08 ended
EE90 —
83420-16020 Gage Assy, Water Temperature Sender
1987-08 → 1992-06 ended
AE92,EE90 GL,GLI,SR5,STD,XL,XLI —
83420-20020 Gage Assy, Water Temperature Sender
1987-05 → 1992-11 ended
AE92,CE90 (GTI,STD,XL) (DSL,EFI) —
83520 — Gage Assy,Oil Pressure Sender
83520-14023 Gage Assy,Oil Pressure Sender
1987-05 → 1992-11 ended
AE92 GTI —
84210 — Switch Assy, Back-up Lamp
84210-12040 Switch Assy, Back-up Lamp
1987-05 → 1992-06 ended
AE92,CE90,EE90 MTM (GL,GLI,SR5,STD,XL,XLI) —
84210-60021 Switch Assy, Back-up Lamp
1987-05 → 1992-11 ended
AE92 GTI —
85335 — Switch Assy, Washer Level Warning
85335-12750 Switch Assy, Washer Level Warning
1989-08 → 1992-11 ended
AE92 LHD GTI —
85915 — Relay, Main
90987-04002 Relay, Main
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
85916 — Relay, Light Control
90987-02002 note Relay, Light Control
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
90987-02004 note Relay, Light Control
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
90987-02006 note Relay, Light Control
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
90987-02006 note Relay, Light Control
1989-08 → 1992-11 ended
AE92,CE90,EE90 —
85925 — Relay, Radiator Fan
90987-03001 Relay, Radiator Fan
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
85926 — Relay, Headlamp Dimmer
85926-30020 Relay, Headlamp Dimmer
1991-01 → 1992-11 ended
AE92 LHD GTI —
85926-30020 Relay, Headlamp Dimmer
1991-01 → 1992-06 ended
AE92,EE90 MTM (GLI,SR5,STD,XLI) EFI —
85926-30020 Relay, Headlamp Dimmer
1989-11 → 1992-06 ended
EE90 3FC EFI;EE90 LHD +2 —
85926-30020 Relay, Headlamp Dimmer
1989-08 → 1992-06 ended
CE90 LHD —
85926-30020 Relay, Headlamp Dimmer
1987-05 → 1992-05 ended
AE92,EE90 RHD (GL,GTI) —
85926-30020 Relay, Headlamp Dimmer
1989-08 → 1991-01 ended
AE92,EE90 (GLI,SR5,STD,XLI) EFI —
85926-30020 Relay, Headlamp Dimmer
1989-08 → 1989-11 ended
EE90 LHD (3FC,4F) CBR —
85926-30020 Relay, Headlamp Dimmer
1989-08 → 1991-01 ended
AE92 LHD GTI —
85926-30020 Relay, Headlamp Dimmer
1987-05 → 1988-08 ended
AE92 LHD —
85926-30020 Relay, Headlamp Dimmer
1987-05 → 1988-08 ended
CE90,EE90 LHD —
85926-30020 Relay, Headlamp Dimmer
1988-08 → 1989-08 ended
AE92,EE90 LHD 5F —
85926-30020 Relay, Headlamp Dimmer
1989-08 → 1989-11 ended
AE92,EE90 LHD 5F CBR —
85926-30020 Relay, Headlamp Dimmer
1988-08 → 1989-08 ended
CE90 LHD;EE90 LHD (3FC,4F) —
86530 — Relay Assy, Horn
90987-02002 note Relay Assy, Horn
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
90987-02004 note Relay Assy, Horn
1987-05 → 1992-11 ended
AE92,CE90,EE90 —
88630G — Relay Assy, Cooler
88630-32010 Relay Assy, Cooler
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
88630-32010 Relay Assy, Cooler
1989-08 → 1990-09 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
88630-32010 Relay Assy, Cooler
1991-06 → 1992-06 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
88630H — Relay Assy, Cooler
90987-02004 Relay Assy, Cooler
1989-08 → 1990-09 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
90987-02004 Relay Assy, Cooler
1991-06 → 1992-06 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
90987-02004 Relay Assy, Cooler
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD (CBR,DSL) —
89428 — Switch, Temperature Detect, NO.2
89428-10100 note Switch, Temperature Detect, NO.2
1987-05 → 1989-08 ended
EE90 —
89428-10110 note Switch, Temperature Detect, NO.2
1987-05 → 1989-08 ended
EE90 —
89428-15011 Switch, Temperature Detect, NO.2
1987-05 → 1989-08 ended
AE92 —
89428-15011 Switch, Temperature Detect, NO.2
1989-08 → 1992-11 ended
AE92 —
89428-15030 Switch, Temperature Detect, NO.2
1987-05 → 1992-06 ended
CE90 —
89428-20060 Switch, Temperature Detect, NO.2
1989-08 → 1992-06 ended
EE90 —
89465 — Sensor, Oxygen
89465-19195 Sensor, Oxygen
1987-07 → 1988-10 ended
EE90 LHD MTM —
89465-19235 Sensor, Oxygen
1987-08 → 1988-10 ended
AE92 CBR —
89465-19275 Sensor, Oxygen
1988-10 → 1989-08 ended
EE90 LHD MTM —
89465-19285 Sensor, Oxygen
1988-10 → 1989-08 ended
AE92 CBR —
89465-19295 Sensor, Oxygen
1987-08 → 1989-08 ended
AE92 LHD EFI —
89465-19366 Sensor, Oxygen
1989-08 → 1992-11 ended
AE92 LHD GTI —
89465-19385 Sensor, Oxygen
1989-08 → 1992-06 ended
AE92 (GLI,SR5,XLI) EFI —
89465-29315 Sensor, Oxygen
1989-08 → 1992-06 ended
EE90 EFI —
89466 — Gasket, Oxygen Sensor
89466-12010 Gasket, Oxygen Sensor
1987-08 → 1988-10 ended
AE92 LHD —
89466-12020 Gasket, Oxygen Sensor
1989-08 → 1992-11 ended
AE92 LHD EFI —
89466-12020 Gasket, Oxygen Sensor
1988-10 → 1989-08 ended
AE92 LHD —
89466-20020 Gasket, Oxygen Sensor
1988-11 → 1989-08 ended
EE90 LHD MTM —
89466-20020 Gasket, Oxygen Sensor
1989-08 → 1992-06 ended
EE90 EFI —
89466-30020 Gasket, Oxygen Sensor
1987-07 → 1988-11 ended
EE90 LHD MTM —
89615 — Sensor, Knock Control
89615-12020 Sensor, Knock Control
1989-08 → 1991-04 ended
AE92 GTI —
89615-12040 note Sensor, Knock Control
1991-04 → 1992-11 ended
AE92 GTI —
89615-12050 note Sensor, Knock Control
1991-04 → 1992-11 ended
AE92 GTI —
89620 — Igniter Assy
89621-12010 Igniter Assy
1987-05 → 1992-11 ended
AE92 GTI —
89621-12020 note Igniter Assy
1987-05 → 1992-11 ended
AE92 LHD GTI —
89629 — Bracket, Igniter Assy
89629-12030 Bracket, Igniter Assy
1987-05 → 1992-05 ended
AE92 RHD —
89629-12040 Bracket, Igniter Assy
1987-05 → 1992-11 ended
AE92 LHD GTI —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
