Toyota Corolla HB

1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe

Discontinued model Data version 1993-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

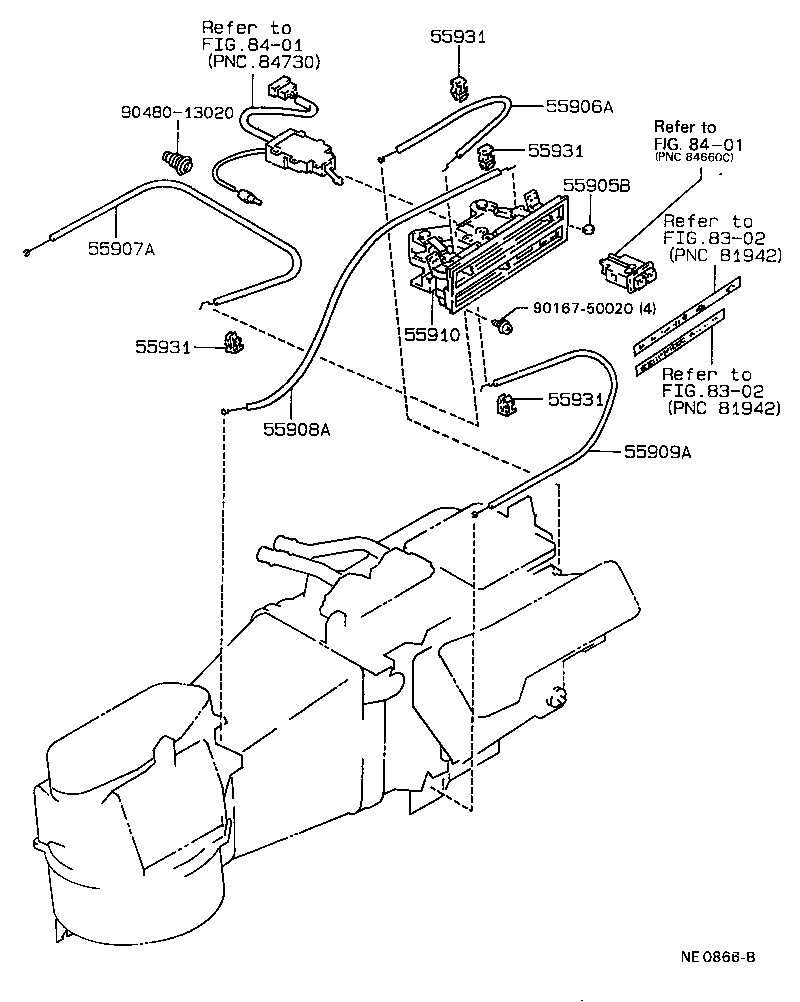

Exploded illustration NE0866B 55931 — CLAMP, HEATER CONTROL WIRE (4 parts) 8401 — not listed in this catalogue 55906A — CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL (6 parts) 9048013020 — not listed in this catalogue 8401 — not listed in this catalogue 55931 — CLAMP, HEATER CONTROL WIRE (4 parts) 55905B — KNOB, HEATER CONTROL, NO.2 (7 parts) 8302 — not listed in this catalogue 55907A — CABLE SUB-ASSY, WATER VALVE CONTROL (6 parts) 9016750020 — not listed in this catalogue 55910 — CONTROL ASSY, HEATER OR BOOST VENTILATOR (6 parts) 55931 — CLAMP, HEATER CONTROL WIRE (4 parts) 8302 — not listed in this catalogue 55931 — CLAMP, HEATER CONTROL WIRE (4 parts) 55908A — CABLE SUB-ASSY, AIR INLET DAMPER CONTROL (6 parts) 55909A — CABLE SUB-ASSY, AIRMIX DAMPER CONTROL (7 parts)
NE0866B · 10 callouts, 6 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
42 parts on this figure
Part number Description Fitment Price
55905B — Knob, Heater Control, NO.2
55905-12100 Knob, Heater Control, NO.2
1987-05 → 1992-06 ended
AE92,CE90,EE90 RHD —
55905-12100 note Knob, Heater Control, NO.2
1987-05 → 1989-11 ended
AE92 LHD GTI;AE92,CE90,EE90 LHD +1 —
55905-12100 note Knob, Heater Control, NO.2
1989-11 → 1992-11 ended
AE92,CE90 LHD (GTI,STD,XL) (DSL,EFI) —
55905-12100 note Knob, Heater Control, NO.2
1991-06 → 1992-06 ended
EE90 3FC EFI —
55905-12100 note Knob, Heater Control, NO.2
1989-08 → 1992-06 ended
AE92,EE90 MTM (GLI,SR5,STD,XLI) EFI —
55905-12100 note Knob, Heater Control, NO.2
1989-11 → 1992-06 ended
AE92,EE90 LHD CBR —
55905-12130 Knob, Heater Control, NO.2
1987-05 → 1992-11 ended
AE92,CE90,EE90 LHD —
55906A — Cable Sub-assy, Defroster Damper Control
55906-12230 Cable Sub-assy, Defroster Damper Control
1987-05 → 1990-02 ended
AE92,CE90,EE90 RHD —
55906-12250 Cable Sub-assy, Defroster Damper Control
1990-02 → 1992-06 ended
AE92,CE90,EE90 RHD —
55906-12290 Cable Sub-assy, Defroster Damper Control
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
55906-12290 Cable Sub-assy, Defroster Damper Control
1989-08 → 1989-12 ended
AE92,CE90,EE90 LHD —
55906-12290 Cable Sub-assy, Defroster Damper Control
1989-12 → 1990-01 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
55906-12300 Cable Sub-assy, Defroster Damper Control
1990-01 → 1992-11 ended
AE92,CE90,EE90 LHD —
55907A — Cable Sub-assy, Water Valve Control
55907-12260 Cable Sub-assy, Water Valve Control
1987-05 → 1990-02 ended
AE92,CE90,EE90 RHD —
55907-12280 Cable Sub-assy, Water Valve Control
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
55907-12280 Cable Sub-assy, Water Valve Control
1989-08 → 1989-12 ended
AE92,CE90,EE90 LHD —
55907-12280 Cable Sub-assy, Water Valve Control
1989-12 → 1990-01 ended
EE90 LHD CBR;AE92,CE90 LHD +1 —
55907-12320 Cable Sub-assy, Water Valve Control
1990-02 → 1992-06 ended
AE92,CE90,EE90 RHD —
55907-12330 Cable Sub-assy, Water Valve Control
1990-01 → 1992-11 ended
AE92,CE90,EE90 LHD —
55908A — Cable Sub-assy, Air Inlet Damper Control
55908-12190 Cable Sub-assy, Air Inlet Damper Control
1990-01 → 1990-02 ended
AE92,CE90,EE90 RHD —
55908-12190 Cable Sub-assy, Air Inlet Damper Control
1989-12 → 1990-01 ended
EE90 CBR;AE92,CE90 GTI,STD,XL —
55908-12190 Cable Sub-assy, Air Inlet Damper Control
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
55908-12190 Cable Sub-assy, Air Inlet Damper Control
1989-08 → 1989-12 ended
AE92,CE90,EE90 —
55908-12230 Cable Sub-assy, Air Inlet Damper Control
1989-12 → 1990-02 ended
AE92,CE90,EE90 LHD —
55908-12230 Cable Sub-assy, Air Inlet Damper Control
1990-02 → 1992-11 ended
AE92,CE90,EE90 —
55909A — Cable Sub-assy, Airmix Damper Control
55909-12170 Cable Sub-assy, Airmix Damper Control
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
55909-12170 Cable Sub-assy, Airmix Damper Control
1989-08 → 1989-12 ended
AE92,CE90,EE90 —
55909-12170 Cable Sub-assy, Airmix Damper Control
1989-12 → 1990-01 ended
EE90 CBR;AE92,CE90 GTI,STD,XL —
55909-12170 Cable Sub-assy, Airmix Damper Control
1989-12 → 1990-02 ended
AE92,CE90 GTI,STD,XL —
55909-12170 Cable Sub-assy, Airmix Damper Control
1990-01 → 1990-02 ended
AE92,CE90,EE90 RHD —
55909-12190 Cable Sub-assy, Airmix Damper Control
1990-02 → 1992-11 ended
AE92,CE90,EE90 —
55909-12190 Cable Sub-assy, Airmix Damper Control
1989-12 → 1990-02 ended
AE92,CE90,EE90 LHD —
55910 — Control Assy, Heater OR Boost Ventilator
55910-12440 Control Assy, Heater OR Boost Ventilator
1987-05 → 1990-02 ended
AE92,CE90,EE90 RHD —
55910-12441 Control Assy, Heater OR Boost Ventilator
1990-02 → 1992-06 ended
AE92,CE90,EE90 RHD —
55910-12460 Control Assy, Heater OR Boost Ventilator
1987-05 → 1989-08 ended
AE92,CE90,EE90 LHD —
55910-12460 Control Assy, Heater OR Boost Ventilator
1989-08 → 1989-12 ended
AE92,CE90,EE90 LHD —
55910-12460 Control Assy, Heater OR Boost Ventilator
1989-12 → 1990-01 ended
AE92,CE90 LHD (GTI,SR5,STD,XL) —
55910-12461 Control Assy, Heater OR Boost Ventilator
1990-01 → 1992-11 ended
AE92,CE90,EE90 LHD —
55931 — Clamp, Heater Control Wire
55933-10010 Clamp, Heater Control Wire
1987-05 → 1989-08 ended
AE92,CE90,EE90 —
55933-10010 Clamp, Heater Control Wire
1989-08 → 1989-12 ended
AE92,CE90,EE90 —
55933-10010 Clamp, Heater Control Wire
1989-12 → 1990-01 ended
EE90 CBR;AE92,CE90 GTI,STD,XL —
55933-10010 Clamp, Heater Control Wire
1990-01 → 1990-02 ended
AE92,CE90,EE90 RHD —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
