Toyota Corolla HB
1987-05 → 1992-11 · chassis EE90,AE92,CE90 · catalogue 153520 · Europe
Discontinued model
Data version 1993-01

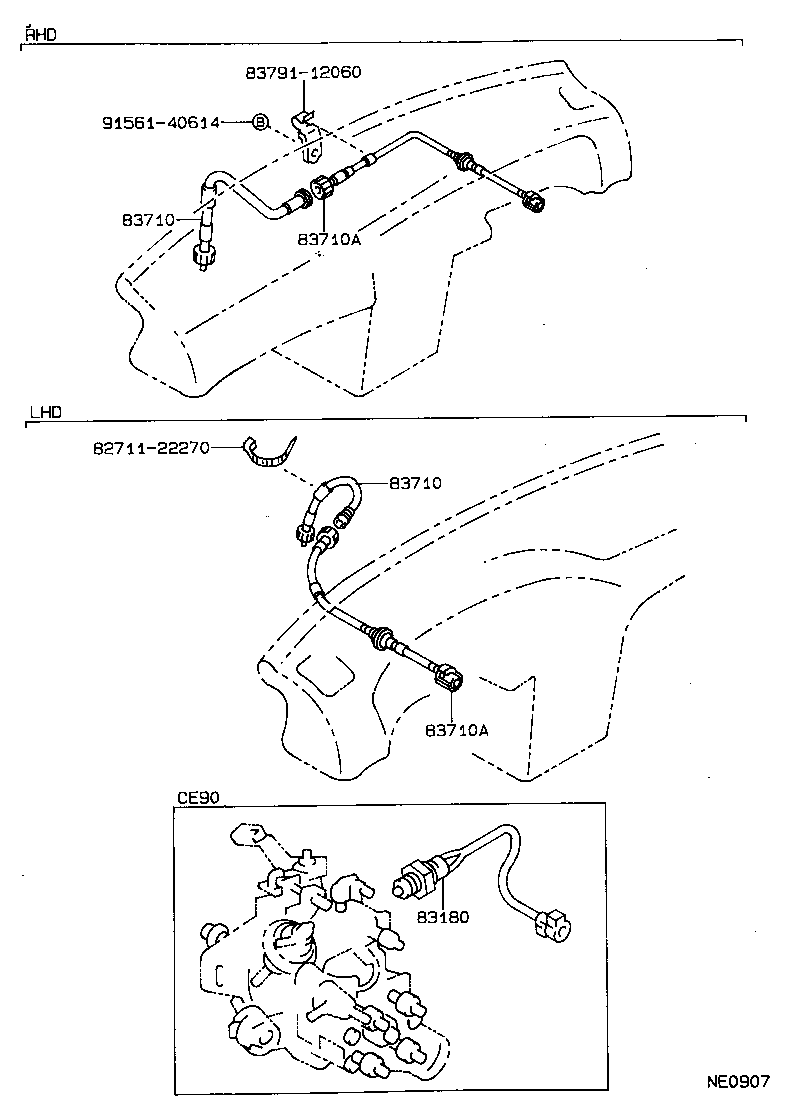

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 83180 — Detector Assy, Revolution | ||||
| 83180-32020 |
Detector Assy, Revolution
1987-05 → 1989-08
ended
|
CE90 | — | |
| 83180-32020 |
Detector Assy, Revolution
1989-08 → 1992-06
ended
|
CE90 XL | — | |
| 83710 — Cable Assy, Speedometer Drive, NO.1 | ||||
| 83710-12460 |
Cable Assy, Speedometer Drive, NO.1
1987-05 → 1987-12
ended
|
AE92,CE90,EE90 | — | |
| 83710-12461 |
Cable Assy, Speedometer Drive, NO.1
1987-12 → 1992-11
ended
|
AE92,CE90,EE90 | — | |
| 83710A — Cable Assy, Speedometer Drive, NO.2 | ||||
| 83710-12440 |
Cable Assy, Speedometer Drive, NO.2
1987-05 → 1987-12
ended
|
AE92,CE90,EE90 RHD | — | |
| 83710-12441 |
Cable Assy, Speedometer Drive, NO.2
1987-12 → 1992-06
ended
|
AE92,CE90,EE90 RHD | — | |
| 83710-12450 |
Cable Assy, Speedometer Drive, NO.2
1987-05 → 1987-12
ended
|
AE92,CE90,EE90 LHD | — | |
| 83710-12451 |
Cable Assy, Speedometer Drive, NO.2
1987-12 → 1989-08
ended
|
AE92,CE90,EE90 LHD | — | |
| 83710-12620 |
Cable Assy, Speedometer Drive, NO.2
1989-08 → 1992-11
ended
|
AE92,CE90,EE90 LHD | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
