Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

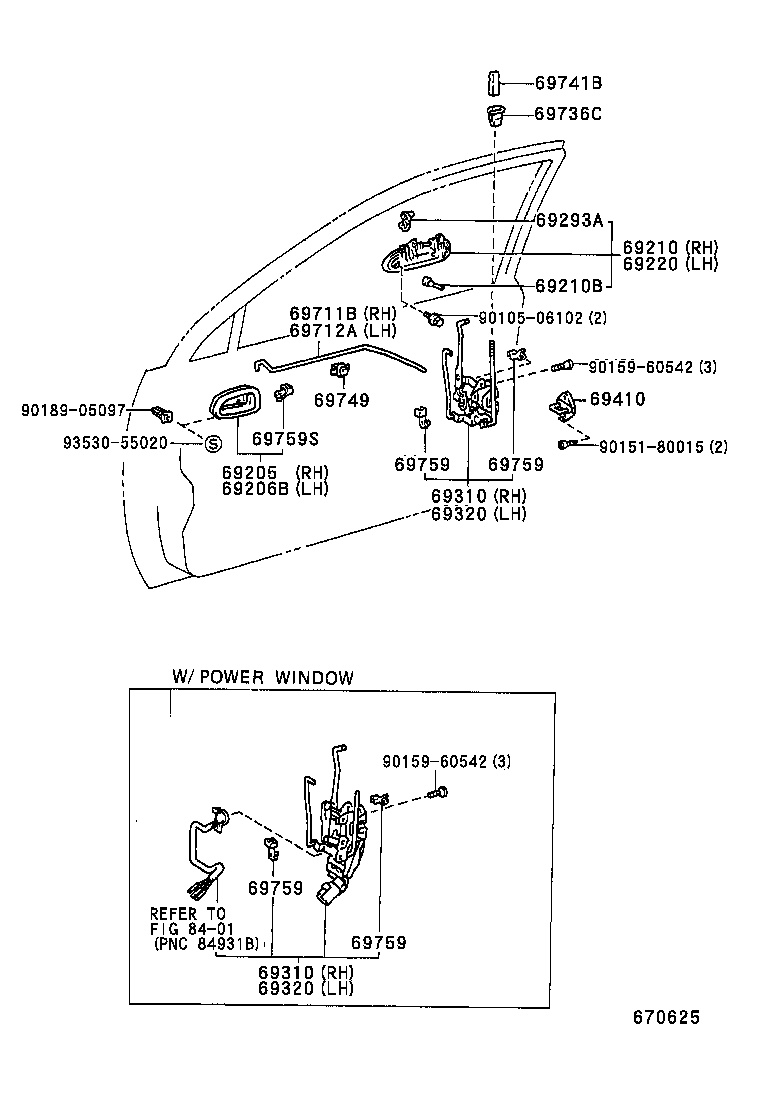

198 parts on this figure

Part number	Description	Fitment	Price
69205 — Handle Sub-assy, Front Door Inside, RH
69205-12140-03 note	Handle Sub-assy, Front Door Inside, RH 1992-05 → 1996-08 ended	AE10#,CE100,EE10# 5D	—
69205-12140-04 note	Handle Sub-assy, Front Door Inside, RH 1992-05 → 1996-08 ended	AE101,CE100,EE10# 5D	—
69205-12140-P0 note	Handle Sub-assy, Front Door Inside, RH 1996-08 → 1997-04 ended	AE101,CE100,EE101 5D	—
69205-12140-W3 note	Handle Sub-assy, Front Door Inside, RH 1996-08 → 1997-04 ended	AE101,CE100,EE101 5D	—
69205-12150-B0 note	Handle Sub-assy, Front Door Inside, RH 1992-05 → 1997-04 ended	AE10#,CE100,EE10# 3D	—
69205-12150-J0 note	Handle Sub-assy, Front Door Inside, RH 1992-05 → 1997-04 ended	AE101,CE100,EE10# 3D (GLI,STD,XL,XLI)	—
69206B — Handle Sub-assy, Front Door Inside, LH
69206-12140-03 note	Handle Sub-assy, Front Door Inside, LH 1992-05 → 1996-08 ended	AE10#,CE100,EE10# 5D	—
69206-12140-04 note	Handle Sub-assy, Front Door Inside, LH 1992-05 → 1996-08 ended	AE101,CE100,EE10# 5D	—
69206-12140-P0 note	Handle Sub-assy, Front Door Inside, LH 1996-08 → 1997-04 ended	AE101,CE100,EE101 5D	—
69206-12140-W3 note	Handle Sub-assy, Front Door Inside, LH 1996-08 → 1997-04 ended	AE101,CE100,EE101 5D	—
69206-12150-B0 note	Handle Sub-assy, Front Door Inside, LH 1992-05 → 1997-04 ended	AE10#,CE100,EE10# 3D	—
69206-12150-J0 note	Handle Sub-assy, Front Door Inside, LH 1992-05 → 1997-04 ended	AE101,CE100,EE10# 3D (GLI,STD,XL,XLI)	—
69210 — Handle Assy, Front Door, Outside RH
69210-12160	Handle Assy, Front Door, Outside RH 1995-05 → 1997-04 ended	AE101,CE100,EE101 GLI,STD,XL,XLI	—
69210-12160	Handle Assy, Front Door, Outside RH 1992-05 → 1995-05 ended	AE101,CE100,EE10#	—
69210-12170-03 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102 5D	—
69210-12170-07 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102	—
69210-12170-32 note	Handle Assy, Front Door, Outside RH 1992-11 → 1993-05 ended	AE102 3D	—
69210-12170-32 note	Handle Assy, Front Door, Outside RH 1993-11 → 1994-05 ended	AE102 3D	—
69210-12170-A0 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-A0 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-A0 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-A0 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102	—
69210-12170-B0 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102	—
69210-12170-B3 note	Handle Assy, Front Door, Outside RH 1995-11 → —	AE101,CE100,EE101	—
69210-12170-B3 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	CE100,EE101 5D LHD 5F	—
69210-12170-B3 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	CE100,EE101 LHD (XL,XLI)	—
69210-12170-B3 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-B3 note	Handle Assy, Front Door, Outside RH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69210-12170-B4 note	Handle Assy, Front Door, Outside RH 1995-11 → —	AE101,CE100,EE101	—
69210-12170-B4 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-B4 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-B5 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-C0 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102 3D	—
69210-12170-C0 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-C0 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-D0 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102	—
69210-12170-D0 note	Handle Assy, Front Door, Outside RH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69210-12170-D0 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-D0 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-D0 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-D3 note	Handle Assy, Front Door, Outside RH 1992-11 → 1993-05 ended	AE102 5D	—
69210-12170-D5 note	Handle Assy, Front Door, Outside RH 1992-11 → 1994-01 ended	AE102 3D	—
69210-12170-G9 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-G9 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-G9 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-11 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-H0 note	Handle Assy, Front Door, Outside RH 1992-11 → 1995-05 ended	AE102 5D	—
69210-12170-H2 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-H2 note	Handle Assy, Front Door, Outside RH 1994-12 → 1995-04 ended	CE100 LHD XL;EE101 HB +1	—
69210-12170-H2 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-H2 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-H2 note	Handle Assy, Front Door, Outside RH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69210-12170-J4 note	Handle Assy, Front Door, Outside RH 1993-05 → 1995-05 ended	AE102	—
69210-12170-J5 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-J5 note	Handle Assy, Front Door, Outside RH 1994-05 → 1995-05 ended	AE102 3D	—
69210-12170-J5 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-J7 note	Handle Assy, Front Door, Outside RH 1995-05 → 1996-05 ended	AE101 SI	—
69210-12170-J7 note	Handle Assy, Front Door, Outside RH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69210-12170-J7 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-J7 note	Handle Assy, Front Door, Outside RH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69210-12170-J9 note	Handle Assy, Front Door, Outside RH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12170-Q3 note	Handle Assy, Front Door, Outside RH 1996-11 → 1996-12 ended	EE101 RHD XLI;EE101 3D +3	—
69210-12270-A0 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-B0 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-B1 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-C0 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-D2 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-G3 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	EE101 RHD XLI;EE101 3D +3	—
69210-12270-H0 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-J2 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210-12270-J3 note	Handle Assy, Front Door, Outside RH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69210B — Cushion(FOR FRONT DOOR OUTSIDE HANDLE)
90541-04014	Cushion(FOR FRONT DOOR OUTSIDE HANDLE) 1992-05 → —	AE10#,CE100,EE10#	—
69220 — Handle Assy, Front Door Outside, LH
69220-12160	Handle Assy, Front Door Outside, LH 1995-05 → 1997-04 ended	AE101,CE100,EE101 GLI,STD,XL,XLI	—
69220-12160	Handle Assy, Front Door Outside, LH 1992-05 → 1995-05 ended	AE101,CE100,EE10#	—
69220-12170-03 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102 5D	—
69220-12170-07 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102	—
69220-12170-32 note	Handle Assy, Front Door Outside, LH 1992-11 → 1993-05 ended	AE102 3D	—
69220-12170-32 note	Handle Assy, Front Door Outside, LH 1993-11 → 1994-05 ended	AE102 3D	—
69220-12170-A0 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-A0 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-A0 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-A0 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102	—
69220-12170-B0 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102	—
69220-12170-B4 note	Handle Assy, Front Door Outside, LH 1995-11 → —	AE101,CE100,EE101	—
69220-12170-B4 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-B4 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-B5 note	Handle Assy, Front Door Outside, LH 1995-11 → —	AE101,CE100,EE101	—
69220-12170-B5 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	CE100,EE101 5D LHD 5F	—
69220-12170-B5 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	CE100,EE101 LHD (XL,XLI)	—
69220-12170-B5 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-B5 note	Handle Assy, Front Door Outside, LH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69220-12170-B6 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-C0 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102 3D	—
69220-12170-C0 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-C0 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-D0 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-D0 note	Handle Assy, Front Door Outside, LH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69220-12170-D0 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-D0 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-D0 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102	—
69220-12170-D3 note	Handle Assy, Front Door Outside, LH 1992-11 → 1993-05 ended	AE102 5D	—
69220-12170-D5 note	Handle Assy, Front Door Outside, LH 1992-11 → 1994-01 ended	AE102 3D	—
69220-12170-G9 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-G9 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-11 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-G9 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-H0 note	Handle Assy, Front Door Outside, LH 1992-11 → 1995-05 ended	AE102 5D	—
69220-12170-H2 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-H2 note	Handle Assy, Front Door Outside, LH 1994-12 → 1995-04 ended	CE100 LHD XL;EE101 HB +1	—
69220-12170-H2 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-H2 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-H2 note	Handle Assy, Front Door Outside, LH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69220-12170-J4 note	Handle Assy, Front Door Outside, LH 1993-05 → 1995-05 ended	AE102	—
69220-12170-J5 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-J5 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-J5 note	Handle Assy, Front Door Outside, LH 1994-05 → 1995-05 ended	AE102 3D	—
69220-12170-J7 note	Handle Assy, Front Door Outside, LH 1995-11 → 1996-04 ended	AE101 5D 5F XLI;EE101 +3	—
69220-12170-J7 note	Handle Assy, Front Door Outside, LH 1995-12 → 1996-04 ended	EE101 RHD 5F XLI;EE101 +3	—
69220-12170-J7 note	Handle Assy, Front Door Outside, LH 1995-05 → 1996-05 ended	AE101 SI	—
69220-12170-J7 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-J9 note	Handle Assy, Front Door Outside, LH 1996-05 → 1996-12 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12170-Q3 note	Handle Assy, Front Door Outside, LH 1996-11 → 1996-12 ended	EE101 RHD XLI;EE101 3D +3	—
69220-12270-A0 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-B0 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-B1 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-C0 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-D2 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-G3 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	EE101 RHD XLI;EE101 3D +3	—
69220-12270-H0 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-J2 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69220-12270-J3 note	Handle Assy, Front Door Outside, LH 1996-12 → 1997-04 ended	AE101,CE100,EE101 SI,XL,XLI	—
69293A — Snap, Front Door Outside Handle
69293-12030 note	Snap, Front Door Outside Handle 1992-05 → —	AE10#,CE100,EE10#	—
69293-12040 note	Snap, Front Door Outside Handle 1992-05 → —	AE10#,CE100,EE10#	—
69310 — Lock Assy, Front Door, RH
69030-12200 note	Lock Assy, Front Door, RH 1992-05 → 1993-07 ended	AE10#,CE100,EE101 5D RHD	—
69030-12201 note	Lock Assy, Front Door, RH 1993-07 → 1993-09 ended	AE10#,CE100,EE101 5D RHD	—
69030-12202 note	Lock Assy, Front Door, RH 1993-09 → 1994-02 ended	AE10#,CE100,EE101 5D RHD	—
69030-12203 note	Lock Assy, Front Door, RH 1994-02 → 1995-09 ended	AE10# LB RHD;CE100,EE101 5D +1	—
69030-12203	Lock Assy, Front Door, RH 1995-05 → 1995-09 ended	AE101 RHD GLI	—
69030-12205 note	Lock Assy, Front Door, RH 1995-09 → —	CE100,EE101 5D RHD	—
69030-12205	Lock Assy, Front Door, RH 1995-09 → —	AE101 RHD GLI	—
69030-12240 note	Lock Assy, Front Door, RH 1995-05 → 1995-09 ended	AE101,CE100,EE101 3D RHD (SI,XL,XLI)	—
69030-12240 note	Lock Assy, Front Door, RH 1992-05 → 1995-05 ended	AE10#,CE100,EE101 3D RHD	—
69030-12240	Lock Assy, Front Door, RH 1995-05 → 1995-09 ended	EE101 GLI	—
69030-12242 note	Lock Assy, Front Door, RH 1995-09 → —	AE101,CE100,EE101 3D RHD (SI,XL,XLI)	—
69030-12242	Lock Assy, Front Door, RH 1995-09 → —	EE101 GLI	—
69030-12250 note	Lock Assy, Front Door, RH 1992-11 → 1993-05 ended	AE101 3D 4FC	—
69030-12250 note	Lock Assy, Front Door, RH 1993-05 → —	AE10#,CE100,EE10# 3D LHD (GTI,SI,XL,XLI)	—
69030-12250 note	Lock Assy, Front Door, RH 1992-05 → 1993-05 ended	AE10#,CE100,EE10# 3D LHD (3FC,5F) +1	—
69030-12260 note	Lock Assy, Front Door, RH 1992-05 → 1993-05 ended	AE101 LB LHD;AE101 HB +4	—
69030-12260 note	Lock Assy, Front Door, RH 1993-05 → 1993-07 ended	AE10#,CE100,EE10# 5D LHD	—
69030-12260 note	Lock Assy, Front Door, RH 1992-11 → 1993-05 ended	AE101 5D 4FC XLI	—
69030-12261 note	Lock Assy, Front Door, RH 1993-07 → 1993-09 ended	AE10#,CE100,EE10# 5D LHD	—
69030-12262 note	Lock Assy, Front Door, RH 1993-09 → 1994-02 ended	AE10#,CE100,EE10# 5D LHD	—
69030-12263 note	Lock Assy, Front Door, RH 1994-02 → —	AE10#,CE100,EE10# 5D LHD	—
69310-12450	Lock Assy, Front Door, RH 1992-05 → —	AE101 LB;AE101 HB 5D +2	—
69310-12480	Lock Assy, Front Door, RH 1995-05 → —	AE101,CE100,EE101 3D (SI,STD,XL,XLI)	—
69310-12480	Lock Assy, Front Door, RH 1992-05 → 1995-05 ended	AE10#,CE100,EE10# 3D	—
69320 — Lock Assy, Front Door, LH
69040-12210 note	Lock Assy, Front Door, LH 1992-05 → 1993-07 ended	AE10#,CE100,EE101 5D RHD	—
69040-12211 note	Lock Assy, Front Door, LH 1993-07 → 1993-09 ended	AE10#,CE100,EE101 5D RHD	—
69040-12212 note	Lock Assy, Front Door, LH 1993-09 → 1994-02 ended	AE10#,CE100,EE101 5D RHD	—
69040-12213	Lock Assy, Front Door, LH 1995-05 → —	AE101 RHD GLI	—
69040-12213 note	Lock Assy, Front Door, LH 1994-02 → —	AE10# LB RHD;CE100,EE101 5D +1	—
69040-12240 note	Lock Assy, Front Door, LH 1992-05 → 1995-05 ended	AE10#,CE100,EE101 3D RHD	—
69040-12240 note	Lock Assy, Front Door, LH 1995-05 → —	AE101,CE100,EE101 3D RHD (SI,XL,XLI)	—
69040-12240	Lock Assy, Front Door, LH 1995-05 → —	EE101 GLI	—
69040-12250 note	Lock Assy, Front Door, LH 1993-05 → —	AE10#,CE100,EE10# 3D LHD (GTI,SI,XL,XLI)	—
69040-12250 note	Lock Assy, Front Door, LH 1992-05 → 1993-05 ended	AE10#,CE100,EE10# 3D LHD (3FC,5F) +1	—
69040-12250 note	Lock Assy, Front Door, LH 1992-11 → 1993-05 ended	AE101 3D 4FC	—
69040-12260 note	Lock Assy, Front Door, LH 1992-05 → 1993-05 ended	AE101 LB LHD;AE101 HB +4	—
69040-12260 note	Lock Assy, Front Door, LH 1993-05 → 1993-07 ended	AE10#,CE100,EE10# 5D LHD	—
69040-12260 note	Lock Assy, Front Door, LH 1992-11 → 1993-05 ended	AE101 5D 4FC XLI	—
69040-12261 note	Lock Assy, Front Door, LH 1993-07 → 1993-09 ended	AE10#,CE100,EE10# 5D LHD	—
69040-12262 note	Lock Assy, Front Door, LH 1993-09 → 1994-02 ended	AE10#,CE100,EE10# 5D LHD	—
69040-12263 note	Lock Assy, Front Door, LH 1994-02 → —	AE10#,CE100,EE10# 5D LHD	—
69320-12460	Lock Assy, Front Door, LH 1992-05 → —	AE101 LB;AE101 HB 5D +2	—
69320-12490	Lock Assy, Front Door, LH 1992-05 → 1995-05 ended	AE10#,CE100,EE10# 3D	—
69320-12490	Lock Assy, Front Door, LH 1995-05 → —	AE101,CE100,EE101 3D (SI,STD,XL,XLI)	—
69410 — Plate Assy, Front Door Lock Striker
69410-20070	Plate Assy, Front Door Lock Striker 1992-05 → 1993-05 ended	AE10#,CE100,EE10#	—
69410-87001	Plate Assy, Front Door Lock Striker 1993-05 → —	AE10#,CE100,EE10#	—
69711B — Link, Front Door Lock Remote Control, RH
69711-12130	Link, Front Door Lock Remote Control, RH 1992-05 → —	AE10#,CE100,EE10# 5D	—
69711-12150	Link, Front Door Lock Remote Control, RH 1992-05 → —	AE10#,CE100,EE10# 3D	—
69712A — Link, Front Door Lock Remote Control, LH
69712-12140	Link, Front Door Lock Remote Control, LH 1992-05 → —	AE10#,CE100,EE10# 5D	—
69712-12160	Link, Front Door Lock Remote Control, LH 1992-05 → —	AE10#,CE100,EE10# 3D	—
69736C — Guide, Front Door Locking Link
69736-12100	Guide, Front Door Locking Link 1992-06 → —	AE101,CE100,EE10# HB 5D	—
69736-12110	Guide, Front Door Locking Link 1992-05 → 1995-05 ended	AE10#,CE100,EE10# LB	—
69741B — Knob, Front Door Lock Control
69741-87003-13 note	Knob, Front Door Lock Control 1992-05 → 1997-04 ended	AE10#,CE100,EE10# 5D	—
69741-87003-14 note	Knob, Front Door Lock Control 1992-05 → 1997-04 ended	AE101,CE100,EE10# 5D	—
69749 — Clamp, Front Door Lock Link
69749-12040	Clamp, Front Door Lock Link 1992-05 → —	AE10#,CE100,EE10# 3D	—
69749-12070 note	Clamp, Front Door Lock Link 1993-05 → 1995-05 ended	AE10#,CE100,EE10# LB	—
69749-50020	Clamp, Front Door Lock Link 1992-05 → —	AE10#,CE100,EE10# 5D	—
69759 — Snap, Door Lock Control Link, NO.1
69759-20040 note	Snap, Door Lock Control Link, NO.1 1992-05 → —	AE10#,CE100,EE10# 3D	—
69759-20050 note	Snap, Door Lock Control Link, NO.1 1992-05 → —	AE10#,CE100,EE10# 3D	—
69759-24010 note	Snap, Door Lock Control Link, NO.1 1992-05 → —	AE10#,CE100,EE10#	—
69759-24020 note	Snap, Door Lock Control Link, NO.1 1992-05 → —	AE10#,CE100,EE10#	—
69759-24050 note	Snap, Door Lock Control Link, NO.1 1992-05 → —	AE10#,CE100,EE10# 5D	—
69759-24060 note	Snap, Door Lock Control Link, NO.1 1992-05 → —	AE10#,CE100,EE10# 5D	—
69759S — Snap, Front Door Inside Handle
69759-20060 note	Snap, Front Door Inside Handle 1992-05 → —	AE10#,CE100,EE10# 3D	—
69759-20070 note	Snap, Front Door Inside Handle 1992-05 → —	AE10#,CE100,EE10# 3D	—
69759-22040 note	Snap, Front Door Inside Handle 1992-05 → —	AE10#,CE100,EE10# 5D	—
69759-22050 note	Snap, Front Door Inside Handle 1992-05 → —	AE10#,CE100,EE10# 5D	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.

This drawing is also used by

Corolla Jpp Corolla Sed/WG
