Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02

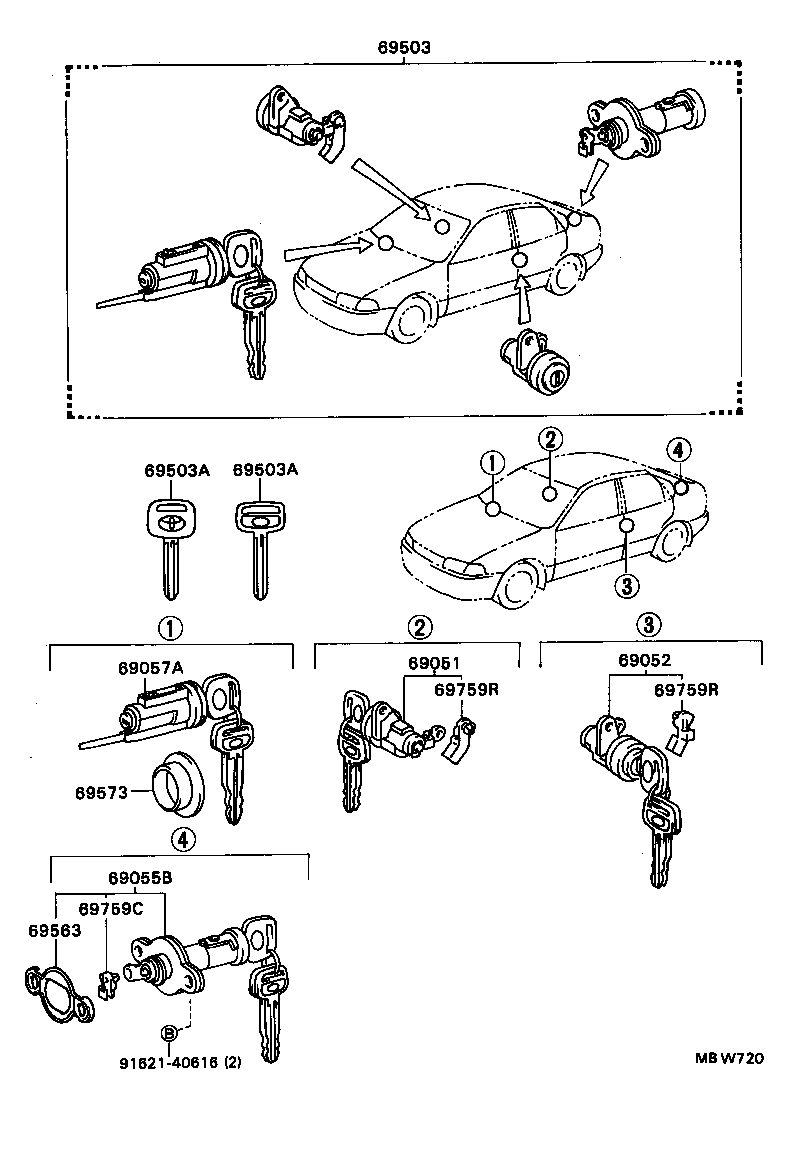

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 69051 — Cylinder & Key Set, Door Lock, RH | ||||
| 69051-12360 |
Cylinder & Key Set, Door Lock, RH
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69051-12450 note |
Cylinder & Key Set, Door Lock, RH
1995-05 → 1995-08
ended
|
AE101,EE101 | — | |
| 69052 — Cylinder & Key Set, Door Lock, LH | ||||
| 69052-12360 |
Cylinder & Key Set, Door Lock, LH
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69052-12450 note |
Cylinder & Key Set, Door Lock, LH
1995-05 → 1995-08
ended
|
AE101,EE101 | — | |
| 69055B — Cylinder & Key Set, Back Door Lock | ||||
| 69055-12760 |
Cylinder & Key Set, Back Door Lock
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 69055-12840 |
Cylinder & Key Set, Back Door Lock
1992-05 → —
|
AE10#,CE100,EE10# HB | — | |
| 69055-1A160 note |
Cylinder & Key Set, Back Door Lock
1995-05 → 1995-08
ended
|
AE101,EE101 | — | |
| 69057A — Cylinder & Key Set, Ignition Switch Lock | ||||
| 69057-12220 |
Cylinder & Key Set, Ignition Switch Lock
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69503 — Cylinder Set, Lock | ||||
| 69005-1A550 |
Cylinder Set, Lock
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 69005-1A590 |
Cylinder Set, Lock
1992-05 → —
|
CE100,EE101 STD | — | |
| 69005-1A600 |
Cylinder Set, Lock
1992-05 → —
|
AE10#,CE100,EE10# HB (GLI,GTI,SI,XL,XLI) | — | |
| 69503A — Key, Blank | ||||
| 90999-00185 note |
Key, Blank
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69563 — Pad, Back Door Lock Cylinder | ||||
| 69563-12090 |
Pad, Back Door Lock Cylinder
1992-05 → 1995-05
ended
|
AE10#,CE100,EE10# LB | — | |
| 69563-20040 |
Pad, Back Door Lock Cylinder
1992-05 → —
|
AE10#,CE100,EE10# HB | — | |
| 69573 — Pad, Ignition Switch Lock Cylinder | ||||
| 69573-12010 |
Pad, Ignition Switch Lock Cylinder
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69759C — Snap, Back Door Lock Cylinder | ||||
| 69759-24080 |
Snap, Back Door Lock Cylinder
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69759R — Snap, Front Door Lock Cylinder | ||||
| 69759-12080 note |
Snap, Front Door Lock Cylinder
1992-05 → —
|
AE10#,CE100,EE10# | — | |
| 69759-12090 note |
Snap, Front Door Lock Cylinder
1992-05 → —
|
AE10#,CE100,EE10# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
