Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Manifold

18 part groups · 7 illustrations

Illustrations

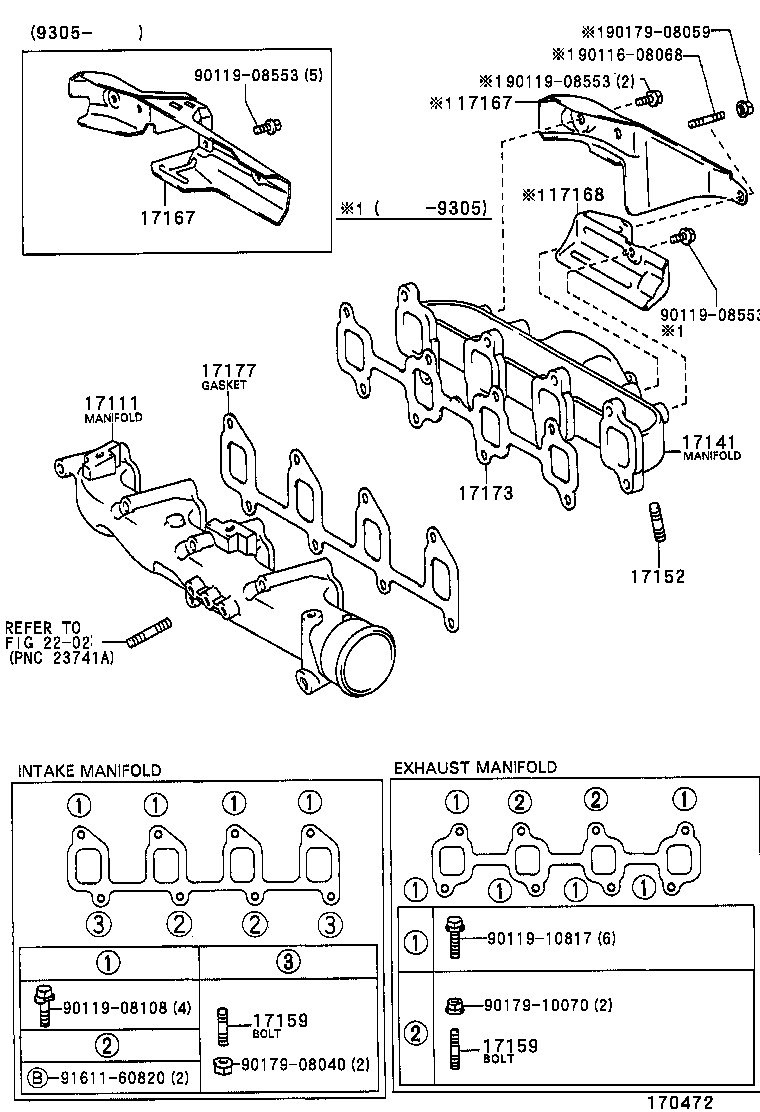

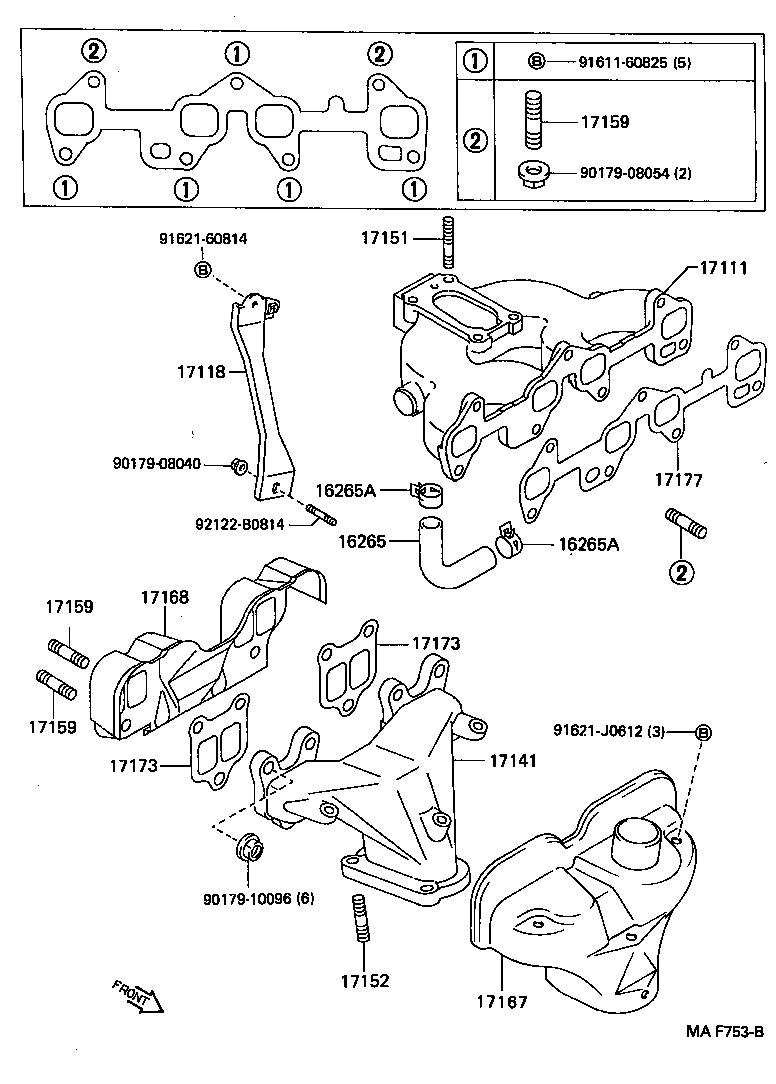

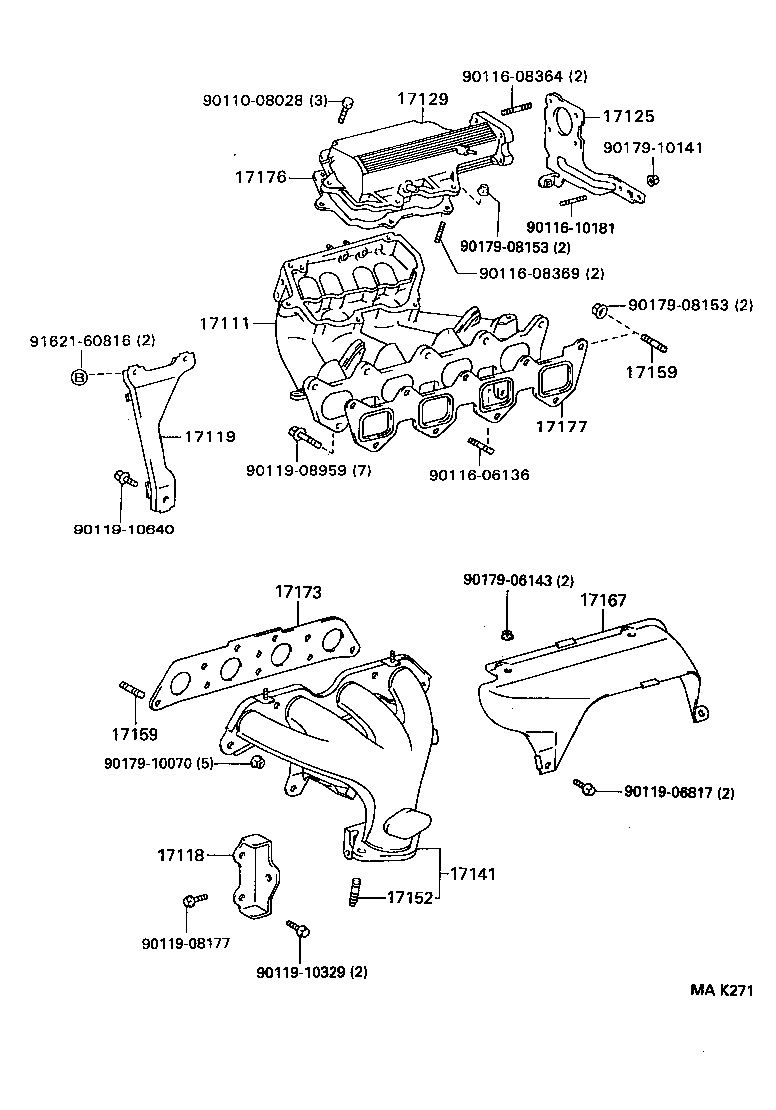

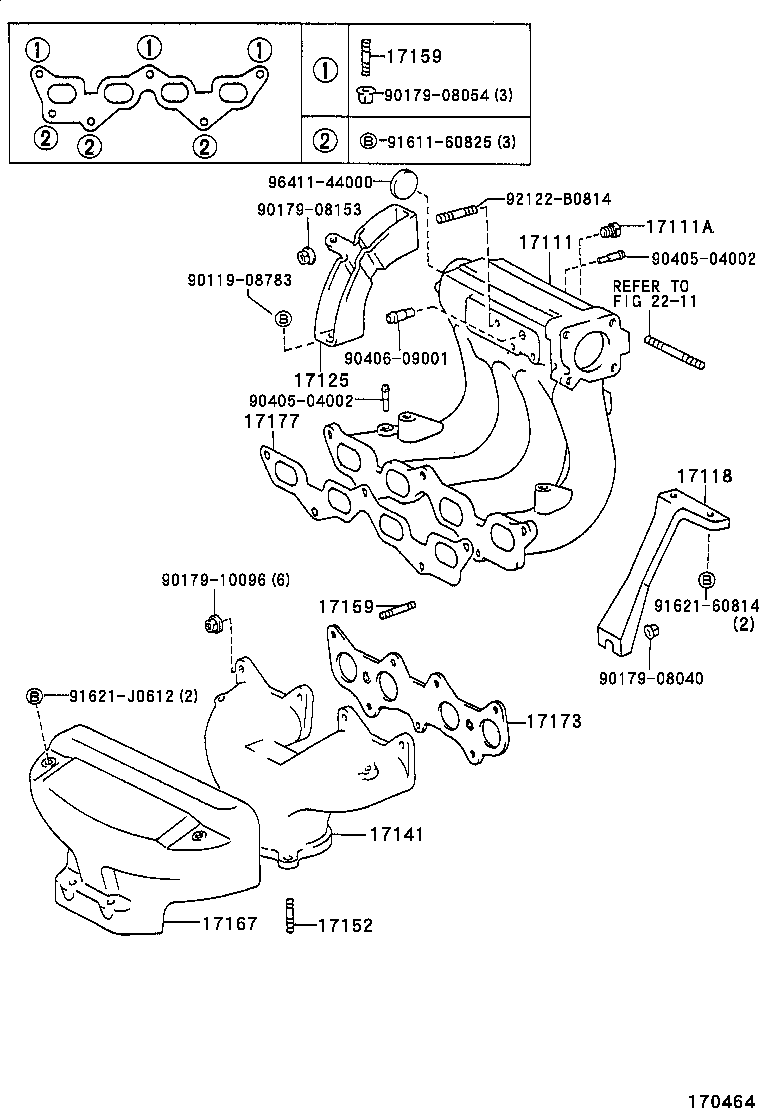

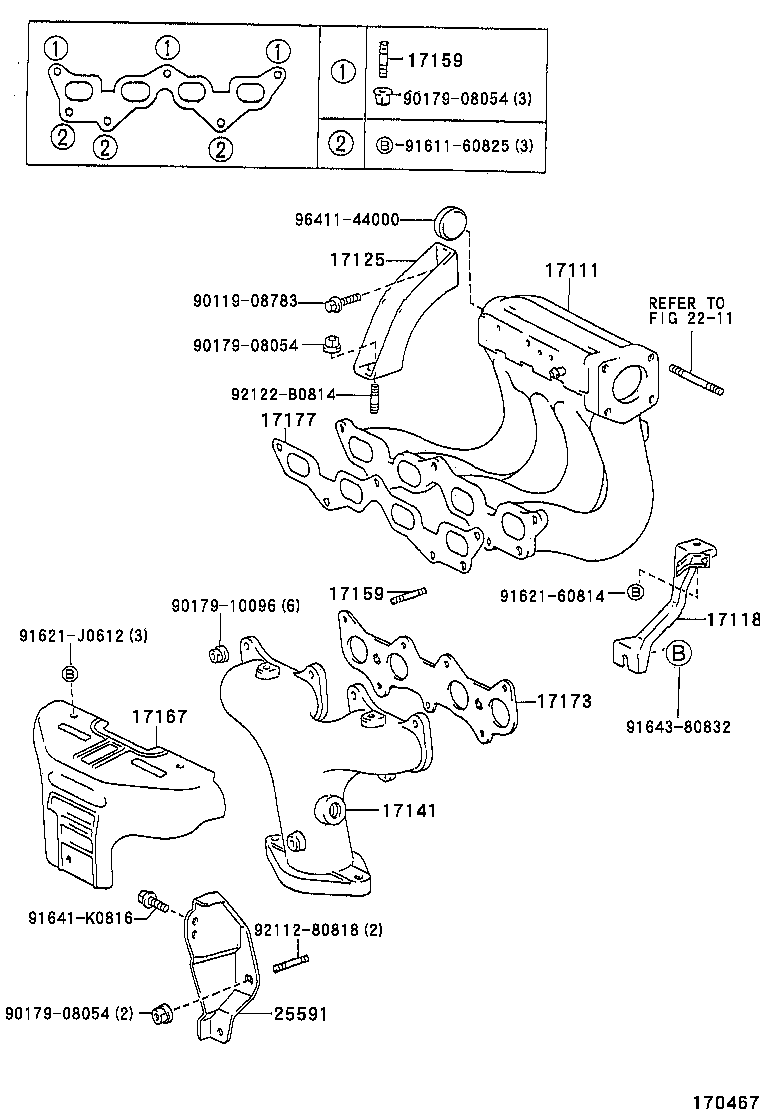

Figure MAF810D MAF810D 1992-05 → 1996-05 Figure MAF810D MAF810D 1996-05 → — Figure MAK271 MAK271 1996-05 → — Figure 170472 170472 1992-05 → — Figure MAF753B MAF753B 1992-05 → — Figure 170464 170464 1992-05 → 1995-05 Figure 170467 170467 1995-05 → —

Part groups

PNCDescription
16265 Hose, Intake Manifold Water
16265A Clamp OR Clip, Hose(FOR INTAKE MANIFOLD WATER)
17111 Manifold, Intake
17111A Plug, NO.1
17118 Stay, Manifold
17119 Stay, Manifold, NO.2
17125 Stay, Surge Tank, NO.1
17129 Tank, Intake Air Surge
17141 Manifold, Exhaust
17151 Bolt, Stud(FOR MANIFOLD TO CARBURETOR)
17152 Bolt, Stud(FOR MANIFOLD TO EXHAUST PIPE)
17159 Bolt, Stud(FOR MANIFOLD TO CYLINDER HEAD)
17167 Insulator, Exhaust Manifold Heat, NO.1
17168 Insulator, Exhaust Manifold Heat, NO.2
17173 Gasket, Exhaust Manifold TO Head
17176 Gasket, Air Surge Tank TO Intake Manifold
17177 Gasket, Intake Manifold TO Head, NO.1
25591 Bracket, Manifold Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
