Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

23 part groups · 7 illustrations

Illustrations

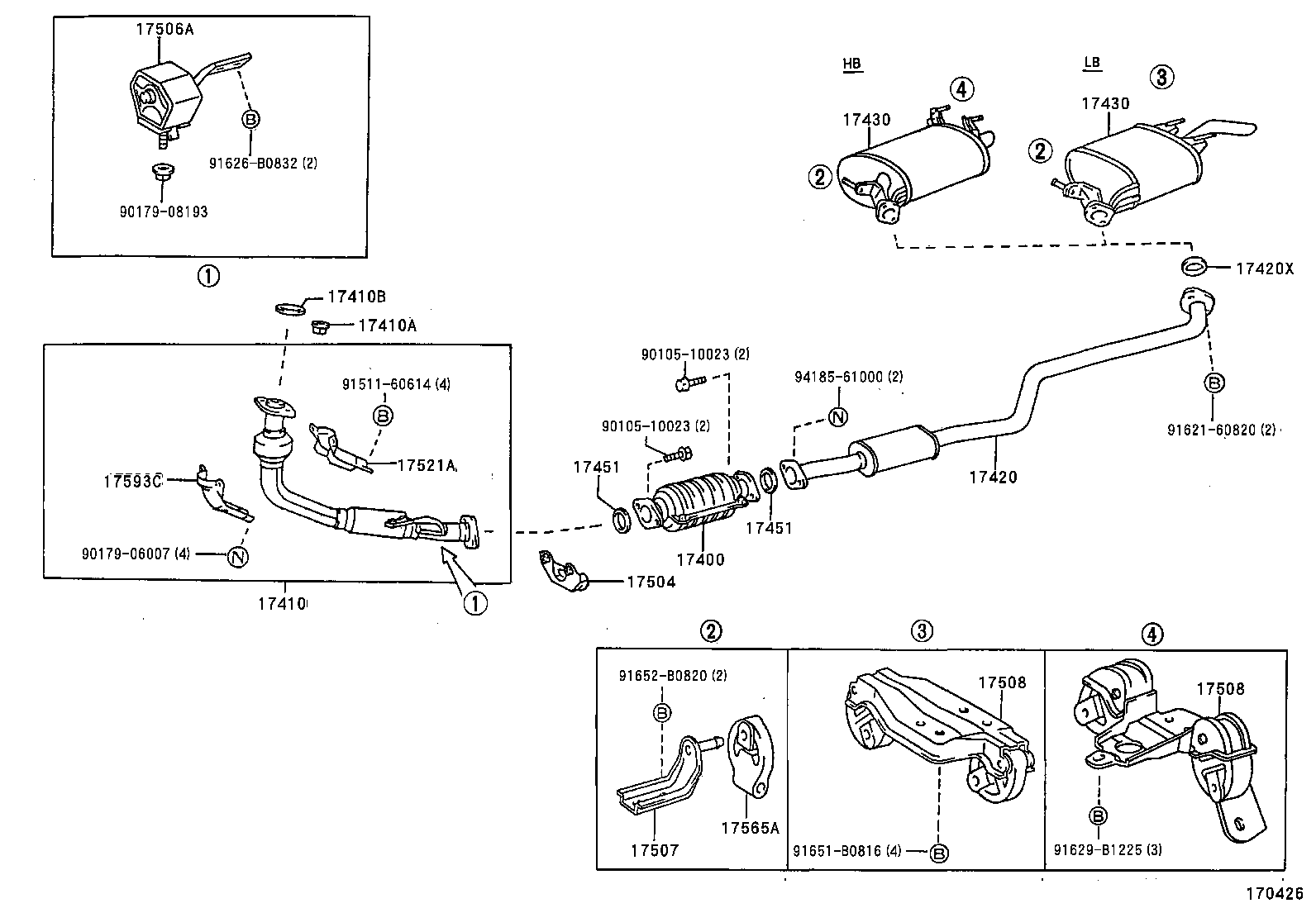

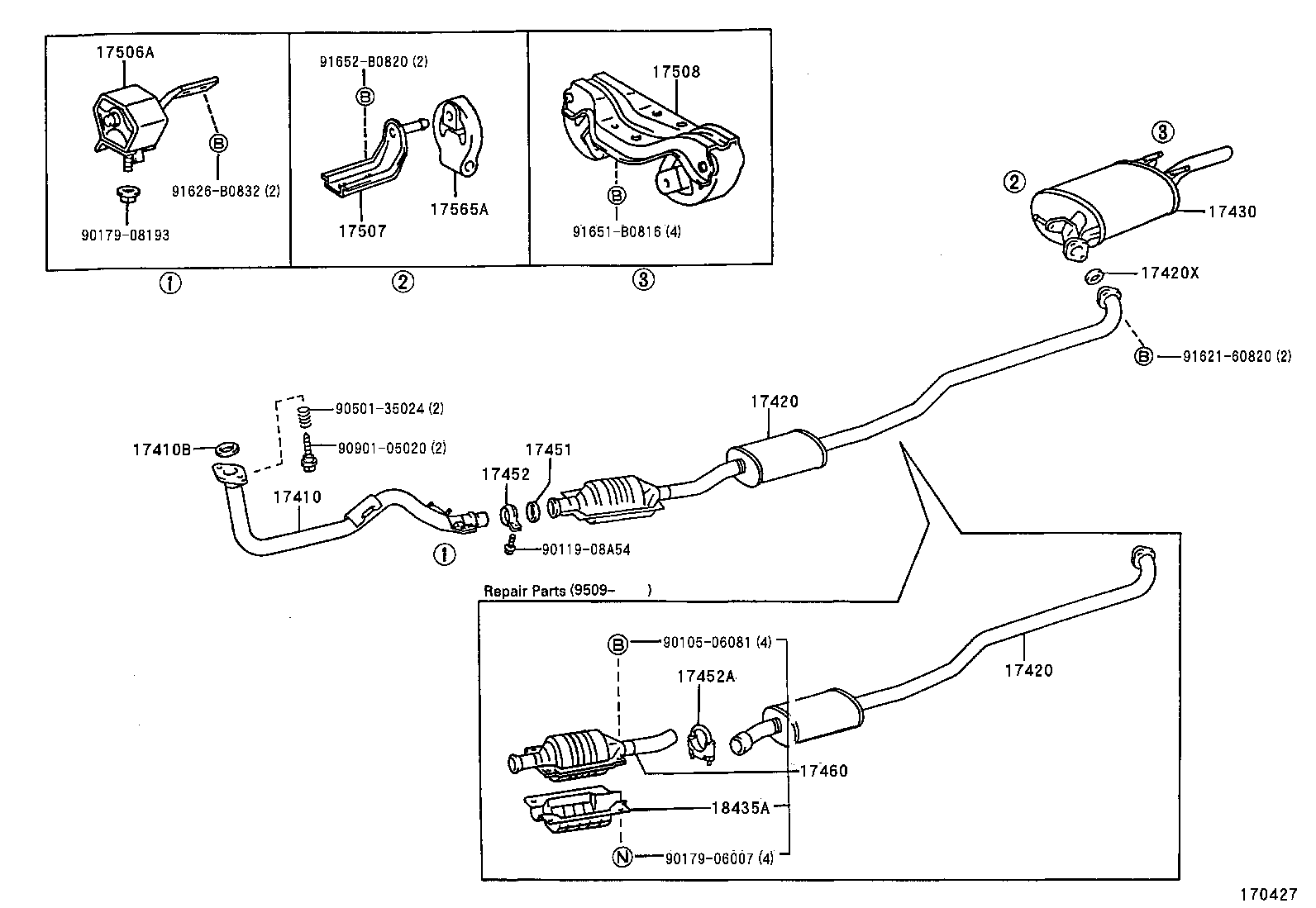

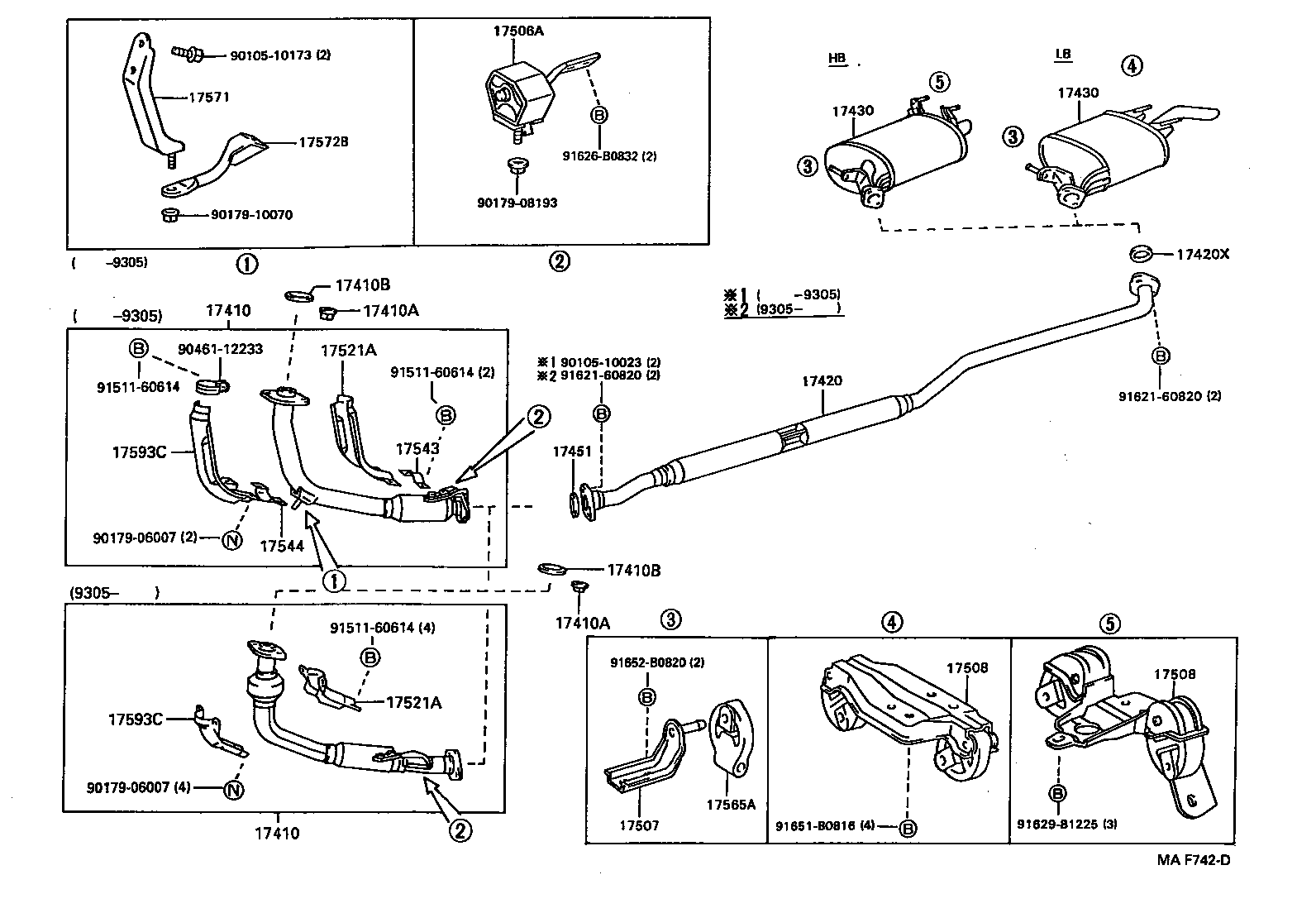

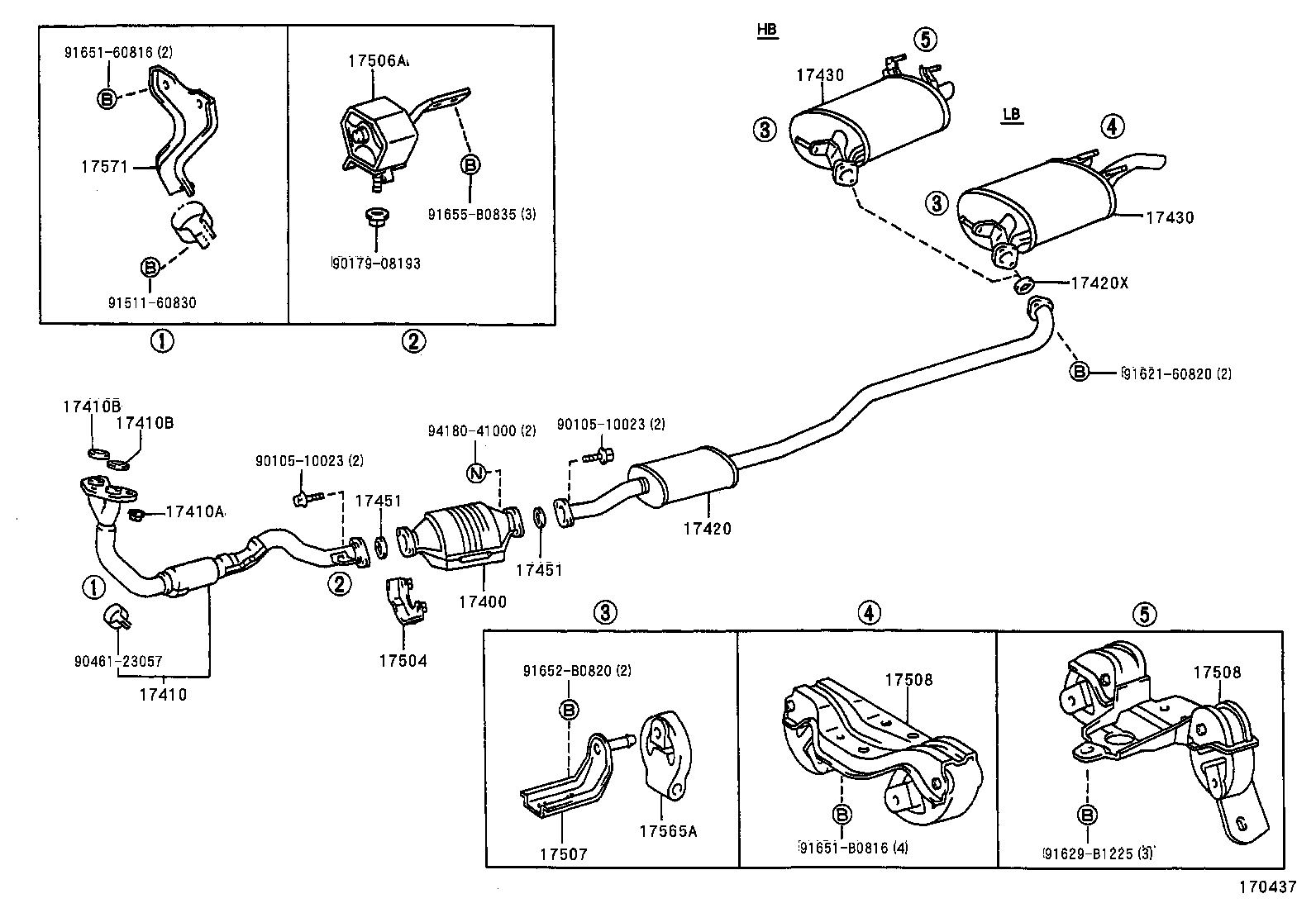

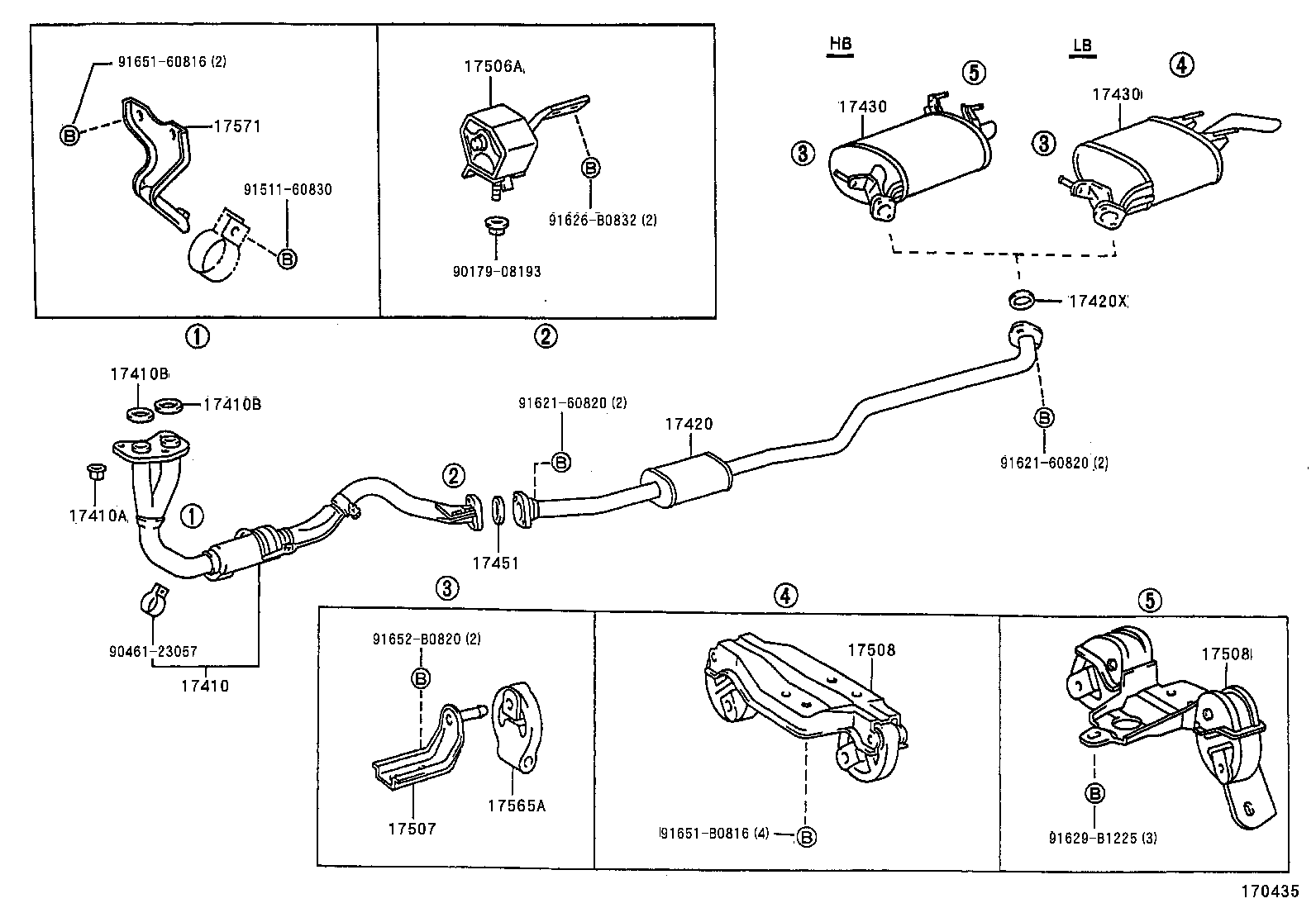

Figure 170425 170425 1992-05 → 1995-05 Figure 170425 170425 1995-05 → — Figure MAF742D MAF742D 1992-05 → — Figure 170426 170426 1993-05 → — Figure 170435 170435 1992-05 → 1995-05 Figure 170437 170437 1992-05 → 1995-05 Figure 170427 170427 1995-05 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17420X Gasket, Exhaust Pipe, Center
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17452A Clamp, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17507 Bracket Sub-assy, Exhaust Pipe NO.2 Support
17508 Support Sub-assy, Exhaust Pipe, NO.3
17521A Protector, Exhaust Pipe, Upper NO.1
17543 Stay, Exhaust Pipe Protector, NO.3
17544 Stay, Exhaust Pipe Protector, NO.4
17565A Support, Exhaust Pipe, NO.4
17571 Bracket, Exhaust Pipe Support, NO.1
17572B Bracket, Exhaust Pipe Support, NO.2
17593C Protector, Exhaust Pipe, Lower NO.1
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
