Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

16 part groups · 5 illustrations

Illustrations

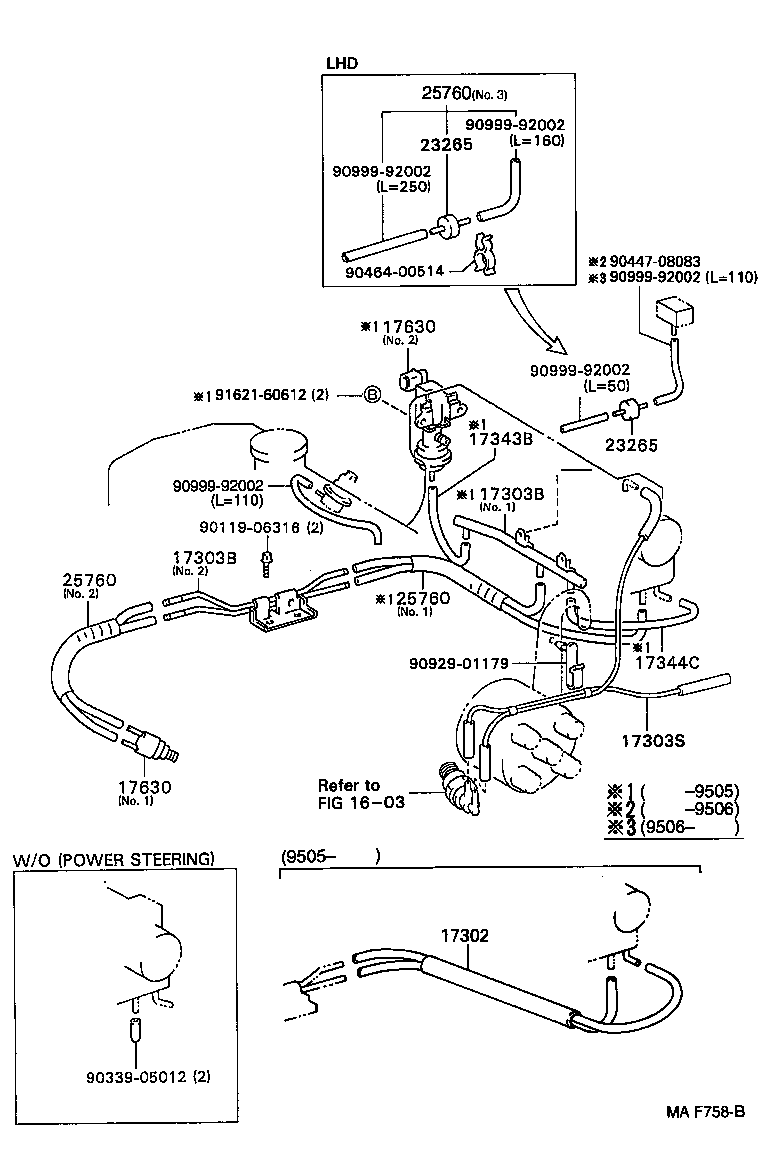

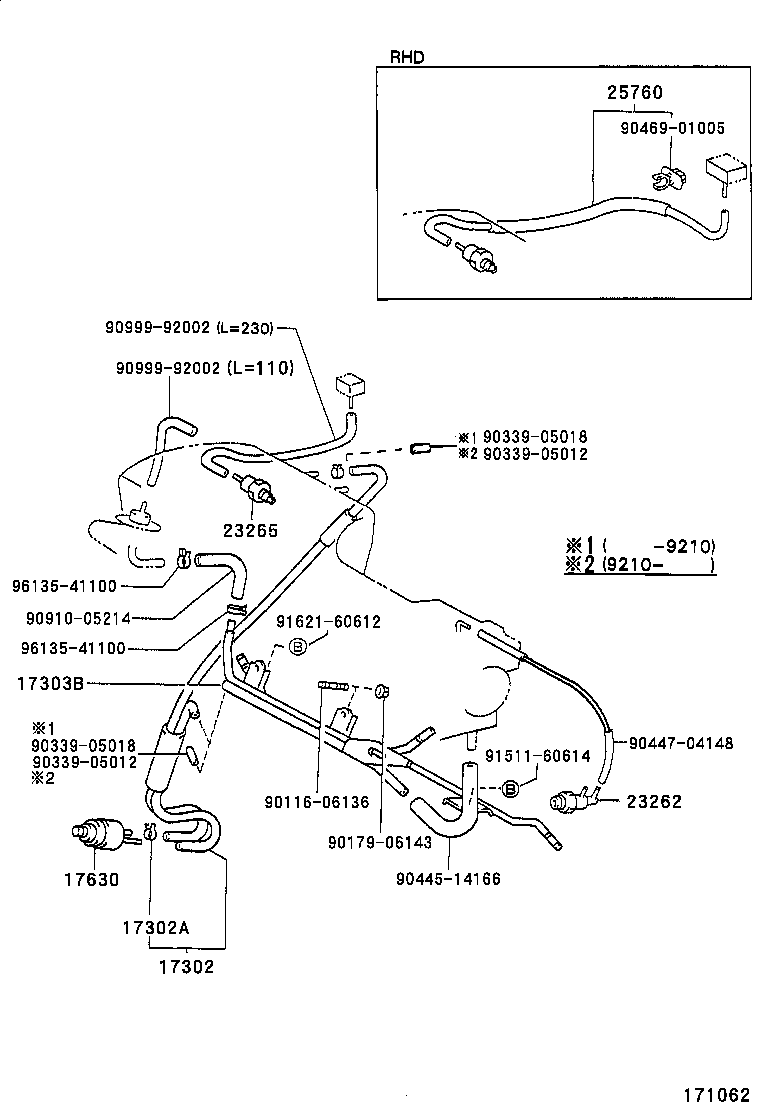

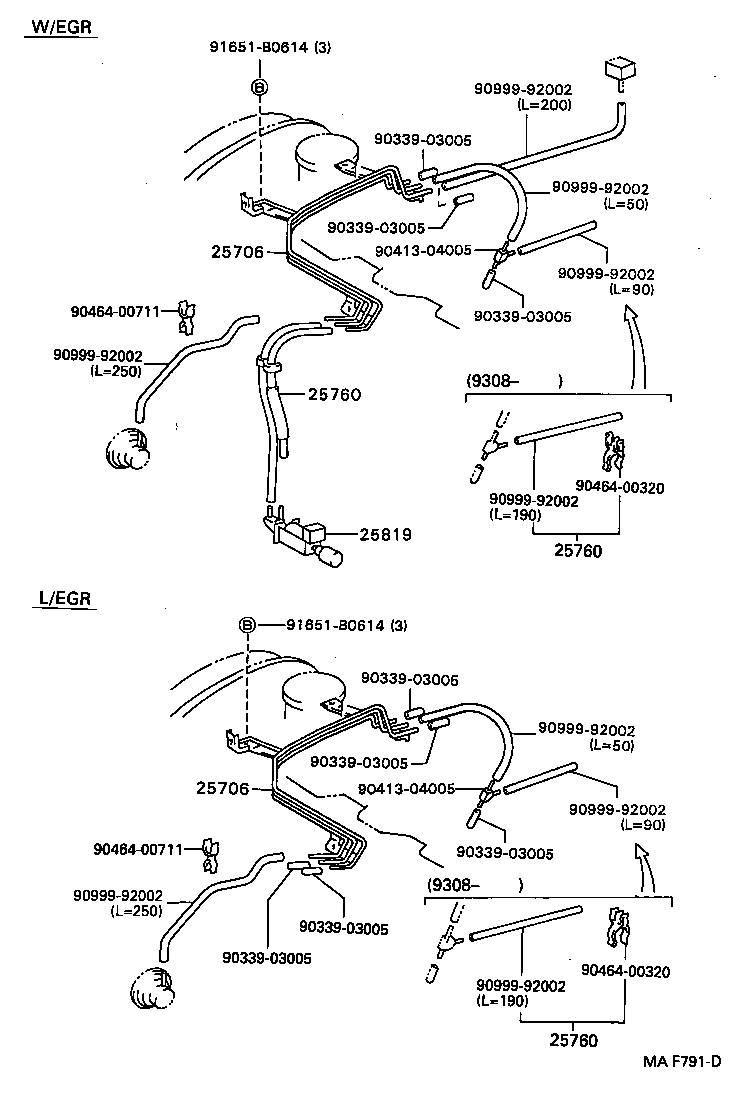

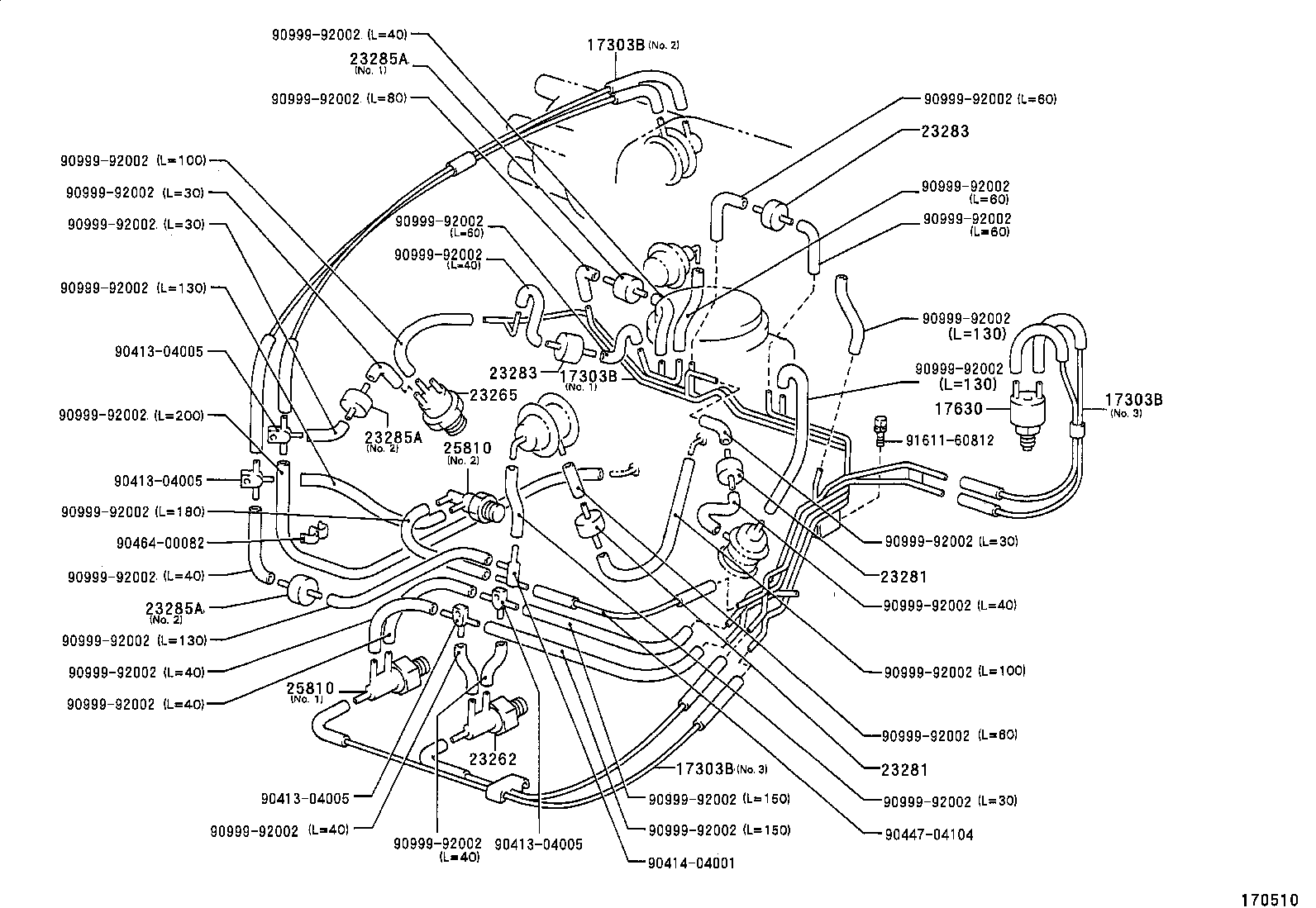

Figure 170021 170021 1992-05 → — Figure 171062 171062 1992-05 → — Figure MAF791D MAF791D 1992-05 → — Figure 170510 170510 1992-05 → — Figure MAF758B MAF758B 1992-05 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17303S Pipe Sub-assy, Air, NO.3
17343B Hose, NO.3(FOR IDLE-UP)
17344C Hose, NO.4(FOR IDLE-UP)
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23281 Valve, Vacuum Transmitting, NO.1
23283 Valve, Vacuum Transmitting, NO.3
23285A Valve, Check, NO.1
25706 Pipe Sub-assy, Vacuum Transmitting, NO.1
25760 Hose Assy, Vacuum Transmitting
25810 Valve Assy, Bimetal
25819 Valve Assy, Vacuum Regulating
