Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02

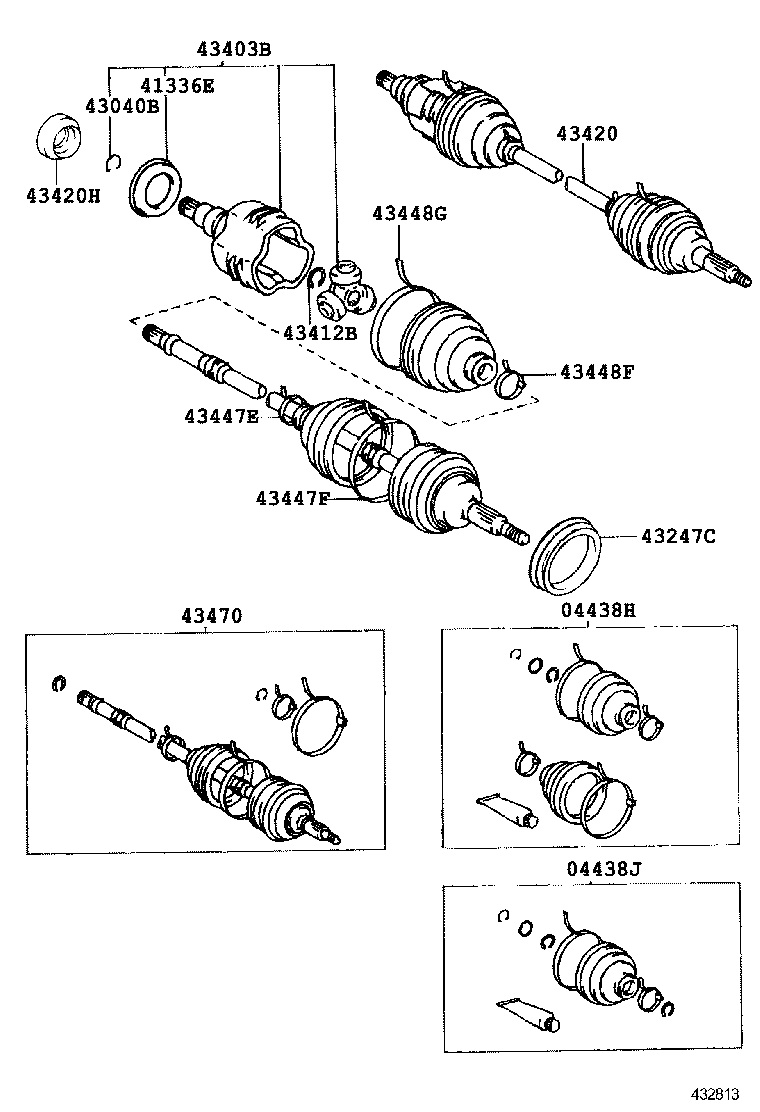

Front Drive Shaft
30 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 04438F | Boot Kit, Front Drive Shaft, IN & Outboard, RH |
| 04438G | Boot Kit, Front Drive Shaft Inboard Joint, RH |
| 04438H | Boot Kit, Front Drive Shaft, IN & Outboard, LH |
| 04438J | Boot Kit, Front Drive Shaft Inboard Joint, LH |
| 41336D | Cover, Front Drive Shaft Dust, RH |
| 41336E | Cover, Front Drive Shaft Dust, LH |
| 43030B | Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT RH) |
| 43040B | Ring, Hole Snap (FOR FRONT DRIVE INBOARD JOINT LH) |
| 43247B | Deflector, Front Wheel Bearing Dust, RH NO.2 |
| 43247C | Deflector, Front Wheel Bearing Dust, LH NO.2 |
| 43403 | Joint Set, Front Axle Inboard, RH |
| 43403B | Joint Set, Front Axle Inboard, LH |
| 43410 | Shaft Assy, Front Drive, RH |
| 43410M | Oil Seal, Front Drive Shaft, RH |
| 43411E | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER RH) |
| 43412B | Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH) |
| 43420 | Shaft Assy, Front Drive, LH |
| 43420H | Oil Seal, Front Drive Shaft, LH |
| 43447C | Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) |
| 43447D | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH) |
| 43447E | Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) |
| 43447F | Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) |
| 43448C | Clamp (FOR FRONT AXLE INBOARD JOINT BOOT RH) |
| 43448E | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH) |
| 43448F | Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH) |
| 43448G | Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) |
| 43460 | Shaft Assy, Front Drive Outboard Joint, RH |
| 43470 | Shaft Assy, Front Drive Outboard Joint, LH |
| 43474 | Damper, Drive Shaft |
| 43474A | Clamp (FOR DRIVE SHAFT DAMPER SETTING) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
