Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Booster & Vacuum Tube

13 part groups · 7 illustrations

Illustrations

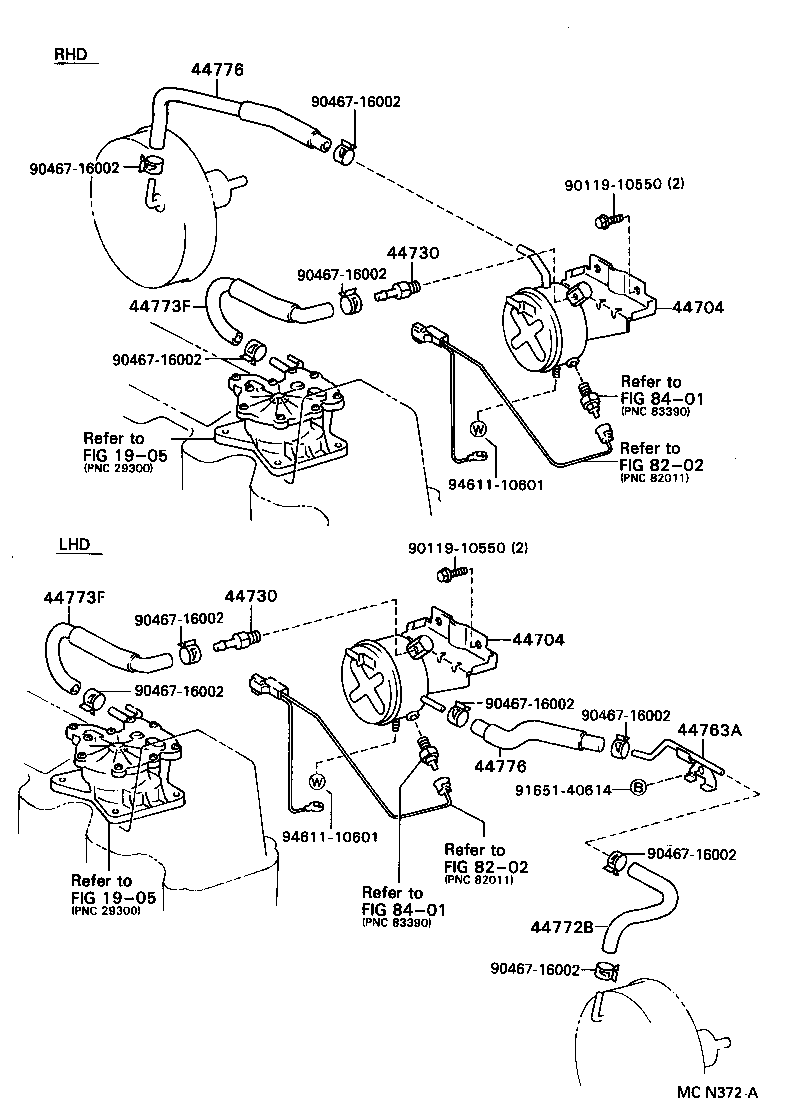

Figure MCN369A MCN369A 1992-05 → 1995-05 Figure MCN369A MCN369A 1995-05 → — Figure MCT069 MCT069 1995-05 → — Figure MCN370A MCN370A 1992-05 → 1995-05 Figure MCT236 MCT236 1995-05 → — Figure MCN371B MCN371B 1992-05 → — Figure MCN372A MCN372A 1992-05 → —

Part groups

PNCDescription
44610 Booster Assy, Brake
44696 Grommet, Check Valve
44704 Reservoir Sub-assy, Vacuum
44730 Valve Assy, Vacuum Check(FOR BRAKE)
44730F Union, Vacuum Hose(FOR MANIFOLD SIDE)
44731C Bracket, Brake Booster
44758 Bracket, Vacuum Check Valve
44763A Tube, Hose TO Hose, NO.1
44772B Hose, Check Valve TO Brake Booster
44773F Hose, Union TO Check Valve
44774 Hose, Union TO Connector Tube
44776 Hose, Brake Booster
44785 Gasket, Brake Booster
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
