Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Axle Arm & Steering Knuckle

28 part groups · 3 illustrations

Illustrations

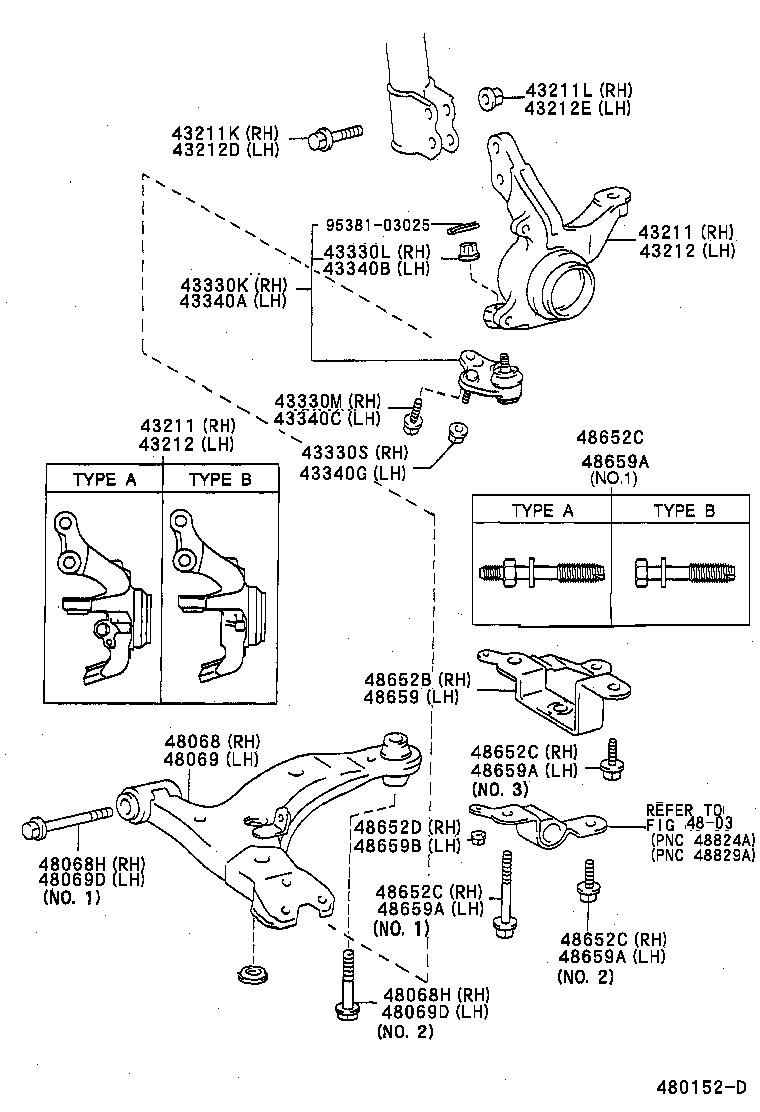

Figure 480153 480153 1992-05 → 1995-05 Figure 480152D 480152D 1995-05 → — Figure 480150 480150 1992-05 → —

Part groups

PNCDescription
43211 Knuckle, Steering, RH
43211K Bolt (FOR STEERING KNUCKLE RH)
43211L Nut (FOR STEERING KNUCKLE RH)
43212 Knuckle, Steering, LH
43212D Bolt (FOR STEERING KNUCKLE LH)
43212E Nut (FOR STEERING KNUCKLE LH)
43330K Joint Assy, Lower Ball, Front RH
43330L Nut, Castle (FOR FRONT LOWER BALL JOINT RH)
43330M Bolt (FOR FRONT LOWER BALL JOINT RH)
43330S Nut (FOR FRONT LOWER BALL JOINT RH)
43340A Joint Assy, Lower Ball, Front LH
43340B Nut, Castle (FOR FRONT LOWER BALL JOINT LH)
43340C Bolt (FOR FRONT LOWER BALL JOINT LH)
43340G Nut (FOR FRONT LOWER BALL JOINT LH)
48068 Arm Sub-assy, Front Suspension, Lower NO.1 RH
48068F Retainer, Cushion(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068G Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48068H Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 RH)
48069 Arm Sub-assy, Front Suspension, Lower NO.1 LH
48069B Retainer, Cushion(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069C Nut(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48069D Bolt(FOR FRONT SUSPENSION LOWER ARM NO.1 LH)
48652B Bracket, Front Lower Arm, RH
48652C Bolt(FOR FRONT LOWER ARM BRACKET RH)
48652D Nut(FOR FRONT LOWER ARM BRACKET RH)
48659 Bracket, Front Lower Arm, LH
48659A Bolt(FOR FRONT LOWER ARM BRACKET LH)
48659B Nut(FOR FRONT LOWER ARM BRACKET LH)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
