Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

16 part groups · 2 illustrations

Illustrations

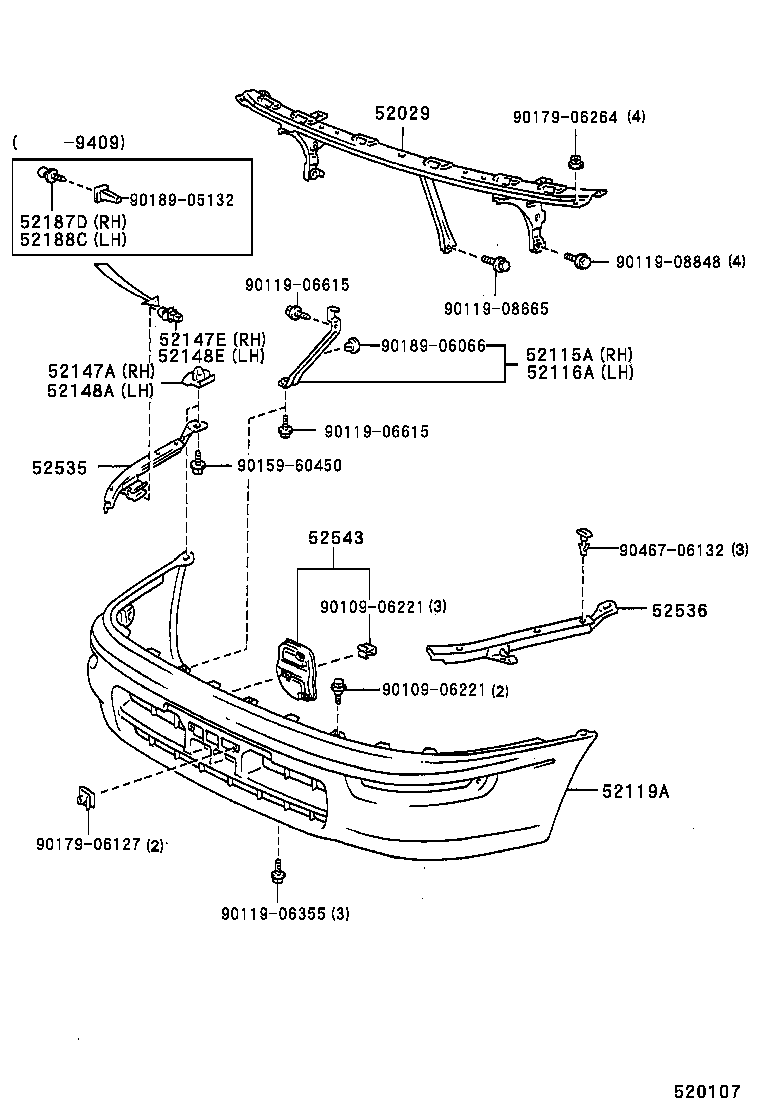

Figure MBW599D MBW599D 1992-05 → — Figure 520107 520107 1992-05 → 1995-05

Part groups

PNCDescription
52029 Reinforcement Sub-assy, Front Bumper, Upper
52115A Support, Front Bumper Side, RH
52116A Support, Front Bumper Side, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52143A Arm, Front Bumper, Inner RH
52144A Arm, Front Bumper, Inner LH
52147A Bracket, Front Bumper Stay, RH
52147E Bracket, Front Bumper Mounting, RH
52148A Bracket, Front Bumper Stay, LH
52148E Bracket, Front Bumper Mounting, LH
52187D Guide, Front Bumper Location, RH
52188C Guide, Front Bumper Location, LH
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
52543 Seal, Front Bumper Side, RH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
