Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02

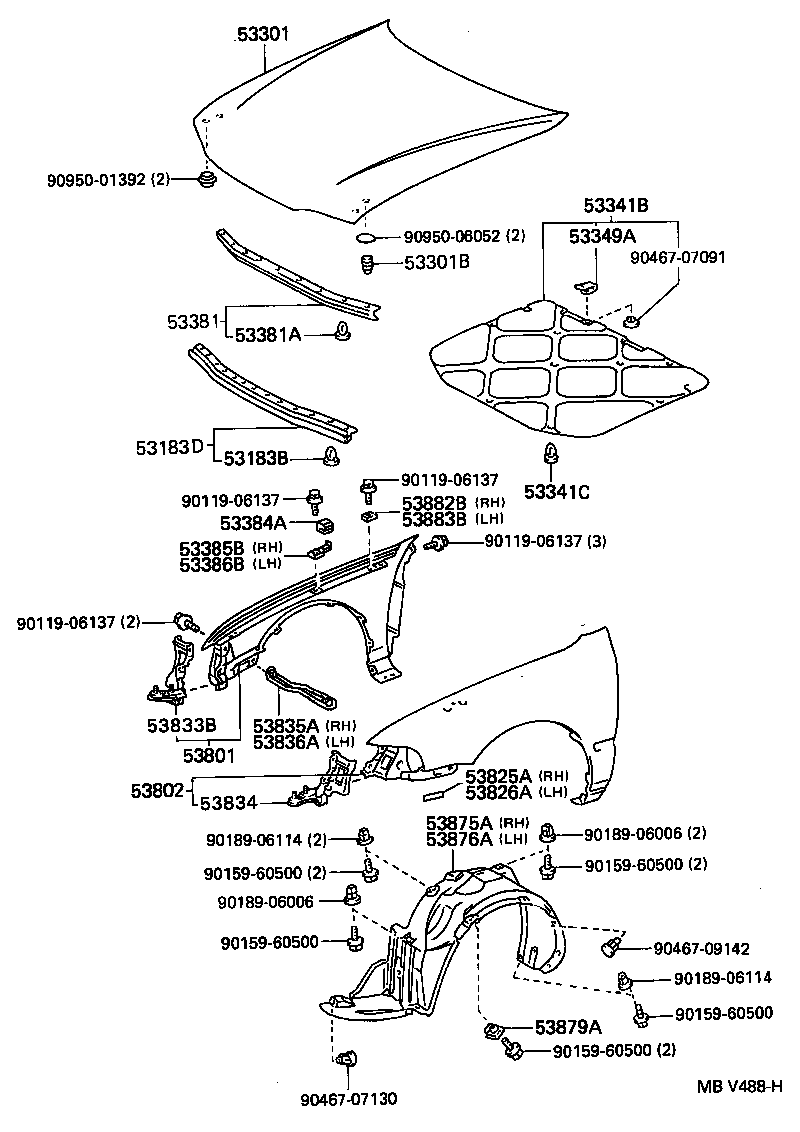

Hood & Front Fender
25 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53183B | Clip(FOR HEADLAMP COVER SEAL) |
| 53183D | Seal, Headlamp Cover TO Hood |
| 53301 | Hood Sub-assy |
| 53301B | Cushion, Hood Bumper |
| 53341B | Insulator, Hood |
| 53341C | Clip(FOR HOOD INSULATOR) |
| 53349A | Retainer, Hood Insulator |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53384A | Bumper, Fender TO Hood |
| 53385B | Bracket, Fender TO Hood Bumper, RH |
| 53386B | Bracket, Fender TO Hood Bumper, LH |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53825A | Protector, Front Fender, Upper RH |
| 53826A | Protector, Front Fender, Upper LH |
| 53833B | Panel, Front Fender Side, RH |
| 53834 | Panel, Front Fender Side, Lower LH |
| 53835A | Brace, Front Fender TO Apron, RH |
| 53836A | Brace, Front Fender TO Apron, LH |
| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53879A | Retainer, Front Fender Liner |
| 53882B | Seal, Front Fender, RH |
| 53883B | Seal, Front Fender, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
