Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02

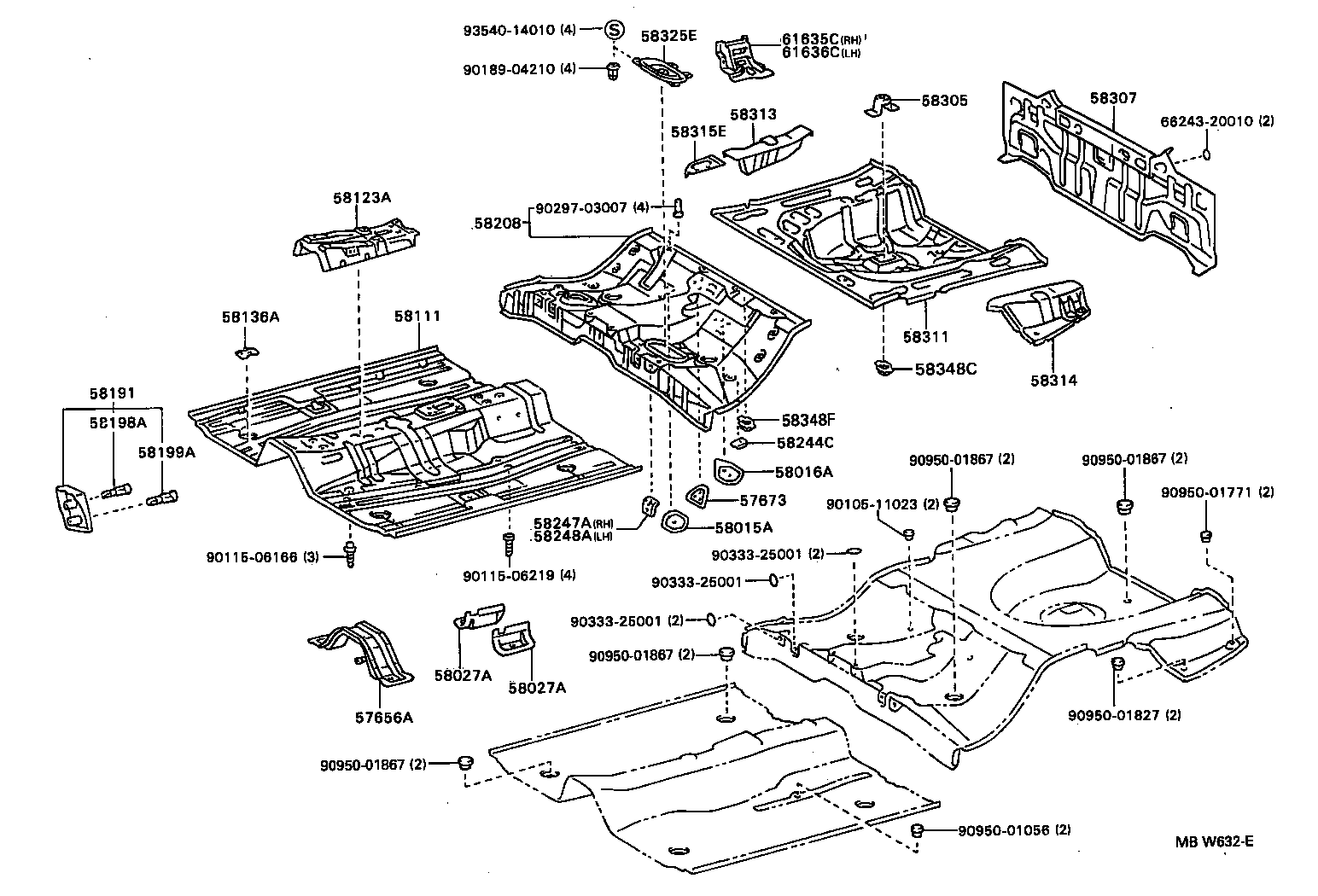

Floor Pan & Lower Back Panel
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 57656A | Bracket, Exhaust Pipe Mounting, NO.1 |
| 57673 | Bracket, Rear Seatback Hinge Mounting |
| 58015A | Reinforce Sub-assy, Belt Anchor, NO.3 RH |
| 58016A | Reinforce Sub-assy, Belt Anchor, NO.3 LH |
| 58027A | Reinforce Sub-assy, Seat Belt Anchor |
| 58111 | Pan, Front Floor |
| 58123A | Support, Shift & Select Lever |
| 58136A | Cover, Front Floor Service Hole |
| 58191 | Footrest, Front Floor |
| 58198A | Clip, Footrest, NO.1 |
| 58199A | Clip, Footrest, NO.2 |
| 58208 | Pan, Center Floor |
| 58244C | Bracket, Rear Seat Cushion Mounting, RH |
| 58247A | Reinforcement, Rear Seat Cushion Hinge, RH |
| 58248A | Reinforcement, Rear Seat Cushion Hinge, LH |
| 58305 | Bracket Sub-assy, Spare Wheel Clamp |
| 58307 | Panel Sub-assy, Body Lower Back |
| 58311 | Pan, Rear Floor |
| 58313 | Panel, Rear Floor Side, RH |
| 58314 | Panel, Rear Floor Side, LH |
| 58315E | Extension Rear Floor Side Panel, Front RH |
| 58325E | Cover, Rear Floor Service Hole |
| 58329F | Cover, Rear Floor Service Hole, NO.2 |
| 58348C | Bracket, Rear Floor Heat Insulator, NO.3 |
| 58348F | Bracket, Center Floor Hear Insulator, NO.3 |
| 58355C | Bracket, Rear Bumper Arm |
| 61635C | Brace, Quarter Wheel House, RH |
| 61636C | Brace, Quarter Wheel House, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
