Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

80 part groups · 3 illustrations

Illustrations

610217 1992-05 → —

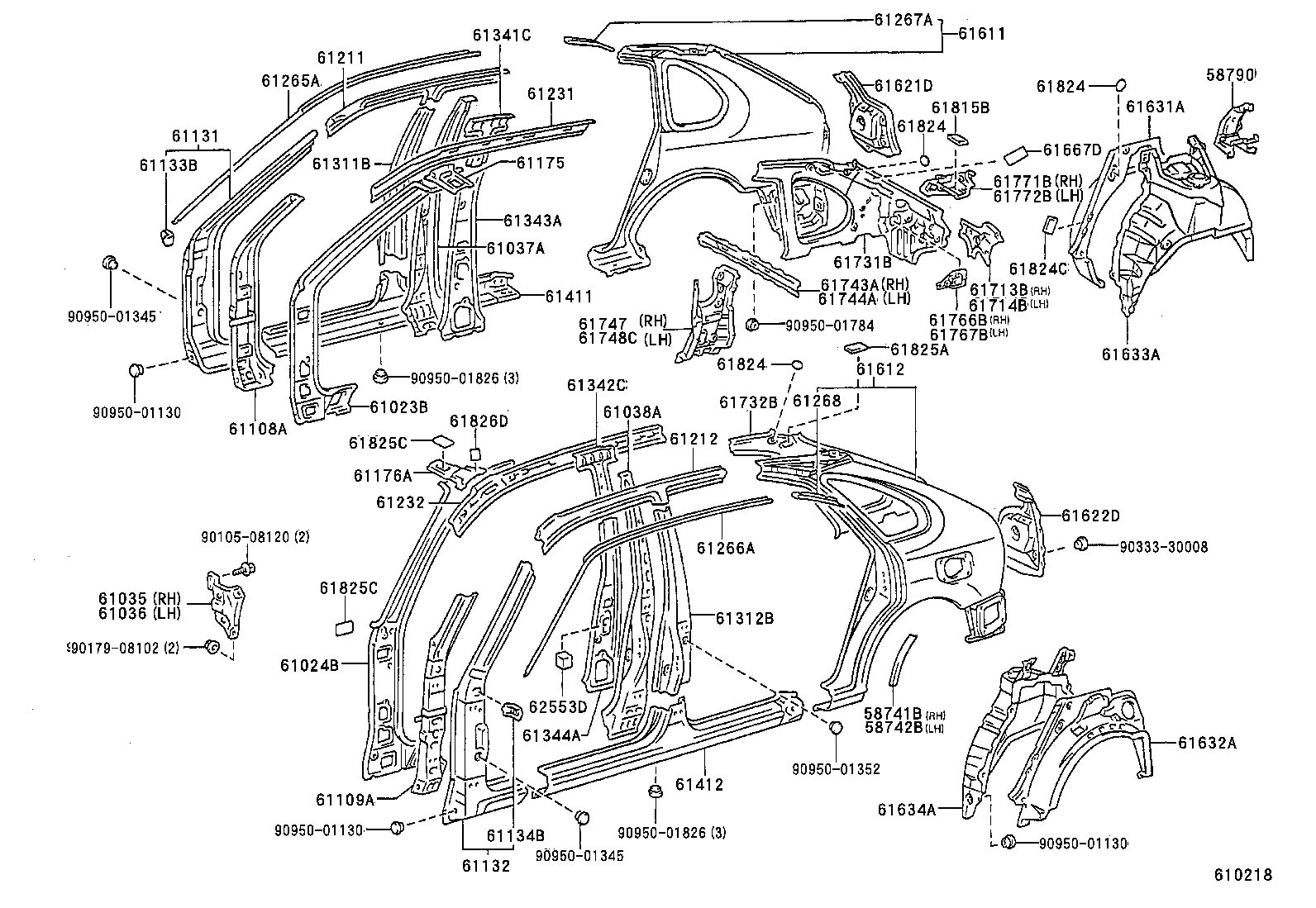

610218 1992-06 → —

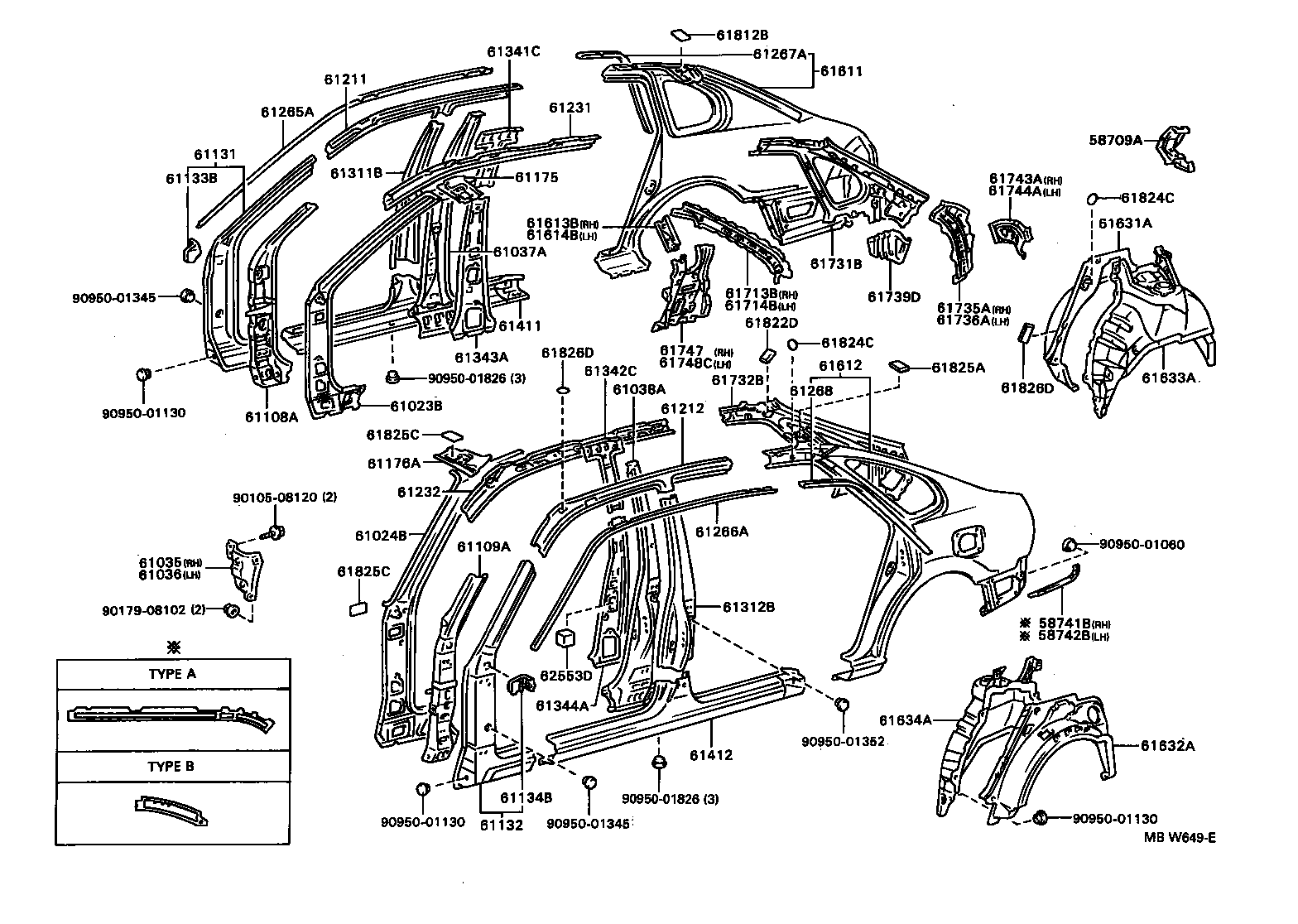

MBW649E 1992-05 → 1995-05

Part groups

PNC	Description
58709A	Carrier Sub-assy, Jack
58741B	Protector, Quarter Panel, RH
58742B	Protector, Quarter Panel, LH
58790	Carrier Assy, Jack
61023B	Pillar Sub-assy, Front Body, Inner RH
61024B	Pillar Sub-assy, Front Body, Inner LH
61035	Bracket Sub-assy, Instrument Panel TO Cowl Side, RH
61036	Bracket Sub-assy, Instrument Panel TO Cowl Side, LH
61037A	Reinforcement Sub-assy, Center Body Pillar, RH
61038A	Reinforcement Sub-assy, Center Body Pillar, LH
61108A	Reinforce Sub-assy, Front Body Pillar, Lower RH
61109A	Reinforce Sub-assy, Front Body Pillar, Lower LH
61131	Pillar, Front Body, Upper Outer RH
61132	Pillar, Front Body, Upper Outer LH
61133B	Bracket, Front Body Pillar ,Outer RH
61134B	Bracket, Front Body Pillar Outer, LH
61175	Reinforcement, Front Body Pillar, Inner NO.2 RH
61176A	Reinforcement, Front Body Pillar, Inner NO.2 LH
61211	Rail, Roof Side, Outer RH
61212	Rail, Roof Side, Outer LH
61231	Rail, Roof Side, Inner RH
61232	Rail, Roof Side, Inner LH
61247B	Reinforcement, Roof Side Rail, Inner RH
61248B	Reinforcement, Roof Side Rail, Inner LH
61265A	Channel, Roof Drip Side, Center RH
61266A	Channel, Roof Drip Side, Center LH
61267A	Channel, Roof Drip Side, Rear RH
61268	Channel, Roof Drip Side, Rear LH
61305	Reinforce Sub-assy, Center Body Pillar, Lower RH
61306	Reinforce Sub-assy, Center Body Pillar, Lower LH
61311B	Pillar, Center Body, Outer RH
61312B	Pillar, Center Body, Outer LH
61341C	Pillar, Center Body, Inner Upper RH
61342C	Pillar, Center Body, Inner Upper LH
61343A	Pillar, Center Body, Inner RH
61344A	Pillar, Center Body, Inner LH
61365A	Reinforcement, Belt Anchor TO Center Pillar, NO.3
61366	Reinforce, Belt Anchor TO Center Piller, NO.3 LH
61411	Panel, Rocker, Outer RH
61412	Panel, Rocker, Outer LH
61611	Panel, Quarter, RH
61612	Panel, Quarter, LH
61613B	Panel, Quarter, Inner Front RH
61614B	Panel, Quarter, Inner Front LH
61621D	Trough, Back Door Opening, RH
61622D	Trough, Back Door Opening, LH
61631A	Panel, Quarter Wheel House, Outer RH
61632A	Panel, Quarter Wheel House, Outer LH
61633A	Panel, Quarter Wheel House, Inner RH
61634A	Panel, Quarter Wheel House, Inner LH
61667C	Seal, Qaurter Panel, NO.1
61667D	Seal, Quarter Panel
61713B	Reinforce, Roof Side, Outer RH
61714B	Reinforce, Roof Side, Outer LH
61731B	Panel, Roof Side, Inner RH
61732B	Panel, Roof Side, Inner LH
61733A	Panel, Roof Side, Inner Front RH
61734A	Panel, Roof Side, Inner Front LH
61735A	Panel, Roof Side, Inner Rear RH
61736A	Panel, Roof Side, Inner Rear LH
61739D	Reinforcement, Jack Carrier Support
61743A	Reinforcement, Back Door Opening Side, RH
61744A	Reinforcement, Back Door Opening Side, LH
61747	Brace, Roof Side Inner TO Wheel House, RH
61748C	Brace, Roof Side Inner TO Wheel House, LH
61764A	Plate, Quarter Window Lock Gusset
61764C	Plate, Quarter Window Lock Gusset
61766B	Reinforcement, Belt Anchor TO Roof Side, Inner RH
61767B	Reinforcement, Belt Anchor TO Roof Side, Inner LH
61771B	Frame, Back Door Opening Upper Corner, RH
61772B	Frame, Back Door Opening Upper Corner, LH
61812B	Plate, Noise Control, RH
61815B	Cover, Roof Side, Inner Upper RH
61822D	Plate, Noise Control, LH
61824	Plate, Noise Control, NO.1
61824C	Pad, Noise Shutter, NO.1
61825A	Plate, Noise Control, NO.2
61825C	Pad, Noise Shutter, NO.2
61826D	Plate, Noise Control, NO.3
62553D	Pad, Pillar, NO.3

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
