Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02

Roof Panel & Back Window Glass

36 part groups · 4 illustrations

PNC	Description

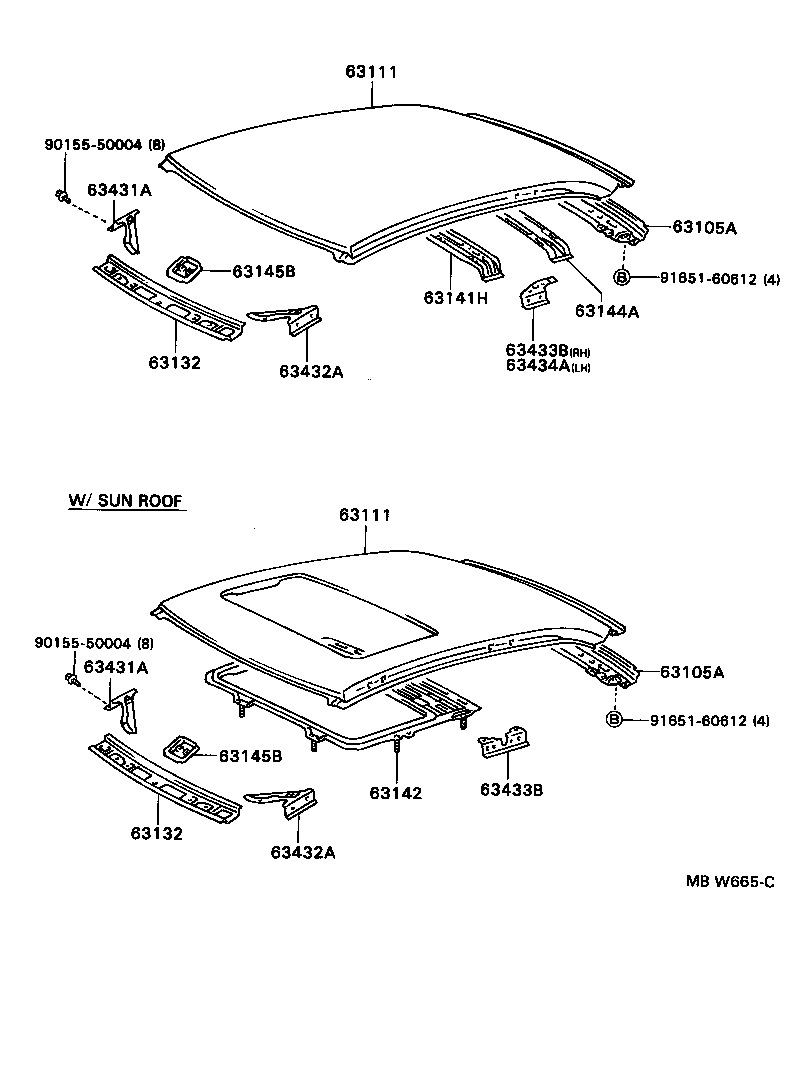

63105A	Frame Sub-assy, Back Door Opening
63111	Panel, Roof
63132	Panel, Windshield Header, Inner
63141H	Reinforcement, Roof Panel, Center
63142	Reinforcement, Roof Panel, NO.2
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63145B	Reinforcement, Windshield Header Panel

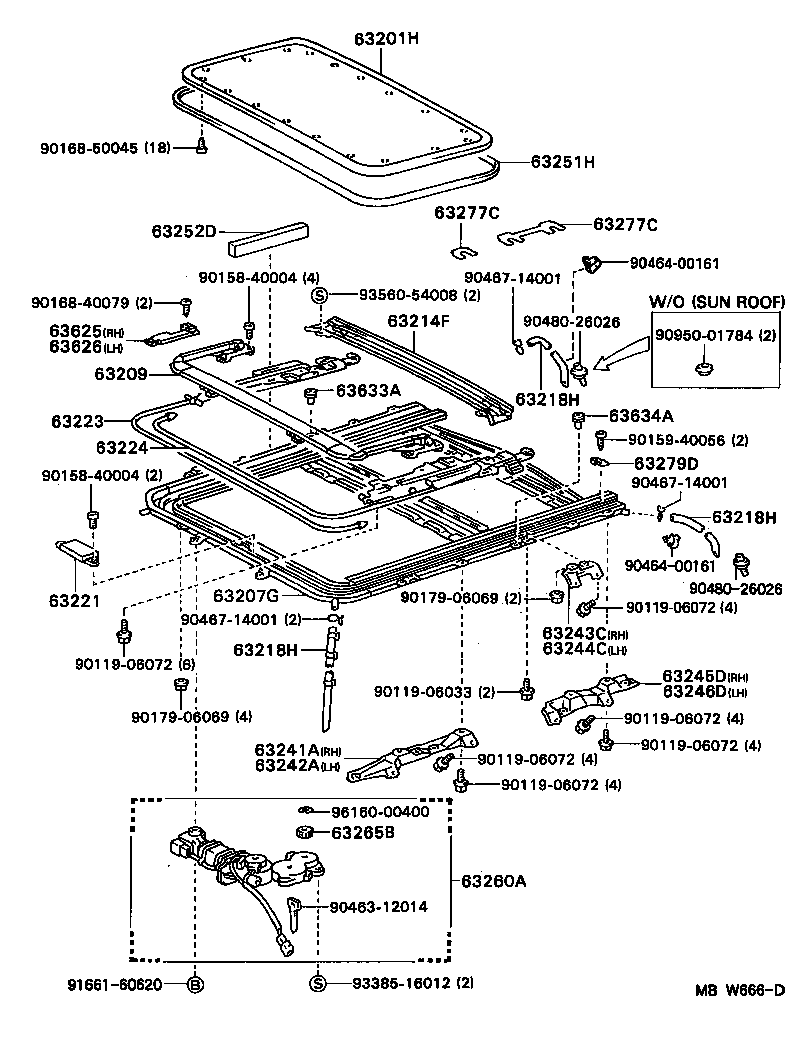

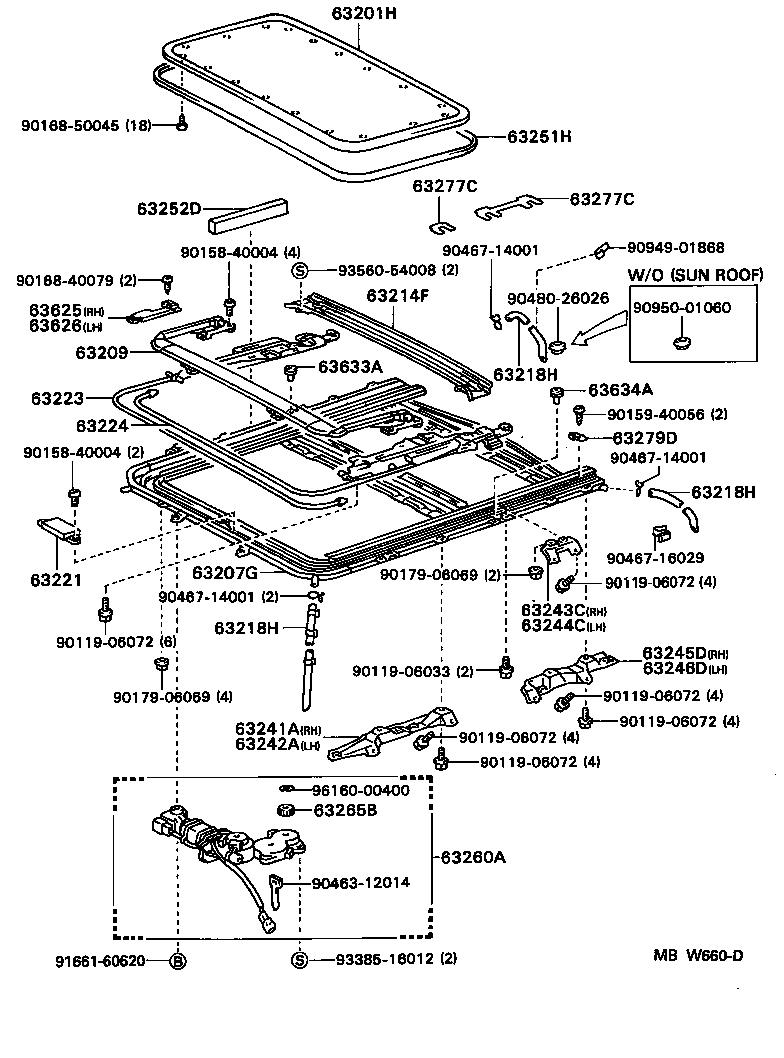

63201H	Panel Sub-assy, Slide Roof
63207G	Rail Sub-assy, Sliding Roof Guide
63209	Panel Sub-assy, Roof Wind Deflector
63214F	Channel, Roof Drip, Rear
63218H	Hose, Sliding Roof Drain
63221	Casing, Sliding Roof Cable Guide
63223	Cable, Sliding Roof Drive, RH
63224	Cable, Sliding Roof Drive, LH
63241A	Bracket, Sliding Roof Housing Front Mounting, RH
63242A	Bracket, Sliding Roof Housing Front Mounting, LH
63243C	Bracket, Sliding Roof Housing Center Mounting, RH
63244C	Bracket, Sliding Roof Housing Center Mounting, LH
63245D	Bracket, Sliding Roof Housing Rear Mounting, RH
63246D	Bracket, Sliding Roof Housing Rear Mounting, LH
63251H	Weatherstrip, Sliding Roof
63252D	Weatherstrip, Sliding Roof Housing
63260A	Gear Sub-assy, Sliding Roof Drive
63265B	Gear, Sliding Roof Drive
63277C	Shim, Sliding Roof Panel
63279D	Stopper, Sliding Roof Guide Rail
63431A	Bracket, Roof Inner Rack, NO.1 RH
63432A	Bracket, Roof Inner Rack, NO.1 LH
63433B	Bracket, Roof Inner Rack, NO.2 RH
63434A	Bracket, Roof Inner Rack, NO.2 LH
63625	Block, Sliding Roof Guide, RH
63626	Block, Sliding Roof Guide, LH
63633A	Bush, Sliding Roof Housing, NO.1
63634A	Bush, Sliding Roof Housing, NO.2

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
