Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02

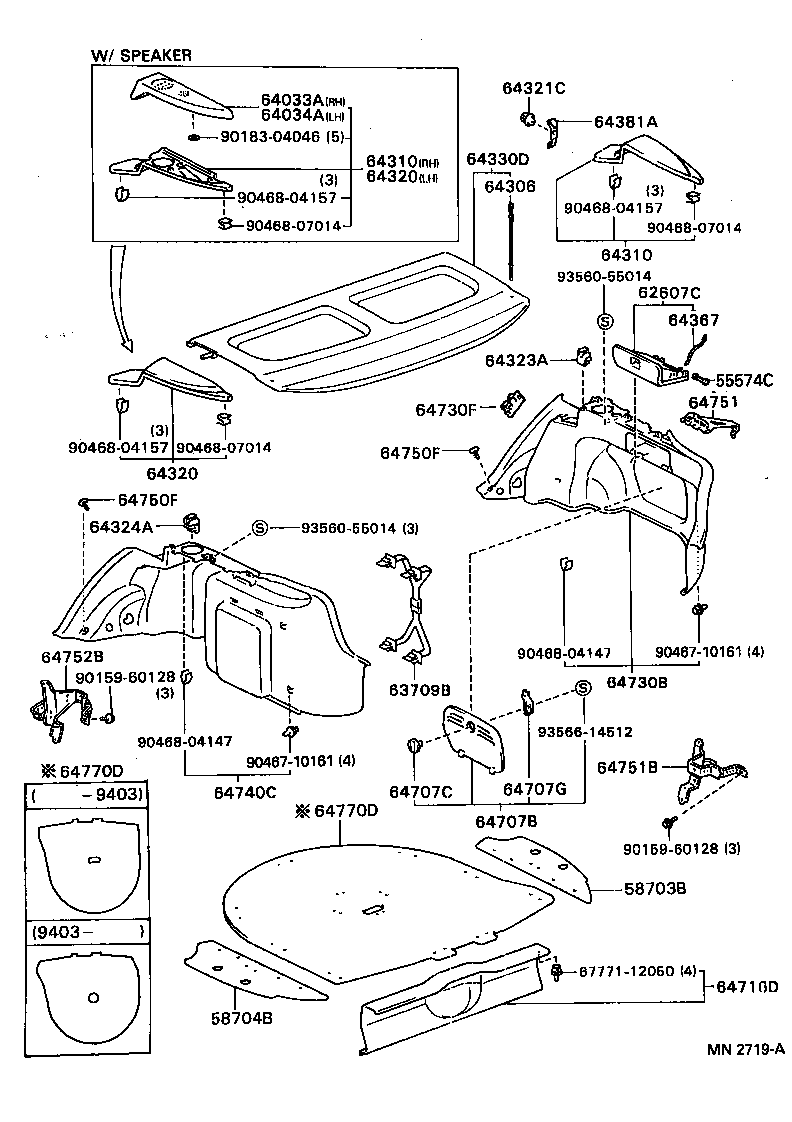

Deck Board & Deck Trim Cover
33 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 55574C | Shaft, Glove Compartment Door Hinge |
| 58703B | Cover Sub-assy, Luggage Compartment Side, RH |
| 58704B | Cover Sub-assy, Luggage Compartment Side, LH |
| 62607C | Pocket Sub-assy, Quarter Trim |
| 63709B | Band Sub-assy, Room Rack |
| 64033A | Grille Sub-assy, Rear Speaker, RH |
| 64034A | Grille Sub-assy, Rear Speaker, LH |
| 64306 | Suspender Sub-assy, Package Tray Trim |
| 64310 | Bracket, Package Tray Trim, RH |
| 64320 | Bracket, Package Tray Trim, LH |
| 64321C | Clip(FOR PACKAGE TRIM SIDE) |
| 64323A | Clamp, Package Tray Trim, RH |
| 64324A | Clamp, Package Tray Trim, LH |
| 64330D | Panel Assy, Package Tray Trim |
| 64353C | Cover, Package Tray Trim Belt Hole, RH |
| 64354 | Cover, Package Tray Trim Belt Hole, LH |
| 64367 | Suspender, Package Tray Trim |
| 64381A | Hanger, Package Tray Trim |
| 64707B | Cover Sub-assy, Quarter Trim Jack |
| 64707C | Knob, Jack Cover |
| 64707G | Stopper, Jack Cover |
| 64716D | Cover, Deck Trim, Rear |
| 64716E | Clip(FOR DECK TRIM REAR COVER) |
| 64730B | Panel Assy, Deck Trim Side, RH |
| 64730E | Clip(FOR DECK TRIM SIDE BOARD) |
| 64730F | Clamp(FOR DECK TRIM SIDE BOARD) |
| 64740C | Panel Assy, Deck Trim Side, LH |
| 64746A | Cover, Deck Trim Side Lamp Hole |
| 64750F | Clip(FOR DECK SIDE TRIM PANEL) |
| 64751 | Bracket, Deck Trim Side Speaker Set, RH |
| 64751B | Bracket, Speaker Set, NO.1 RH |
| 64752B | Bracket, Speaker Set, NO.1 LH |
| 64770D | Cover Assy, Spare Wheel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
