Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 4 illustrations

Illustrations

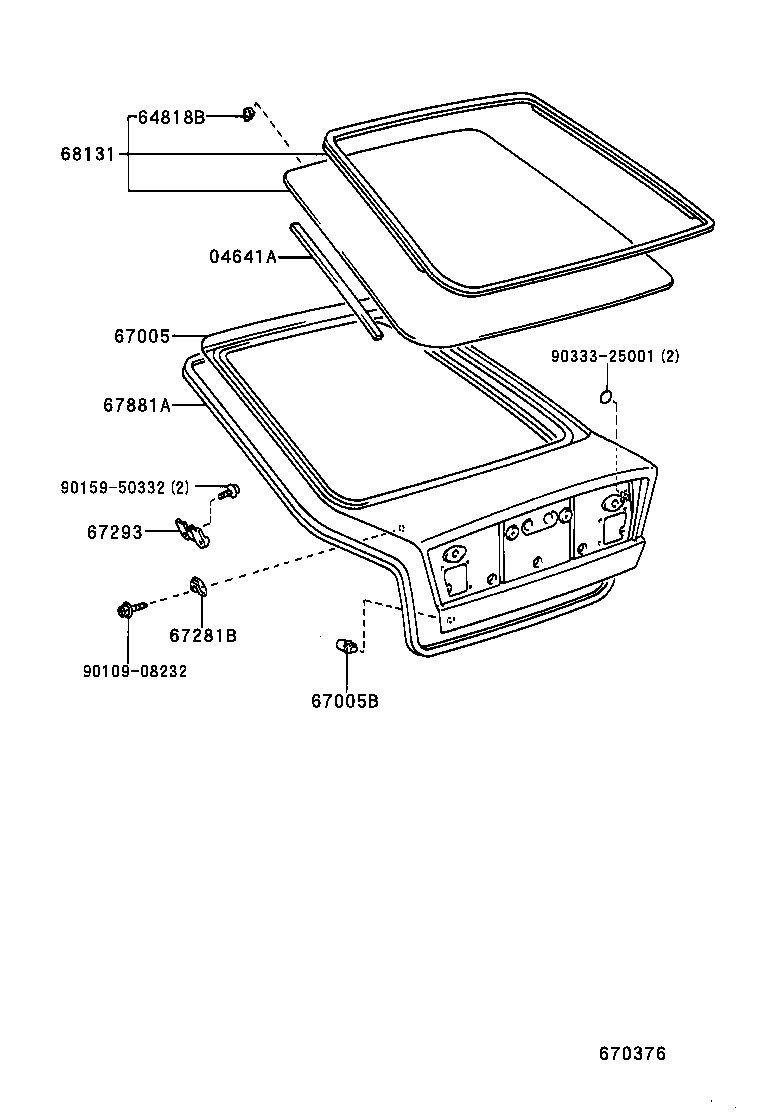

Figure 670385 670385 1992-05 → — Figure 670375 670375 1992-05 → — Figure 670386 670386 1992-05 → 1995-05 Figure 670376 670376 1992-05 → 1995-05

Part groups

PNCDescription
04641A Dam Kit, Back Window Glass Adhesive
64373B Stopper, Package Tray Trim
64780C Panel Assy, Back Door Trim, RH
64783A Trim, Back Window Panel, Upper
64790C Panel Assy, Back Door Trim, LH
64795A Trim, Back Window Opening
64818B Spacer, Back Door Glass, NO.1
67005 Panel Sub-assy, Back Door
67005B Cushion(FOR BACK DOOR PANEL)
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67371 Duct, Back Door Ventilator
67750 Board Assy, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67765A Cover, Back Door Service Hole, NO.1
67881A Weatherstrip, Back Door
68131 Glass, Back Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
