Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Handle

12 part groups · 2 illustrations

Illustrations

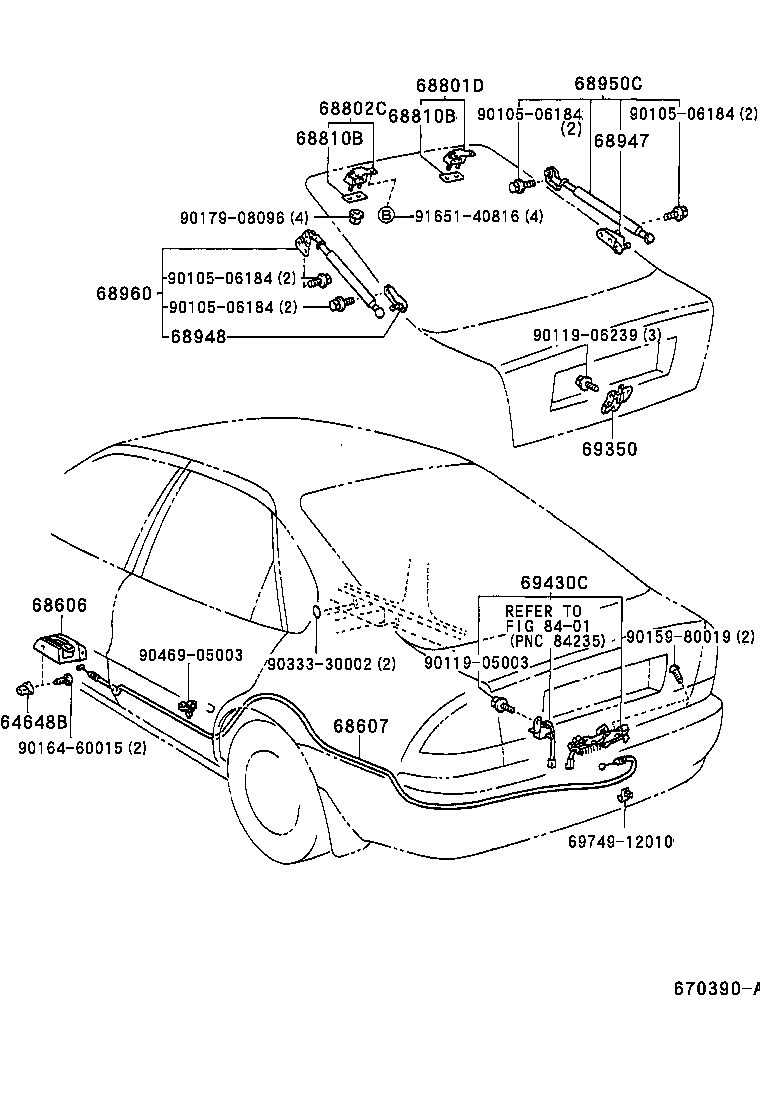

Figure 670389A 670389A 1992-05 → — Figure 670390A 670390A 1992-05 → 1995-05

Part groups

PNCDescription
64648B Grommet, Back Door Lock Opener
68606 Lever Sub-assy, Back Door Lock Open
68607 Cable Sub-assy, Back Door Lock Control
68801D Hinge Sub-assy, Back Door, RH
68802C Hinge Sub-assy, Back Door, LH
68810B Pad, Back Door Hinge
68947 Bracket, Back Door Damper Stay, Lower RH
68948 Bracket, Back Door Damper Stay, Lower LH
68950C Stay Assy, Back Door, RH
68960 Stay Assy, Back Door, LH
69350 Lock Assy, Back Door
69430C Striker Assy, Back Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
