Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Moulding

33 part groups · 3 illustrations

Illustrations

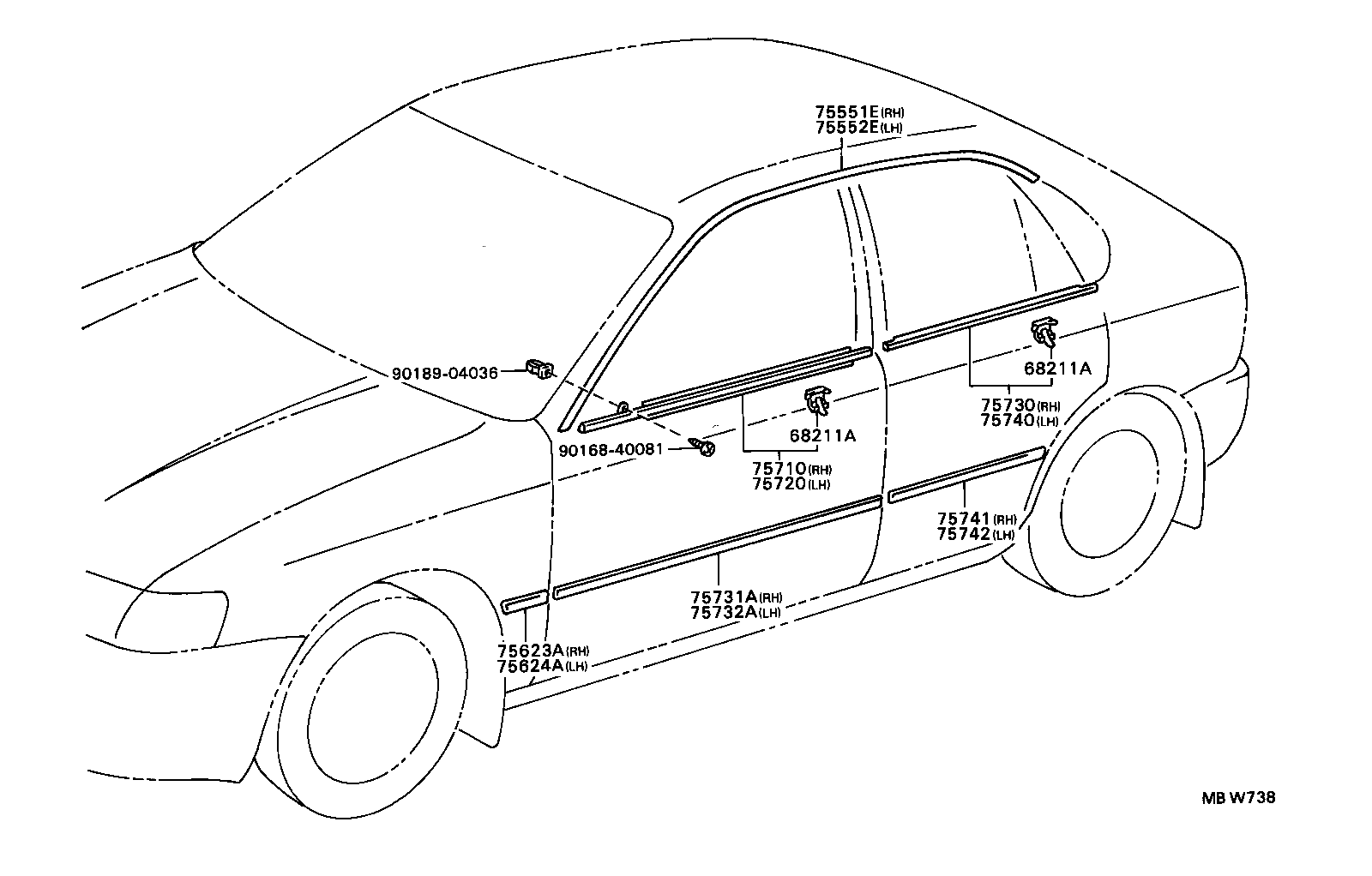

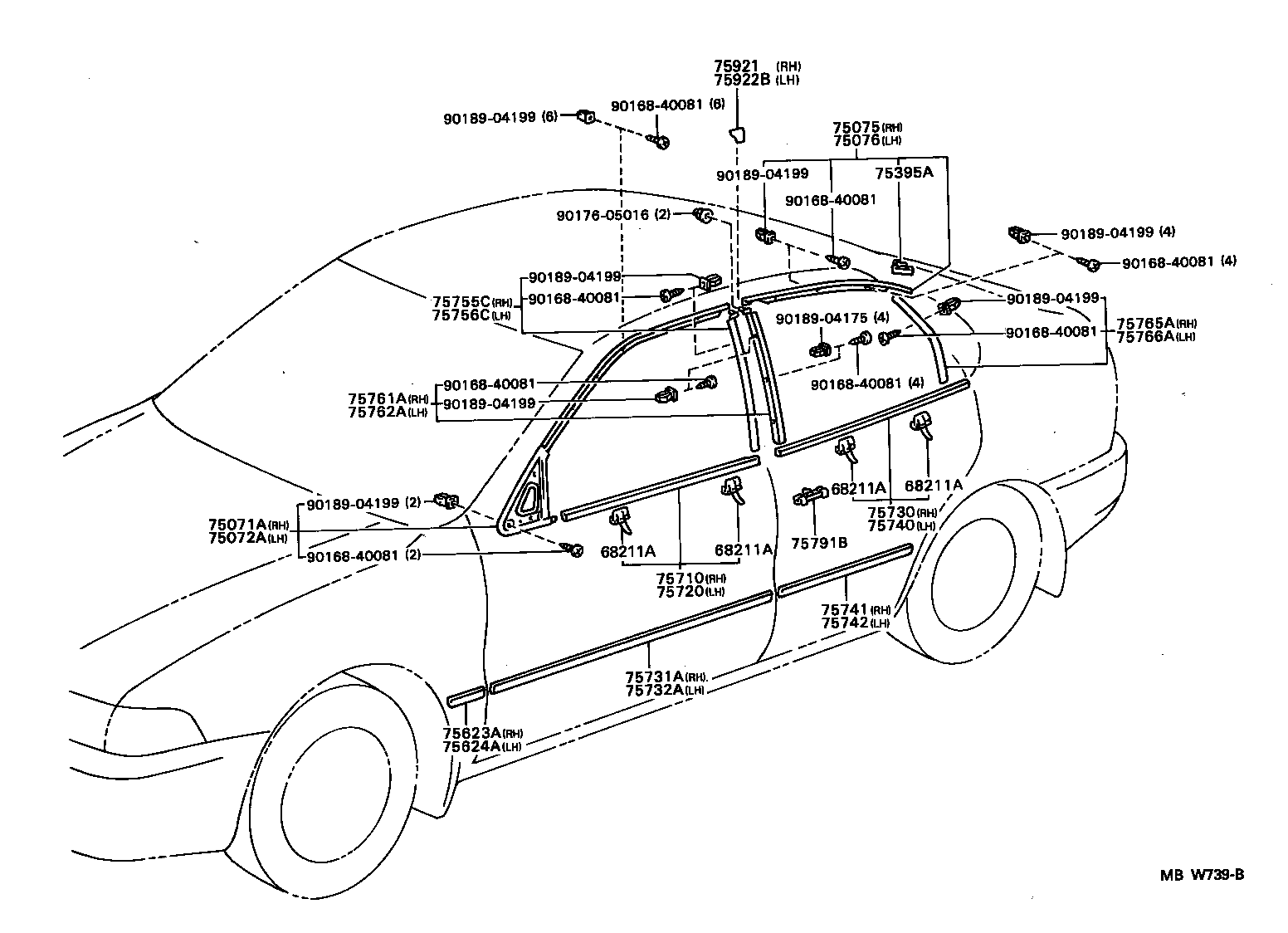

Figure MBW736 MBW736 1992-05 → — Figure MBW738 MBW738 1992-06 → — Figure MBW739B MBW739B 1992-05 → 1995-05

Part groups

PNCDescription
68211A Clip, Door Belt Moulding
75071A Moulding Sub-assy, Front Door, Outside RH
75072A Moulding Sub-assy, Front Door, Outside LH
75075 Moulding Sub-assy, Rear Door, Outside RH
75076 Moulding Sub-assy, Rear Door, Outside LH
75395A Clip, Outside Moulding, NO.1
75551E Moulding, Roof Drip Side Finish, RH
75552E Moulding, Roof Drip Side Finish, LH
75623A Moulding, Front Fender, Outside Rear RH
75624A Moulding, Front Fender, Outside Rear LH
75651 Moulding, Quarter, Outside RH
75652 Moulding, Quarter, Outside LH
75671 Moulding, Quarter Belt, RH
75672 Moulding, Quarter Belt, LH
75693B Retainer, Quarter Belt Rear Moulding, NO.1
75694 Retainer, Quarter Belt Rear Moulding, NO.2
75710 Moulding Assy, Front Door Belt, RH
75720 Moulding Assy, Front Door Belt, LH
75730 Moulding Assy, Rear Door Belt, RH
75731A Moulding, Front Door, Outside RH
75732A Moulding, Front Door, Outside LH
75740 Moulding Assy, Rear Door Belt, LH
75741 Moulding, Rear Door, Outside RH
75742 Moulding, Rear Door, Outside LH
75755C Moulding, Front Door Window Frame, Rear RH
75756C Moulding, Front Door Window Frame, Rear LH
75761A Moulding, Rear Door Window Frame, Front RH
75762A Moulding, Rear Door Window Frame, Front LH
75765A Moulding, Rear Door Window Frame, Rear RH
75766A Moulding, Rear Door Window Frame, Rear LH
75791B Clip, Belt Moulding Side
75921 Tape, Black Out, NO.1 RH
75922B Tape, Black Out, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
