Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Center Stop Lamp

3 part groups · 2 illustrations

Illustrations

Figure MEZ396B

MEZ396B 1993-07 → —

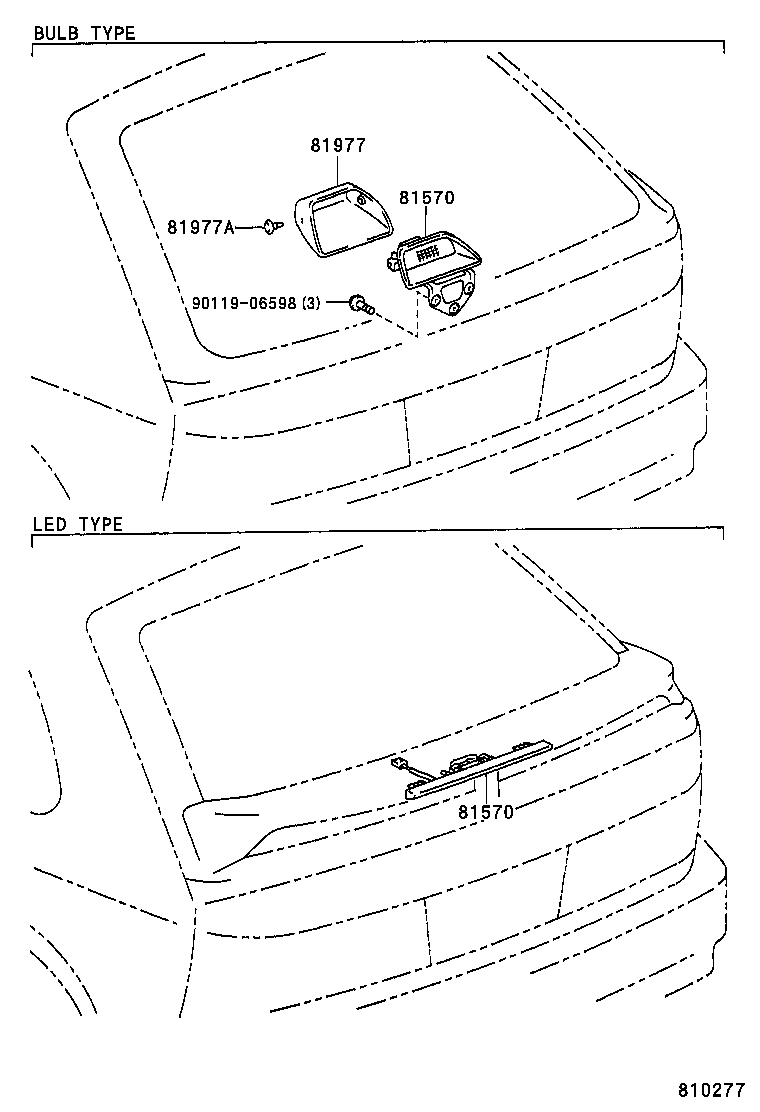

810277 1995-05 → —

Part groups

PNC	Description
81570	Lamp Assy, Center Stop
81977	Cover, Center Stop Lamp
81977A	Clip (FOR CENTER STOP LAMP)

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
