Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02
Meter
15 part groups · 6 illustrations
Part groups

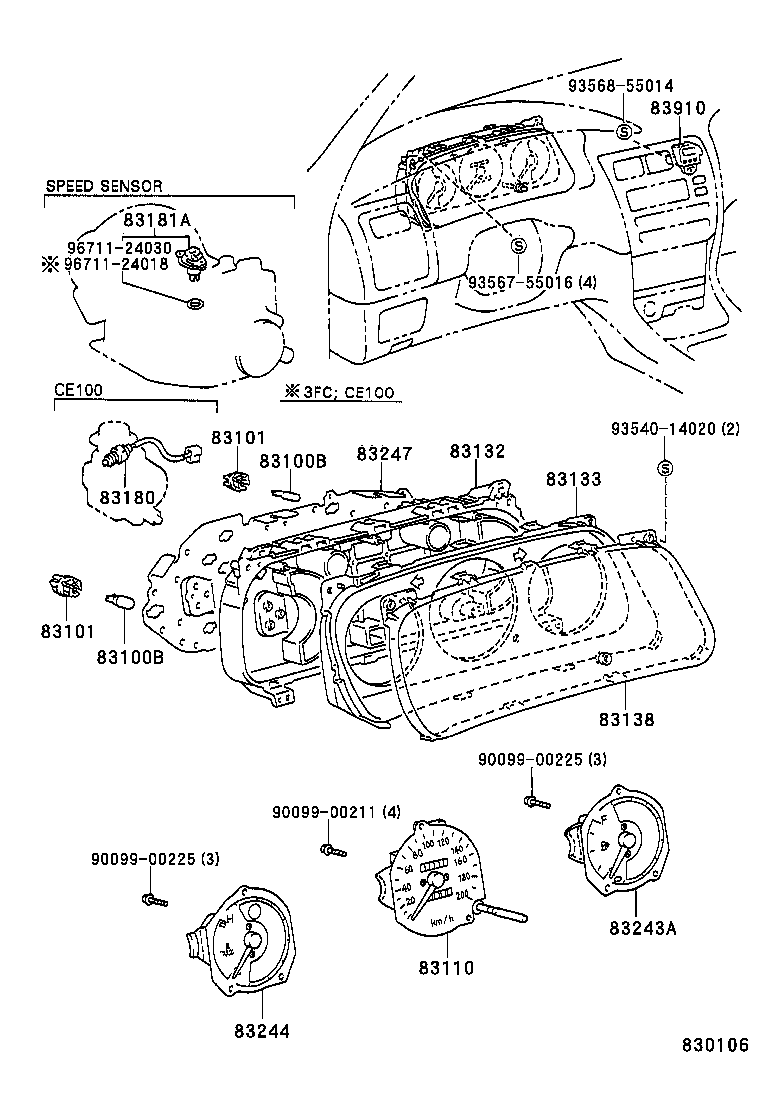

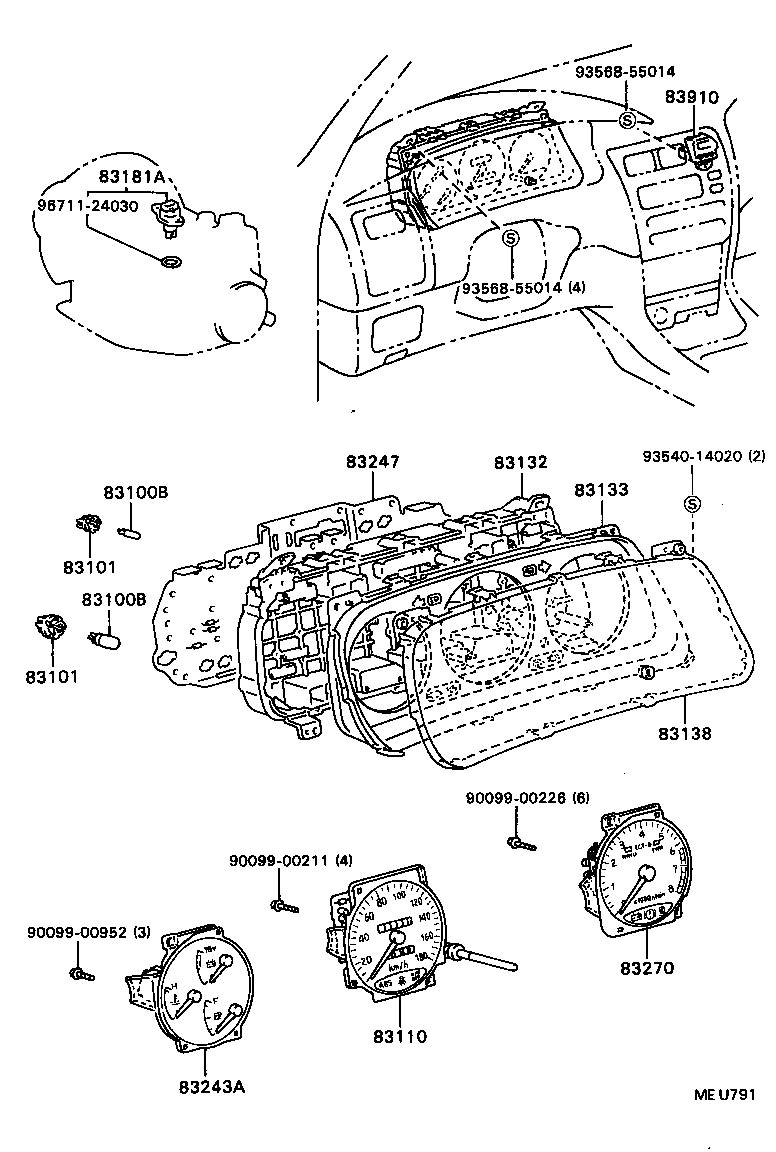

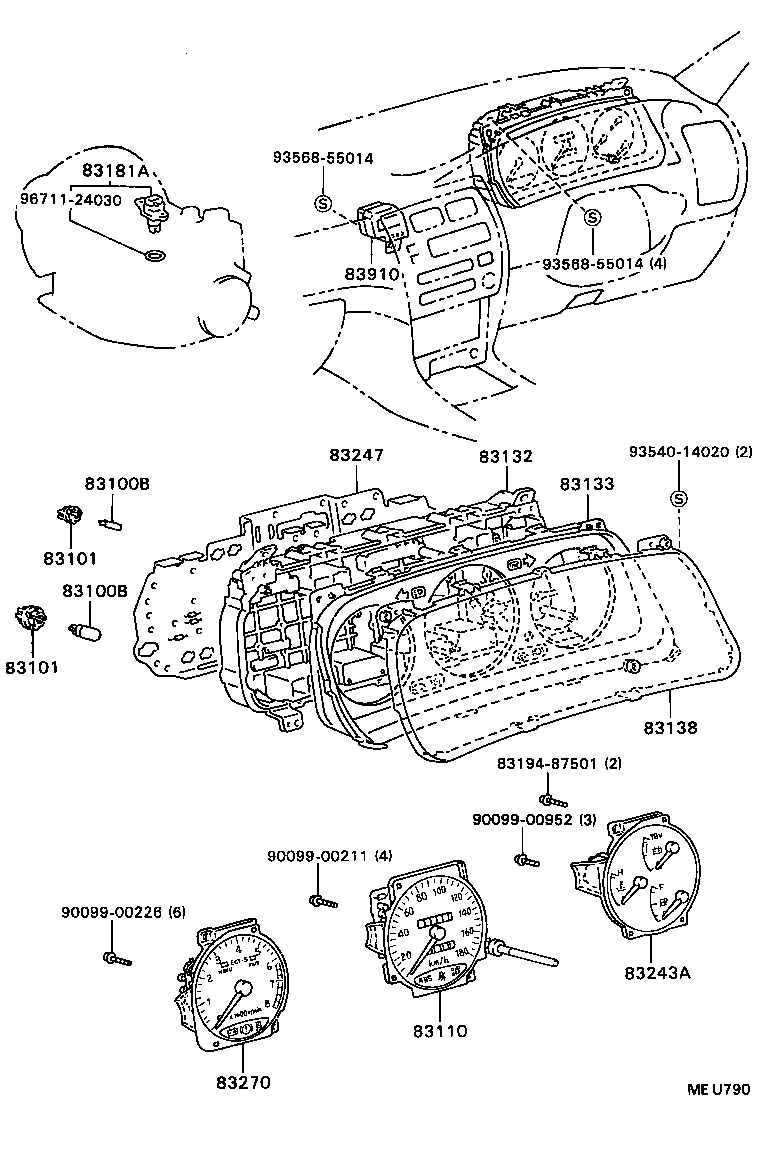

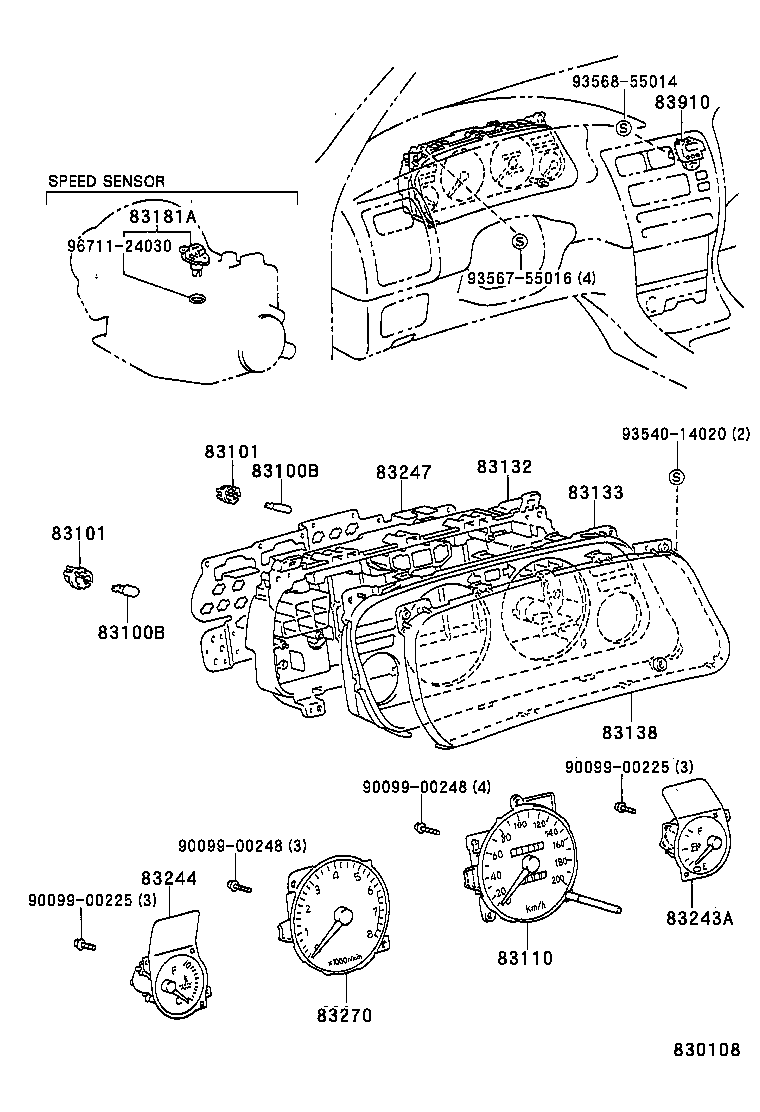

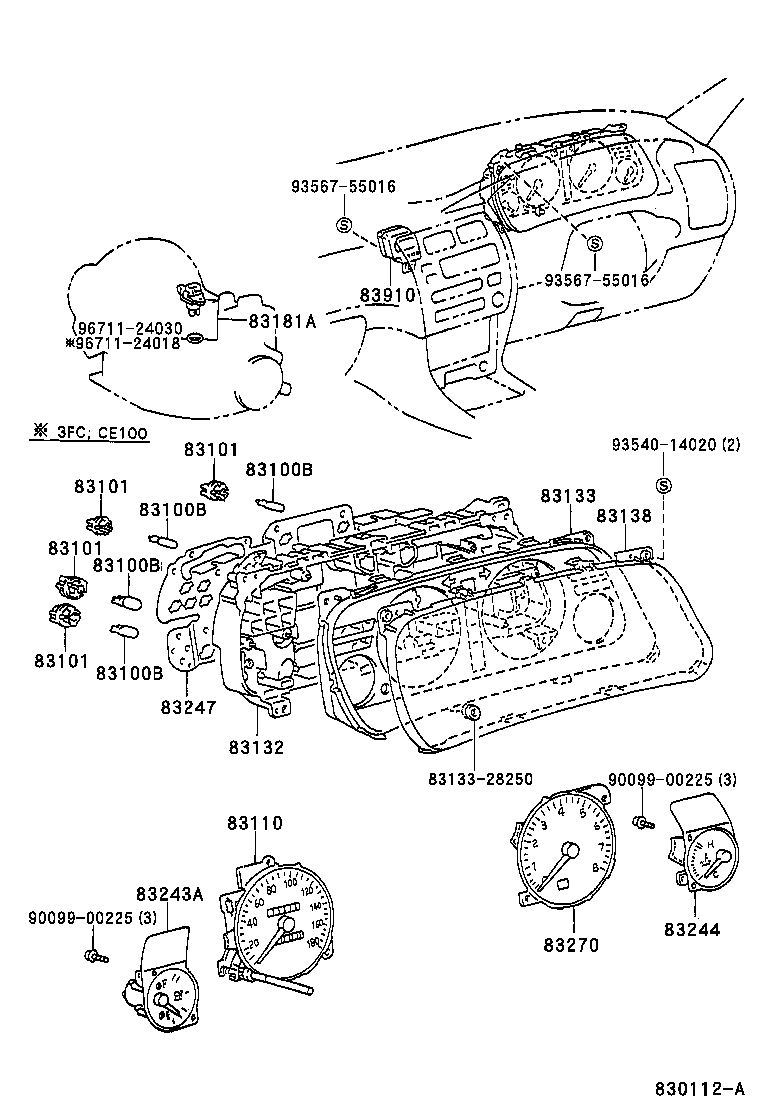

| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83110 | Speedometer Assy |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83134 | Cover, Combination Meter, NO.1 |
| 83138 | Glass, Speedometer |
| 83145 | Lens, Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83181A | Sensor, Speedometer |
| 83243A | Gauge Sub-assy, Fuel Receiver |
| 83244 | Gauge Sub-assy, Water Temperature Receiver |
| 83247 | Plate, Meter Circuit |
| 83270 | Tachometer Assy, Engine |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
