Toyota Corolla HB/LB
1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe
Discontinued model
Data version 1998-02
Anti-theft Device

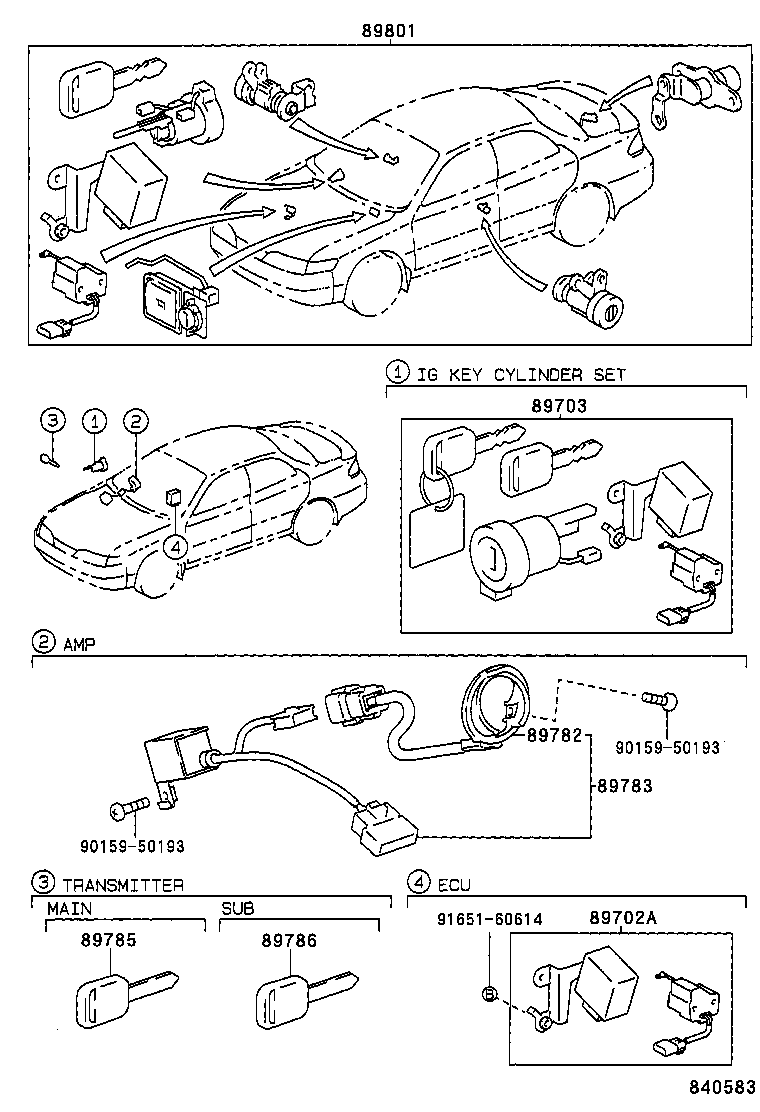

9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 89702A | Computer Set, Transponder W/Valve Control |
| 89703 | Cylinder & Key Set, Ignition W/Transponder |
| 89709 | Computer Set, Transponder Key |
| 89780 | Computer Assy, Transponder Key |
| 89782 | Coil, Transponder Key |
| 89783 | Amplifier, Transponder Key |
| 89785 | Transmitter, Transponder Key Master |
| 89786 | Transmitter, Transponder Key Sub |
| 89801 | Computer Set, Transponder Key Diesel |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
