Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

17 part groups · 2 illustrations

Illustrations

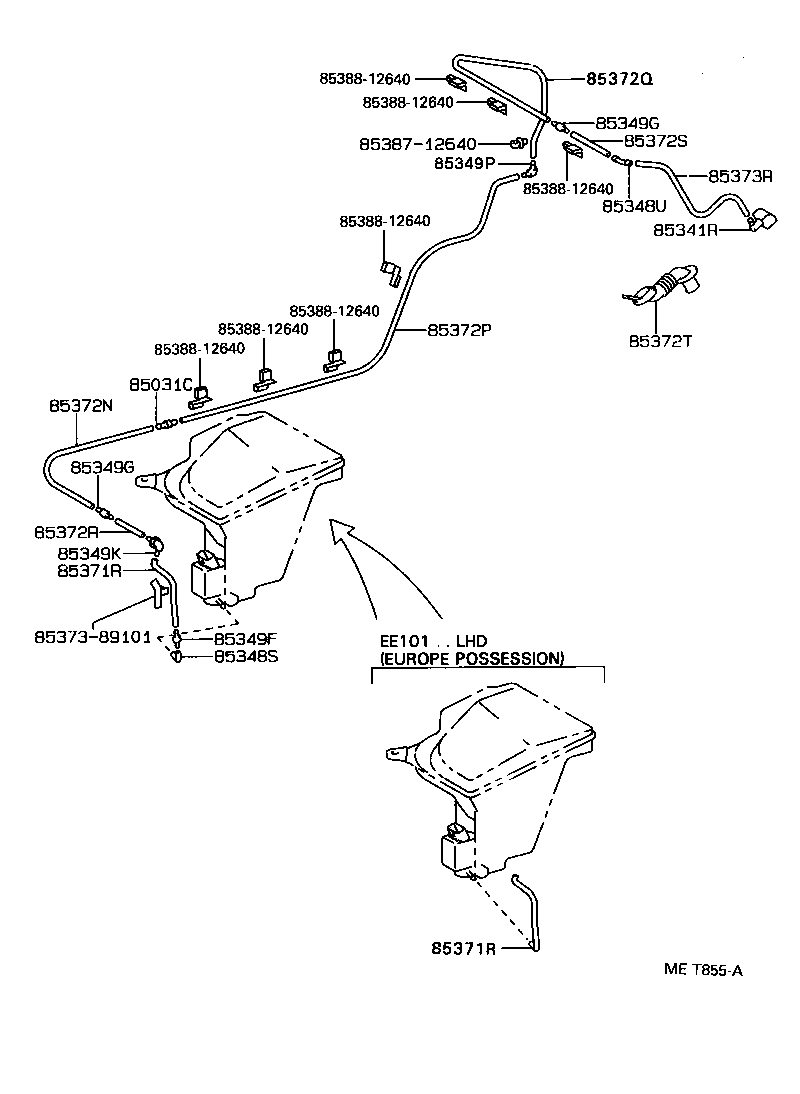

Figure MET854 MET854 1992-05 → — Figure MET855A MET855A 1992-05 → —

Part groups

PNCDescription
85031C Valve Sub-assy, Washer
85341R Nozzle Assy, Washer
85348S Joint, Rear Washer Elbow, NO.1
85348U Joint, Rear Washer Hose, NO.3
85349F Joint, Rear Washer Hose, NO.1
85349G Joint, Rear Washer Hose, NO.2
85349H Joint, Rear Washer Hose, NO.3
85349K Joint, Rear Washer Elbow, NO.2
85349P Joint, Rear Washer Elbow, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85372P Hose, Rear Washer (FROM JOINT TO JOINT), NO.2
85372Q Hose, Rear Washer (FROM JOINT TO JOINT), NO.3
85372R Hose, Rear Washer (FROM JOINT TO JOINT OR NOZZLE)
85372S Hose, Rear Washer (FROM JOINT TO JOINT), NO.4
85372T Grommet, Washer
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
