Toyota Corolla HB/LB

1992-05 → 1997-04 · chassis AE10#,CE100,EE10# · catalogue 153530 · Europe

Discontinued model Data version 1998-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

36 part groups · 16 illustrations

Illustrations

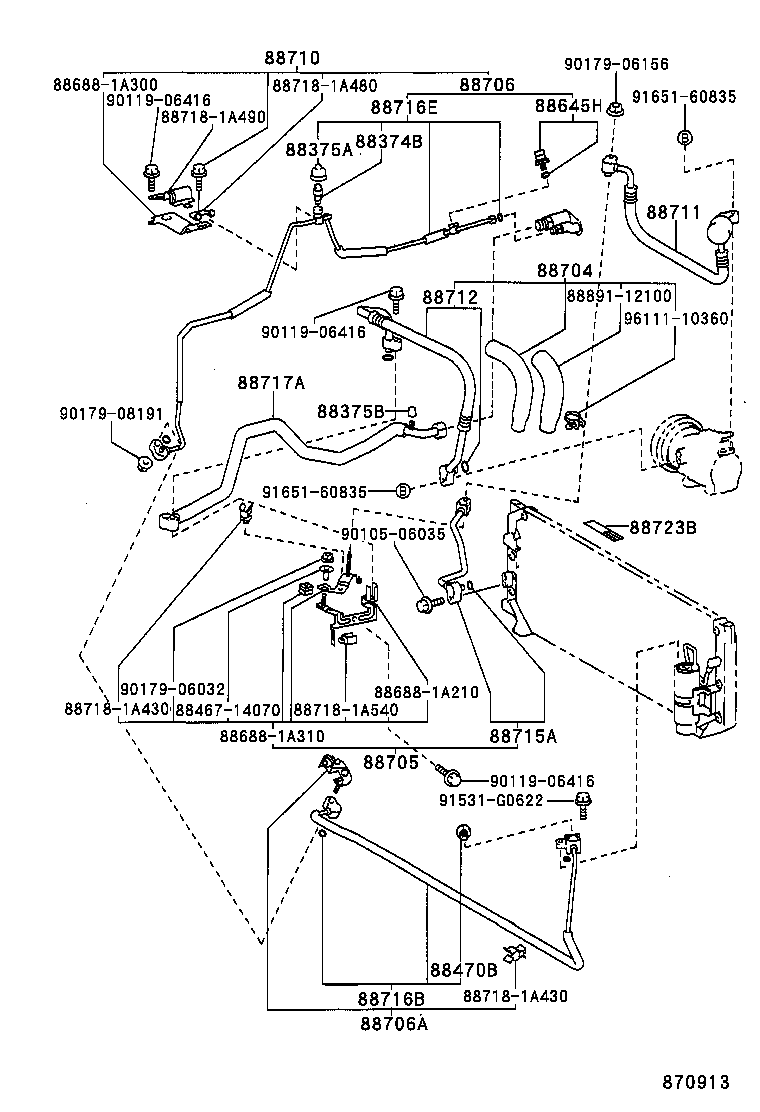

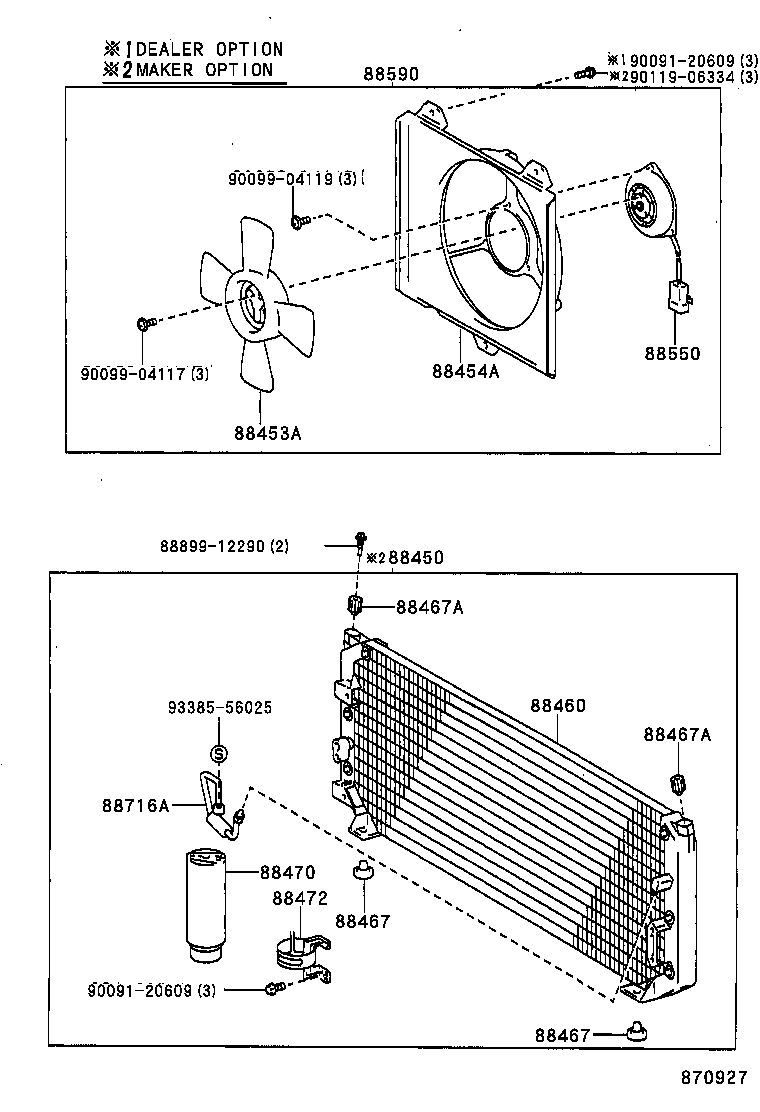

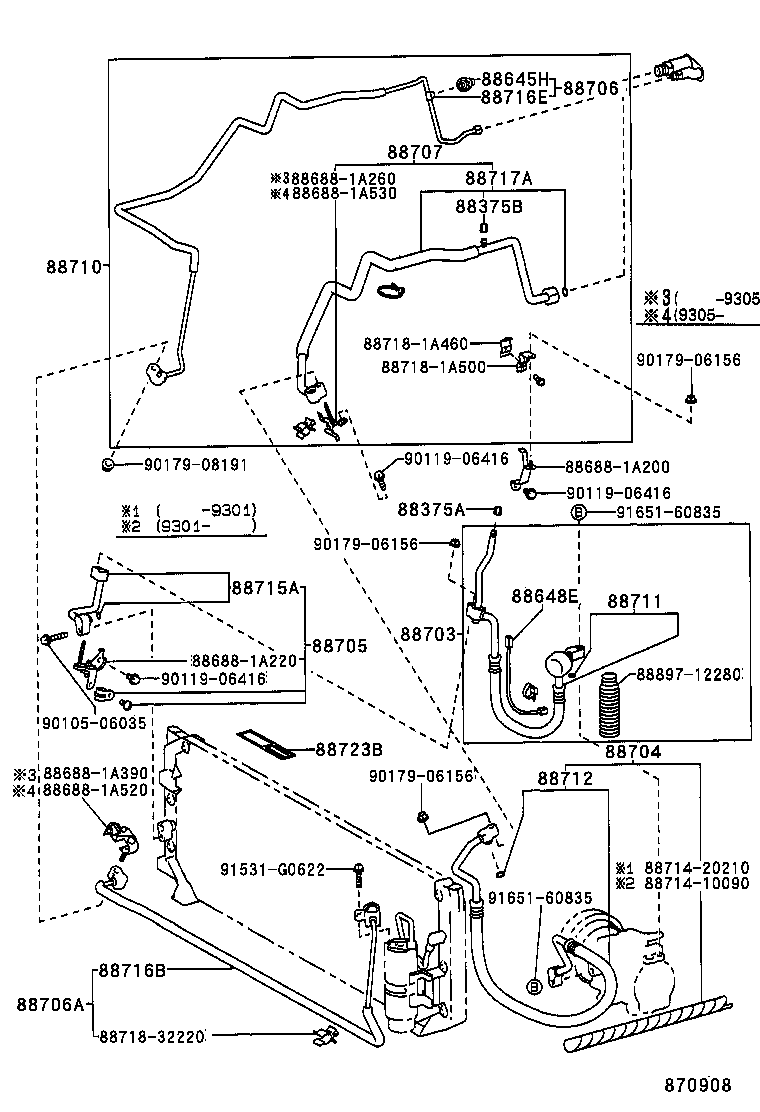

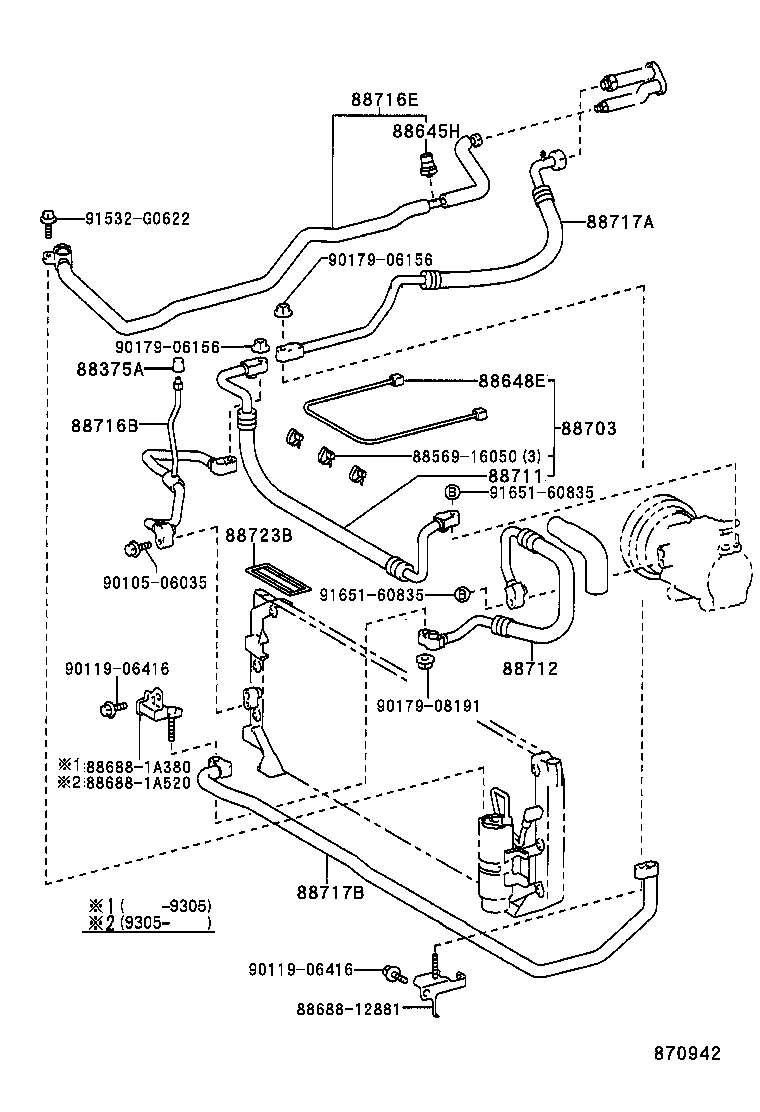

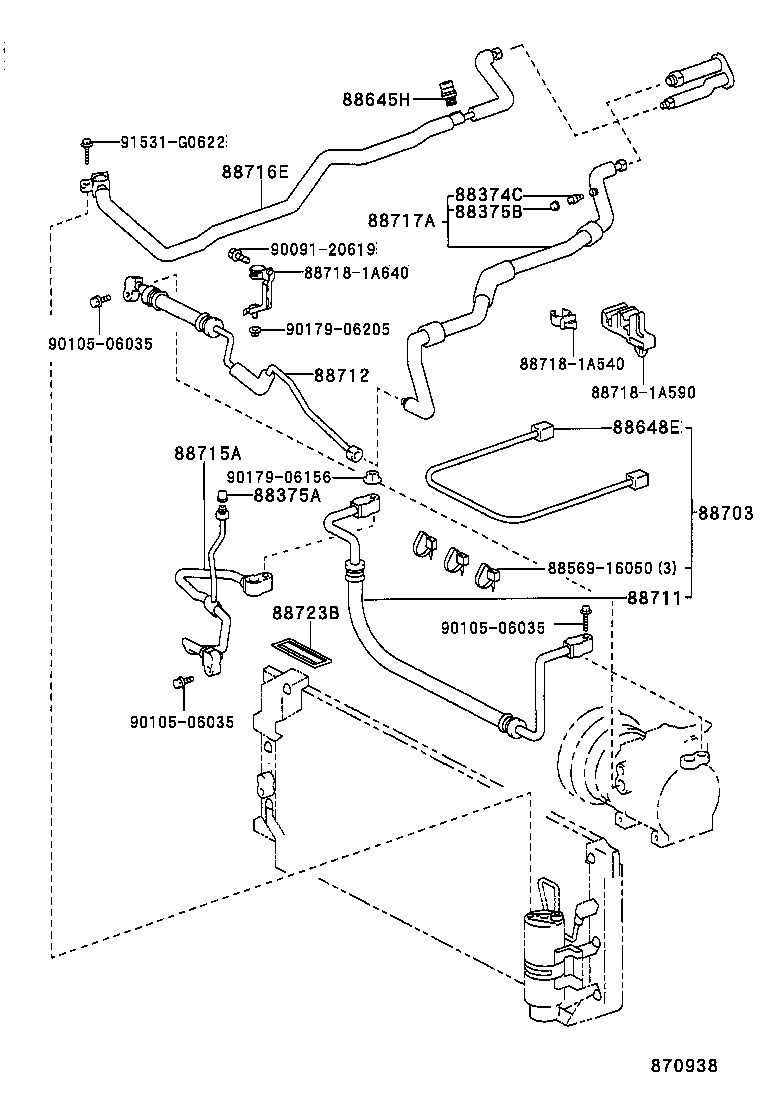

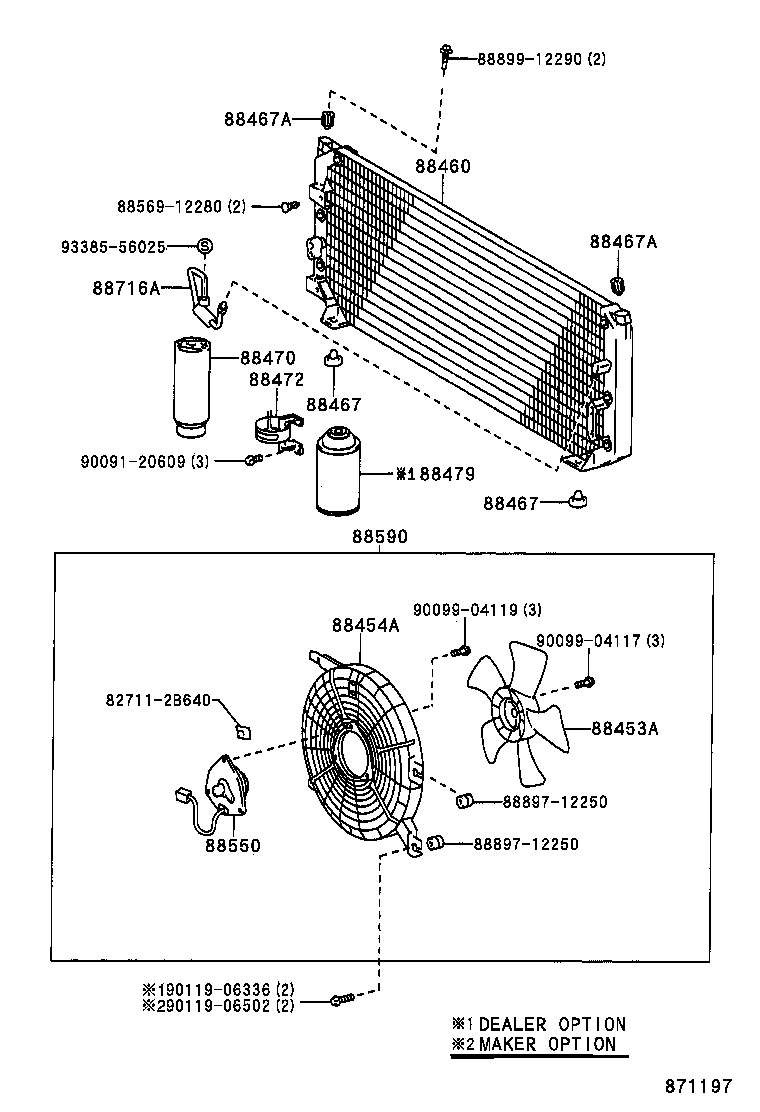

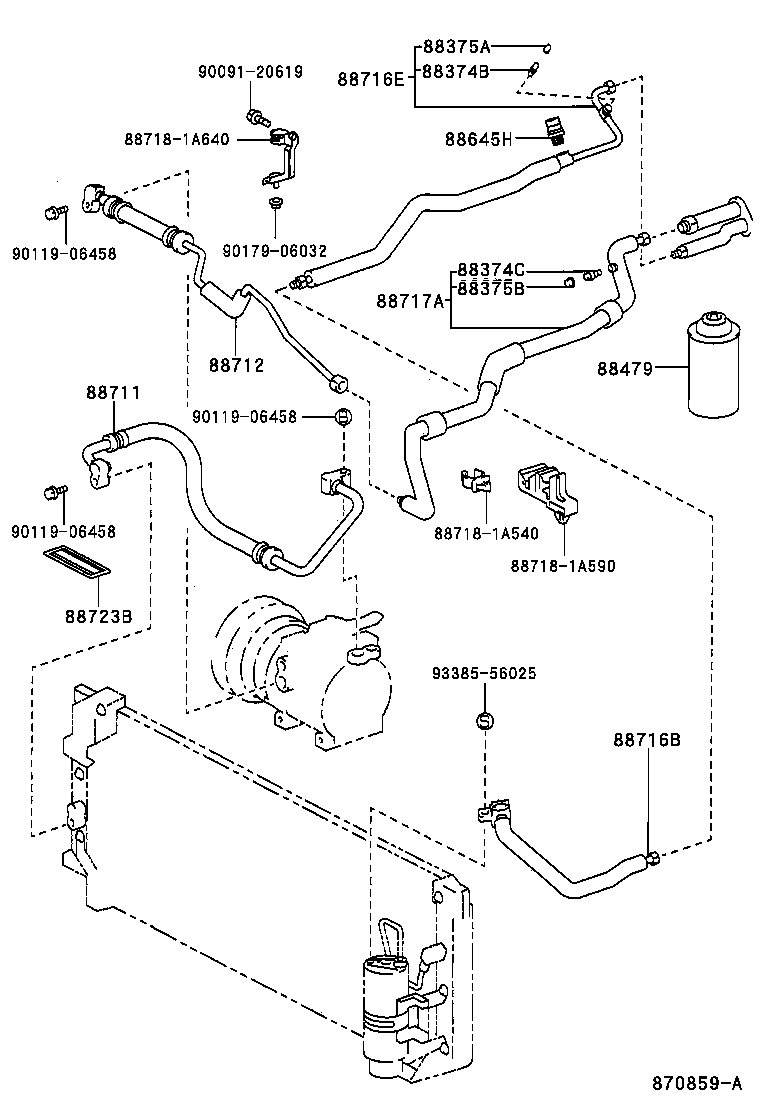

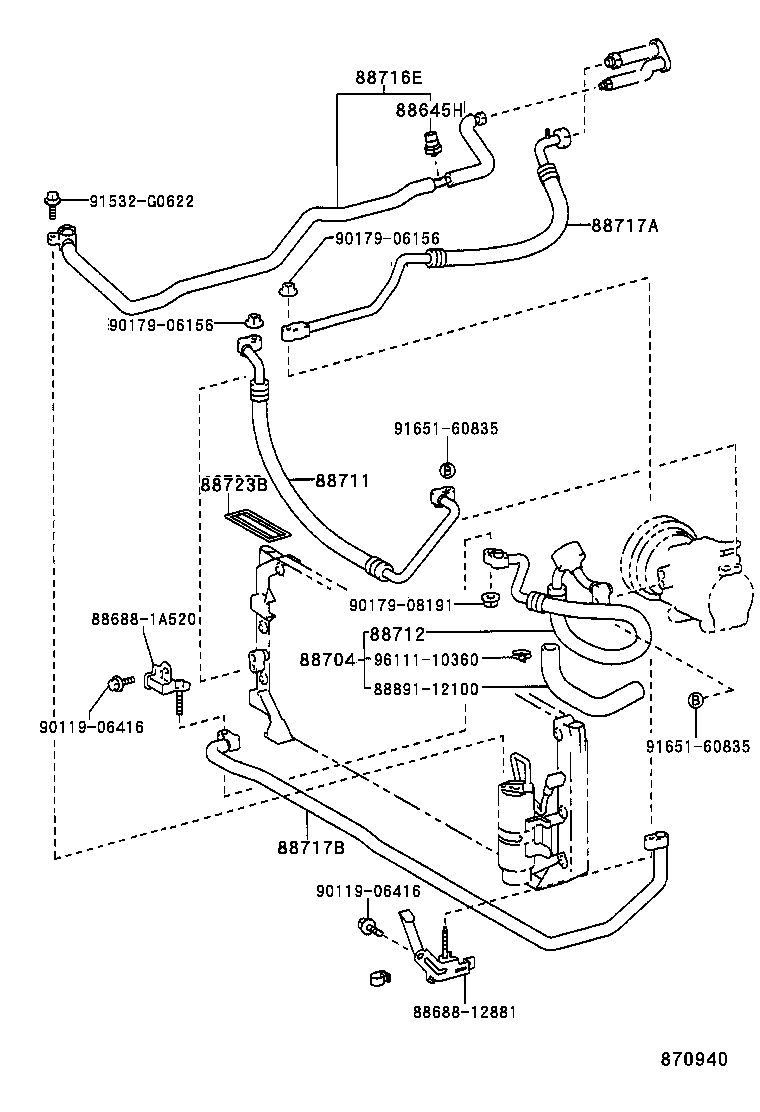

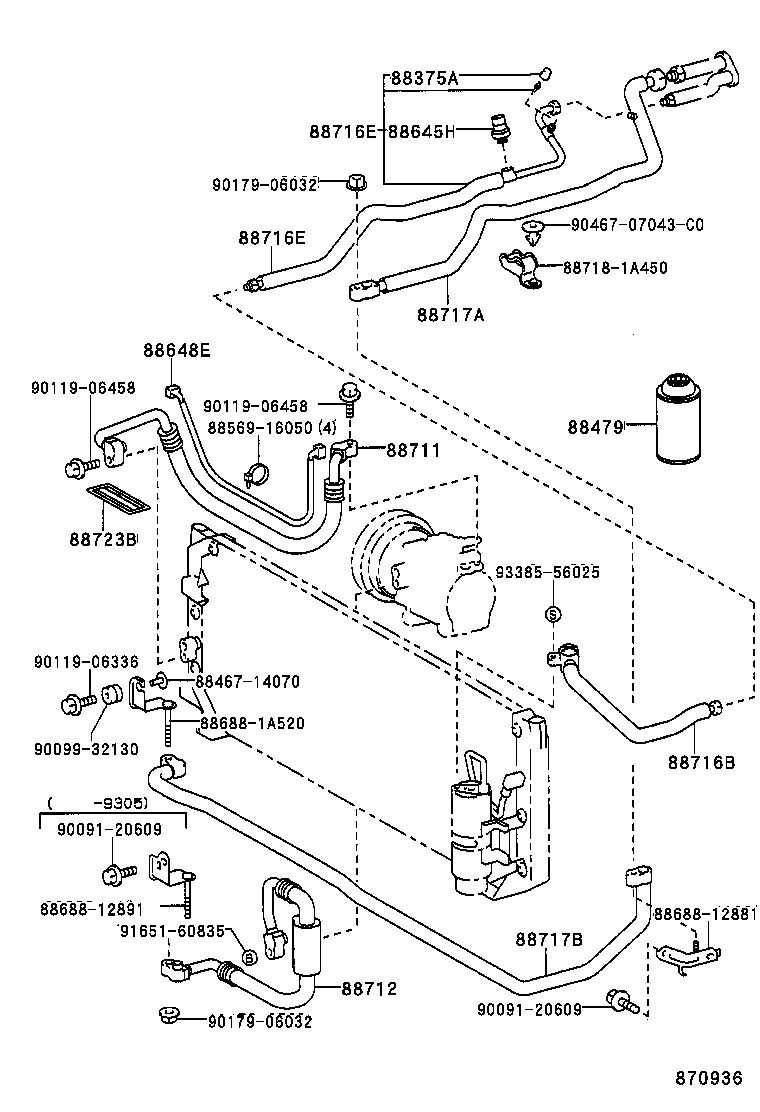

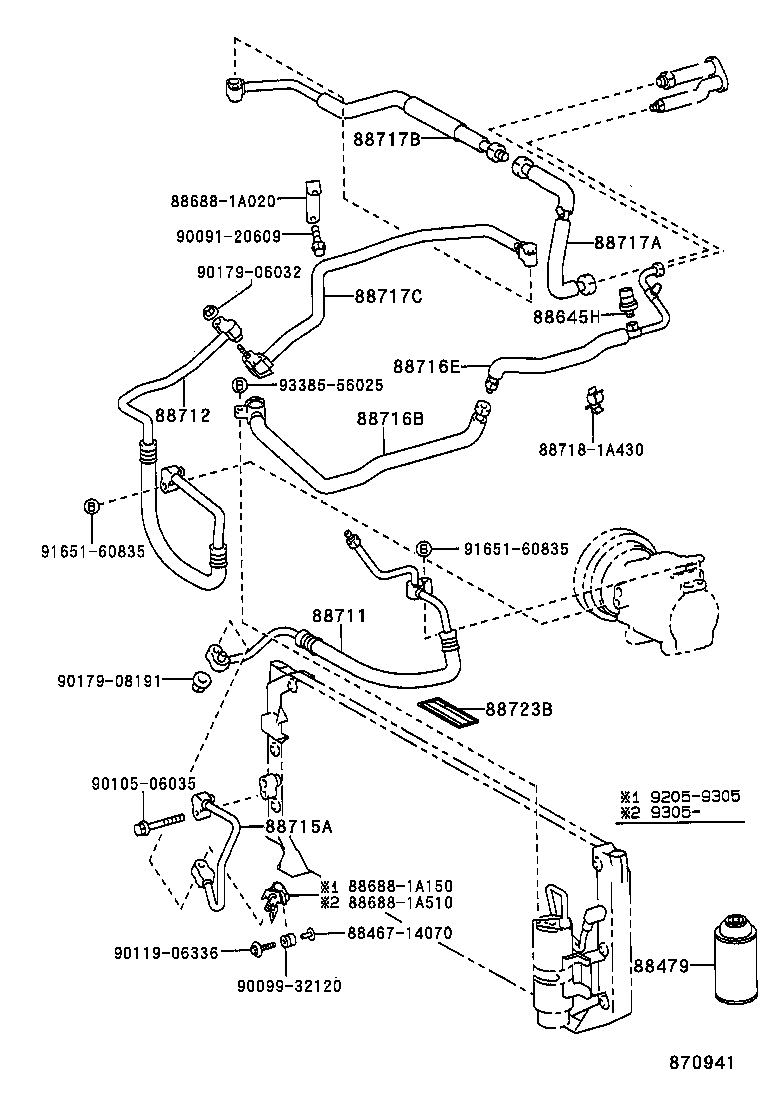

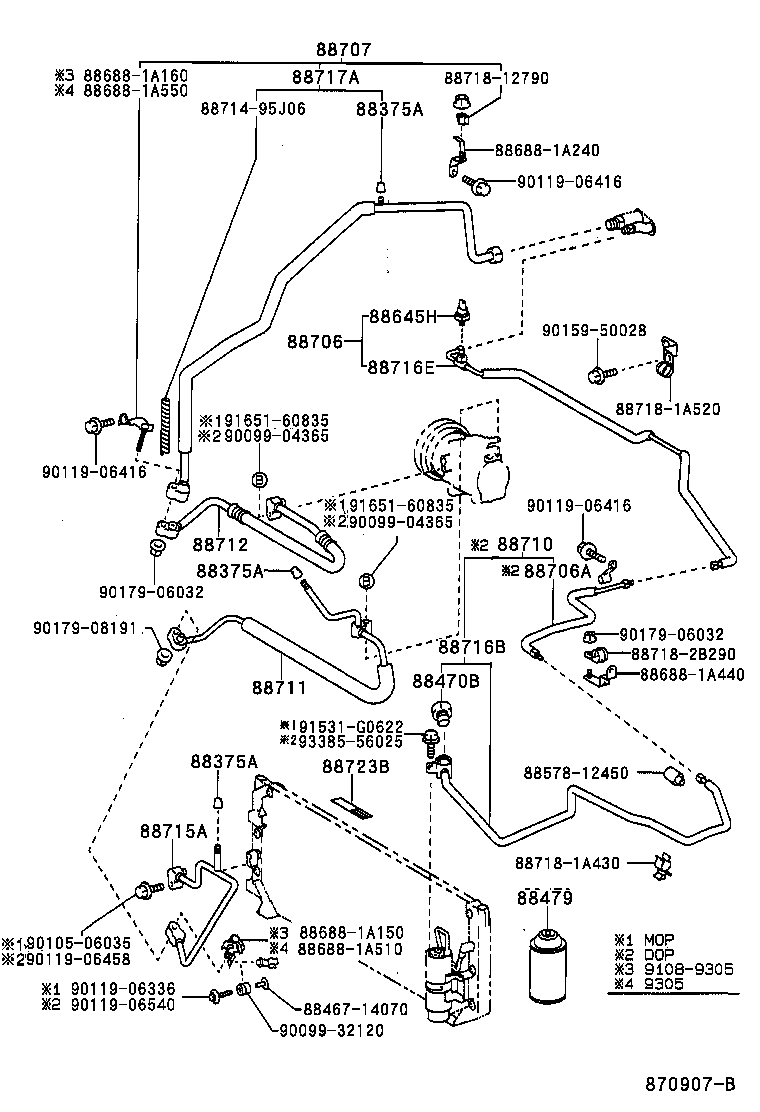

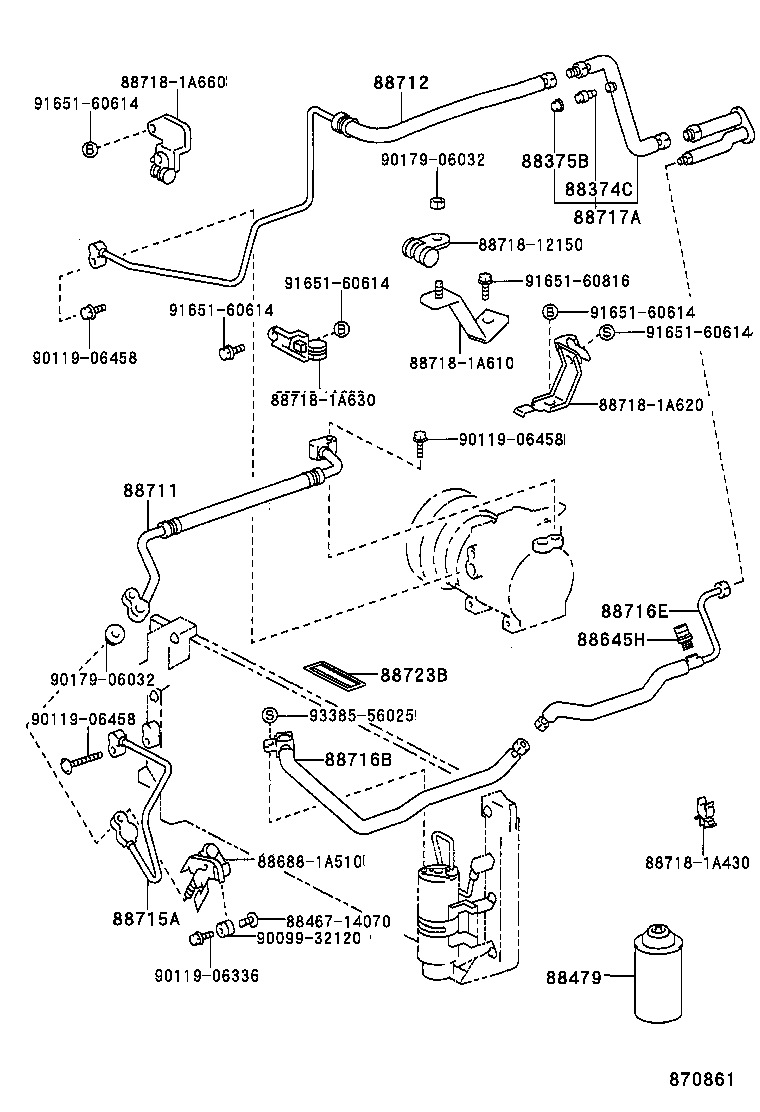

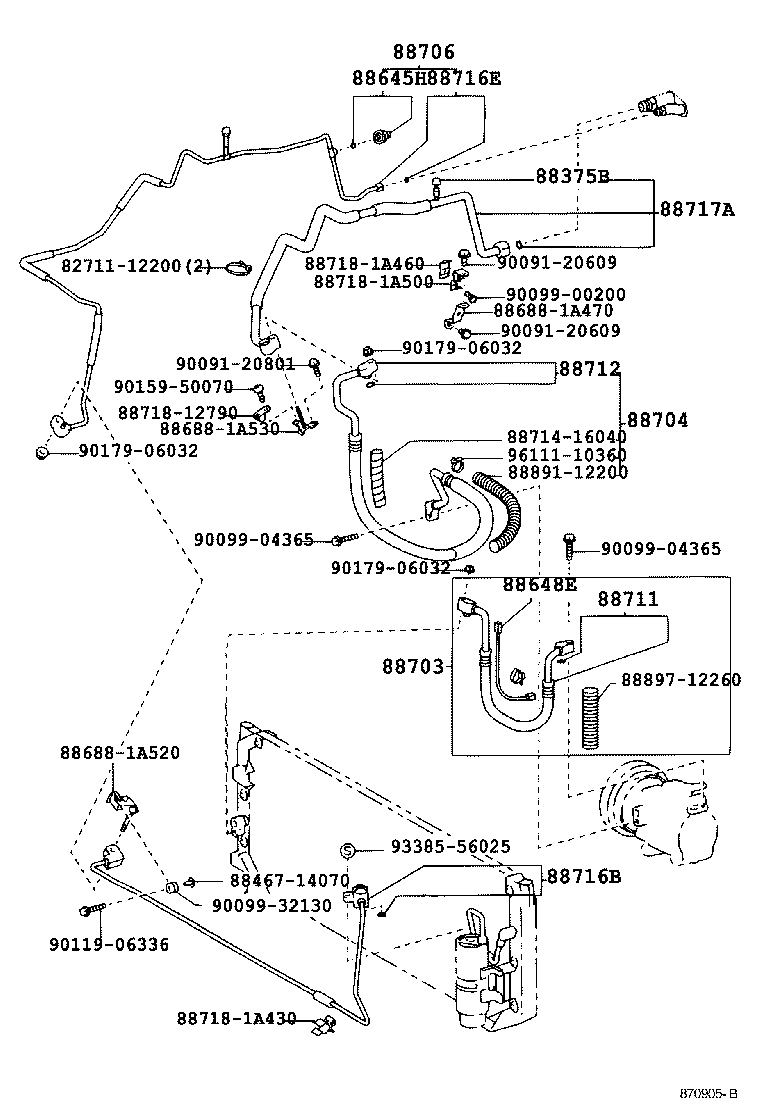

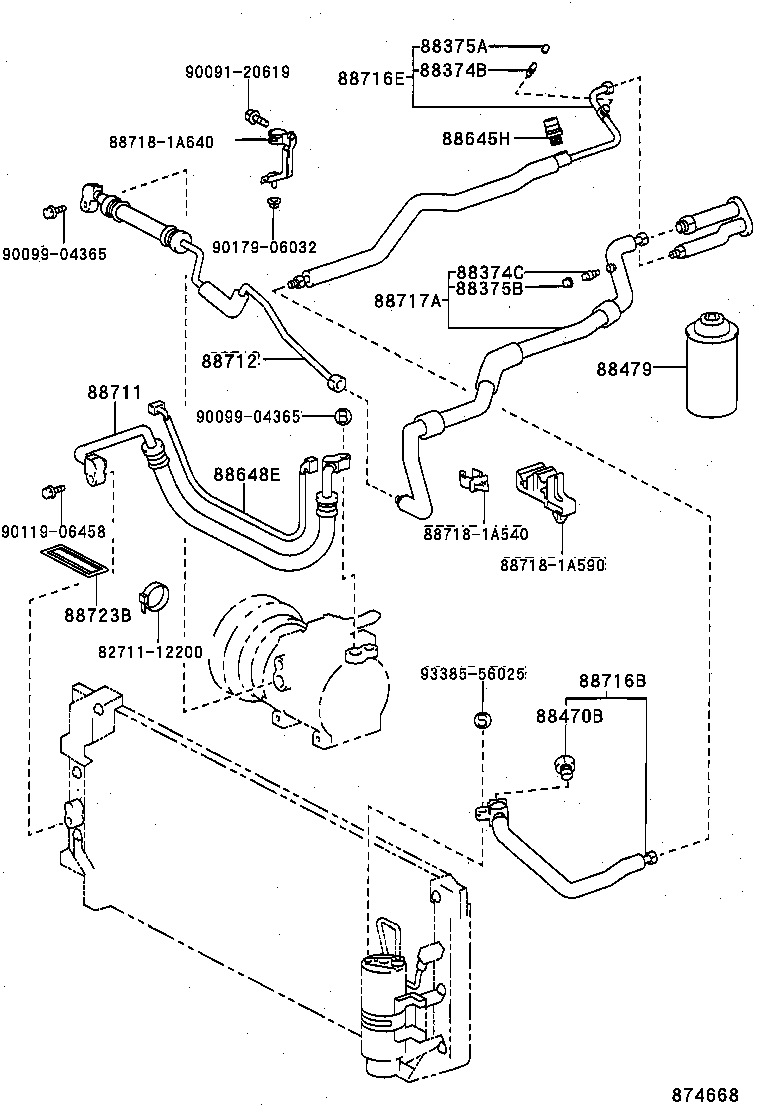

Figure 871196C 871196C 1992-05 → 1993-12 Figure 871197 871197 1993-12 → — Figure 870927 870927 1992-05 → — Figure 870940 870940 1992-05 → 1995-05 Figure 870859A 870859A 1995-05 → — Figure 870913 870913 1992-05 → — Figure 870941 870941 1992-05 → 1995-05 Figure 870861 870861 1995-05 → — Figure 870907B 870907B 1992-05 → — Figure 870936 870936 1992-05 → 1995-05 Figure 874668 874668 1995-05 → — Figure 870942 870942 1992-05 → 1995-05 Figure 870938 870938 1995-05 → — Figure 870905B 870905B 1992-05 → — Figure 870908 870908 1992-05 → — Figure 870845 870845 1992-05 → —

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375A Cap, Service Valve (FOR COOLER PIPE)
88375B Cap, Service Valve, NO.1
88450 Condenser Assy, W/Receiver
88453A Fan, Cooling
88454A Shroud, Fan
88460 Condenser Assy, Cooler
88467 Cushion, Cooler Condenser, NO.1
88467A Cushion, Cooler Condenser, NO.2
88470 Receiver & Dryer Assy, Cooler
88470B Bolt, Fuse
88472 Bracket, Receiver Tank, NO.1
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88550 Motor Assy, Blower (FOR CONDENSER)
88590 Blower Assy, W/Shroud
88645H Switch, Pressure NO.1
88648E Wiring, Cooler
88703 Hose Sub-assy, Discharge
88704 Hose Sub-assy, Suction
88705 Pipe Sub-assy, Discharge
88706 Pipe Sub-assy, Liquid
88706A Tube Sub-assy, Liquid, A
88707 Pipe Sub-assy, Suction
88710 Tube Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
88723B Label, Cooler Service Caution
88892P Net, Fan Shroud
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
