Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Engine Overhaul Gasket Kit

2 part groups · 17 illustrations

Illustrations

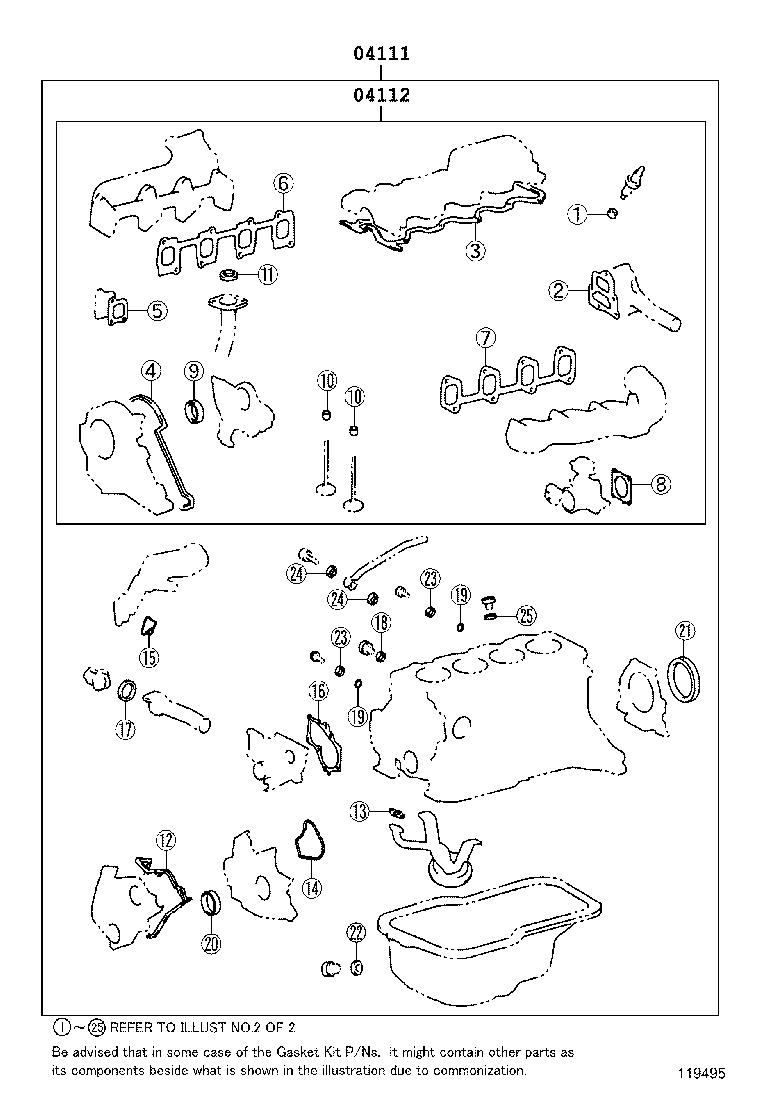

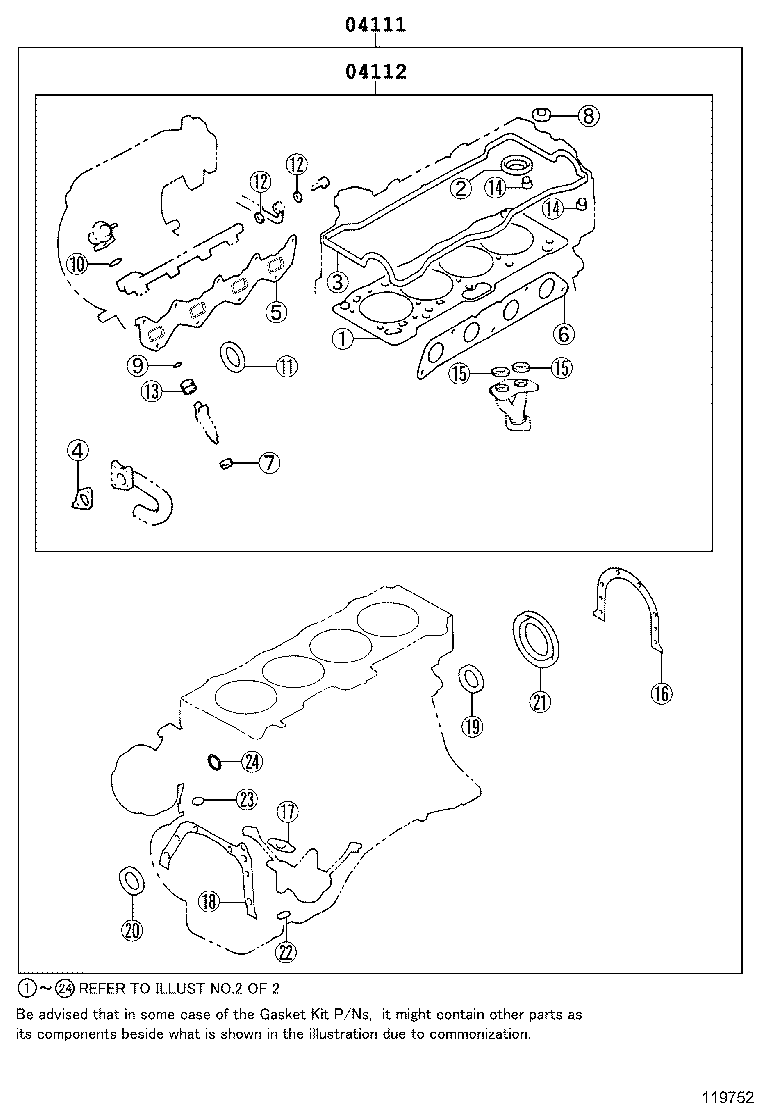

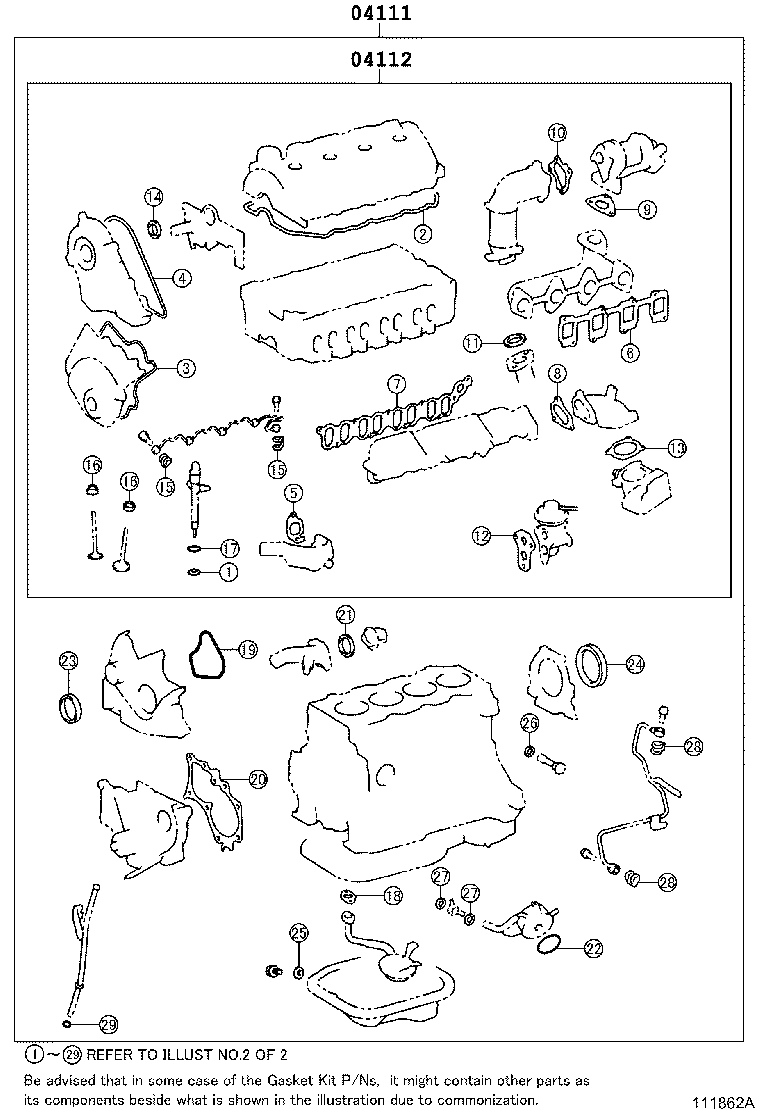

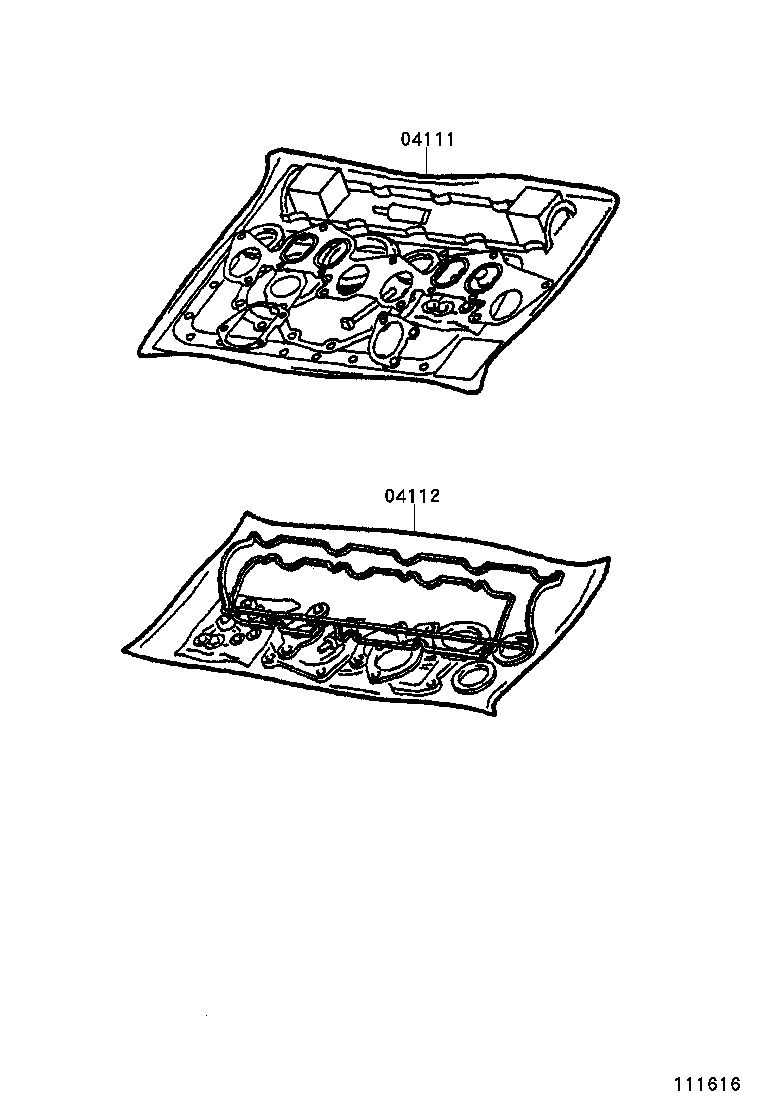

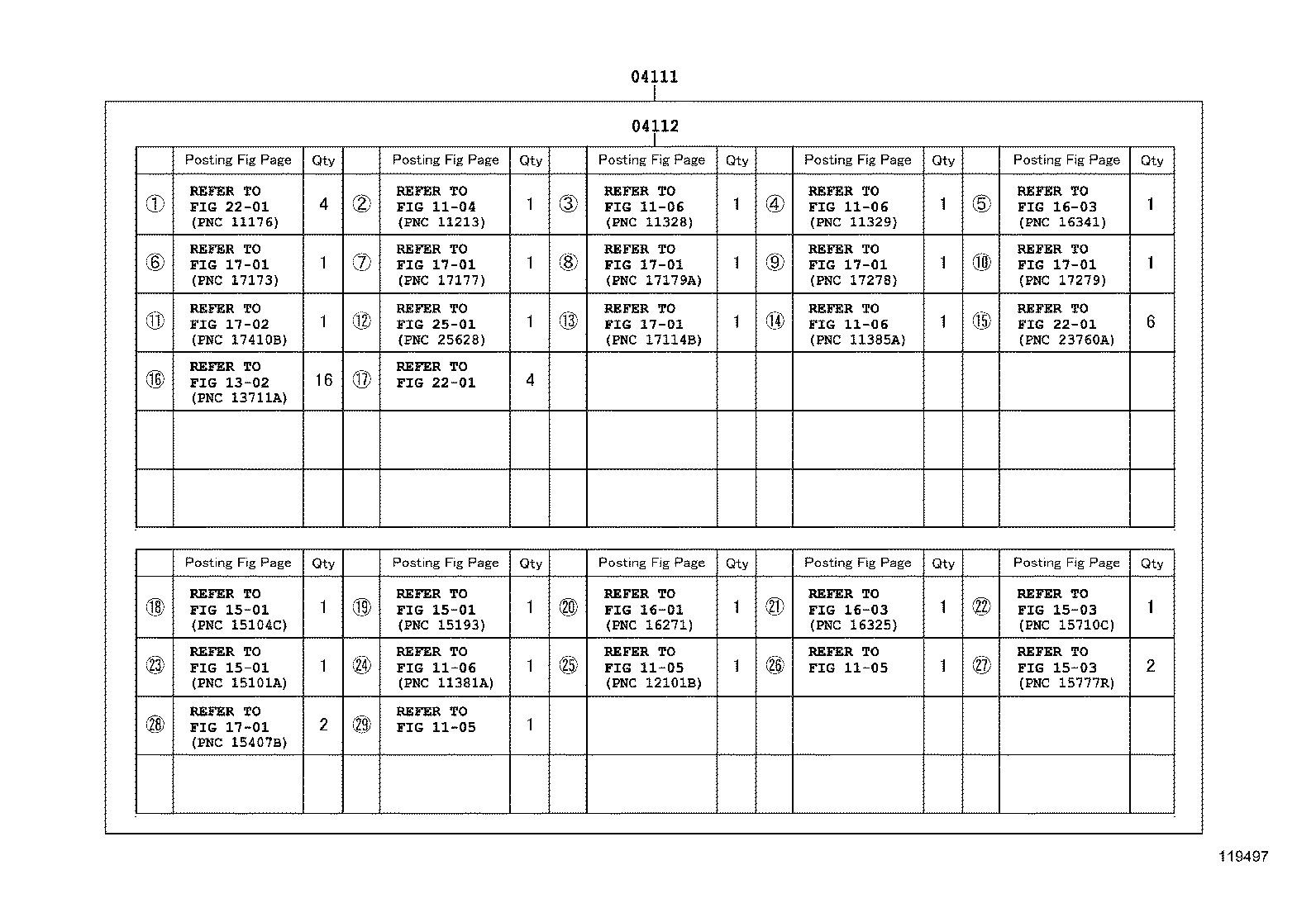

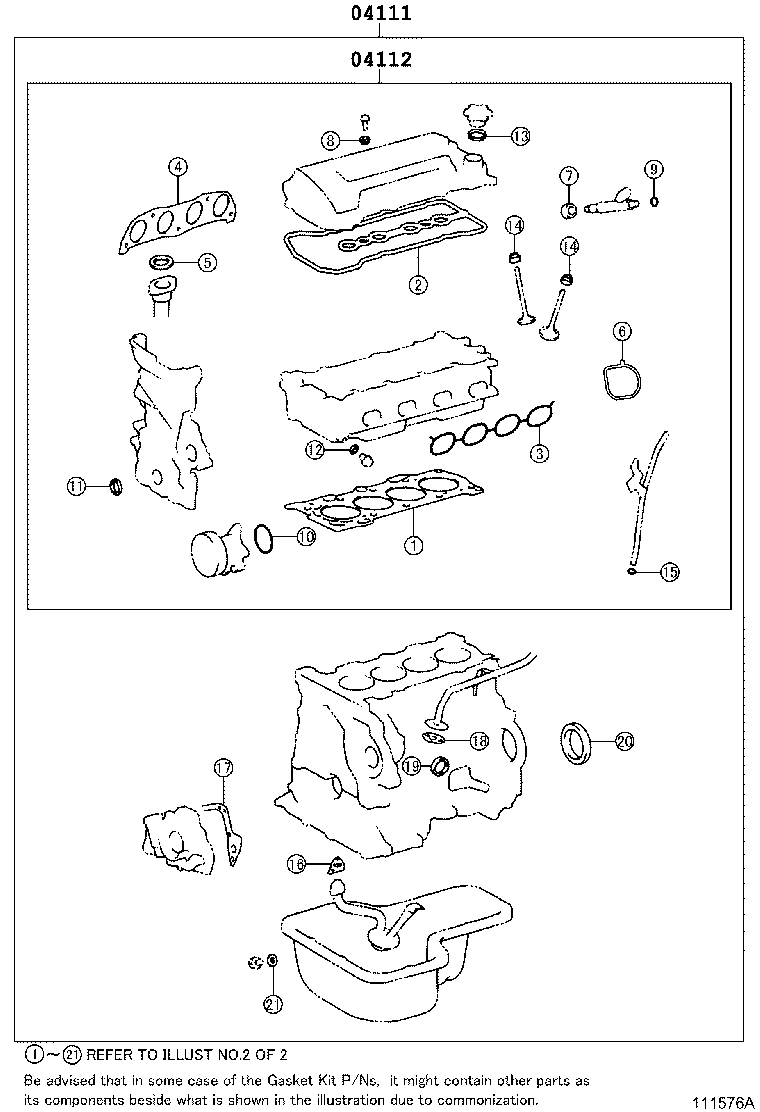

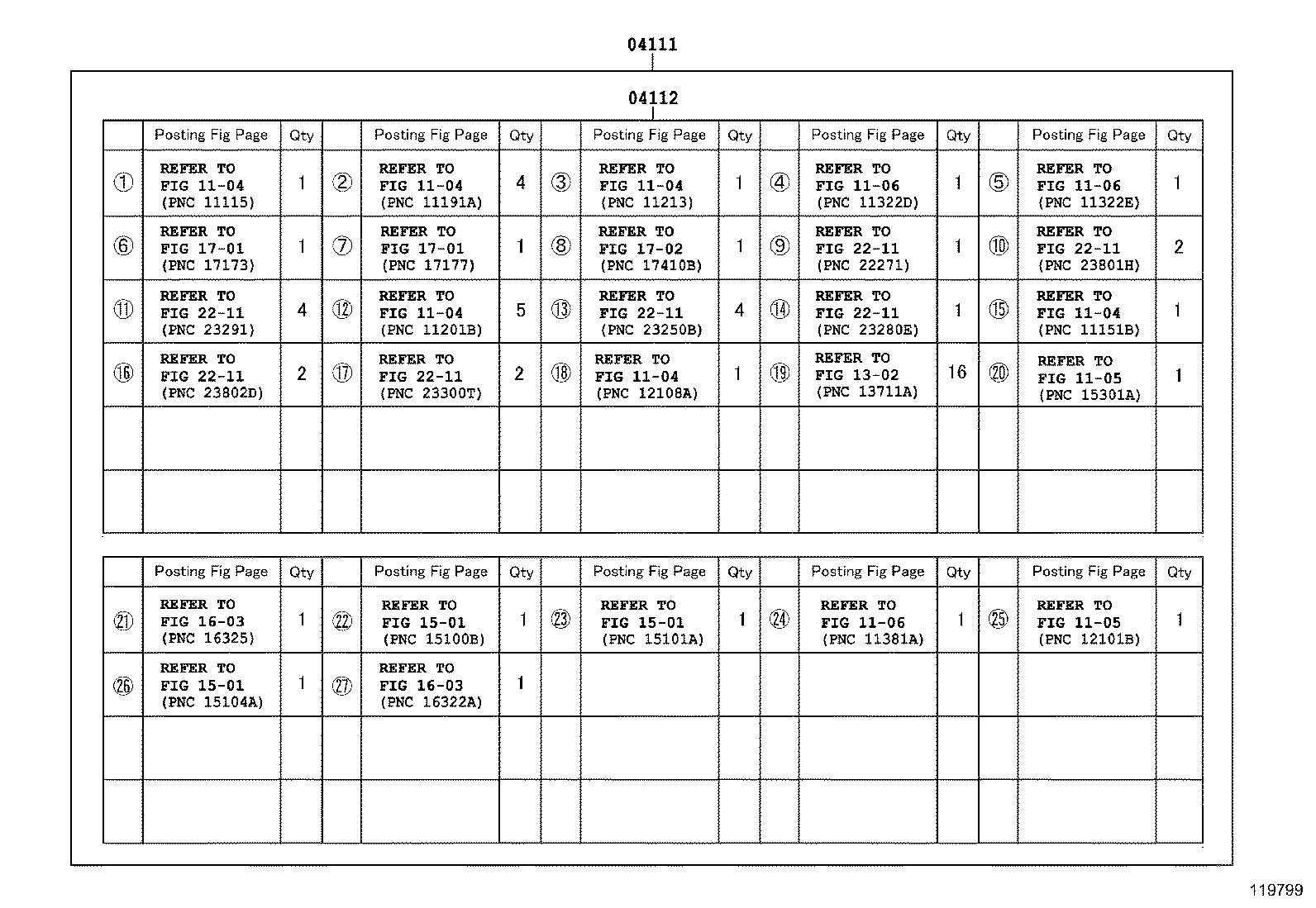

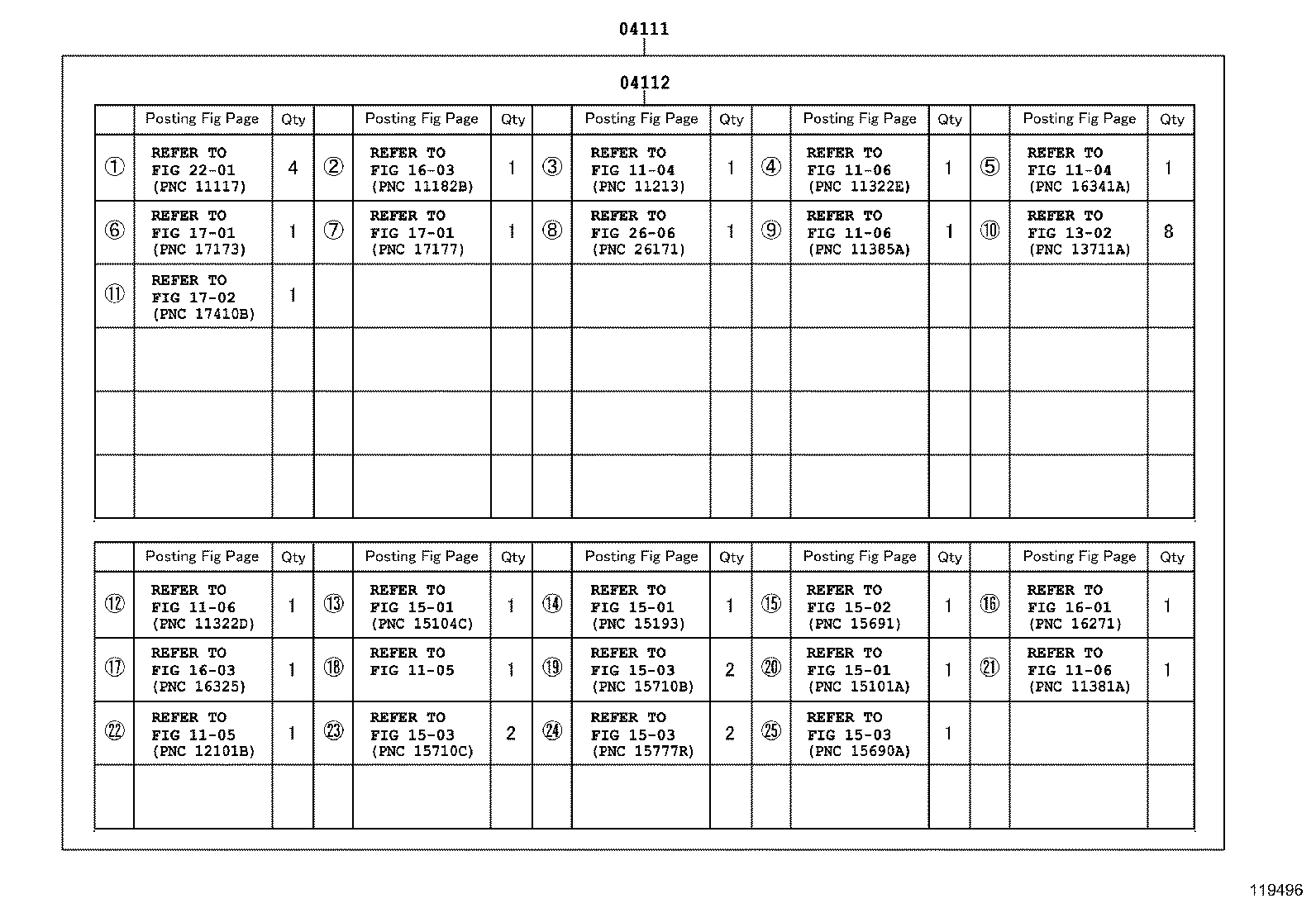

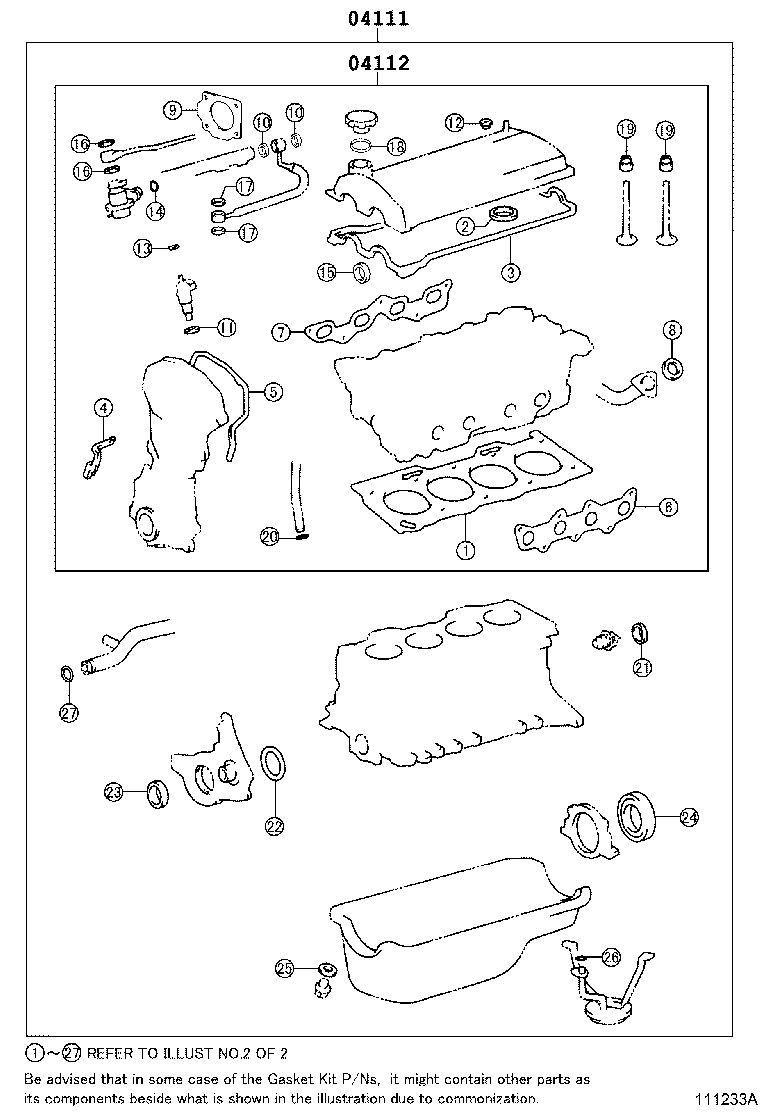

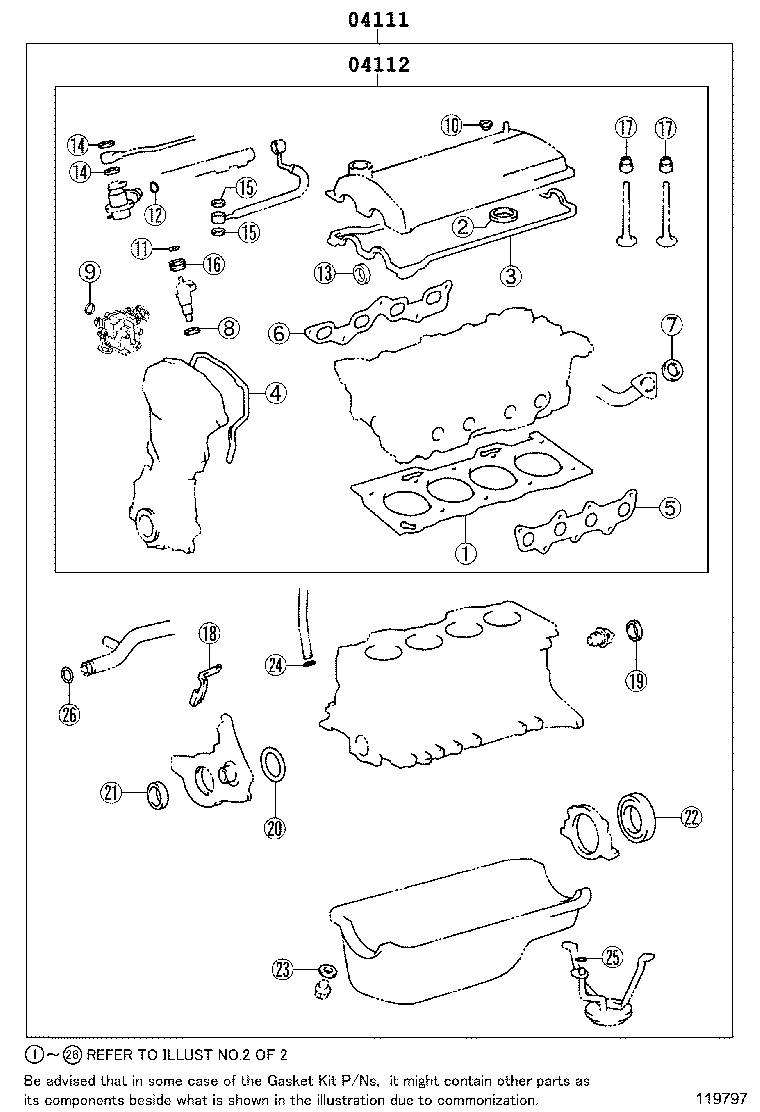

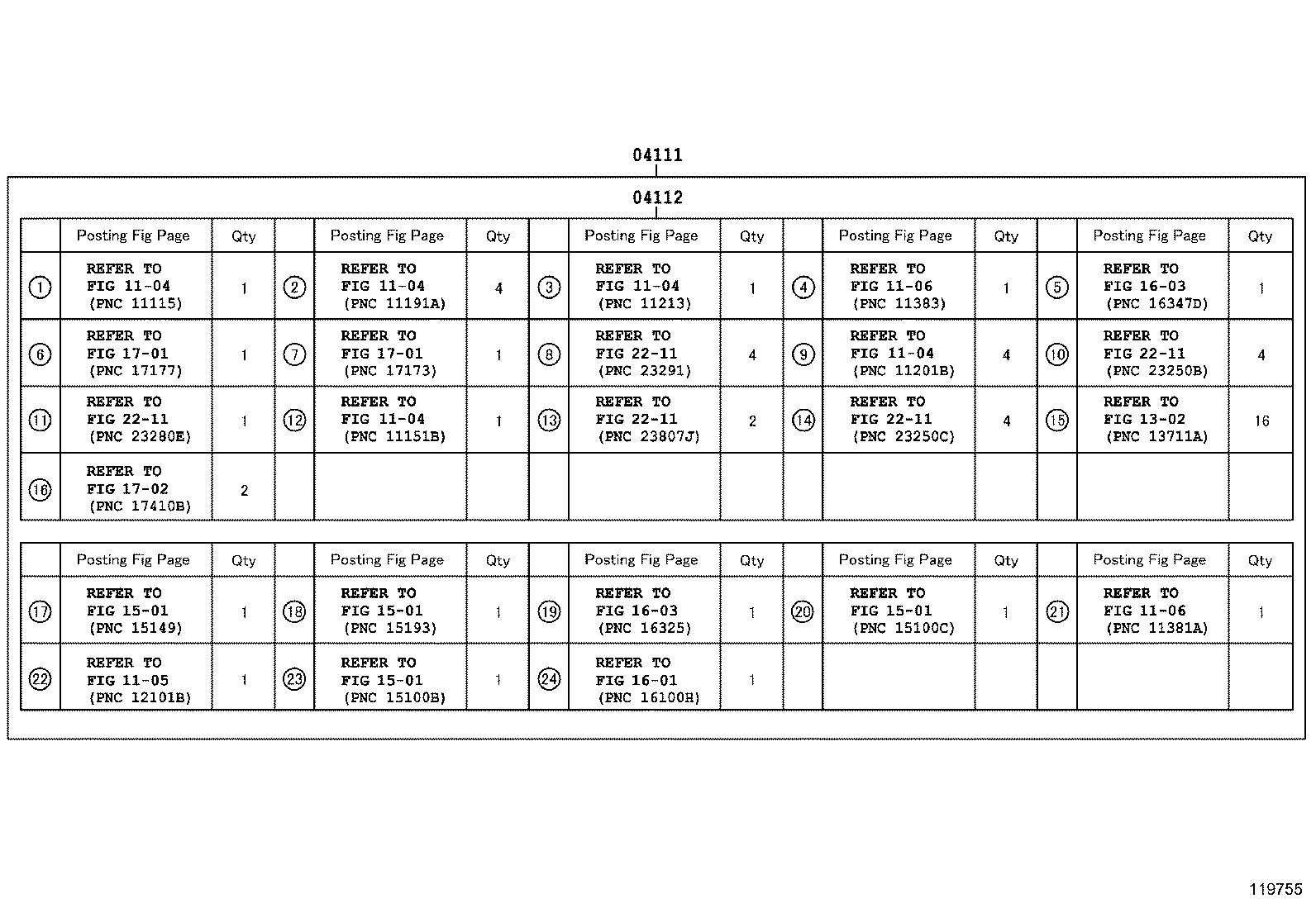

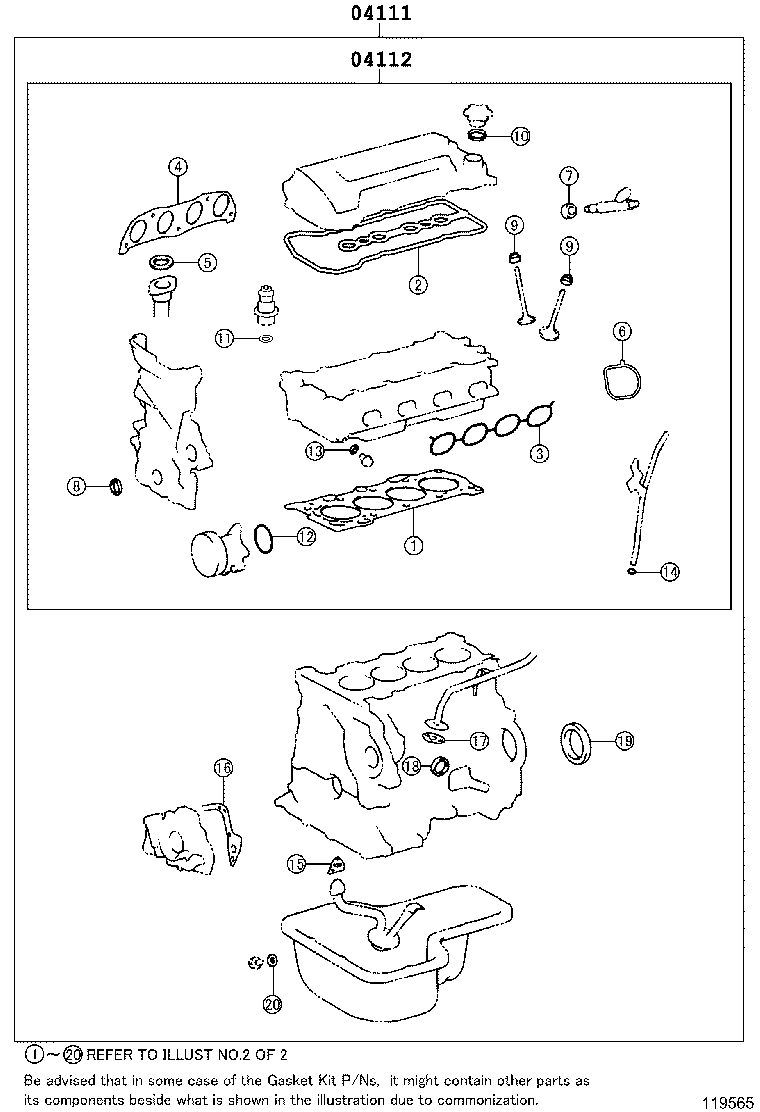

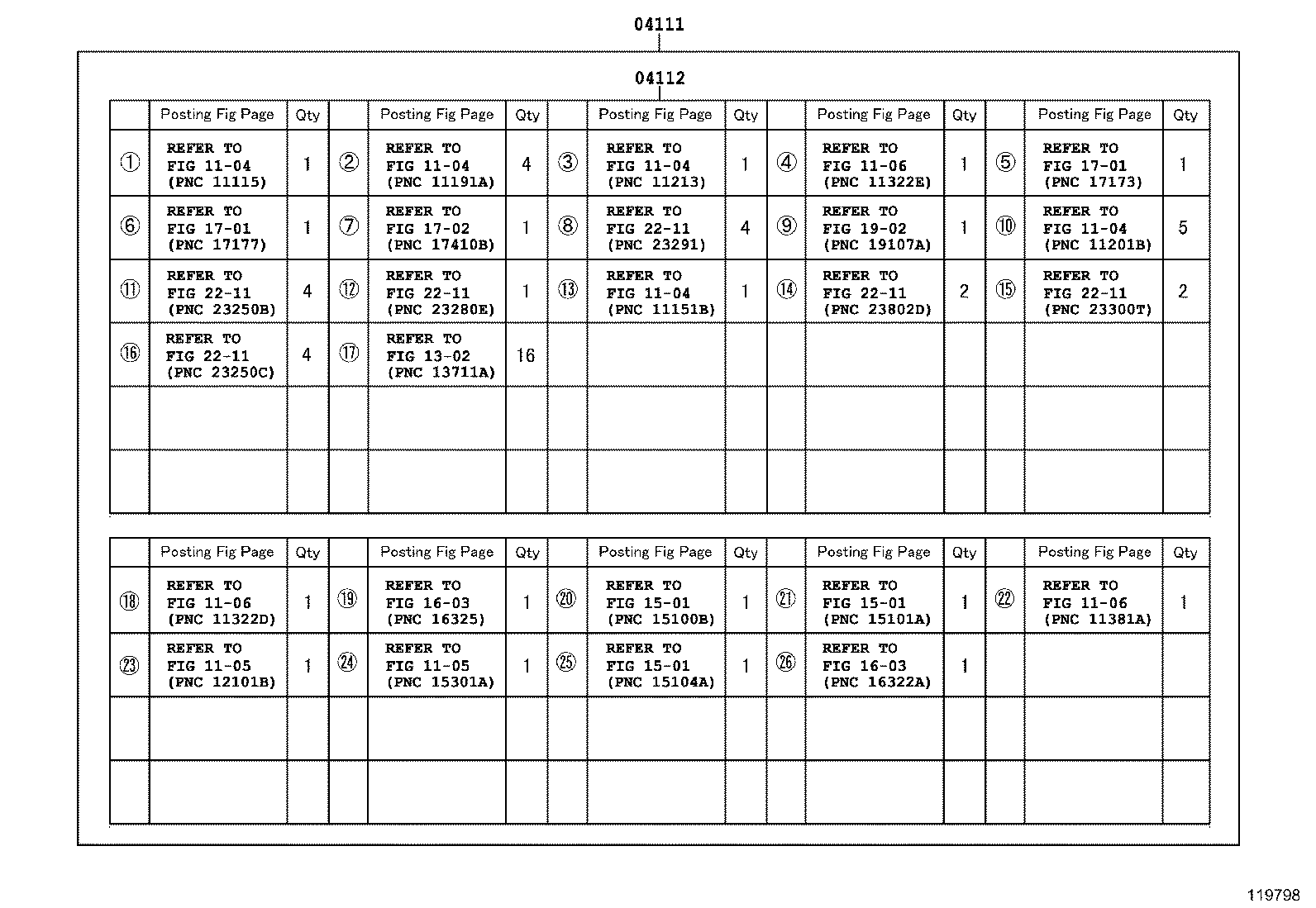

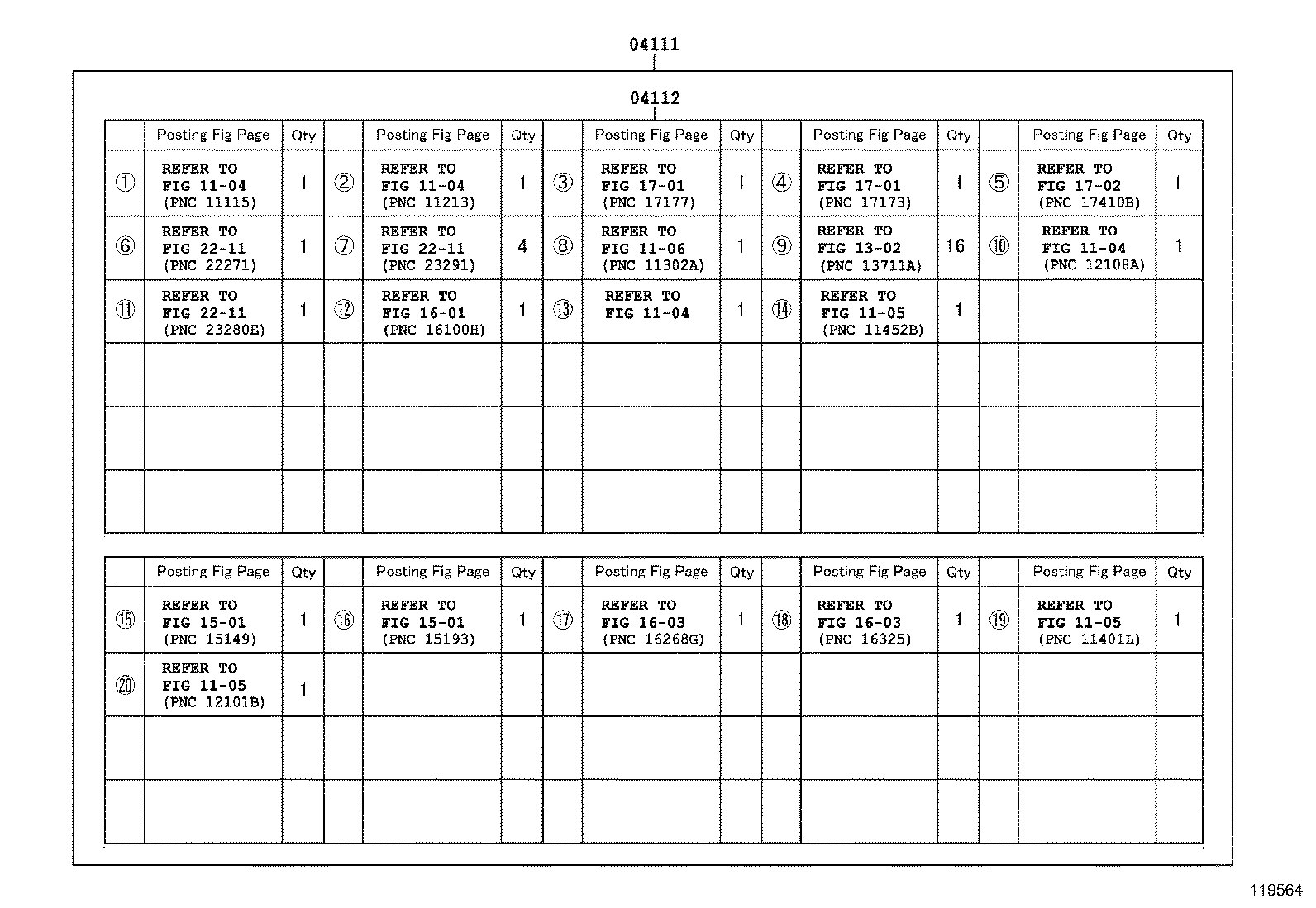

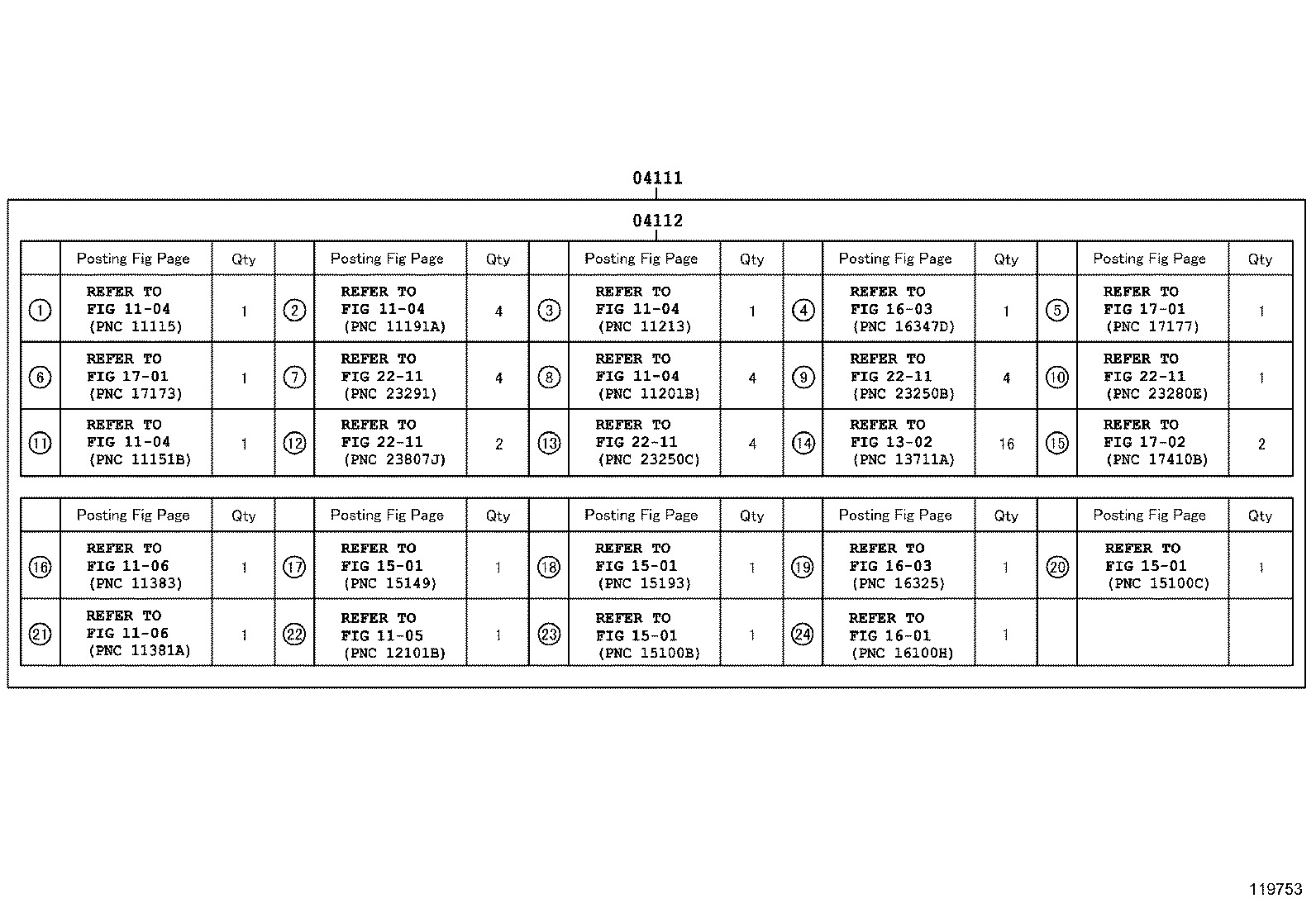

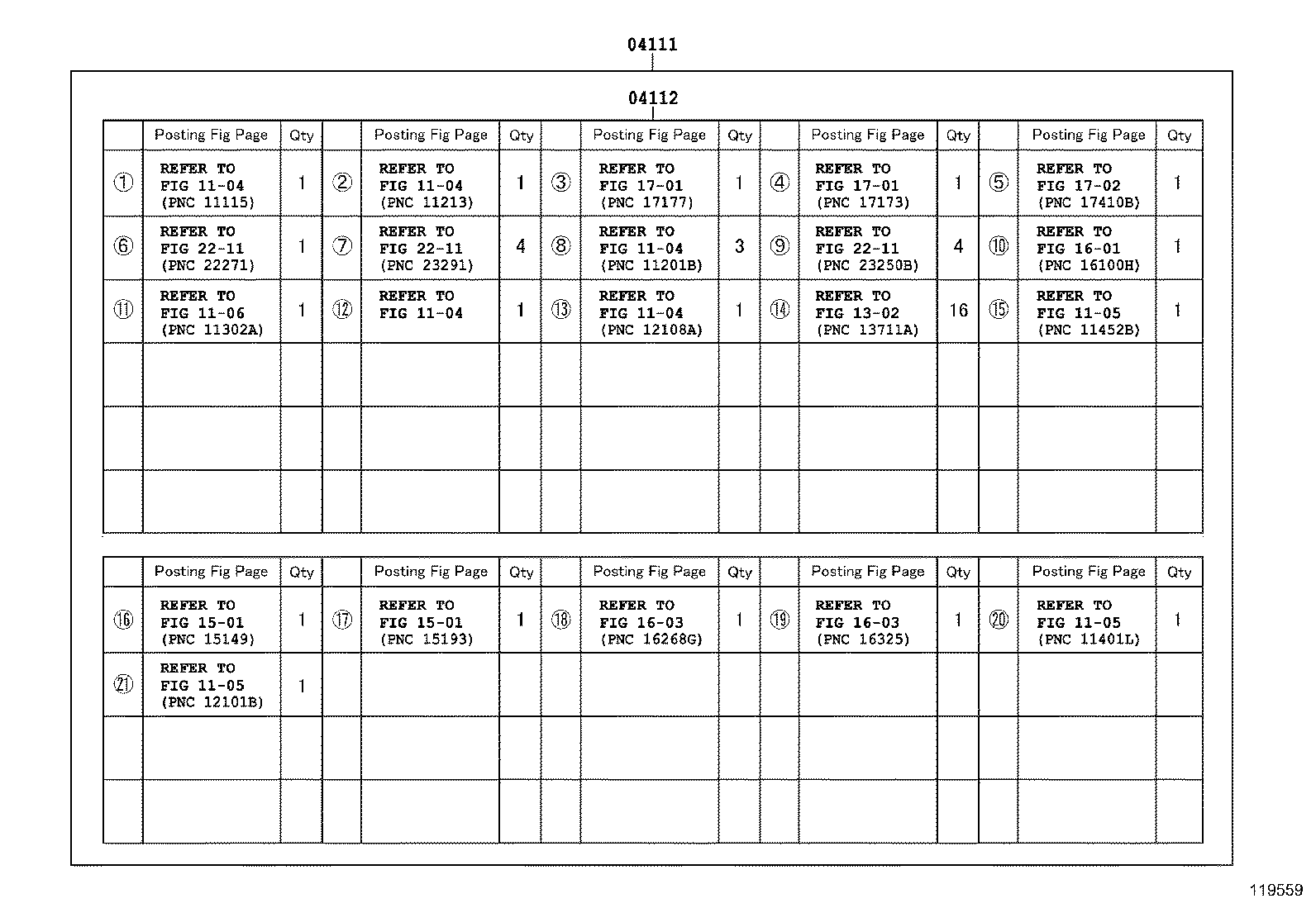

Figure 119754 119754 1997-04 → 1999-10 Figure 119755 119755 1997-04 → — Figure 119752 119752 1998-09 → — Figure 119753 119753 1998-09 → — Figure 119495 119495 1997-04 → — Figure 119496 119496 1997-04 → — Figure 111862A 111862A 2000-08 → — Figure 119497 119497 2000-08 → — Figure 119797 119797 1997-04 → 1999-10 Figure 119798 119798 1997-04 → 1999-10 Figure 111233A 111233A 1998-09 → — Figure 119799 119799 1998-09 → — Figure 111616 111616 1999-12 → — Figure 111576A 111576A 1999-10 → — Figure 119559 119559 1999-10 → — Figure 119565 119565 1999-11 → — Figure 119564 119564 1999-11 → —

Part groups

PNCDescription
04111 Gasket Kit, Engine Overhaul
04112 Gasket Kit, Engine Valve Grind
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
