Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cylinder Head

52 part groups · 7 illustrations

Illustrations

MAE696A 1997-04 → 1999-11

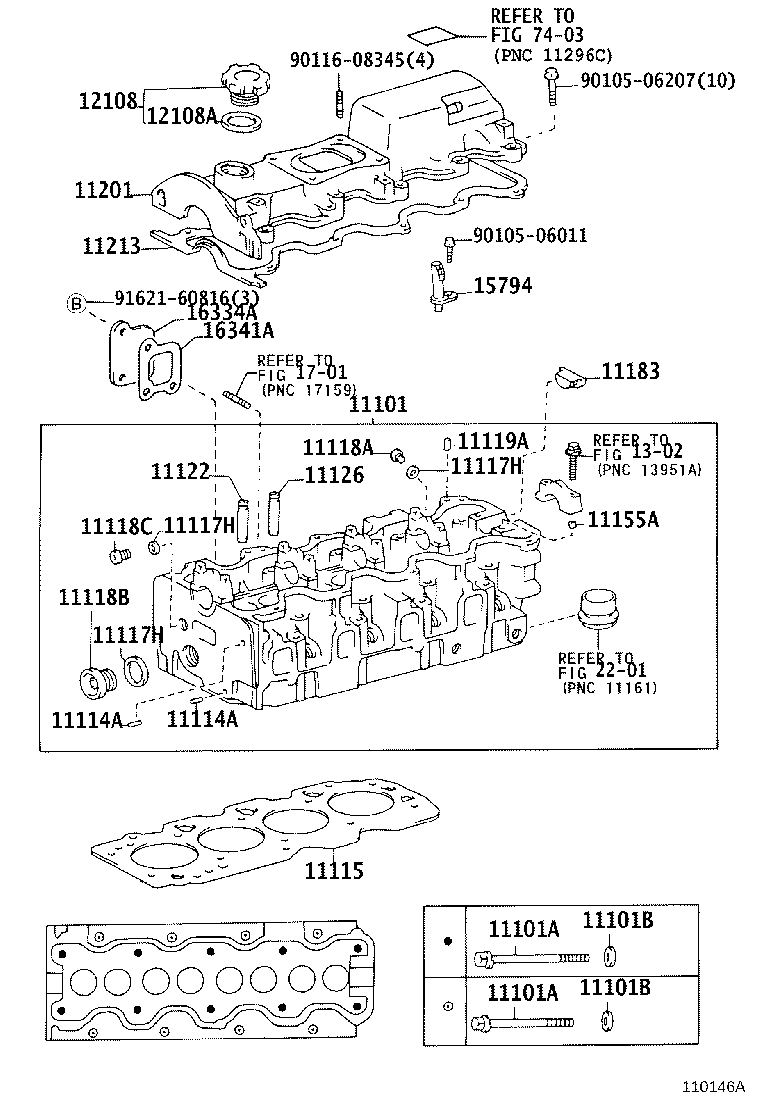

110146A 1997-04 → 1997-05

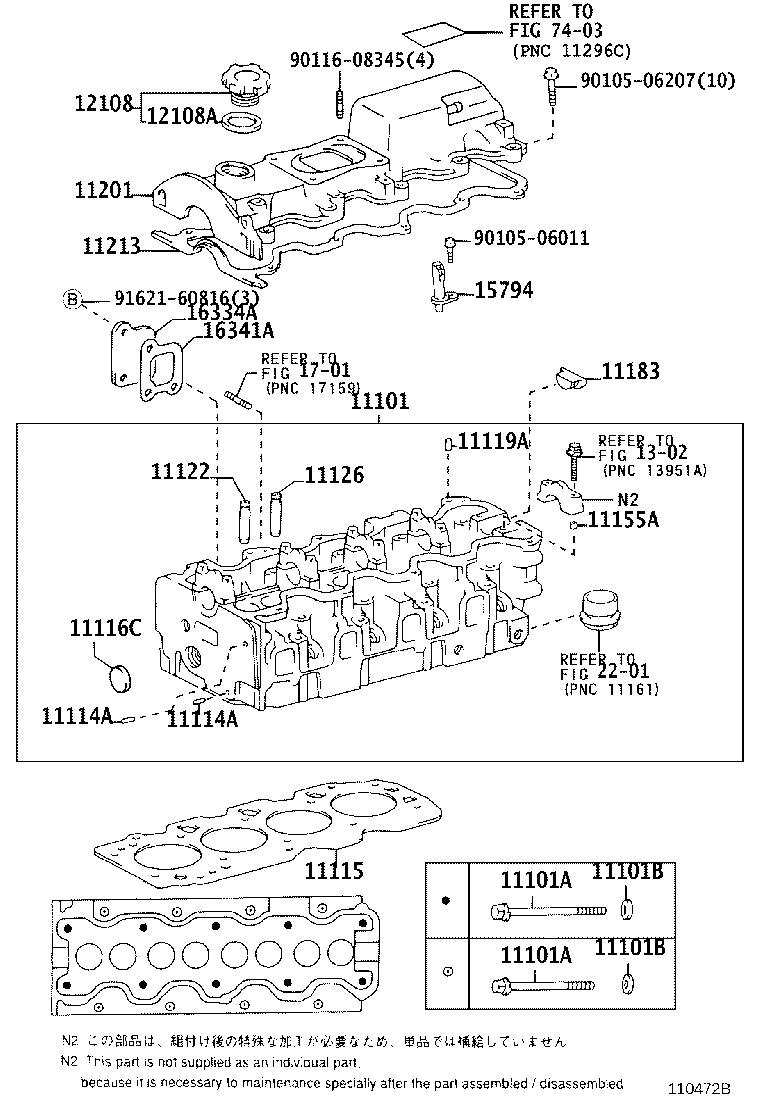

110472B 1997-05 → 1999-10

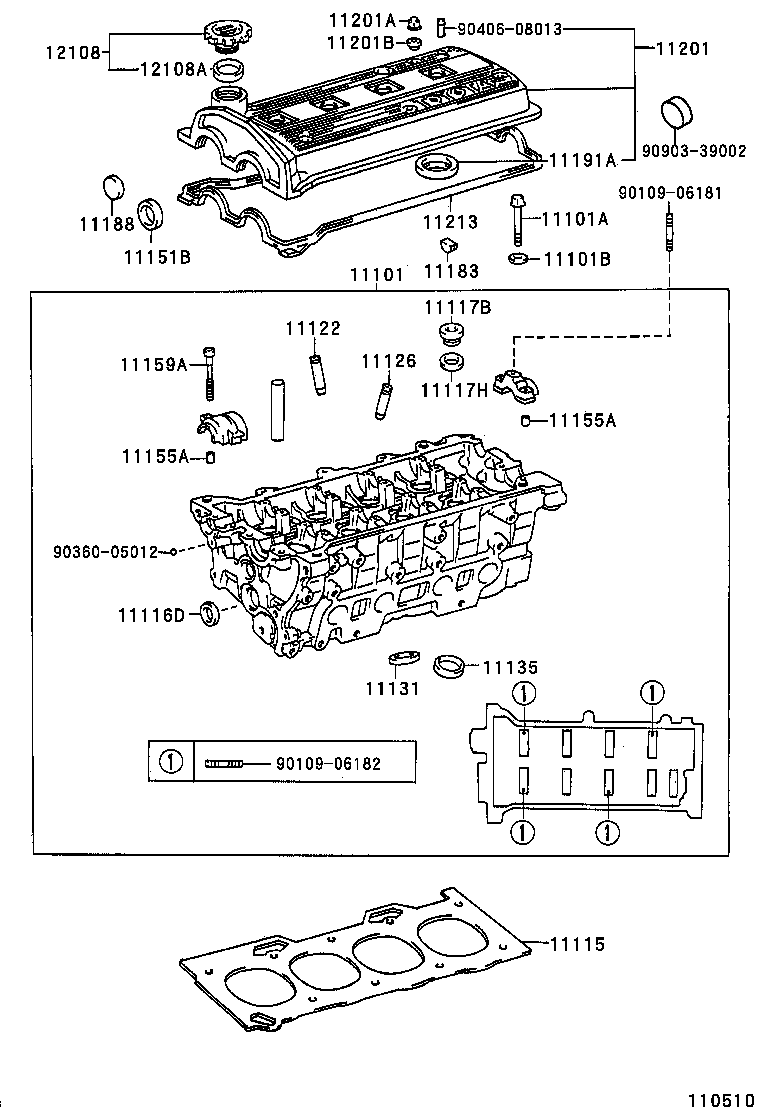

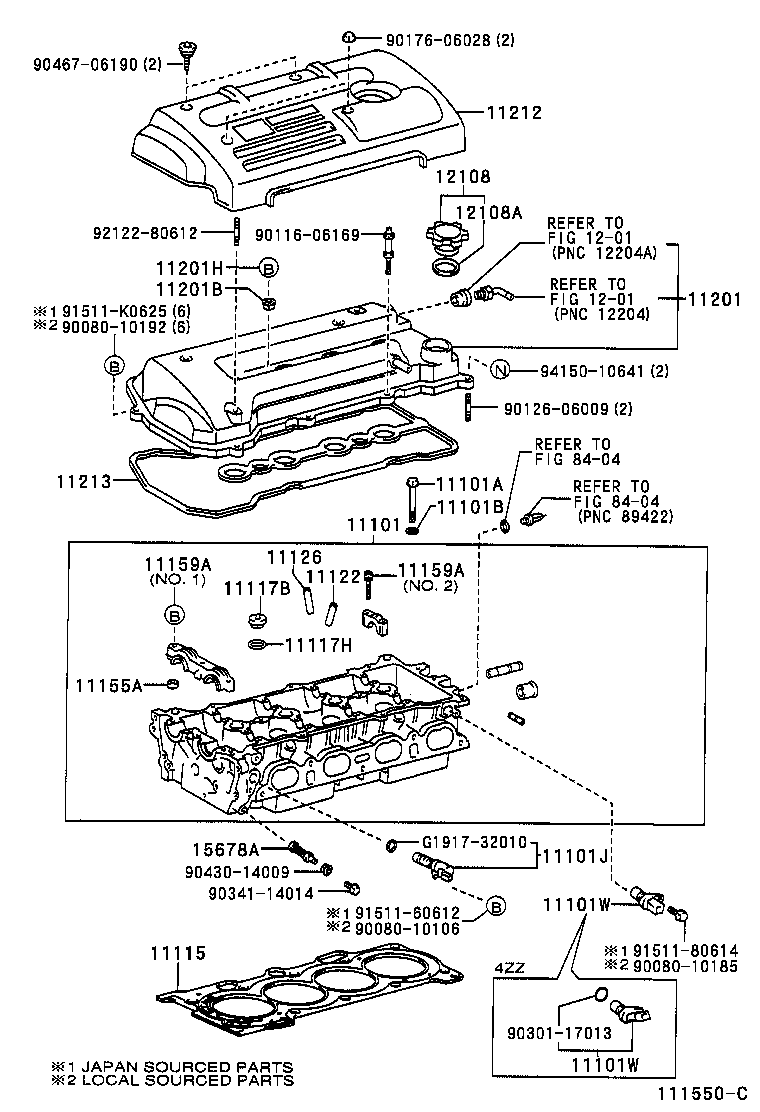

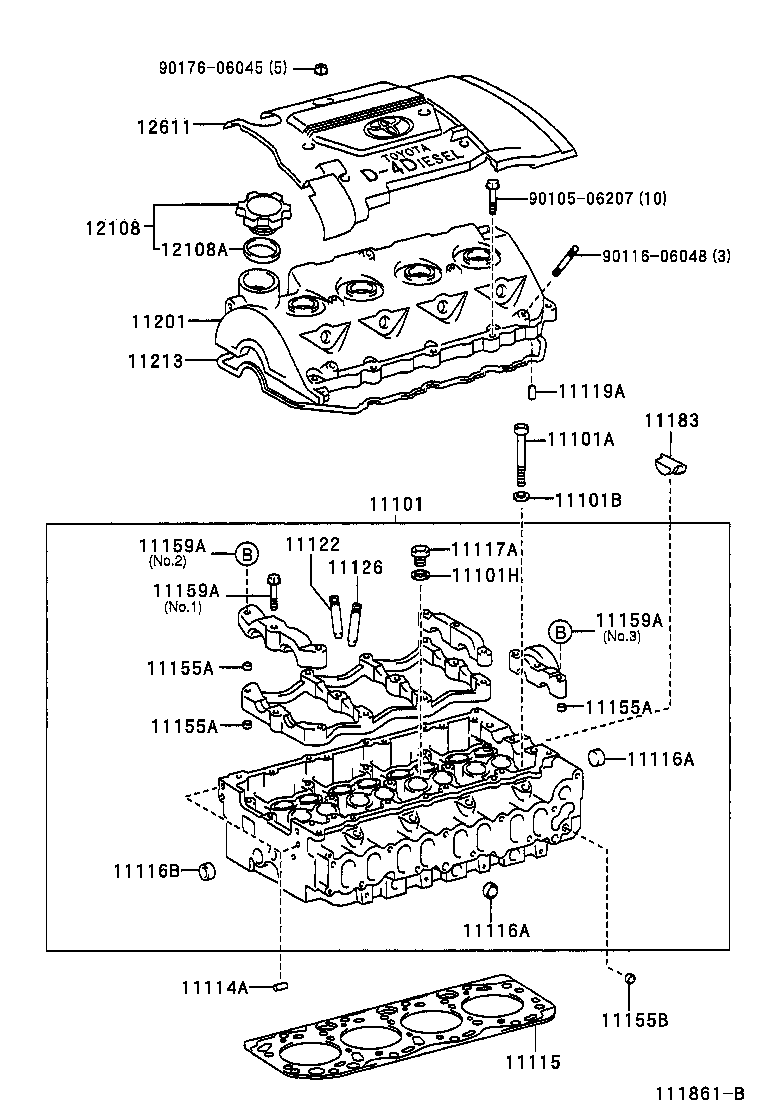

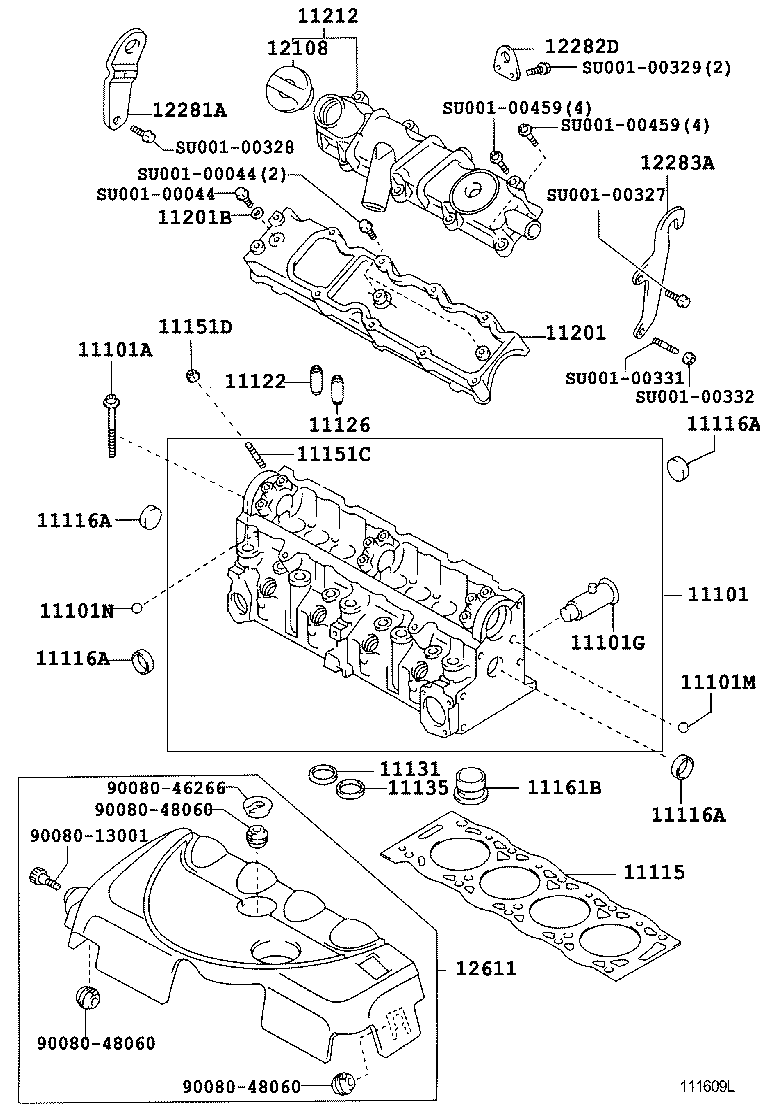

Part groups

PNC	Description
11101	Head Sub-assy, Cylinder
11101A	Bolt(FOR CYLINDER HEAD SET)
11101B	Washer, Plate(FOR CYLINDER HEAD SET)
11101G	Union(FOR CYLINDER HEAD)
11101H	Gasket(FOR CYLINDER HEAD SCREW PLUG)
11101J	Valve Assy, Camshaft Timing Oil Control
11101M	Ball NO.1(FOR CYLINDER HEAD)
11101N	Ball NO.2(FOR CYLINDER HEAD)
11101W	Sensor, Crank Position, NO.1
11114A	Pin, Straight
11115	Gasket, Cylinder Head
11116A	Plug, Tight, NO.1
11116B	Plug, Tight, NO.2
11116C	Plug, Tight, NO.3
11116D	Plug, Tight, NO.4
11117A	Plug, W/Head Taper Screw, NO.1
11117B	Plug, W/Head Taper Screw, NO.2
11117H	Gasket(FOR WATER HOLE)
11118A	Plug, Straight, NO.1
11118B	Plug, Straight, NO.2
11118C	Plug, Straight, NO.3
11119A	Pin, Straight, NO.1
11122	Bush, Intake Valve Guide
11126	Bush, Exhaust Valve Guide
11131	Seat, Intake Valve
11135	Seat, Exhaust Valve
11151B	Seal, Oil(FOR CAMSHAFT SETTING)
11151C	Bolt, Stud(FOR CAMSHAFT CAP)
11151D	Nut(FOR CAMSHAFT CAP)
11155A	Pin, Ring W/Head
11155B	Pin, Ring
11159A	Bolt(FOR HEAD TO CAMSHAFT BEARING CAP)
11161B	Chamber, Combustion
11183	Plug, Semicircular
11188	Plug, Camshaft Housing
11191A	Gasket(FOR SPARK PLUG TUBE)
11201	Cover Sub-assy, Cylinder Head
11201A	Nut, Cap(FOR CYLINDER HEAD COVER)
11201B	Washer, Seal(FOR CYLINDER HEAD COVER)
11201H	Bolt(FOR CYLINDER HEAD COVER)
11212	Cover, Cylinder Head, NO.2
11213	Gasket, Cylinder Head Cover
12108	Cap Sub-assy, Oil Filler
12108A	Gasket(FOR OIL FILLER CAP)
12281A	Hanger, Engine, NO.1
12282D	Hanger, Engine, NO.2
12283A	Hanger, Engine, NO.3
12611	Cover, Engine, NO.1
15678A	Filter, Oil Control Valve
15794	Nozzle, Cylinder Head Oil
16334A	Cover, Water Outlet Housing
16341A	Gasket, Water Outlet

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
