Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

25 part groups · 7 illustrations

Illustrations

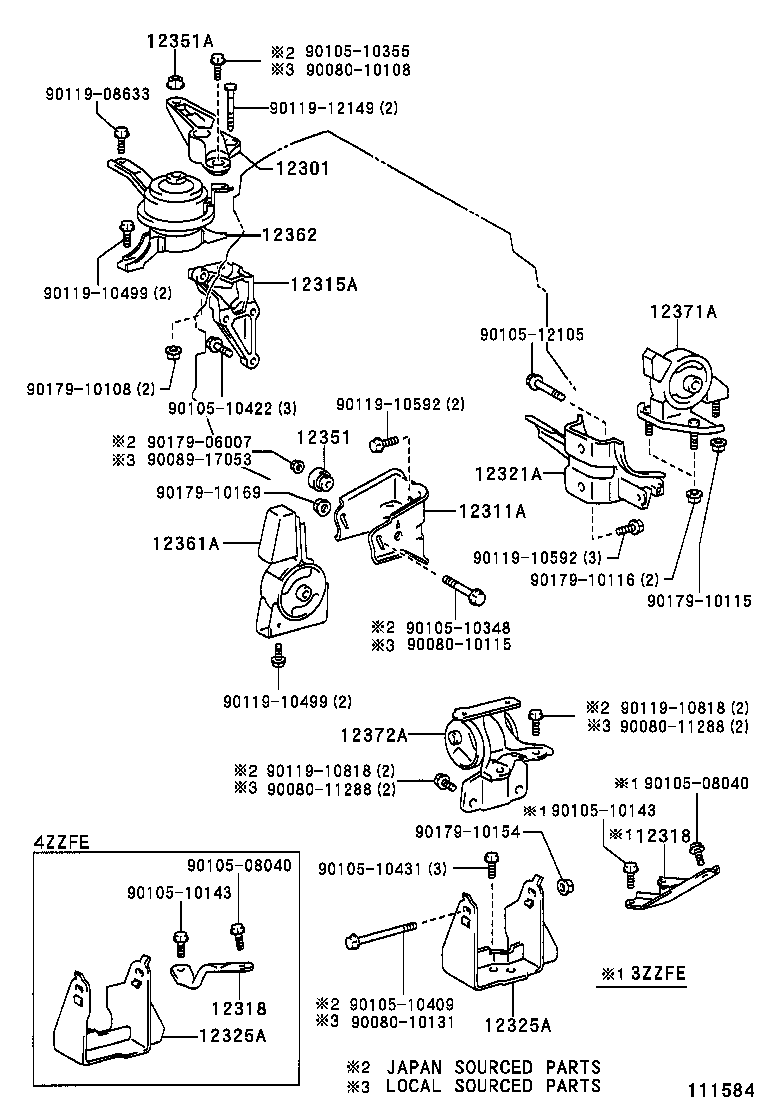

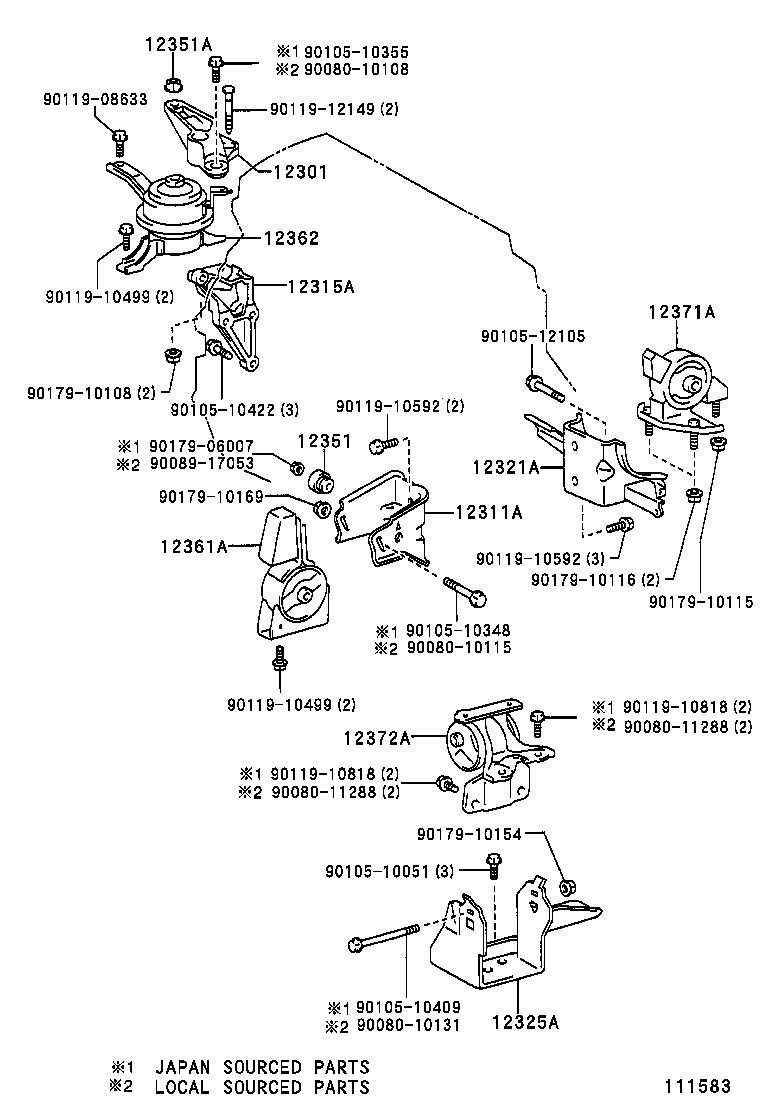

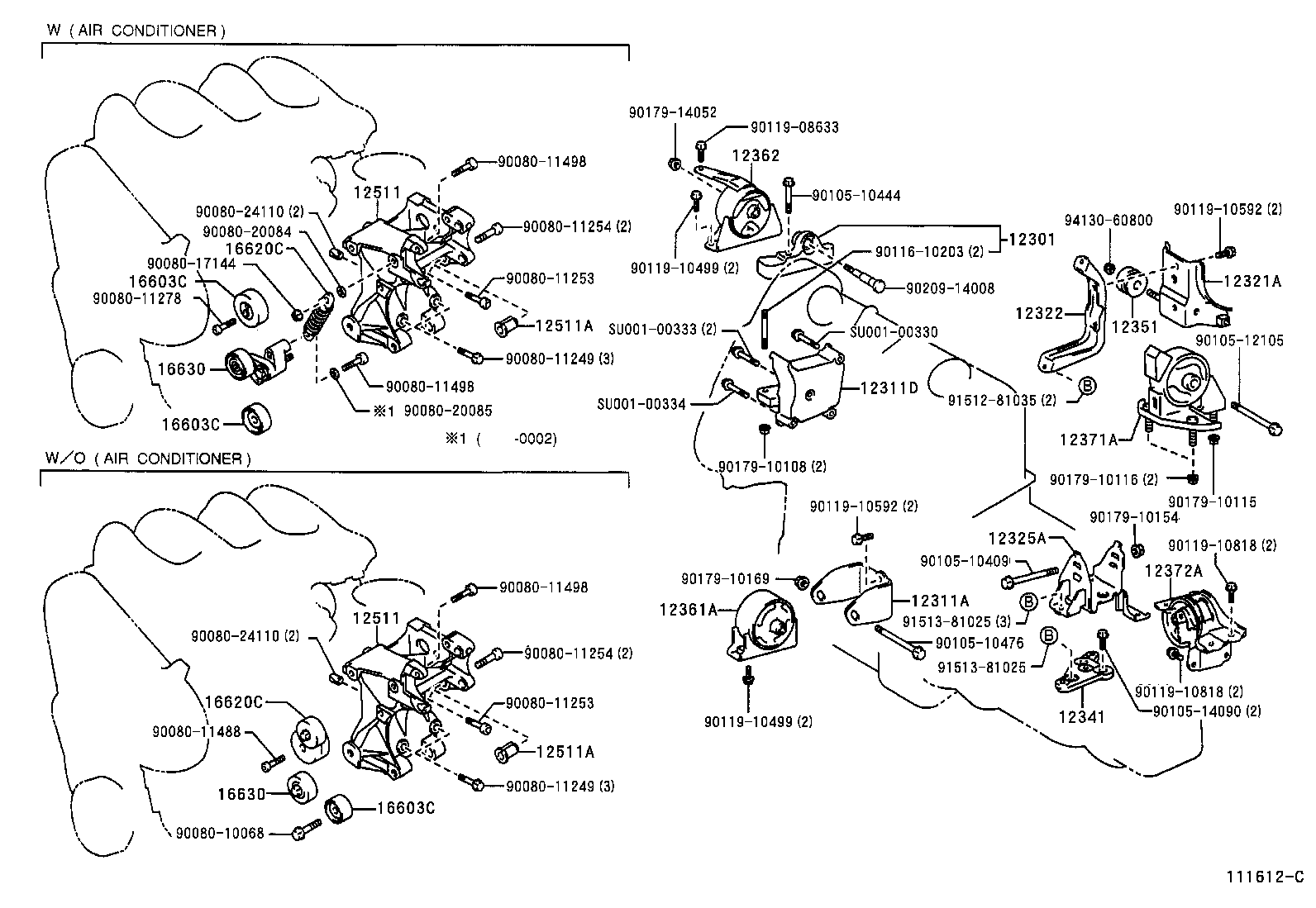

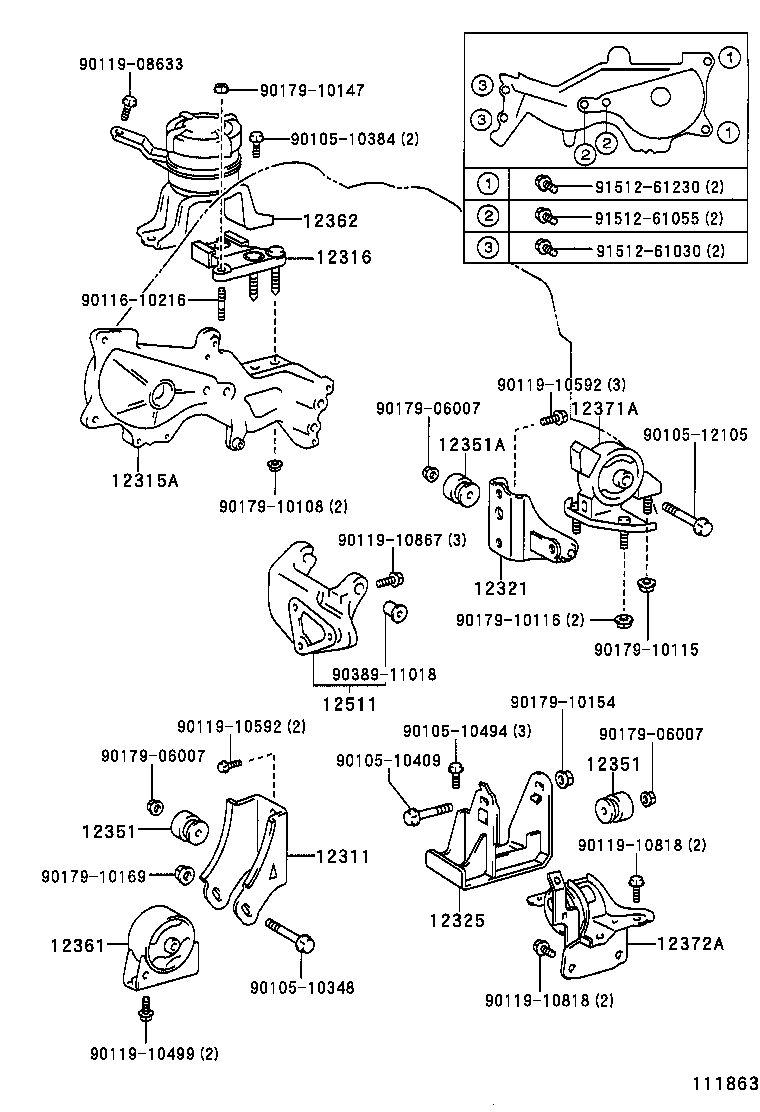

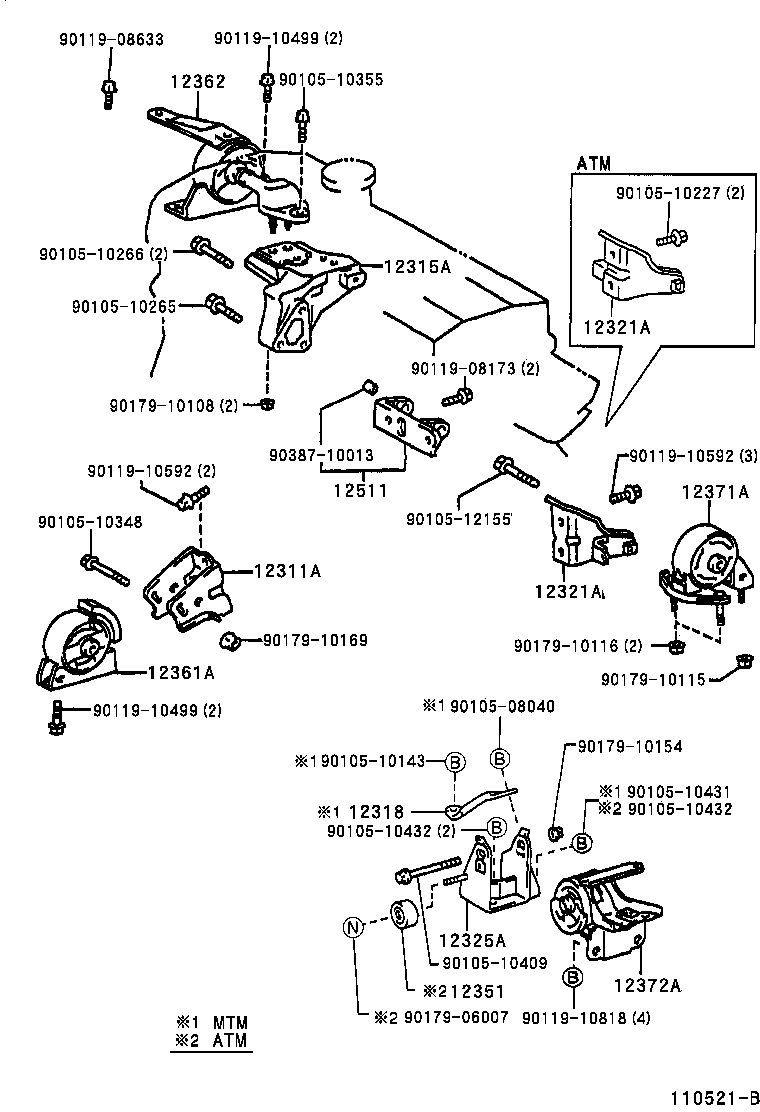

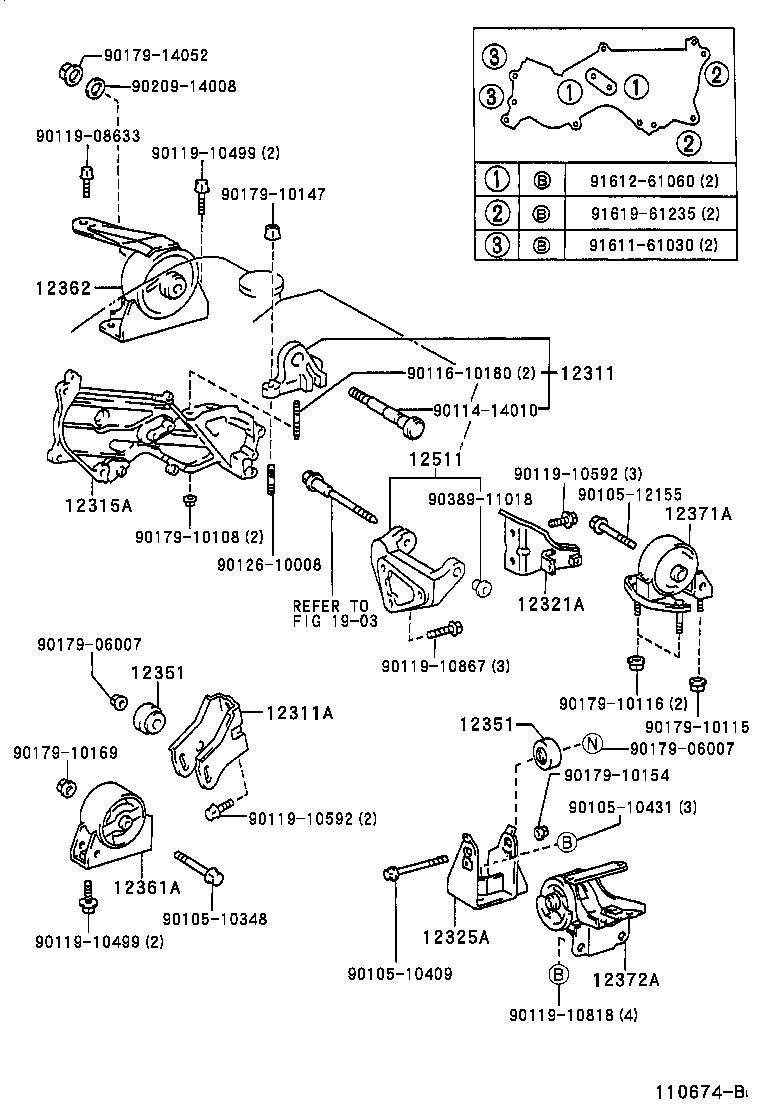

Figure 110927A 110927A 1997-04 → 1999-11 Figure 110674B 110674B 1997-04 → 1999-10 Figure 111863 111863 2000-08 → — Figure 110521B 110521B 1997-04 → — Figure 111612C 111612C 1999-12 → — Figure 111583 111583 1999-10 → — Figure 111584 111584 1999-10 → —

Part groups

PNCDescription
12301 Bracket Sub-assy, Engine Mounting, Front RH
12311 Bracket, Engine Mounting, Front NO.1 RH
12311A Bracket, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12311D Bracket, Engine Mounting
12315A Bracket, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12316 Bracket, Engine Mounting, NO.2 RH
12318 Stay, Engine Mounting, LH
12321 Bracket, Engine Mounting, Rear, NO.1
12321A Bracket, Engine Mounting, Rear(FOR TRANSVERSE ENGINE)
12322 Bracket, Engine Mounting, Rear NO.2
12325 Bracket, Engine Mounting, NO.3
12325A Bracket, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12341 Spacer, Engine Mounting
12351 Damper, Engine Mounting
12351A Damper, Engine Mounting(FOR INSULATOR)
12361 Insulator, Engine Mounting, Front
12361A Insulator, Engine Mounting, Front(FOR TRANSVERSE ENGINE)
12362 Insulator, Engine Mounting, RH(FOR TRANSVERSE ENGINE)
12371A Insulator, Engine Mounting, Rear
12372A Insulator, Engine Mounting, LH(FOR TRANSVERSE ENGINE)
12511 Bracket, Alternator, NO.1
12511A Bush, Alternator Bracket
16603C Pulley Sub-assy, Idler
16620C Tensioner Assy, V-ribbed Belt
16630 Pulley Assy, Idler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
