Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04
Camshaft & Valve

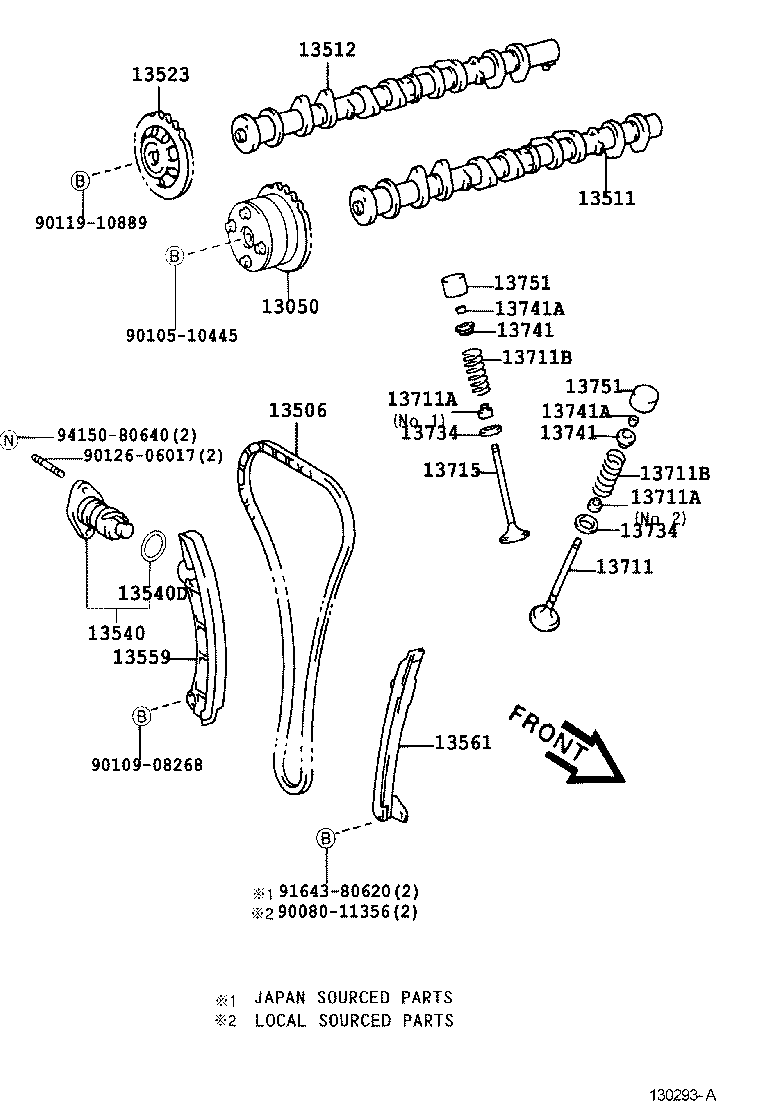

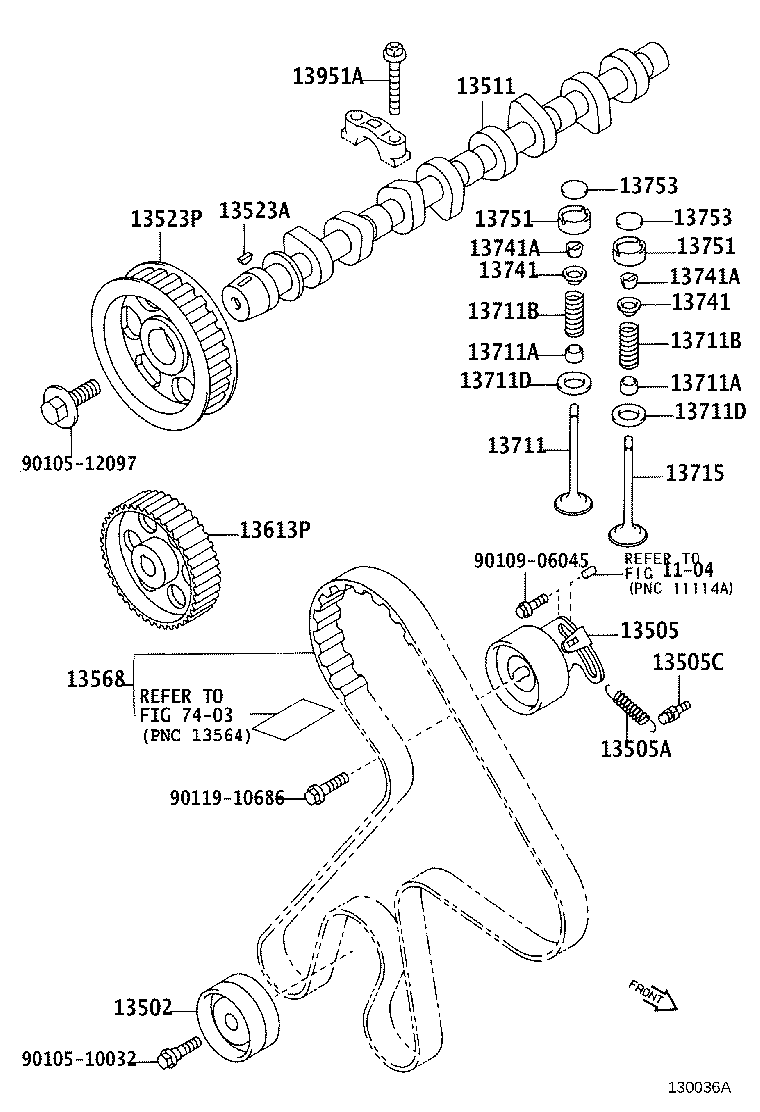

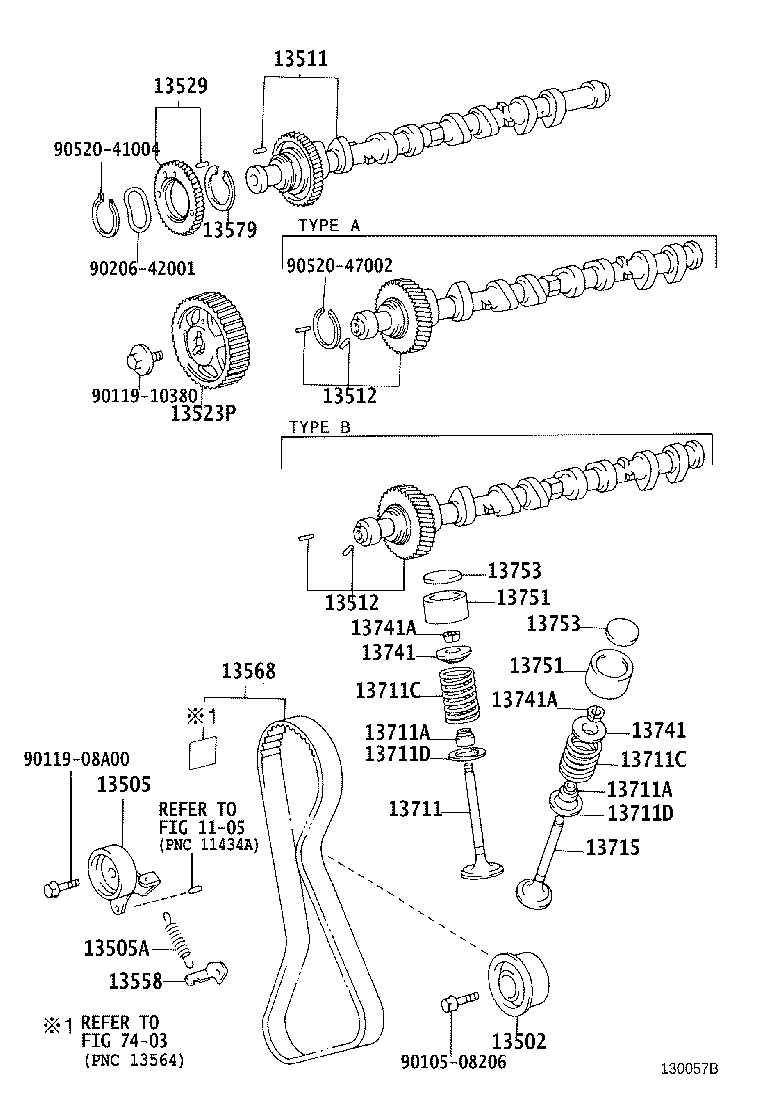

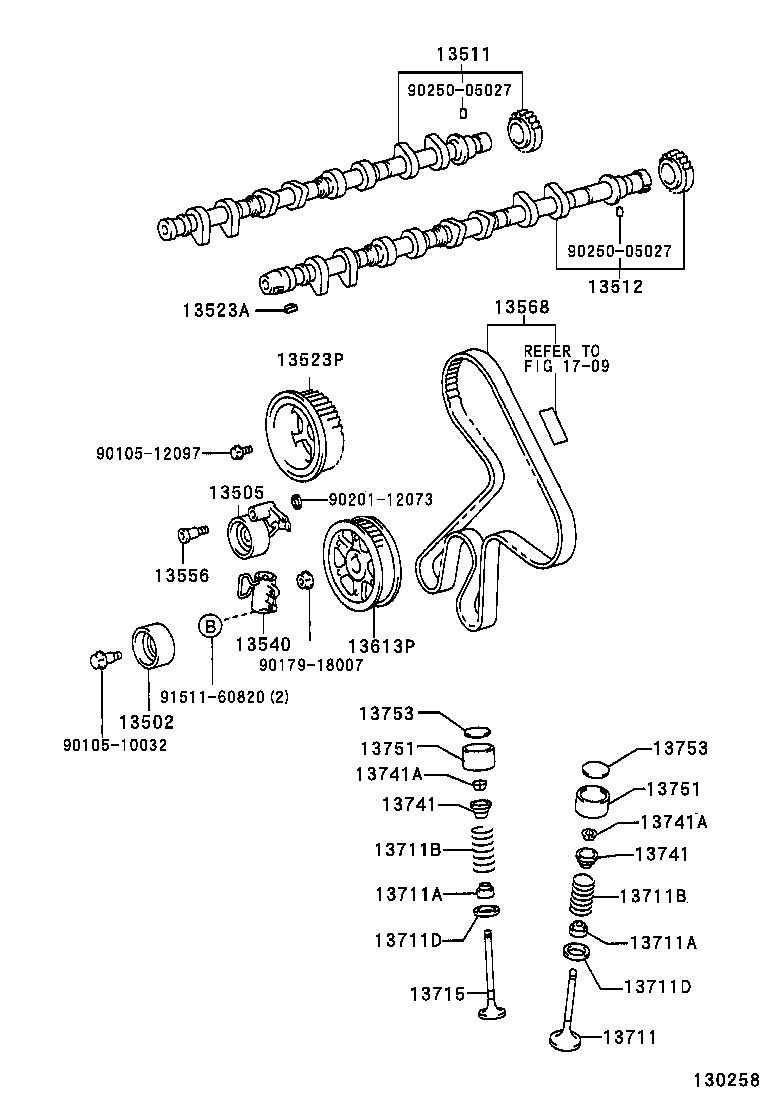

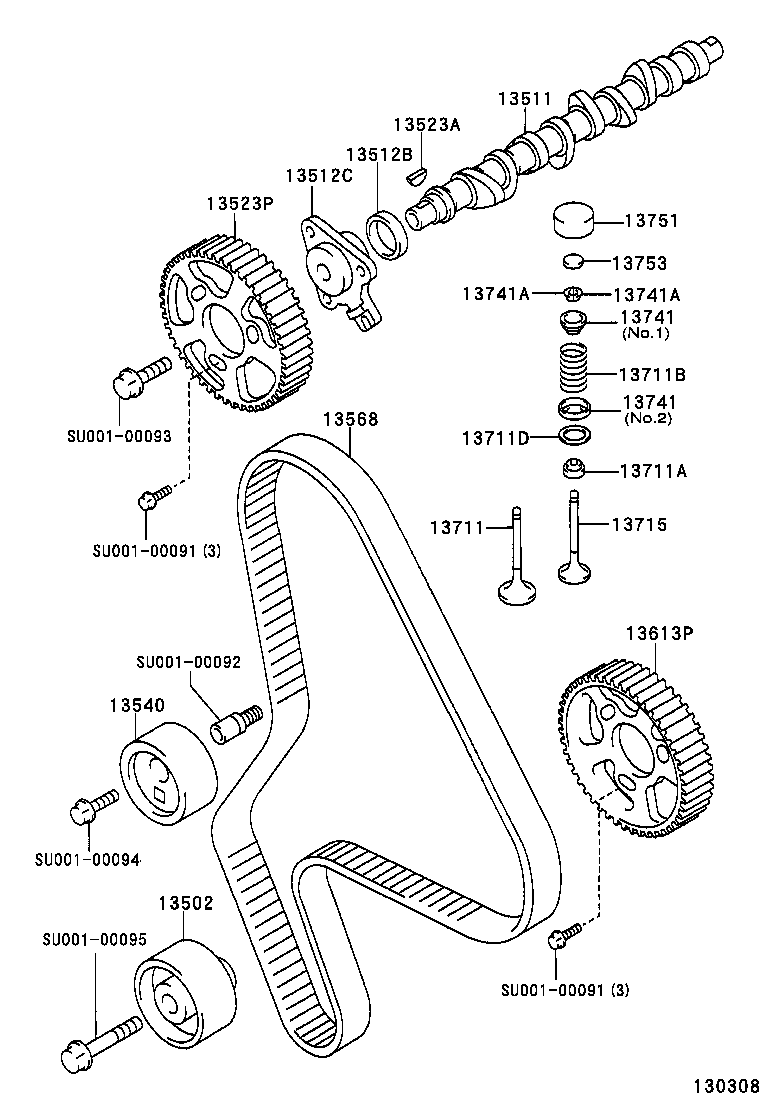

36 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 13050 | Gear Assy, Camshaft Timing |
| 13502 | Idler Sub-assy, Timing Belt, NO.2 |
| 13505 | Idler Sub-assy, Timing Belt, NO.1 |
| 13505A | Spring, Tension(FOR IDLER) |
| 13505B | Bolt, Flange (FOR IDLER) |
| 13505C | Pin(FOR IDLER SPRING TENSION) |
| 13506 | Chain Sub-assy |
| 13511 | Camshaft |
| 13512 | Camshaft, NO.2 |
| 13512B | Seal, Type T Oil(FOR CAMSHAFT NO.2) |
| 13512C | Retainer, Camshaft Oil Seal |
| 13523 | Gear OR Sprocket, Camshaft Timing |
| 13523A | Key, Woodruff(FOR TIMING GEAR) |
| 13523P | Pulley, Camshaft Timing |
| 13529 | Gear, Camshaft Sub |
| 13540 | Tensioner Assy, Chain, NO.1 |
| 13540D | Ring, O(FOR CHAIN TENSIONER) |
| 13556 | Shaft, Timing Belt Idler |
| 13558 | Bracket, Spring(FOR IDLER) |
| 13559 | Slipper, Chain Tensioner |
| 13561 | Damper, Chain Vibration, NO.1 |
| 13568 | Belt, Timing |
| 13579 | Washer, Camshaft Timing Gear Bolt |
| 13613P | Pulley, Injection Pump Drive |
| 13711 | Valve, Intake |
| 13711A | Seal OR Ring, O(FOR VALVE STEM OIL) |
| 13711B | Spring, Compression(FOR INNER) |
| 13711C | Spring, Compression(FOR OUTER) |
| 13711D | Washer, Plate(FOR VALVE SPRING SEAT) |
| 13715 | Valve, Exhaust |
| 13734 | Seat, Valve Spring |
| 13741 | Retainer, Valve Spring |
| 13741A | Lock, Valve Spring Retainer |
| 13751 | Lifter, Valve |
| 13753 | Shim, Valve Adjusting |
| 13951A | Bolt(FOR ROCKER SUPPORT SET) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
