Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

24 part groups · 8 illustrations

Illustrations

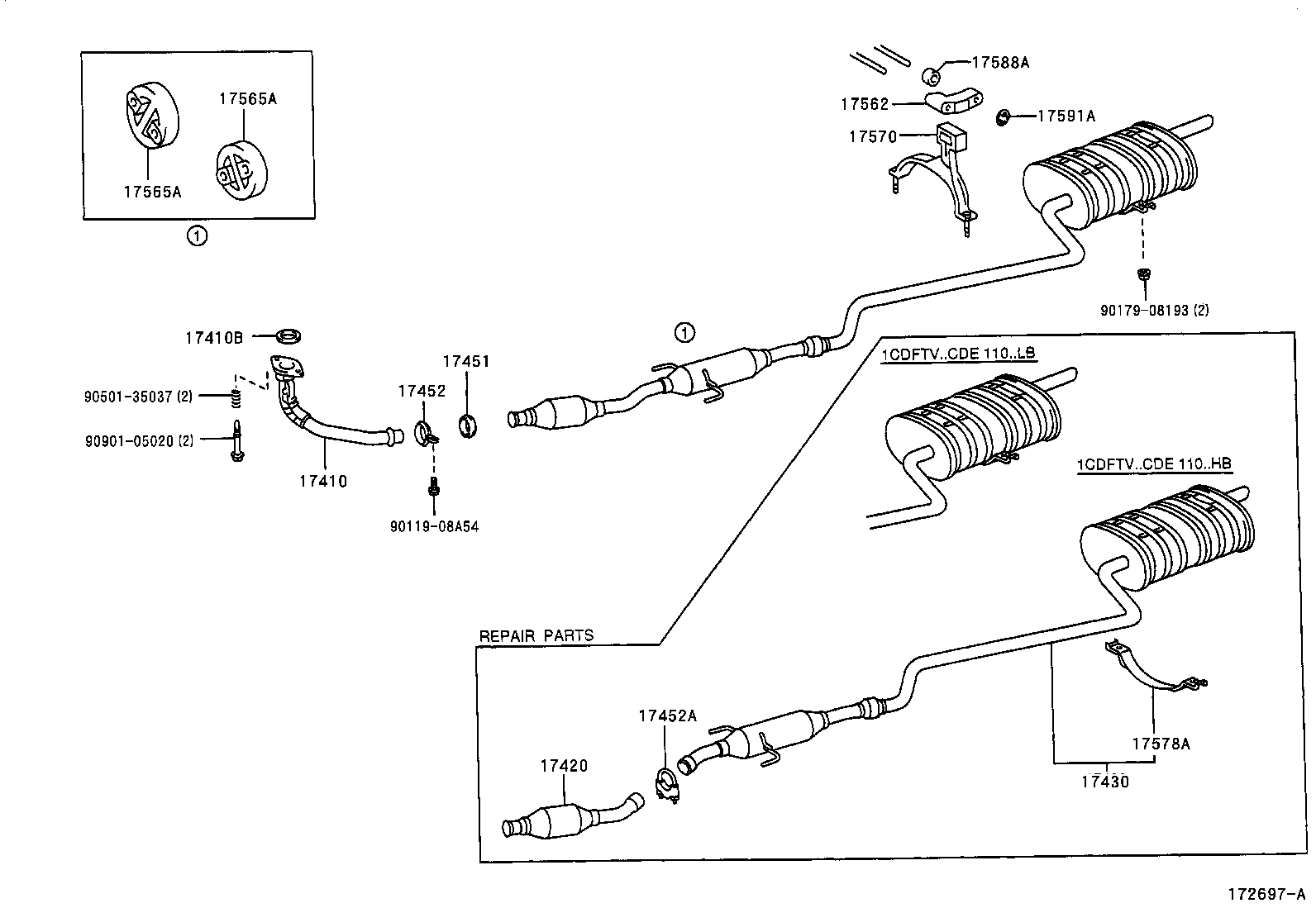

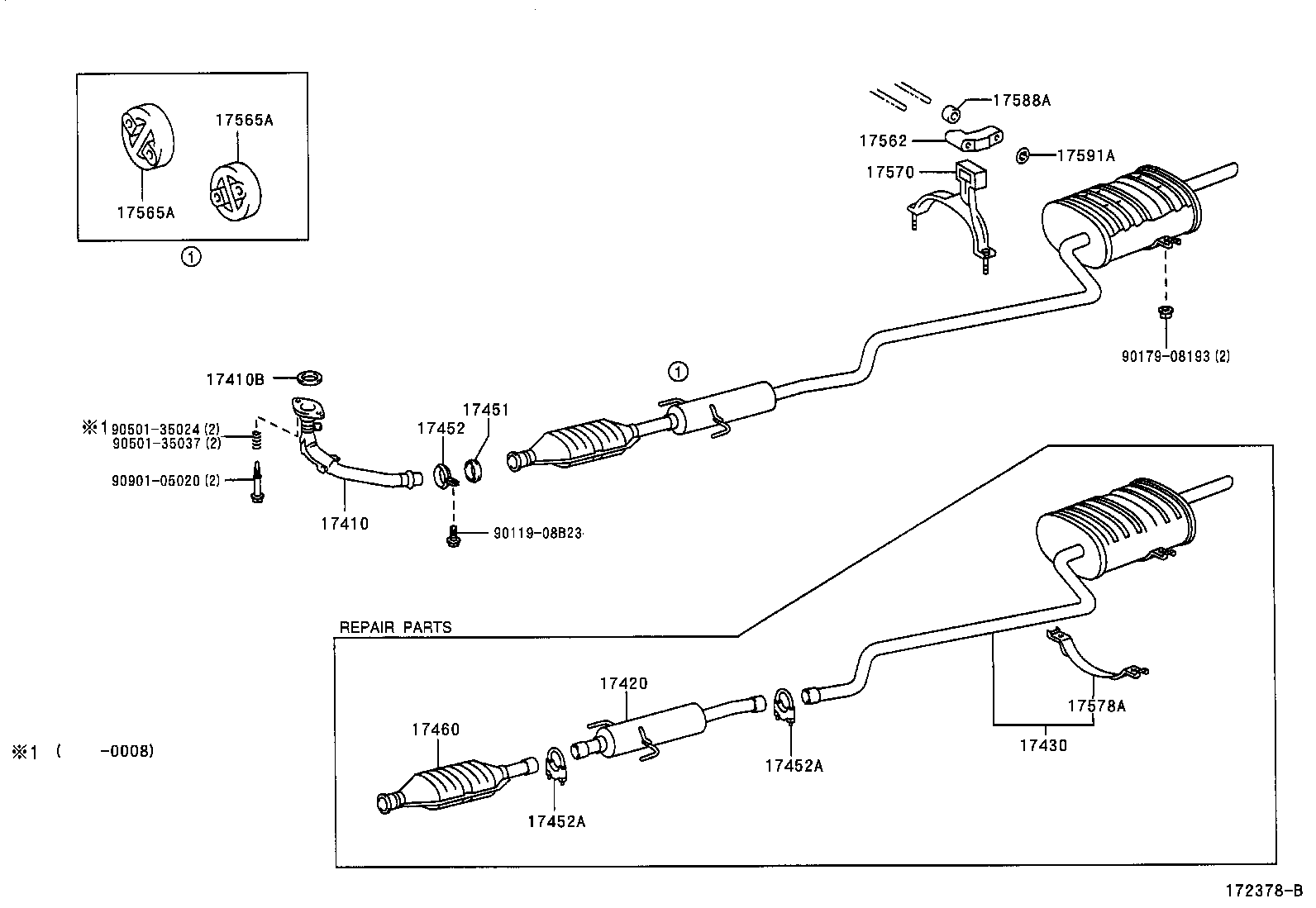

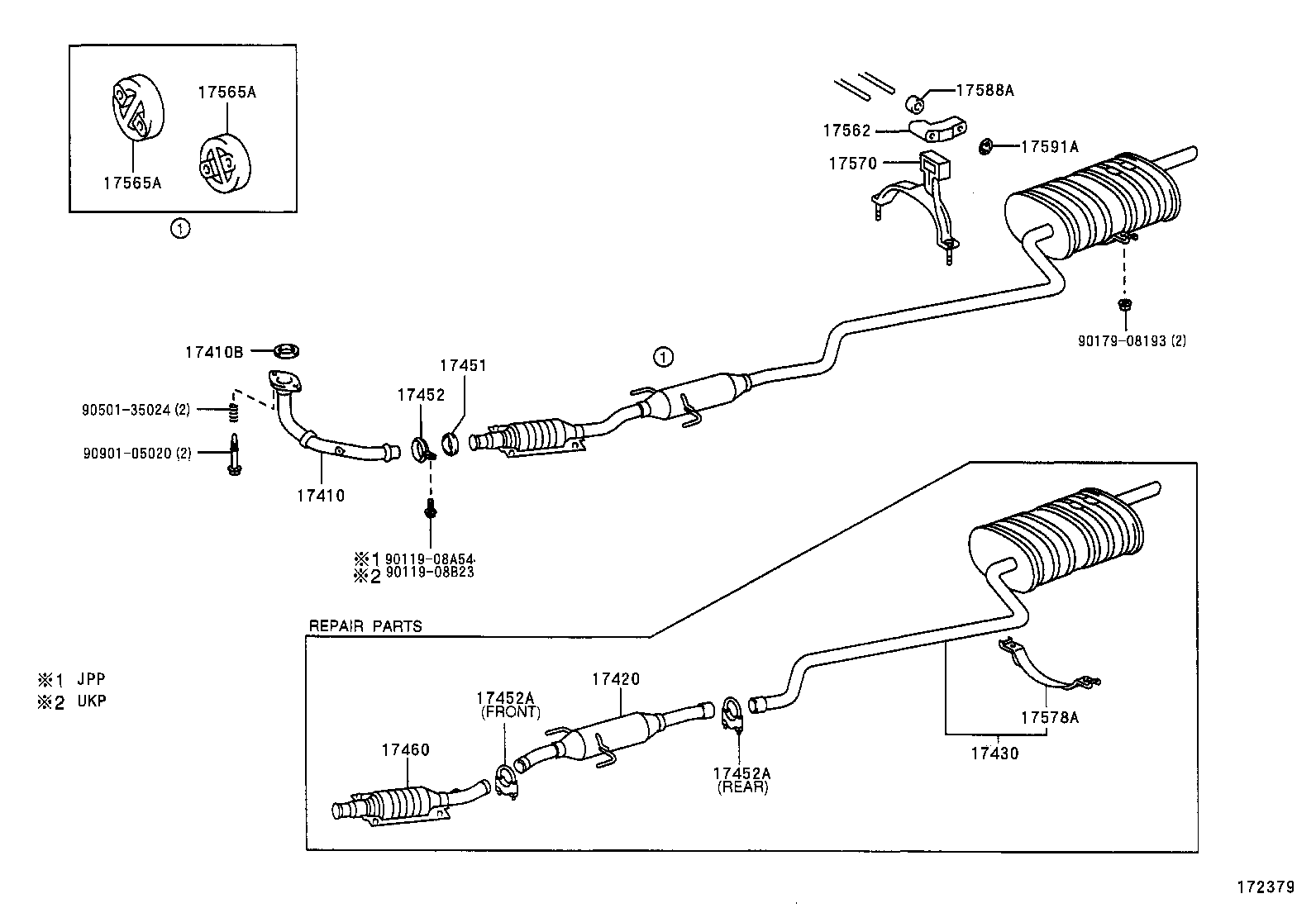

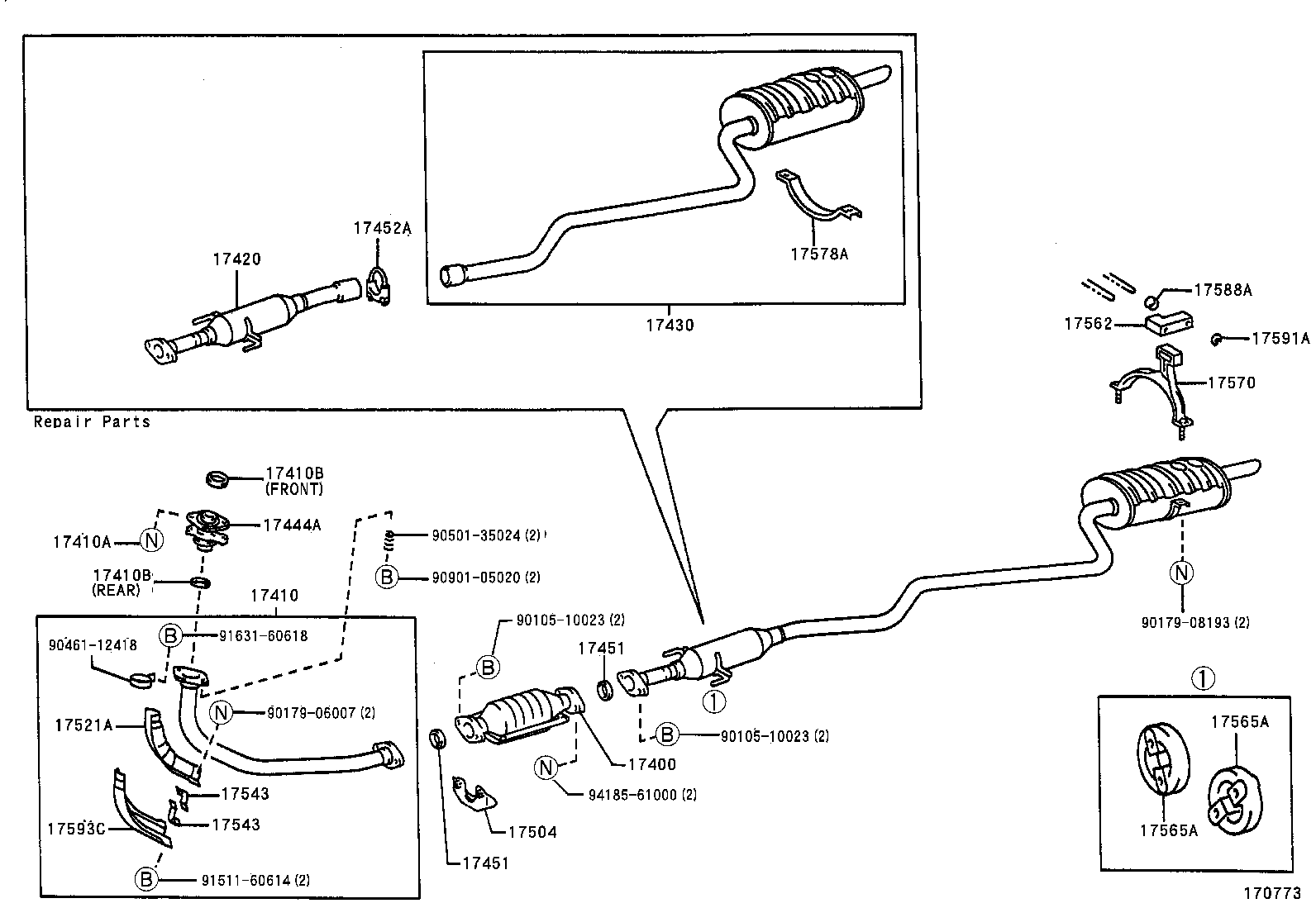

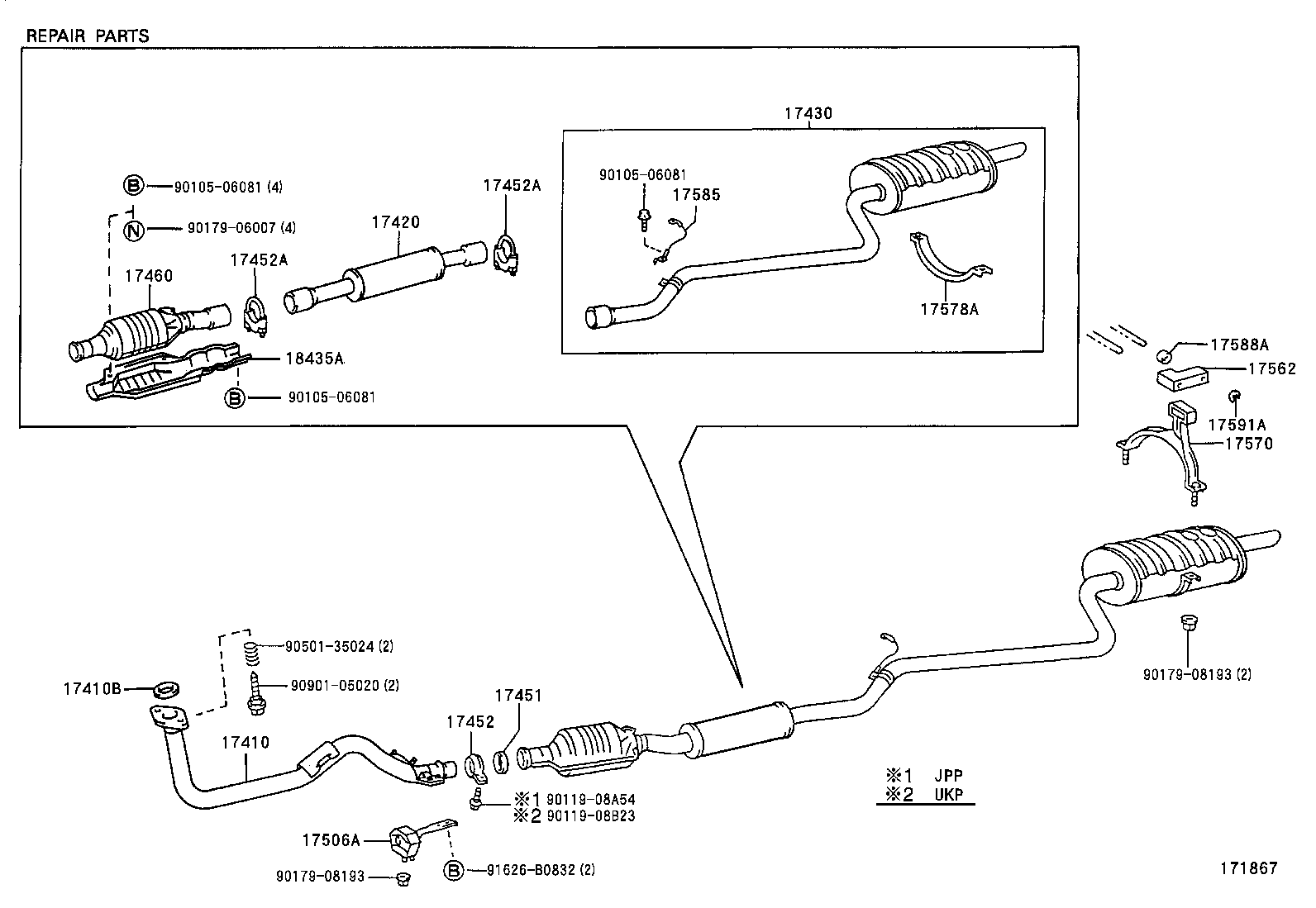

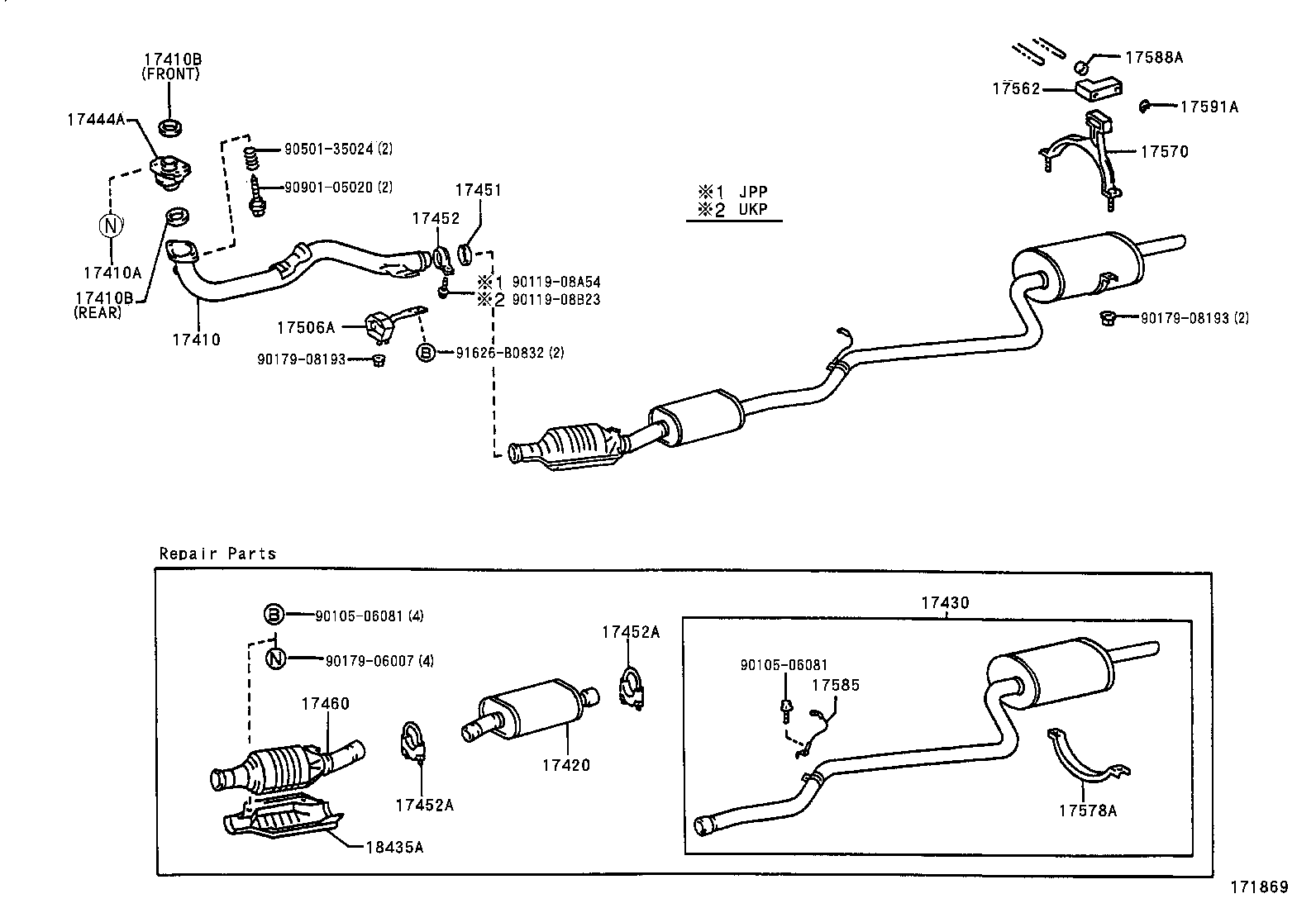

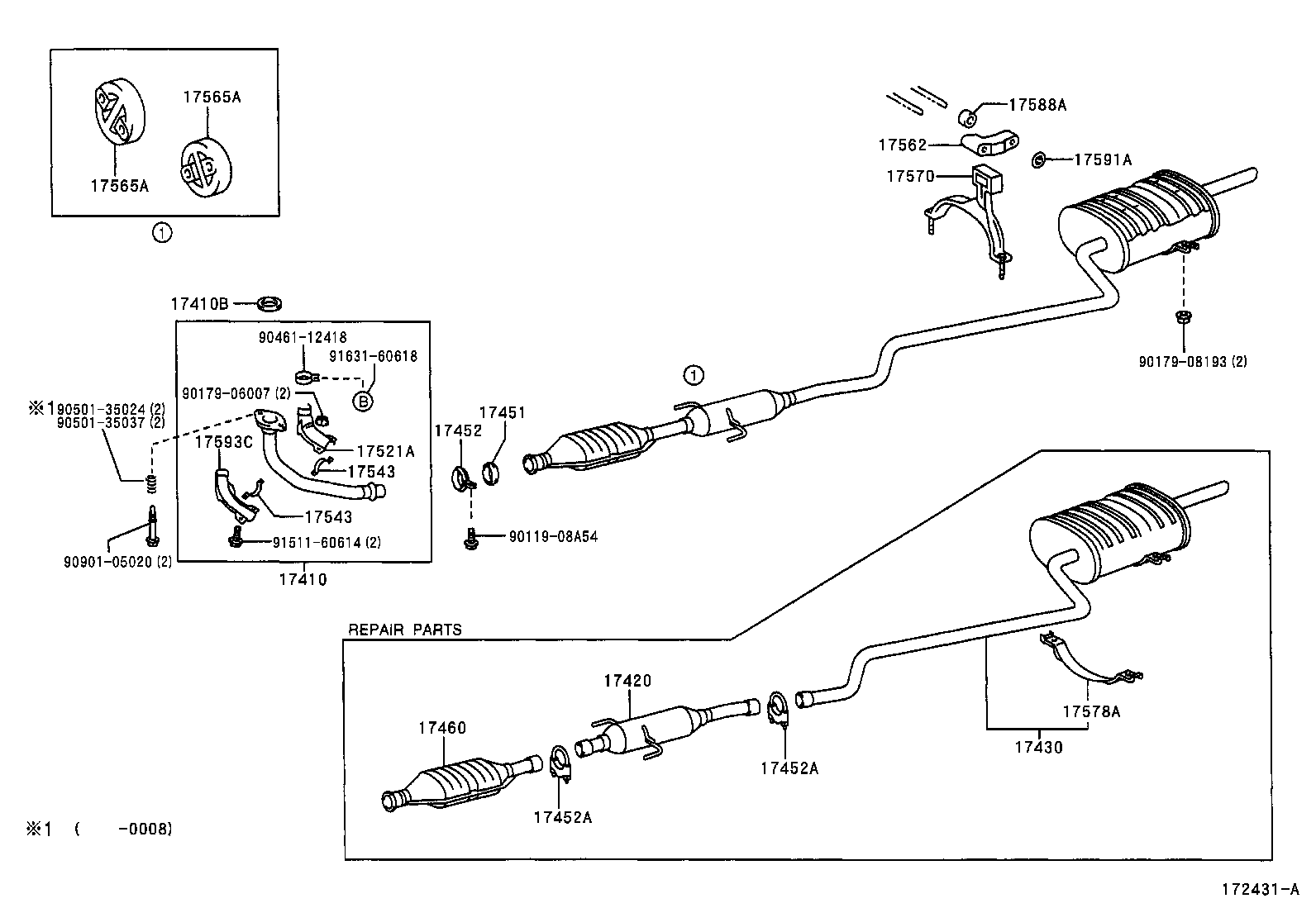

Figure 171868 171868 1997-04 → — Figure 171869 171869 1997-04 → — Figure 172697A 172697A 2000-08 → — Figure 170773 170773 1997-04 → 1999-10 Figure 171867 171867 1997-04 → — Figure 172379 172379 1999-10 → — Figure 172378B 172378B 1999-12 → — Figure 172431A 172431A 2000-01 → —

Part groups

PNCDescription
17400 Converter Assy, W/Catalyst
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17420 Pipe Assy, Exhaust, Center
17430 Pipe Assy, Exhaust, Tail
17444A Spacer, Exhaust Front Pipe
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17452A Clamp, Exhaust Pipe
17460 Converter Assy, Catalytic W/Pipe
17504 Bracket Sub-assy, Catalytic Converter
17506A Bracket Sub-assy, Exhaust Pipe NO.1 Support
17521A Protector, Exhaust Pipe, Upper NO.1
17543 Stay, Exhaust Pipe Protector, NO.3
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
17570 Bracket Assy, Exhaust Pipe Support
17578A Clamp, Muffler
17585 Hanger, Exhaust Pipe
17588A Spacer, Exhaust Pipe Hanger
17591A Stopper, Exhaust Pipe Support
17593C Protector, Exhaust Pipe, Lower NO.1
18435A Protector, Monolithic Converter
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
