Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

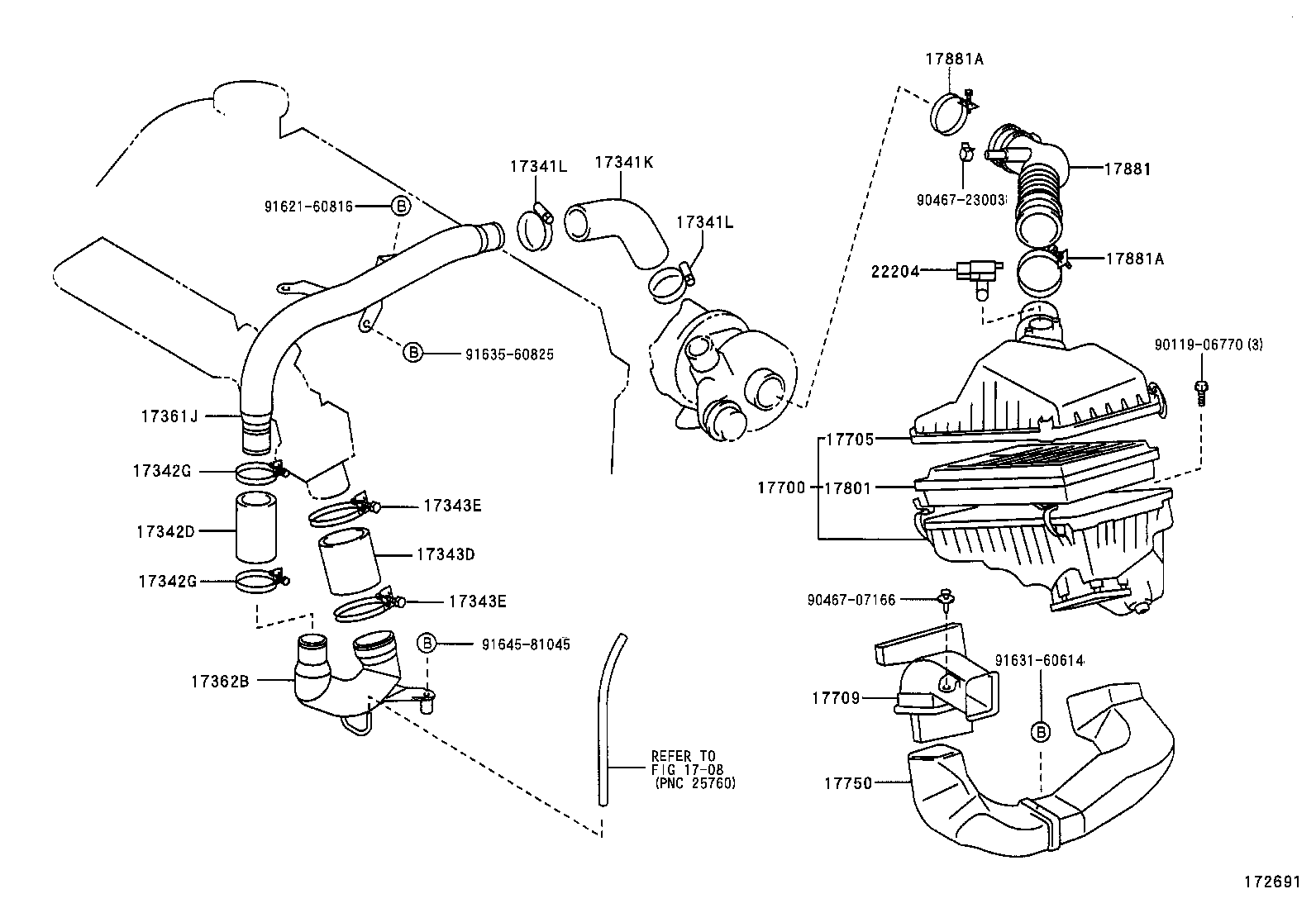

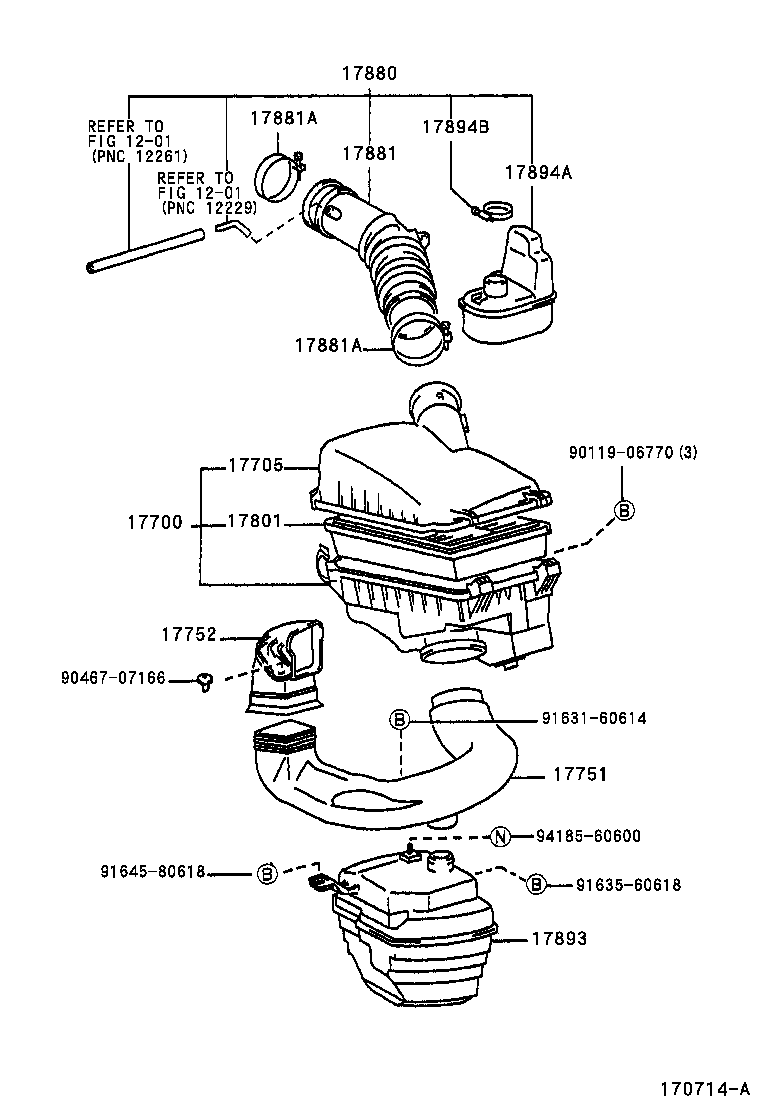

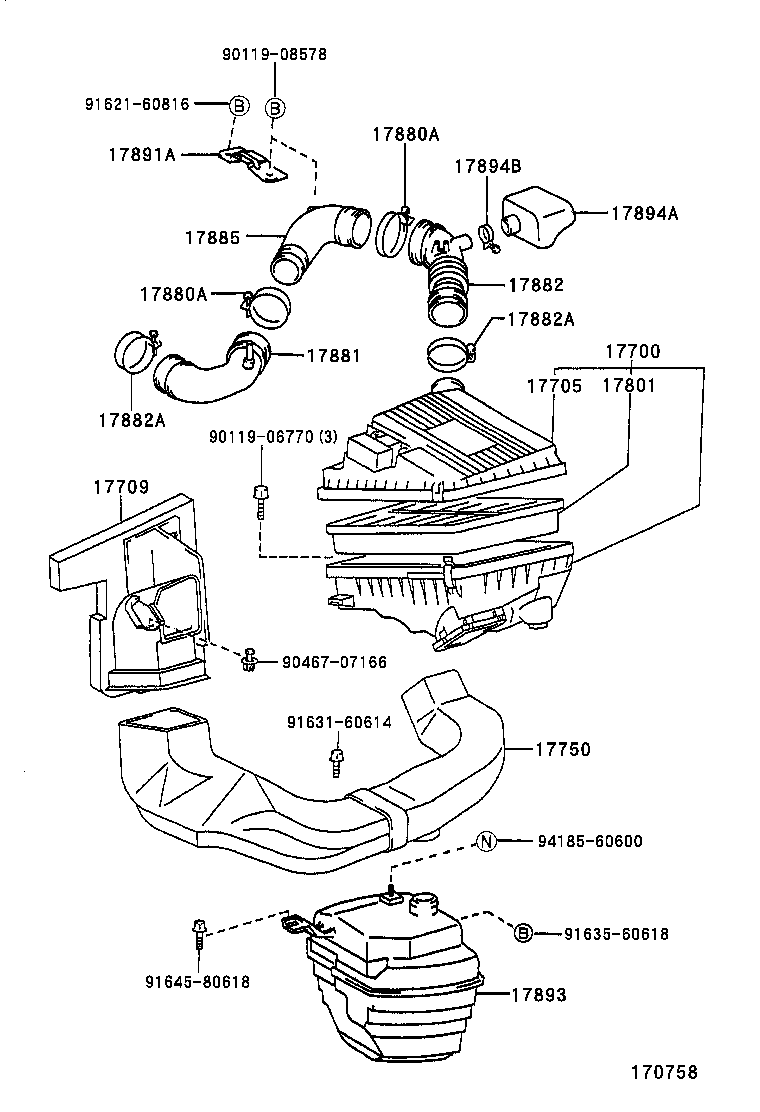

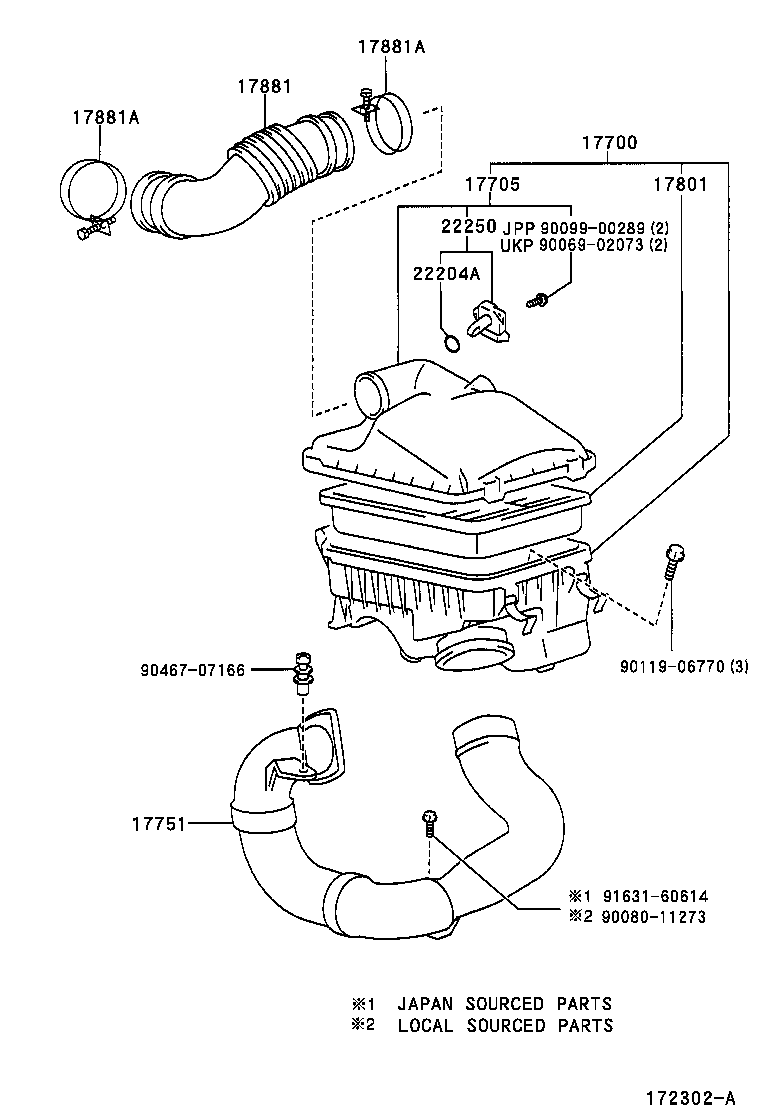

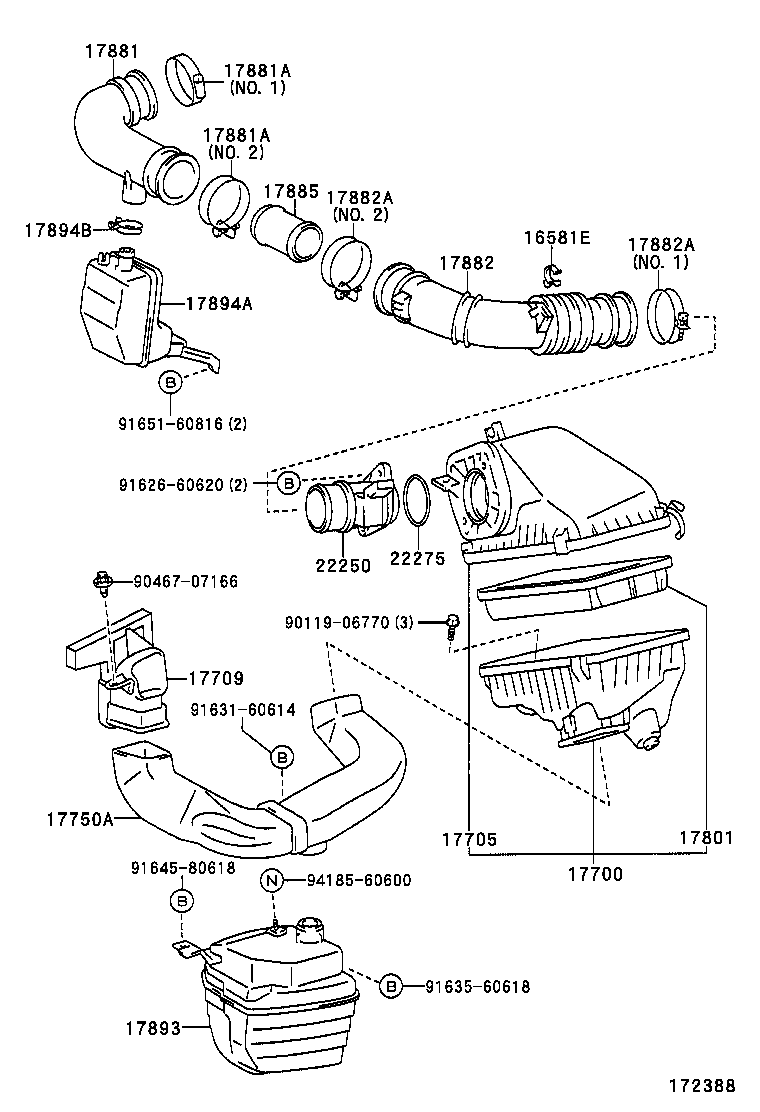

Air Cleaner
32 part groups · 6 illustrations
Part groups
| PNC | Description |
|---|---|
| 16581E | Clamp, Hose(FOR AIR CLEANER HOSE) |
| 17341K | Hose, Air, NO.1(FOR INTERCOOLER) |
| 17341L | Clamp, Hose |
| 17342D | Hose, Air, NO.2 |
| 17342G | Clamp, Hose, NO.2(FOR INTERCOOLER) |
| 17343D | Hose, Air, NO.3 |
| 17343E | Clamp, Hose(FOR AIR HOSE, NO.3) |
| 17361J | Tube, Air, NO.1 |
| 17362B | Tube, Air, NO.2 |
| 17700 | Cleaner Assy, Air |
| 17705 | Cap Sub-assy, Air Cleaner |
| 17709 | Inlet Sub-assy, Air Cleaner |
| 17750 | Cover Assy, Air Cleaner Inlet, Seal |
| 17750A | Inlet Assy, Air Cleaner |
| 17751 | Inlet, Air Cleaner, NO.1 |
| 17752 | Inlet, Air Cleaner, NO.2 |
| 17801 | Element Sub-assy, Air Cleaner Filter |
| 17880 | Hose Assy, Air Cleaner |
| 17880A | Clamp, Hose |
| 17881 | Hose, Air Cleaner, NO.1 |
| 17881A | Clamp(FOR AIR CLEANER HOSE, NO.1) |
| 17882 | Hose, Air Cleaner, NO.2 |
| 17882A | Clamp(FOR AIR CLEANER HOSE, NO.2) |
| 17885 | Pipe, Air Cleaner |
| 17891A | Clamp, Air Cleaner Hose |
| 17893 | Resonator, Intake Air |
| 17894A | Resonator, Intake Air, NO.2 |
| 17894B | Clamp, Hose(FOR INTAKE AIR RESONATOR, NO.2) |
| 22204 | Meter Sub-assy, Intake Air Flow |
| 22204A | Ring, O(FOR INTAKE AIR FLOW METER) |
| 22250 | Meter Assy, Intake Air Flow |
| 22275 | Gasket, Air Flow Meter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
