Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

20 part groups · 7 illustrations

Illustrations

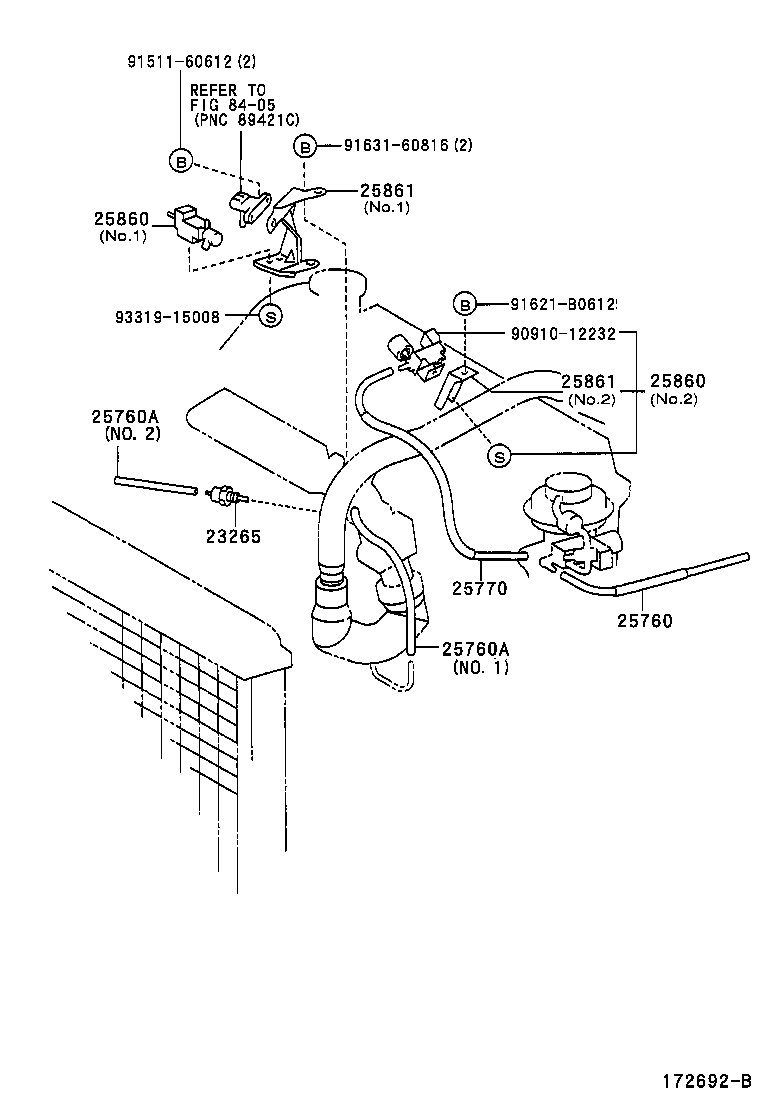

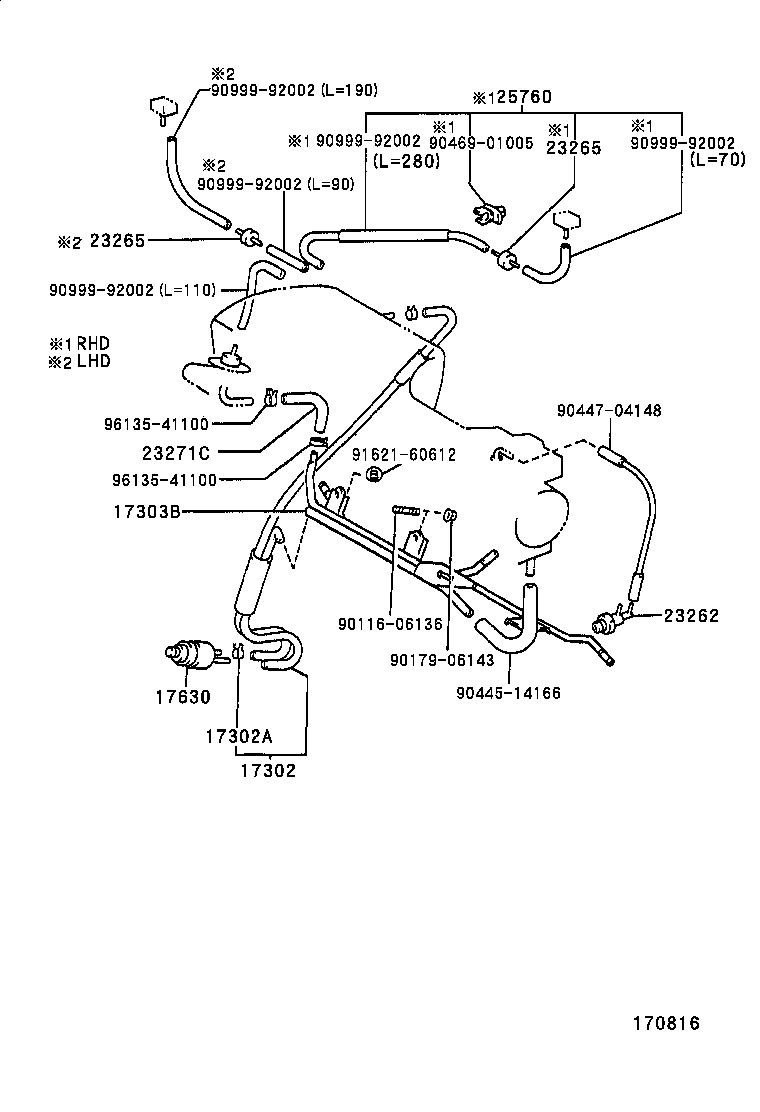

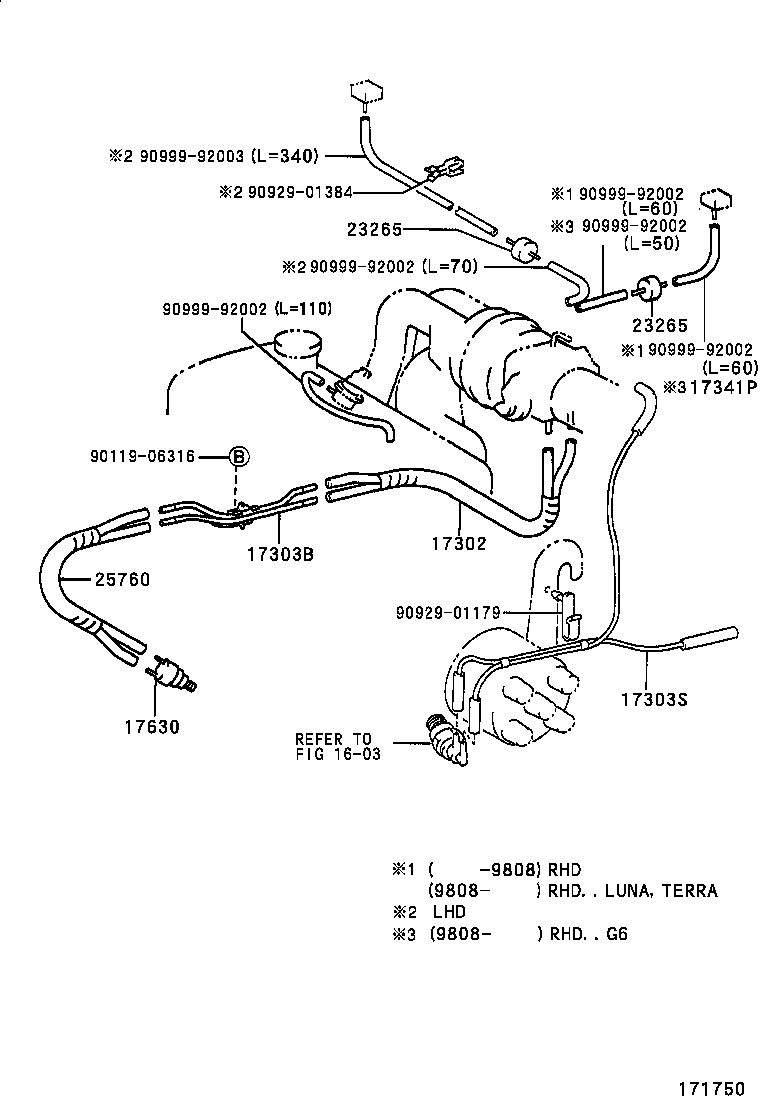

Figure 170021 170021 1997-04 → — Figure 170816 170816 1997-04 → 1999-11 Figure 170759A 170759A 1997-04 → 1999-10 Figure 172692B 172692B 2000-08 → — Figure 171750 171750 1997-04 → — Figure 172713 172713 1999-12 → — Figure 172587 172587 1999-10 → —

Part groups

PNCDescription
17302 Hose Sub-assy, Air
17302A Clip, Hose
17303B Pipe Sub-assy, Air, NO.1
17303S Pipe Sub-assy, Air, NO.3
17341P Hose, Air
17630 Valve Assy, Air Control
23262 Valve, Bimetal Vacuum Switching, NO.1
23265 Filter, Gas, NO.1
23271C Hose, Fuel
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23829 Hose, Fuel Vapor Feed, NO.3
25719 Tank, Vacuum Surge
25760 Hose Assy, Vacuum Transmitting
25760A Hose Assy, Vacuum Transmitting
25770 Hose Assy, Vacuum Transmitting, NO.2
25819 Valve Assy, Vacuum Regulating
25850 Valve Assy, Electric Vacuum Regulating
25860 Valve Assy, Vacuum Switching, NO.1
25861 Bracket, Vacuum Switching Valve
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
