Toyota Corolla HB/LB

1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe

Discontinued model Data version 2002-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ignition Coil & Spark Plug / Glow Plug

15 part groups · 6 illustrations

Illustrations

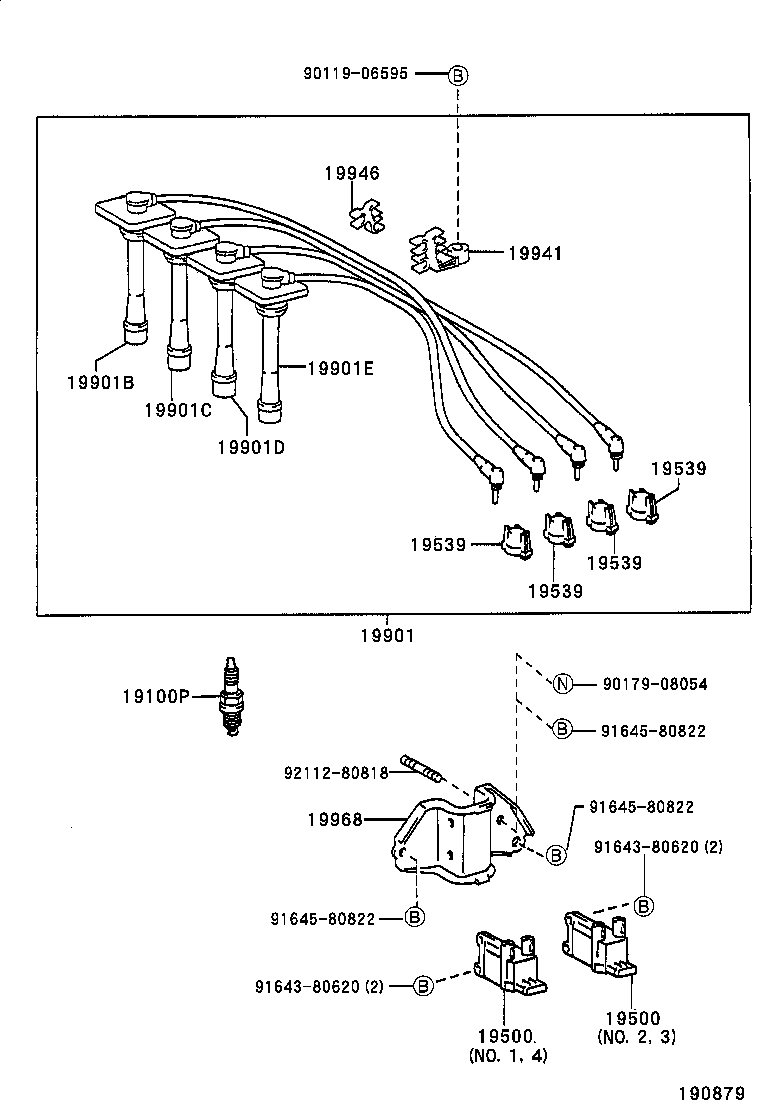

Figure 190961 190961 1997-04 → 1999-11 Figure 190377 190377 1997-04 → 1999-10 Figure 190994 190994 2000-08 → — Figure 190879 190879 1997-04 → — Figure 191144 191144 1999-12 → — Figure 191120A 191120A 1999-10 → —

Part groups

PNCDescription
19100P Plug, Spark
19500 Coil Assy, Ignition
19539 Holder, Resistive Code, NO.4
19850 Plug Assy, Glow
19850B Grommet, Screw(FOR GLOW PLUG)
19871 Connector, Glow Plug NO.1
19901 Cord Set, Coil & Spark, W/Resistive
19901B Cord, Spark Plug Resistive, NO.1
19901C Cord, Spark Plug Resistive, NO.2
19901D Cord, Spark Plug Resistive, NO.3
19901E Cord, Spark Plug Resistive, NO.4
19941 Clamp, Resistive Cord, NO.1
19941A Clamp(FOR RESISTIVE CORD)
19946 Clamp, Resistive Cord, NO.3
19968 Bracket, Ignition Coil
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
