Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

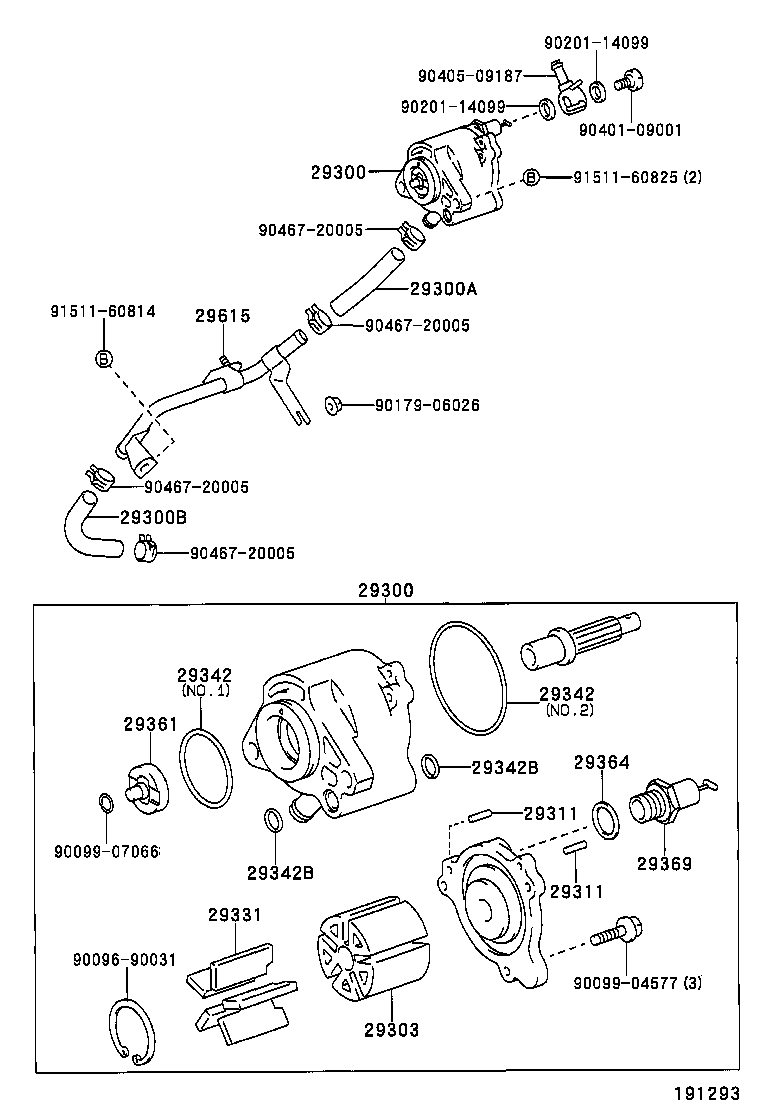

Vacuum Pump
13 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 29300 | Pump Assy, Vacuum |
| 29300A | Hose, Vacuum Pump Oil Inlet |
| 29300B | Hose, Vacuum Pump Oil Outlet |
| 29303 | Rotor Sub-assy, Vacuum Pump |
| 29311 | Pin, Vacuum Pump Dowel, NO.1 |
| 29331 | Blade, Vacuum Pump, A |
| 29342 | Packing, Vacuum Pump |
| 29342B | Ring, O |
| 29361 | Coupling, Vacuum Pump |
| 29364 | Washer, Vacuum Pump |
| 29369 | Valve Sub-assy, Check |
| 29615 | Pipe, Vacuum Pump Oil |
| 44784A | Gasket, Vacuum Pump |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
