Toyota Corolla HB/LB
1997-05 → 2001-11 · chassis AE111,CDE110,CE110,EE111,WZE110,ZZE11# · catalogue 153540 · Europe
Discontinued model
Data version 2002-04

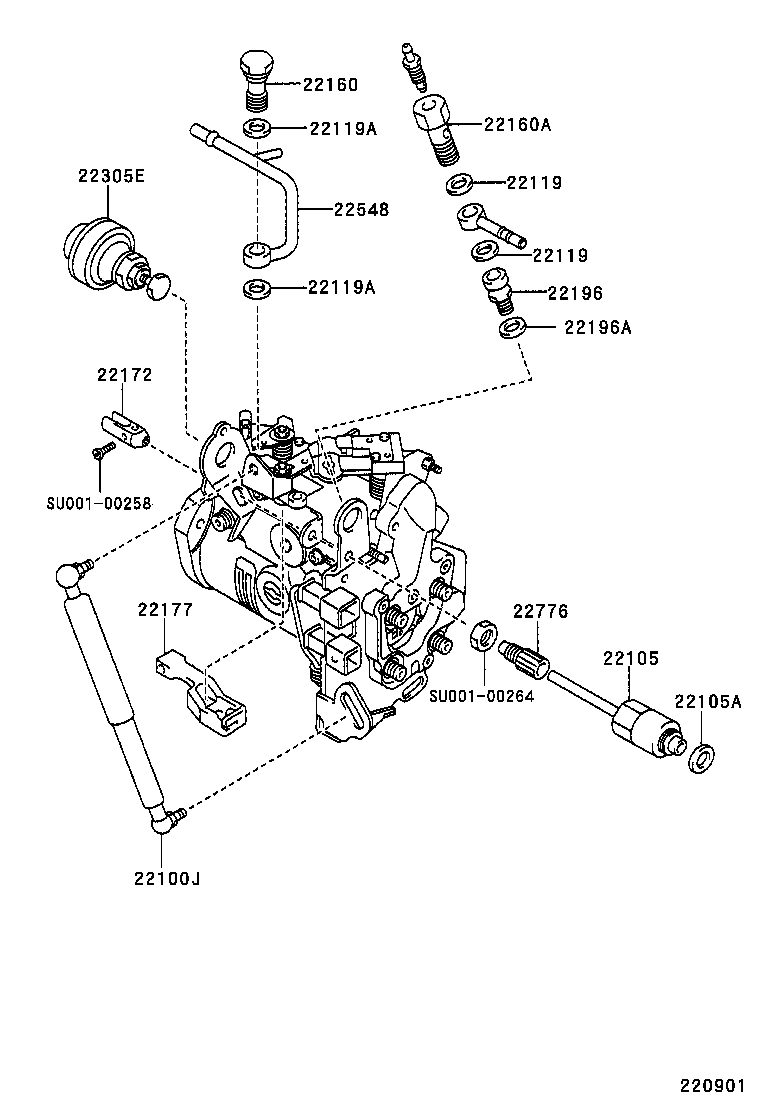

Injection Pump Body
28 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 22100J | Damper, Injection Pump |
| 22104 | Valve Sub-assy, Injection Pump Delivery |
| 22105 | Element Sub-assy, Injection Pump |
| 22105A | Ring, O(FOR PUMP ELEMENT) |
| 22119 | Washer, Air Bleeder Nipple |
| 22119A | Washer, Air Bleeder Nipple, NO.2 |
| 22131 | Holder, Delivery Valve |
| 22148 | Spring, Delivery Valve |
| 22149 | Gasket, Delivery Valve |
| 22160 | Screw Sub-assy, Overflow |
| 22160A | Screw Sub-assy, Over Flow, NO.2 |
| 22172 | Clip, Connector Support, Solenoid |
| 22176 | Plug, Distributive Head |
| 22176A | Ring, O(FOR DISTRIBUTIVE HEAD PLUG) |
| 22177 | Stay, Injection Pump Body |
| 22178B | Bracket(FOR INJECTION PUMP ASSY) |
| 22196 | Screw, Fuel Inlet Follow |
| 22196A | Washer(FOR INLET FOLLOW SCREW) |
| 22305E | Actuator, Idle-up |
| 22390A | Solenoid Assy, Fuel Cut |
| 22548 | Nipple, Swivel |
| 22569 | Screw, Overflow |
| 22569A | Screw, Injection Pump |
| 22602 | Filter Sub-assy, Fuel Injection Pump |
| 22689 | Washer(FOR SWIVEL NIPPLE) |
| 22751 | Wire Sub-assy, Fuel Cut Solenoid |
| 22776 | Screw, Smoke Set Adjusting |
| 23010 | Valve Assy, Timing Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
